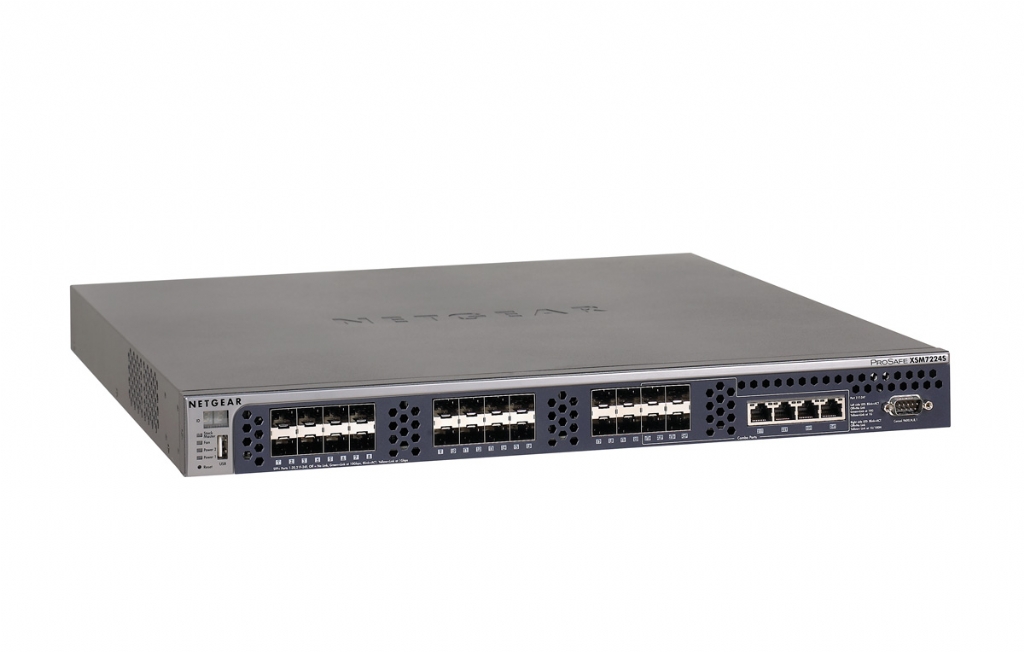

Netgear ProSafe XSM7224S 24-Port 10 Gigabit Stackable L2 Managed Switch

XSM7224S-100EUS
Netgear ProSafe XSM7224S 24-Port 10 Gigabit Stackable L2 Managed Switch
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?

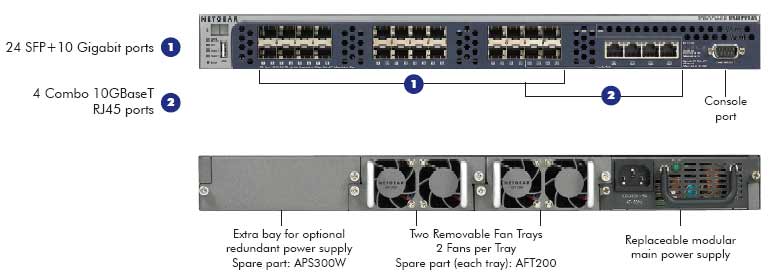

The NETGEAR ProSafe 10 Gigabit Stackable Managed Switch, XSM7224S, allows for a flexible top-of-rack infrastructure. All 24 ports of 10 Gigabit SFP+ interfaces are Gigabit/10 Gigabit capable and deliver wired speed performance with ultra low latency. Four shared 10GBase-T interfaces broaden 10 Gigabit connectivity with auto-sensing RJ45. Local/distant stacking provides versatile 10 Gigabit deployment possibilities, such as Distributed (LACP) Aggregation for virtualized servers and storage. Combining superior resiliency, enterprise-class security, and non-blocking performance, the XSM7224S offers a full set of Layer 2 management features, as well as Layer 2+ (Layer 3 lite - IPv4 routing) with unsurpassed affordability. Together with VLAN routing, voice-class prioritization, and chassis-like stacking, the XSM7224S can be deployed as a data centre Top-of-Rack switch, or closer to the core of small and medium businesses' growing networks, as a distribution layer 10 Gigabit Ethernet aggregation switch.

Specifications

Compliance
SafetyCE mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950
Electrical
Voltage/Power/Frequency100 to 240VAC / 195.2W / 50 to 60Hz
Environmental
EnvironmentalOperating Temperature 32 to 122C - Humidity 90%
General
Model NameXSM7224S
Product TypeNetwork Switch
WarrantyProSafe Lifetime
Barcode606449073690
Physical
In The BoxProSafe 24-port Stackable 10 Gigabit L2+ Managed Switch (XSM7224S) Power cord Rubber footpads for tabletop installation Rubber caps for the SFP+ sockets Rack-mounting kit Null-modem serial cable (RS-232) with 9-pin connector Resource CD
Dimensions44.0cm (W) x 43.1cm (D) x 4.3cm (H) - Weight 6.3kg
Routing
Layer 2 ServicesIEEE 802.3ad Link Aggregation (Static or LACP) up to 48 trunks per stack and up to 8 ports per trunk 802.1AX-2008 User selectable LAG hashing algorithm IEEE 802.1D Spanning Tree Protocol (max 256 Spanning Trees) IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree MAC, IP, TCP/UDP ports IEEE 802.1p Class of Service (CoS) DiffServ QoS (RFC 2998) Weighted round robin (WRR) queue technology Strict priority queue technology Ingress rate limit in 1 Kbps increments Ingress and egress traffic
Layer 3 ServicesMAC, IP, TCP/UDP ports IEEE 802.1p Class of Service (CoS) DiffServ QoS (RFC 2998) Weighted round robin (WRR) queue technology Strict priority queue technology Ingress rate limit in 1 Kbps increments Ingress and egress traffic
System
SecurityAccess control lists (ACL) L2/L3/L4: MAC, IP, TCP MAC-based source/destination ACL IP subnet-based source/destination ACL Protocol-based source/destination ACL ACL over VLAN Dynamic ACLs 2,048 ACLs rules Ingress and egress ACL Network storm protection including broadcast multicast and unicast traffic DoS configurable protection End-to-end flow control Service-aware flow control ICMP throttling Protected ports Port locking MAC filtering Port security DHCP snooping IP Source Guard Dynamic ARP inspection RADIUS (RFC 2865) RADIUS accounting (RFC 2866) IEEE 802.1x port access authentication (RADIUS) Network access control: Captive portal with internal authentication or external RADIUS authentication Possible configuration of 10 captive portals TACACS+
Protocols SupportedIEEE 802.3 Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3ad Trunking (LACP) IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) IEEE 802.1D Spanning Tree (STP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1p Quality of Service IEEE 802.1Q VLAN tagging IEEE 802.1v protocol-based VLAN IEEE 802.1X Radius network access control IEEE 802.3x flow control
Wireless
VLANsIEEE 802.1Q static VLAN (up to 4,096 VLANs) IEEE 802.1v Protocol VLAN Port-based VLAN MAC-based VLAN IP subnet-based VLAN Protocol-based VLAN Voice VLAN (based on IP phones OUIs) Guest VLAN with IEEE 802.1x Auto-VLAN assignment via RADIUS IEEE 802.1 Q-in-Q (Double-VLAN tagging) GARP with GVRP/GMRP (automatic registration for membership in VLANs or in multicast groups) Private VLAN groups

Product downloads

There are currently no downloads available for this product. If you need a specific document, such as a manual, installation guide or datasheet please contact us and we would be happy to help.
