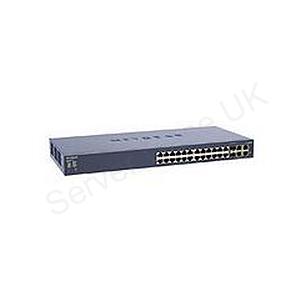

Netgear FS728TP 24 Port 10/100 Smart Switch

NETGEAR ProSafe Smart Switches fill the gap between unmanaged and fully managed switches. The family of ProSafe Smart Switches is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2/Layer 3 management implementation. This PoE capable Smart Switch, the FS728TP, provides power and data using built-in IEEE 802.3af PoE on all 24 ports. In addition, the FS728TP offers an intuitive web-based management tool for quick and easy deployment and configuration making it ideal for deploying access points, VoIP phones and IP-based surveillance cameras. This switch is equipped with highly advanced features such as Access Control Lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP Snooping among others to provide a small and medium-sized business with a network that is geared for growth while providing scalability and reliability. With the utility of 24 10/100 Mbps ports, two copper 10/100/1000 ports and two combination (Copper/hot-swappable Small Form-factor Pluggable (SFP) Gigabit ports for optional fibre connectivity, growing business networks, classrooms and workgroups can benefit from superior performance and keep up with expanding network needs. This high performing switch features a nonblocking wire-speed architecture with an 12.8Gbps switching capacity for maximum data throughput. All 28 RJ-45 ports automatically negotiate to the highest speed and support Auto Uplink technology to make the right link.

Features

• 24 x 10/100 Mbps auto sensing Fast Ethernet
• 2 x 10/100/1000 Mbps auto-sensing Gigabit Ethernet switching ports (RJ-45)
• 2 x Combo Gigabit Copper/SFP slots
• Full-featured, flexible Power over Ethernet (PoE)
• Advanced Security
• Advanced Quality of Service
• ‘Smart’ Management Features

Specifications

Electrical
Voltage/Power/Frequency	100 to 240VAC / 225W / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 50°C - Humidity 0 to 90%
General
Model Name	FS728TP
Product Type	Network Switch
Warranty	NETGEAR Limited Lifetime warranty
Barcode	0606449050257
Interfaces/Ports
Fixed Ports	24 port(s) x 10/100Mbps , (24 x 10/100 Mbps auto sensing Fast Ethernet • 2 x 10/100/1000 Mbps auto-sensing Gigabit)
Network Slots	2 slot(s) x
Memory
Buffer Memory	3MB
Performance
Mean Time Between Failure (MTBF)	300,000 Hours
Network Latency	<20Ìs for 64-byte frames in store-and forward mode for 100 Mbps to 100 Mbps transmission
Stacking Bandwidth (Max)	12.8Gbps
Physical
In The Box	24-port Smart Switch with Gigabit Ports FS728TP • Rubber footpads • Power cord • Rack-mount kit • Resource CD • Installation guide • Warranty/Support information card • Category 5 cable
Dimensions	44.0cm (W) x 20.5cm (D) x 4.3cm (H) - Weight 4.0kg
System
Certifications	Electromagnetic Emissions: CE mark, commercial, FCC Part 15 Class A, VCCI Class A, C-Tick • Safety: CE mark, commercial, cUL IEC950/EN60950
System Requirements
System Requirements	Category 5 network cables • Network card for each PC • Web Browser (e.g., Internet Explorer 5.0 or higher, Netscape 6.0 or higher)
