These high-speed, Layer 2 managed switches deliver optimised and Gigabit throughput wherever your network needs it; to high performance departments or workgroups at the edge, or as a backbone for Fast Ethernet switches and servers in demanding smaller networks.
Features
Specifications
Compliance | |
Standards Compliance | IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control |
Electrical | |
Voltage/Power/Frequency | 100 to 240VAC / 90W / 50 to 60Hz |
Environmental | |
Environmental | Operating Temperature 0 to 40°C - Humidity 0 to 90% |
General | |

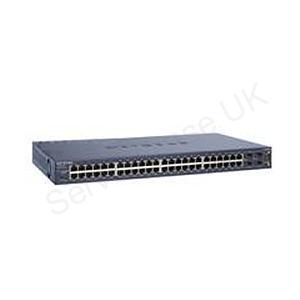

Model Name | GSM7248 |
Product Type | Network Switch |
Warranty | NETGEAR 5-year warranty. |
Barcode | 606449069174 |
Interfaces/Ports | |
Fixed Ports | 48 port(s) x 10/100/1000Mbps , (48 x RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink and auto-negotiate on all ports)) |
Network Slots | (4 x SFP connectors for fibre connection (shared with the last four copper ports)) |
Console Ports | 1 x RS-232 |
Memory | |
Buffer Memory | Packet Buffer Memory per port: 0.12MB |
Flash Memory | 8MB |
Memory (Maximum) | 64MB |
Performance | |
Backplane | 96Gbps |
MAC Addresses | 8,000 |
Mean Time Between Failure (MTBF) | 57,800 Hours |
Network Latency | Switch latency: Less than 20 microseconds for 64-byte frames |
Physical | |
LED Status Indicators | Per port: Speed, Link, Activity • Per device: Power, Fan Status |
In The Box | GSM7248 ProSafe 48 Port Gigabit L2 Managed Switch • Power cable • Null modem cable • Rubber footpads for tabletop installation • Rackmount kit • Installation guide • Resource CD • Warranty/Support information card |
Dimensions | 44.0cm (W) x 25.7cm (D) x 4.3cm (H) - Weight 4.2kg |
System | |
Management Capabilities | Management Specifications: IEEE 802.1Q Static VLAN (Up to 512) • IEEE 802.1p Class of Service (CoS) • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.1D Spanning Tree Protocol • IEEE 802.1w Rapid Spanning Tree • IEEE 802.1s Multiple Spanning Tree • IEEE 802.1x Port Access Authentication • RFC 768 UDP • RFC 854-859 Telnet • IGMP Snooping Support • Port Mirroring Support • RFC 951 BootP • RFC 1157, 1902, 1903, 1904, 1905, 1906, 1907 SNMP v1, v2c, v3 • RFC 1213 MIB II-RFC 1215 SNMP Traps • RFC 1493 Bridge MIB • RFC 1534 DHCP and BootP Interoperation • RFC 1643 Ethernet Interface MIB • RFC 1757 RMON groups 1,2,3, and 9 • RFC 2131, 2132 DHCP and BootP • RFC 2865 RADIUS-RFC 2998 DiffServ • RFC 3046 DHCP Relay • Broadcast Storm Protection • Private Enterprise MIB • Broadcast Storm Protection • Weighted Round Robin (WRR) • Queuing Technology • RFC 2030 Simple Network Time Protocol (SNTP) • SYSLOG |
Certifications | Electromagnetic Emissions: CE mark, commercial • FCC Part 15 Class A • VCCI Class A-EN 55022 (CISPR 22), Class A • C-Tick • Electromagnetic Immunity: EN 50082-1 • EN 55024 • Safety: CE mark, commercial • CSA certified (CSA 22.2 #950) • UL listed (UL 1950)/CUL IEC950/EN60950 |
User Interface | Command Line Interface (CLI) via console port • Web-based management via embedded HTTP server protected with Secured Sockets Layer (SSLv3) or Transport Layer Security (TLS v1) • Telnet remote login (5 sessions) securable with Secured Shell (SSH v1.5, v2) |
