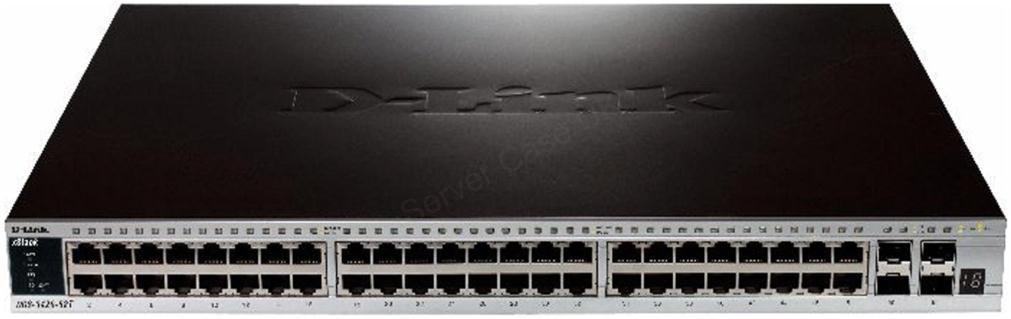

D-Link DGS-3420-52T 52-Port xStack Layer 2+ Managed Stackable Gigabit Switch

DGS-3420-52T
D-Link DGS-3420-52T 52-Port xStack Layer 2+ Managed Stackable Gigabit Switch
£1,746.22
ex. VAT
(£2,095.46
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
The DGS-3420 Series of next generation Layer 2+ Gigabit switches delivers performance, flexibility, security, multi-layer QoS and access control, along with redundant power solutions for SMBs and enterprises. With high Gigabit port densities, Gigabit SFP and 10-Gigabit SF + support, and advanced software solutions, these switches can act as either departmental access layer devices or aggregation switches to form a multilevel network structured with backbone and centralised high-speed servers. Service providers can take advantage of the high SFP density switches to structure the aggregation of Fibre to the Building (FTTB) networks that they extend to the subscriber's sites.

Features
  • Five different models in the Series, including PoE/PoE+ versions
  • Five different models in the Series, including PoE/PoE+ versions
  • Multiple functions in a single device: switching, routing, PoE, eliminating the need of purchasing multiple routers and switches
  • Multiple functions in a single device: switching, routing, PoE, eliminating the need of purchasing multiple routers and switches
  • Physical stacking architecture: up to 576 Gigabit ports on a single stack
  • Physical stacking architecture: up to 576 Gigabit ports on a single stack
  • Web-based GUI for easy management
  • Web-based GUI for easy management
  • Comprehensive security features, including Microsoft NAP
  • Comprehensive security features, including Microsoft NAP
  • Comprehensive IPv6 support
  • Comprehensive IPv6 support
  • SD card slot to store and restore configuration files
  • SD card slot to store and restore configuration files
  • Green technology - Power-saving mode, time-base PoE, Smart Fans
  • Green technology - Power-saving mode, time-base PoE, Smart Fans
Specifications

Compliance
Standards ComplianceRFC1213 MIB-II RFC1493 Bridge MIB RFC1907 SNMPv2 MIB RFC2571~2576 SNMP MIB RFC1271, 2819 RMON MIB RFC2021 RMON v2 MIB RFC2665 Ether-like MIB RFC2668 MAU MIB RFC2674 802.1p MIB RFC2233, 2863 IF MIB RFC2618 RADIUS Authentication Client MIB RFC1724 RIP v2 MIB RFC2096 IP Forwarding Table MIB (CIDR) RFC2620 RADIUS Accounting Client MIB Ping MIB Traceroute MIB D-Link Private MIB RFC768 UDP RFC783 TFTP RFC 791 IP RFC 793 TCP RFC 826 ARP RFC854 Telnet RFC951, 1542 BootP RFC2068 HTTP RFC3056, 5214 IPv6 Tunnel RFC2138 RADIUS RFC2139 RADIUS Accounting RFC1492 TACACS RFC3176 sFlow RFC2598 DiffServ Expedited Forwarding
Standards ComplianceRFC1213 MIB-II RFC1493 Bridge MIB RFC1907 SNMPv2 MIB RFC2571~2576 SNMP MIB RFC1271, 2819 RMON MIB RFC2021 RMON v2 MIB RFC2665 Ether-like MIB RFC2668 MAU MIB RFC2674 802.1p MIB RFC2233, 2863 IF MIB RFC2618 RADIUS Authentication Client MIB RFC1724 RIP v2 MIB RFC2096 IP Forwarding Table MIB (CIDR) RFC2620 RADIUS Accounting Client MIB Ping MIB Traceroute MIB D-Link Private MIB RFC768 UDP RFC783 TFTP RFC 791 IP RFC 793 TCP RFC 826 ARP RFC854 Telnet RFC951, 1542 BootP RFC2068 HTTP RFC3056, 5214 IPv6 Tunnel RFC2138 RADIUS RFC2139 RADIUS Accounting RFC1492 TACACS RFC3176 sFlow RFC2598 DiffServ Expedited Forwarding
EmissionsFCC Class A CE Class A VCCI Class A IC C-Tick
EmissionsFCC Class A CE Class A VCCI Class A IC C-Tick
SafetyCB cUL LVD
SafetyCB cUL LVD
Electrical
Voltage/Power/Frequency100 to 240VAC / 50Hz
Voltage/Power/Frequency100 to 240VAC / 50Hz
Environmental
EnvironmentalOperating Temperature 0 to 50C - Humidity 10 to 90%
EnvironmentalOperating Temperature 0 to 50C - Humidity 10 to 90%
General
Model NameDGS-3420-52T
Product TypeManaged Switch
Model NameDGS-3420-52T
Product TypeNetwork Switch
Barcode790069361715
Barcode790069361715
Interfaces/Ports
Network Speeds Supported10/100/1000MBps
Network Speeds Supported10/100/1000MBps
Fixed Ports52 port(s) x RJ-45 , 10/100/1000Mbps ,
Fixed Ports52 port(s) x RJ-45 , 10/100/1000Mbps ,
Console Ports1 x RJ-45
Console Ports1 x RJ-45
Management Port1 x 10/100 Ethernet Port
Management Port1 x 10/100 Ethernet Port
Memory
Buffer Memory2MB
Buffer Memory2MB
Performance
MAC Addresses16,000
MAC Addresses16,000
Port Bandwidth10/100/1000Mbps
Port Bandwidth10/100/1000Mbps
Stacking Capabilities12 Units Per Stack
Stacking Capabilities12 Units Per Stack
Physical
Case ColourBlack
Case ColourBlack
Dimensions44.1cm (W) x 31.0cm (D) x 4.4cm (H) - Weight 5.07kg
Dimensions44.1cm (W) x 31.0cm (D) x 4.4cm (H) - Weight 5.07kg
Routing
Layer 2 ServicesMAC Address Table: 16K Flow Control: 802.3x Flow Control/HOL Blocking Prevention Jumbo Frame up to 13K Bytes IGMP snooping: IGMP v1/v2/v3 Snooping/Supports 960 groups/Port/Host-based/IGMP Snooping/Fast Leave MLD Snooping: MLD v1/v2 Snooping/Supports 480 groups/Host-based MLD Snooping Fast Leave Spanning Tree: 802.1D-2004 STP/802.1w RSTP/802.1Q-2005 MSTP/BPDU filtering/Root Restriction Loopback Detection 802.3ad Link Aggregation: Max. 32 groups per device/8 Gigabit ports or 2 10 Gigabit ports per group Port Mirroring: Support 4 Mirroring Groups/Support One-to-One, Many-to-One, Flow-based, and RSPAN mirroring L2 Protocol Tunneling ERPS (Ethernet Ring Protection Switching)
Layer 2 ServicesMAC Address Table: 16K Flow Control: 802.3x Flow Control/HOL Blocking Prevention Jumbo Frame up to 13K Bytes IGMP snooping: IGMP v1/v2/v3 Snooping/Supports 960 groups/Port/Host-based/IGMP Snooping/Fast Leave MLD Snooping: MLD v1/v2 Snooping/Supports 480 groups/Host-based MLD Snooping Fast Leave Spanning Tree: 802.1D-2004 STP/802.1w RSTP/802.1Q-2005 MSTP/BPDU filtering/Root Restriction Loopback Detection 802.3ad Link Aggregation: Max. 32 groups per device/8 Gigabit ports or 2 10 Gigabit ports per group Port Mirroring: Support 4 Mirroring Groups/Support One-to-One, Many-to-One, Flow-based, and RSPAN mirroring L2 Protocol Tunneling ERPS (Ethernet Ring Protection Switching)
Layer 3 Services256 IP interfaces Loopback interface IPv6 Tunneling Proxy ARP Gratuitous ARP 1K routing entries shared by IPv4/v6: Max. 1K IPv4 routes/Max. 512 IPv6 routes 2K L3 forwarding entries shared by IPv4/v6: Max. 2K IPv4 entries/Max. 1K IPv6 entries 256 static routing entries for IPv4, 128 entries for IPv6 RIP v1/v2 RIPng (IPv6)
Layer 3 Services256 IP interfaces Loopback interface IPv6 Tunneling Proxy ARP Gratuitous ARP 1K routing entries shared by IPv4/v6: Max. 1K IPv4 routes/Max. 512 IPv6 routes 2K L3 forwarding entries shared by IPv4/v6: Max. 2K IPv4 entries/Max. 1K IPv6 entries 256 static routing entries for IPv4, 128 entries for IPv6 RIP v1/v2 RIPng (IPv6)
System
Management CapabilitiesWeb-based GUI Command Line Interface (CLI) Telnet Server Telnet Client TFTP Client ZModem SNMP v1/v2c/v3 SNMP Trap System Log RMON v1: Supports 1,2,3,9 Groups RMON v2: Supports ProbeConfig Group sFlow LLDP/LLDP-MED BootP/DHCP Client DHCP Auto-Configuration DHCP Relay DHCP Relay Option 60, 61 DHCP Relay Option 82 DHCP Server Flash File System Multiple Images Multiple Configurations CPU Monitoring Debug Command SNTP ICMPv6 DHCPv6 Client DHCPv6 Relay DHCPv6 Server Trusted Host MTU Setting Microsoft NLB Support UDP helper 4
Management CapabilitiesWeb-based GUI Command Line Interface (CLI) Telnet Server Telnet Client TFTP Client ZModem SNMP v1/v2c/v3 SNMP Trap System Log RMON v1: Supports 1,2,3,9 Groups RMON v2: Supports ProbeConfig Group sFlow LLDP/LLDP-MED BootP/DHCP Client DHCP Auto-Configuration DHCP Relay DHCP Relay Option 60, 61 DHCP Relay Option 82 DHCP Server Flash File System Multiple Images Multiple Configurations CPU Monitoring Debug Command SNTP ICMPv6 DHCPv6 Client DHCPv6 Relay DHCPv6 Server Trusted Host MTU Setting Microsoft NLB Support UDP helper 4
CertificationsIPv6 Ready Logo Phase 2
CertificationsIPv6 Ready Logo Phase 2
SecuritySSH v2 SSL v1/v2/v3 Port Security up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Traffic Segmentation IP-MAC-Port Binding: ARP Packet Inspection/IP Packet Inspection/DHCP Snooping/DHCPv6 and NDP Snooping/Supports up to 500 Address Binding Entries per device D-Link Safeguard Engine DHCP Server Screening CPU Interface Filtering ARP Spoofing Prevention BPDU Attack Protection
SecuritySSH v2 SSL v1/v2/v3 Port Security up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Traffic Segmentation IP-MAC-Port Binding: ARP Packet Inspection/IP Packet Inspection/DHCP Snooping/DHCPv6 and NDP Snooping/Supports up to 500 Address Binding Entries per device D-Link Safeguard Engine DHCP Server Screening CPU Interface Filtering ARP Spoofing Prevention BPDU Attack Protection

Sorry there are no compatible products listed. Please contact us to discuss options available for this product.

Product downloads

Please see below our available downloads for this product. If there is a download that isn't listed please contact us. Please also have a look at our Installation/Setup Instructions page.
