StarTech 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km

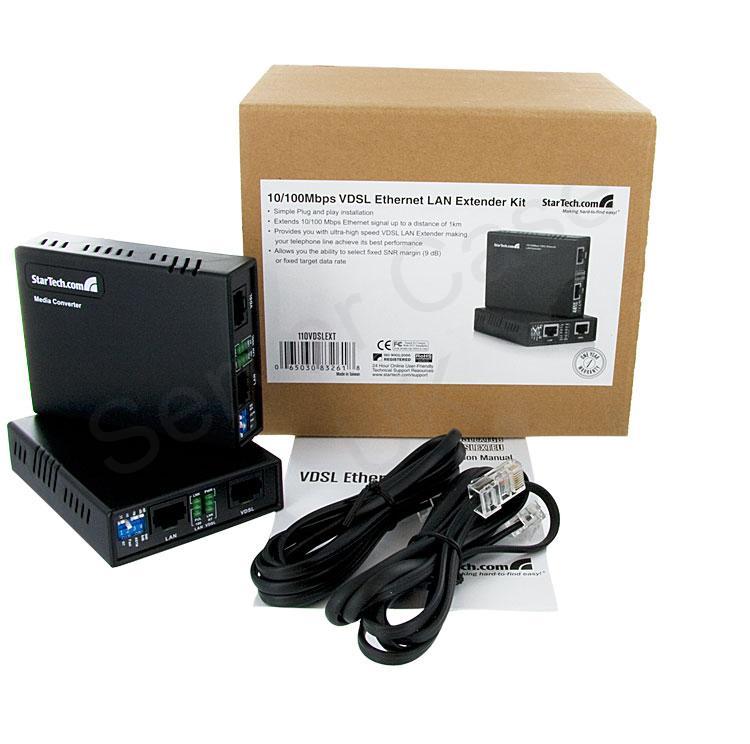

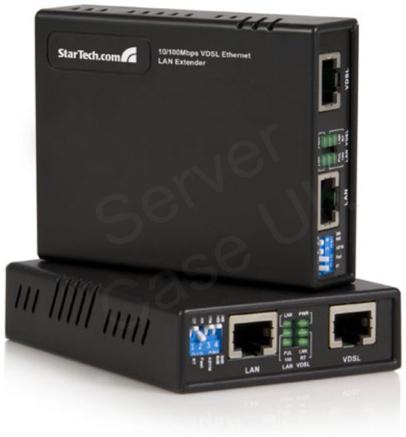

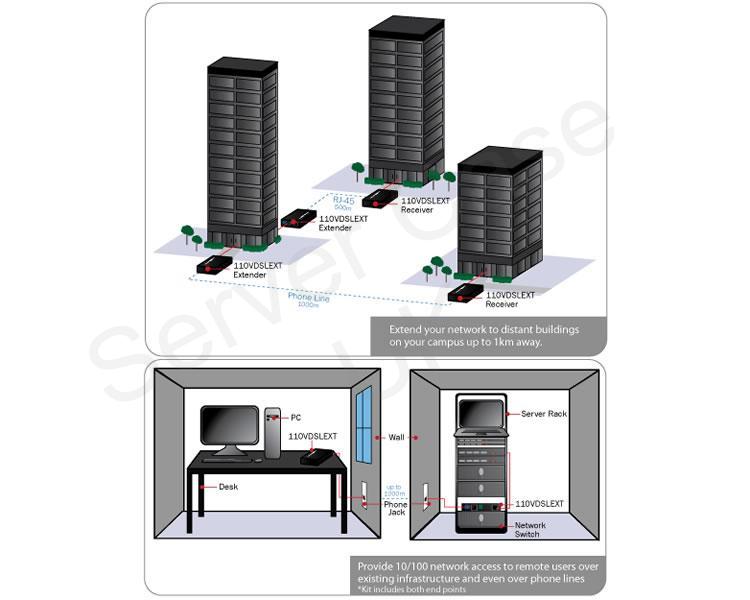

The 110VDSLEXTGB VDSL Ethernet extender kit allows you to span a 10/100 network over extremely long distances (up to 1km) while still maintaining high-speed network connectivity. The device allows you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires. The VDSL (VDSL2) kit is simple to install and provides an out-of-the-box solution as both the Ethernet-VDSL extender and receiver units are included. A perfect solution for a broad range of applications including connecting isolated user stations within the same building or between separate buildings, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless may be impossible.



The VDSL Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same telephone pair without interference. The 110VDSLEXT requires only a single pair of wires to function, while offering the ability to use multiple sets of the devices to create several simultaneous connections to your remote building. In these multiple set configurations, you have the ability to use up to 4 sets over a single Cat5e or Cat6 cable which can be used as separate LAN (or VLAN) connections, or bridged into a trunk line for additional speed/bandwidth over long distances (up to two sets only over standard Cat5).Features

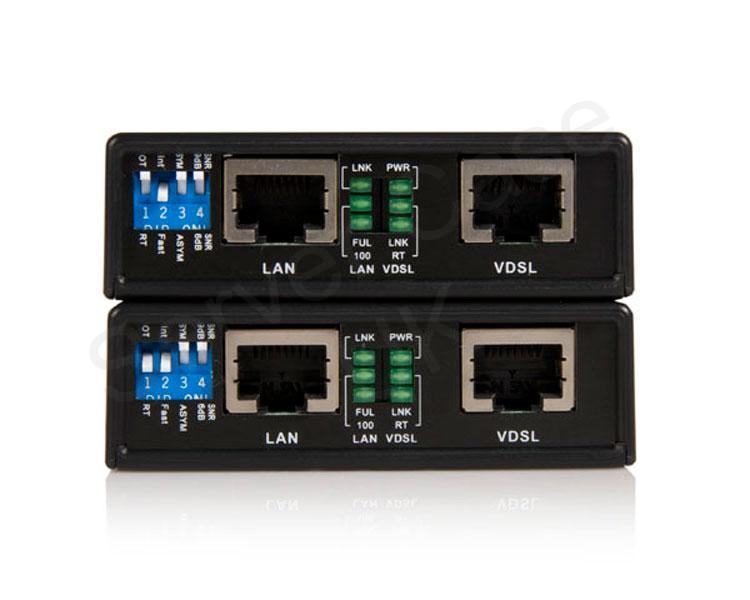

• Selectable CPE and CO mode via DIP switch
• IEEE 802.1Q VLAN tag transparent
• Supports flow control for Fast Ethernet (pause frame or Back Pressure)
• Allows you the ability to select fixed SNR margin (9 dB) or fixed target data rate
• Light in weight and a very compact design
• Supports both symmetric and asymmetric transmission

Specifications

Environmental
Environmental	Operating Temperature 0 to 70�C - Humidity 10 to 90%
General
Product Type	Extender
Warranty	2 Years
Barcode	5051964729549
Physical
Case Colour	Black
Dimensions	7.2cm (W) x 9.5cm (D) x 2.2cm (H) - Weight 0.09kg
