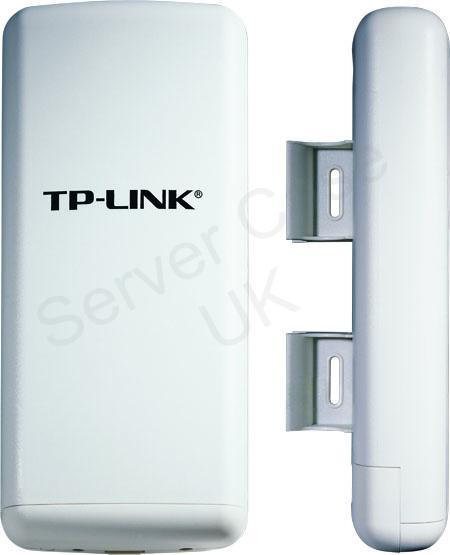

TP-Link TL-WA50210G 2.4GHz High Power Wireless Outdoor CPE

The TL-WA5210G 2.4GHz High Power Wireless Outdoor CPE is dedicated to WISP CPE solution and long distance wireless network solutions. It integrates the functions of a Wireless Access Point, WISP Client, high gain antenna and weatherproof enclosure. It features 12dBi high gain antenna, high output power and high RX sensitivity can significantly extend the transmission range to deliver a more stable wireless connection. The TL-WA5210G features high output power and high RX sensitivity can significantly extend the transmission range to reduce dead spots and to deliver a more stable wireless connection. With integrated 12dBi dual-polarized antenna, the TL-WA5210G would help you easy to build up to 15km long range wireless link. If you have higher gain antenna, it also supports distance control from 0km to 52.6km, which breaks through distance limitations in normal 802.11g devices, enables ultra-long distance wireless transmission. The TL-WA5210G provides three operation modes for multiple users to access the Internet: AP client router, AP router and AP. In AP client router mode, it works as a WISP CPE. In AP router mode, it can access the Internet via an ADSL/Cable Modem. In AP mode it can work in various modes, such as Access Point/Client/WDS Bridge/Repeater.



With the most attentive wireless security, the TL-WA5210G provides wireless LAN 64/128bit WEP encryption security, and WPA/WPA2 and WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security. The TL-WA5210G is easy-to-manage. Quick Setup is supported and friendly help messages are provided for every step. So you can configure it conveniently and share the Internet more quickly and easily.Features

• High output transmission power and reception sensitivity optimized
• 12dBi directional antennas fit for various environments and boost your signal level
• Weatherproof enclosure and lightning protection terminal integrated
• Supports WISP Mode
• Supports Passive Power over Ethernet
• Support 15kV ESD Protection
• Supports AP Client Router, AP Router and AP operation mode
• Distance Adjustment for long range transmission, up to 50km
• Supports Antenna Alignment
• Supports Layer 2 User Isolation
• Provides throughput monitor indicating the current wireless throughput
• Supports Ping Watch Dog
• Supports Wireless Speed Test
• Supports Remote Management
• Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
• Provides external RP-SMA connector for higher gain antenna upgrade

Specifications

Electrical
Power over Ethernet (PoE)	Yes
Power Adaptor Output Voltage	12VDC
Environmental
Environmental	Operating Temperature -30 to 70�C - Humidity 10 to 90%
General
Model Name	TL-WA50210G
Product Type	Access Point
Barcode	6935364051488
Interfaces/Ports
RJ-45 Ports	1 x RJ-45
Network
Network Speeds Supported	10/100MBps
Physical
Dimensions	12.0cm (W) x 8.3cm (D) x 26.5cm (H)
System
Security	SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
Wireless LAN
RF Network Standard	IEEE 802.11b/g
Frequency Band	2.4 to 2.4835GHz
Modulation Technique	IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK IEEE � 802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
Transmit Power	20 to 24dBm
Speed Options	Up to 11Mbps
Receive Sensitivity	802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm � 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Antenna Type	12dBi Dual-Polarized Directional
