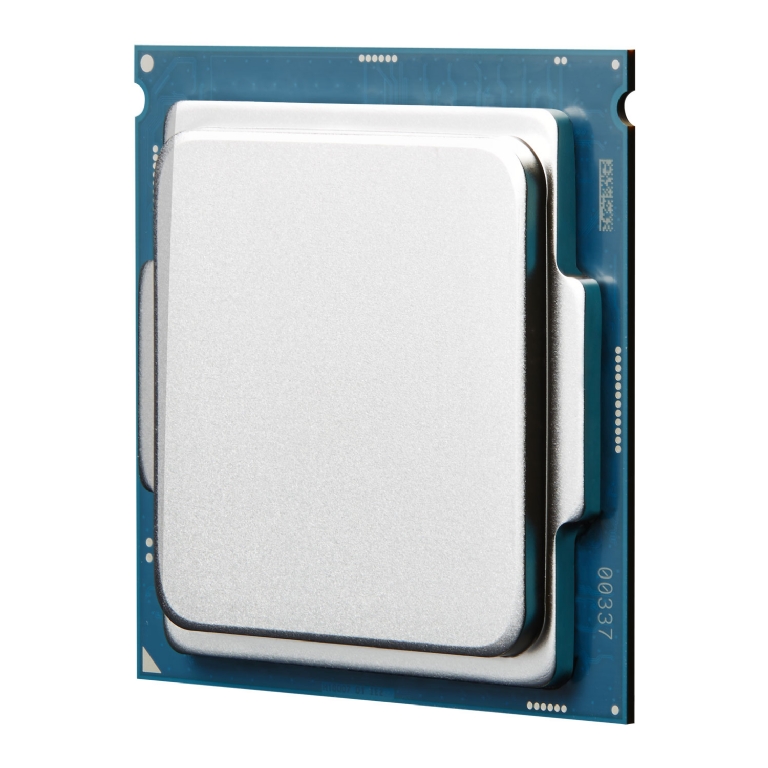

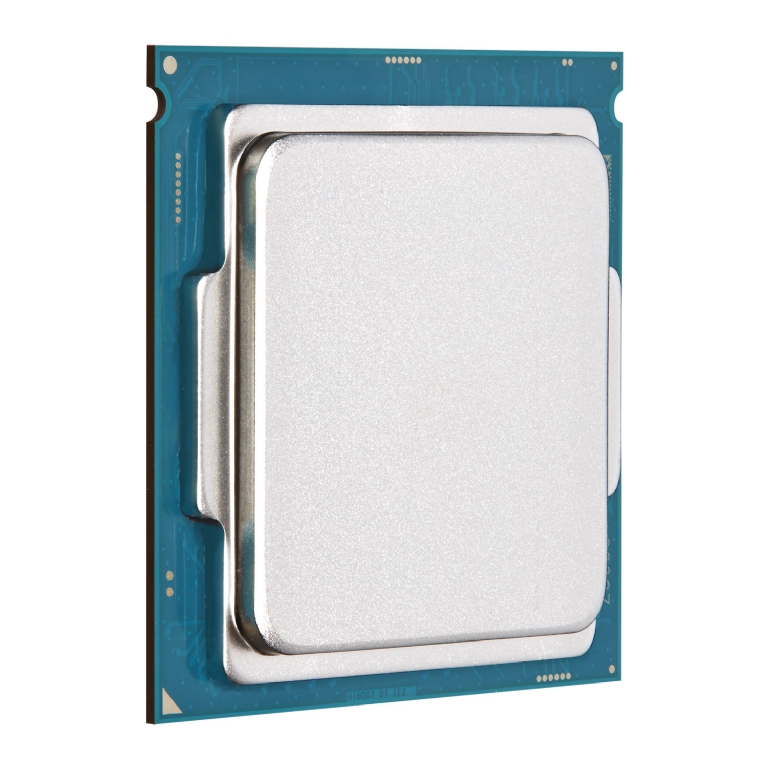

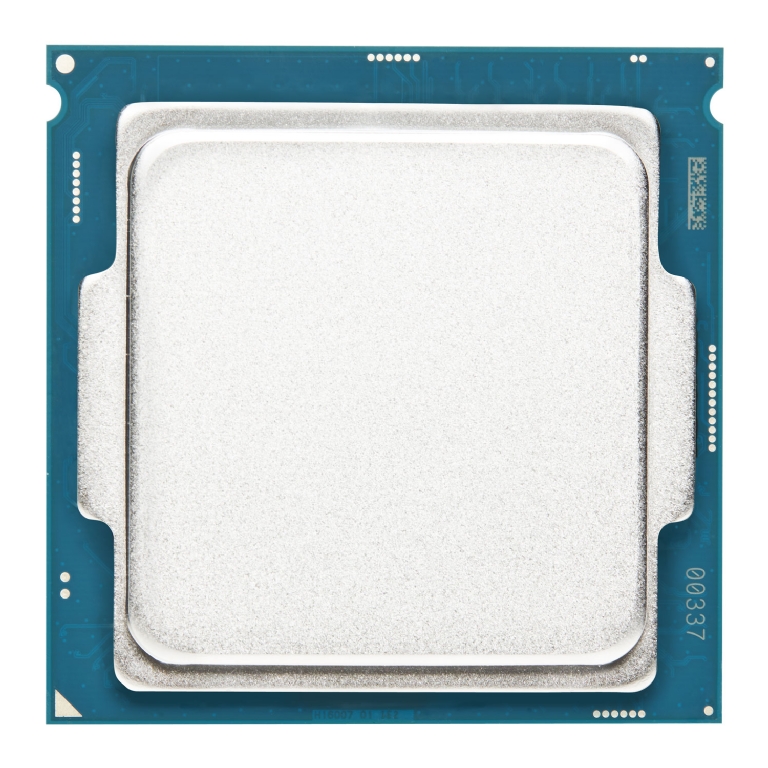

Intel Core i5 6500, S 1151, Skylake, Quad Core, 3.2GHz, 3.6GHz Turbo, 6MB Cache, 1050MHz GPU, 32x Ratio, 65W, CPU Retail

BX80662I56500
Intel Core i5 6500, S 1151, Skylake, Quad Core, 3.2GHz, 3.6GHz Turbo, 6MB Cache, 1050MHz GPU, 32x Ratio, 65W, CPU Retail
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?
Product Description

Specifications


-
Performance
# of Cores 4
# of Threads 4
Processor Base Frequency 3.20 GHz
Max Turbo Frequency 3.60 GHz
Cache 6 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 65 W
-
Supplemental Information
Embedded Options Available Yes
Conflict Free Yes
Datasheet Link
-
Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported No
-
Graphics Specifications
Processor Graphics Intel® HD Graphics 530
Graphics Base Frequency 350.00 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Video Max Memory 64 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (Intel® WiDi)‡ 1080p
Max Resolution (HDMI 1.4)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
Max Resolution (VGA)‡ N/A
DirectX* Support 12
OpenGL* Support 4.4
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Insider™ Yes
Intel® Wireless Display Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported 3
Device ID 0x1912
-
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
-
Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C (65W)
TCASE 71°C
Package Size 37.5mm x 37.5mm
Low Halogen Options Available See MDDS
-
Advanced Technologies
Intel® Turbo Boost Technology 2.0
Intel® vPro Technology Yes
Intel® Hyper-Threading Technology No
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® TSX-NI Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2, AVX 2.0
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology Yes
Intel® Stable Image Platform Program (SIPP) Yes
Intel® Small Business Advantage Yes
-
Intel® Data Protection Technology
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes
Intel® Memory Protection Extensions (Intel® MPX) Yes
-
Intel® Platform Protection Technology
OS Guard Yes
Trusted Execution Technology Yes
Execute Disable Bit Yes
Reviews

Customer Reviews

There are currently no reviews against this product. Be the first to write a review!

Write a Review

Compatible Products

Sorry there are no compatible products listed. Please contact us to discuss options available for this product.

Downloads

Product downloads

There are currently no downloads available for this product. If you need a specific document, such as a manual, installation guide or datasheet please contact us and we would be happy to help.
