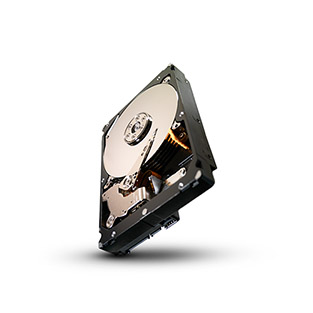

Seagate Constellation ST33000650SS 3TB
ST33000650SS
Seagate Constellation ST33000650SS 3TB
Sorry, but this product is no longer available to purchase online.
Please contact us to discuss alternative products which may be suitable.
Please contact us to discuss alternative products which may be suitable.
Product Description
| Generation | ES.2 | ES | |||
|---|---|---|---|---|---|
| Capacity | 3TB | 2TB | 2TB | 1TB | 500GB |
| Show me : | |||||
| Form Factor | 3.5" | 3.5" | 3.5" | 3.5" | 3.5" |
| Interface Options | SATA 6Gb/s, SAS 6Gb/s | SATA 6Gb/s, SAS 6Gb/s | SAS 6Gb/s, SATA 6Gb/s | SAS 6Gb/s, SATA 6Gb/s | SAS 6Gb/s, SATA 6Gb/s |
| Performance | |||||
| Spindle Speed (RPM) | 7200 | 7200 | 7200 | 7200 | 7200 |
| Cache (MB) | 64 | 64 | 64 | 64 | 64 |
| Transfer Rate, Max Ext (MB/s) | 600 | 600 | 600 | 600 | 600 |
| Sustained Data Rate OD | 155MB/s | 155MB/s | 147Mb/s | 147Mb/s | 147Mb/s |
| Average Latency (ms) | 4.16 | 4.16 | 4.16 | 4.16 | 4.16 |
| Reliability/Data Integrity | |||||
| Nonrecoverable Read Errors per Bits Read | 1 in 1015 | 1 in 1015 | 1 in 1015 | 1 in 1015 | 1 in 1015 |
| Annualized Failure Rate (AFR) | 0.73% | 0.73% | 0.73%% | 0.73%% | 0.73%% |
| Power Management | |||||
| Seek, Typical Operating (W) | 6.76 | ||||
| Idle, Typical Operating (W) | 7.71, 7.40 | 7.71, 7.40 | 5.69, 6.24 | 5.16, 4.42 | 4.32, 4.56 |
| Environmental | |||||
| Temperature | |||||
| Operating | 5° to 60°C | 5° to 60°C | 5° to 60°C | 5° to 60°C | 5° to 60°C |
| Non-operating | -40° to 70°C | -40° to 70°C | -40° to 70°C | -40° to 70°C | -40° to 70°C |
| Shock | |||||
| Operating: Gs (ms) | 70 / 40 (2ms), 70/40 (2ms) | 70/40 (2ms), 70 / 40 (2ms) | 70 (2ms), 70/40 (2ms), 70/40 (2300ms) | 70 (2ms), 70/40 (2ms) | 70 (2ms), 70/40 (2ms) |
| Non-operating: Gs (ms) | 300 (2ms) | 300 (2ms) | 300 (2ms), 2 (ms) | 300 (2ms), 350 (2ms) | 300 (2ms), 350 (2ms) |
| Acoustics (bels - sound power) | |||||
| Idle | 2.8 | 2.8 | 2.7 | 2.7, 1.9 | 2.7, 2.2 |
| Operating | 3.2 | 3.2 | 3.0 | 2.7 | 2.8 |
| Physical | |||||
| Height (in/mm) | 1.028/26.10 | 1.028/26.10 | 1.028/26.10 | ||
| Width (in/mm) | 4.010/101.85 | 4.010/101.85 | 4.010/101.85 | ||
| Length (in/mm) | 5.787/147.00 | 5.787/147.00 | 5.787/147.00 | ||
| Height (in/mm) (maximum) | 1.028/26.10 | 1.028/26.10 | |||
| Width (in/mm) (maximum) | 4.010/101.85 | 4.010/101.85 | |||
| Length (in/mm) (maximum) | 5.787/147.00 | 5.787/147.00 | |||
| Weight (lb/g) | 1.543/700 | 1.543/700 | 1.57/710, 1.565/710 | 1.41/640, 1.345/610 | 1.34/610, 1.411/640 |
| Model Number | Generation | Capacity | Interface | Spindle Speed (RPM) | Cache (MB) | Encryption | Areal Density | Maximum Operating Shock | Maximum Length | Maximum Width | Maximum Height | AFR | Operating Temperature | Average Operating Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST33000650NS | ES.2 | 3TB | SATA 6Gb/s | 7200RPM | 64MB | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 10.68W | |
| ST33000652NS | ES.2 | 3TB | SATA 6Gb/s | 7200RPM | 64MB | Encryption/FIPS | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 10.68W |
| ST33000651SS | ES.2 | 3TB | SAS 6Gb/s | 7200RPM | 64MB | Encryption | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 11.33W |
| ST33000650SS | ES.2 | 3TB | SAS 6Gb/s | 7200RPM | 64MB | 444 | 70/40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 11.33W | |
| ST33000652SS | ES.2 | 3TB | SAS 6Gb/s | 7200RPM | 64MB | Encryption/FIPS | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 11.33W |
| ST33000651NS | ES.2 | 3TB | SATA 6Gb/s | 7200RPM | 64MB | Encryption | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 10.68W |
| ST32000645NS | ES.2 | 2TB | SATA 6Gb/s | 7200RPM | 64MB | 444 | 70/40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 10.68W | |
| ST32000646SS | ES.2 | 2TB | SAS 6Gb/s | 7200RPM | 64MB | Encryption | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 11.33W |
| ST32000647NS | ES.2 | 2TB | SATA 6Gb/s | 7200RPM | 64MB | Encryption/FIPS | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 10.68W |
| ST32000645SS | ES.2 | 2TB | SAS 6Gb/s | 7200RPM | 64MB | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 11.33W | |
| ST32000646NS | ES.2 | 2TB | SATA 6Gb/s | 7200RPM | 64MB | Encryption | 444 | 70/40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 10.68W |
| ST32000647SS | ES.2 | 2TB | SAS 6Gb/s | 7200RPM | 64MB | Encryption/FIPS | 444 | 70 / 40Gs | 147.00mm | 101.85mm | 26.10mm | 0.73% | 60°C | 11.33W |
| ST2000NM0031 | ES | 2TB | SATA 6Gb/s | 7200RPM | 64MB | Encryption | 324 | 70/40Gs | 0.73%% | 60°C | 8.94W | |||
| ST2000NM0021 | ES | 2TB | SAS 6Gb/s | 7200RPM | 64MB | Encryption | 70Gs | 0.73%% | 60°C | 9.57W | ||||
| ST2000NM0011 | ES | 2TB | SATA 6Gb/s | 7200RPM | 64MB | 324 | 70/40Gs | 0.73%% | 60°C | 8.94W | ||||
| ST2000NM0001 | ES | 2TB | SAS 6Gb/s | 7200RPM | 64MB | 324 | 70Gs | 0.73%% | 60°C | 9.57W | ||||
| ST1000NM0031 | ES | 1TB | SATA 6Gb/s | 7200RPM | 64MB | Encryption | 324 | 70/40Gs | 0.73%% | 60°C | 6.40W | |||
| ST1000NM0021 | ES | 1TB | SAS 6Gb/s | 7200RPM | 64MB | Encryption | 324 | 70Gs | 0.73%% | 60°C | 6.97W | |||
| ST1000NM0001 | ES | 1TB | SAS 6Gb/s | 7200RPM | 64MB | 324 | 70Gs | 0.73%% | 60°C | 6.97W | ||||
| ST1000NM0011 | ES | 1TB | SATA 6Gb/s | 7200RPM | 64MB | 324 | 70/40Gs | 0.73%% | 60°C | 6.40W | ||||
| ST500NM0021 | ES | 500GB | SAS 6Gb/s | 7200RPM | 64MB | Encryption | 324 | 70Gs | 0.73%% | 60°C | 4.32W | |||
| ST500NM0001 | ES | 500GB | SAS 6Gb/s | 7200RPM | 64MB | 324 | 70Gs | 0.73%% | 60°C | 6.76W | ||||
| ST500NM0031 | ES | 500GB | SATA 6Gb/s | 7200RPM | 64MB | Encryption | 324 | 70/40Gs | 0.73%% | 60°C | 7.26W | |||
| ST500NM0011 | ES | 500GB | SATA 6Gb/s | 7200RPM | 64MB | 324 | 70/40Gs | 0.73%% | 60°C | 7.26W |
