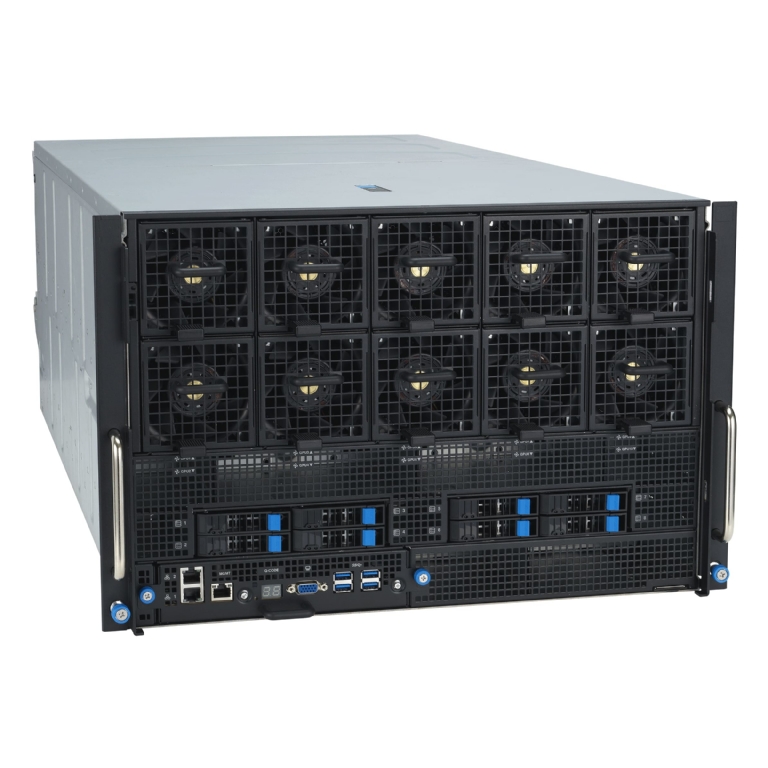

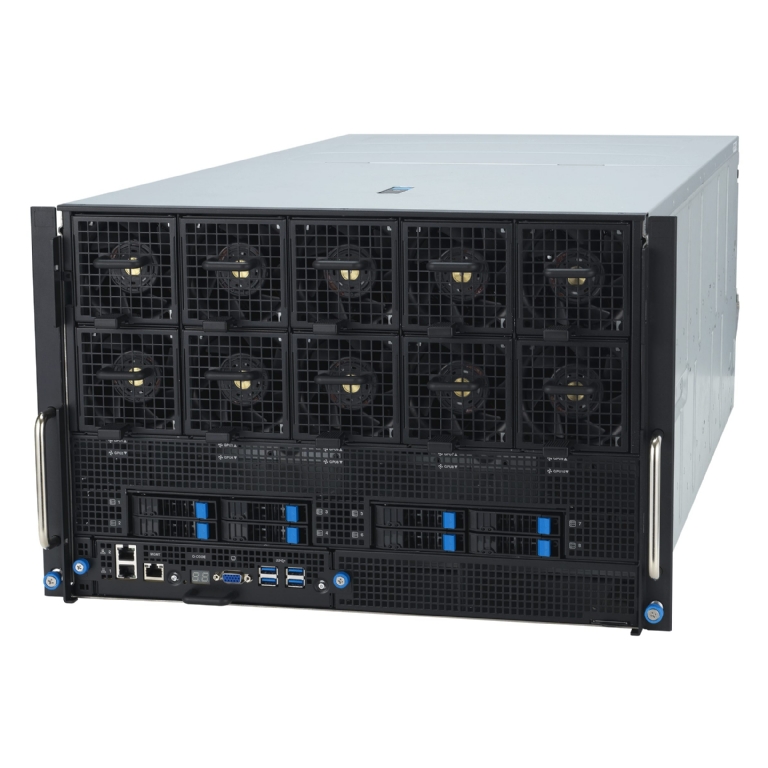

ASUS ESC A8A-E12U 7U Rackmount Dual 9005 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU

• Processor / System Bus

  2 x AMD EPYC™ 9005/9004 Series Processors  (Up to TDP 400W)

• Memory



  Total Slots:
  24x DDR5 DIMM slots, up to 6400MHz(1DPC)(12-channel per CPU, 12 DIMM per CPU)
  Capacity:
  Maximum up to 3TB
  Memory Type:
  DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB
  *Refer to Asus server AVL for the latest update

• Expansion Slots

  Up to 11 PCIe slots
  [89104 PCIe Switch directly]
  -8 x PCIe Gen5 x16 (LP, HL) – GPU group
  [89048 PCIe Switch directly]
  -1 x PCIe Gen5 x16 (FH, HL) – CPU 1 extension
  -1x PCIe Gen5 x8 (FH, HL) – CPU 1 extension
  [CPU directly]
  -1 x PCIe Gen5x16 (FH, HL) (CPU2)

• Networking

  2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
  1 x Management Por

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

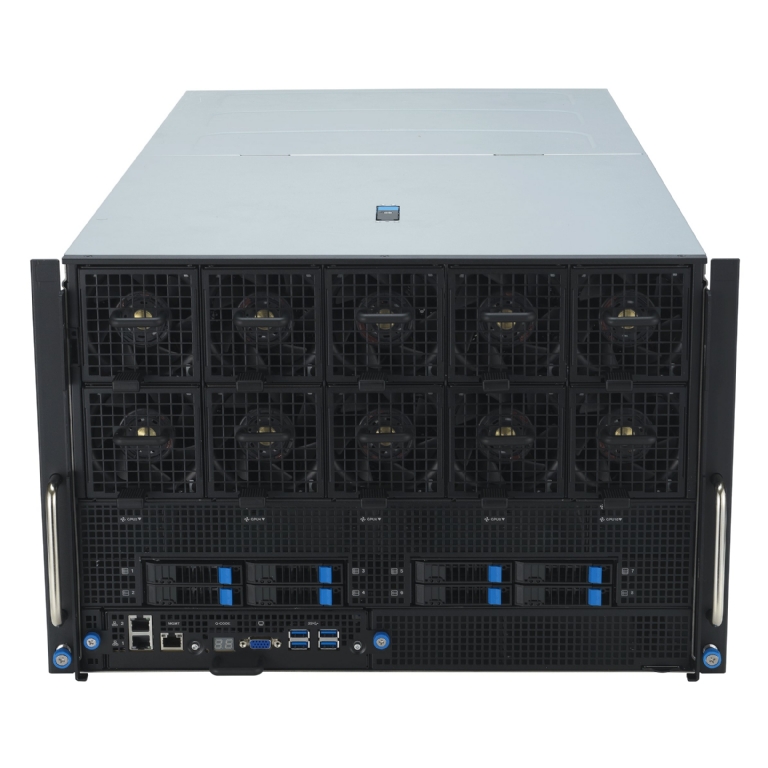

• Front I/O Ports

  4 x USB3.2 Gen1 ports,
  1 x VGA port
  2 x 10Gb RJ45 LAN module (Intel-x710 Based)
  1 x Mgmt LAN
  1 x locate button
  1 x power button

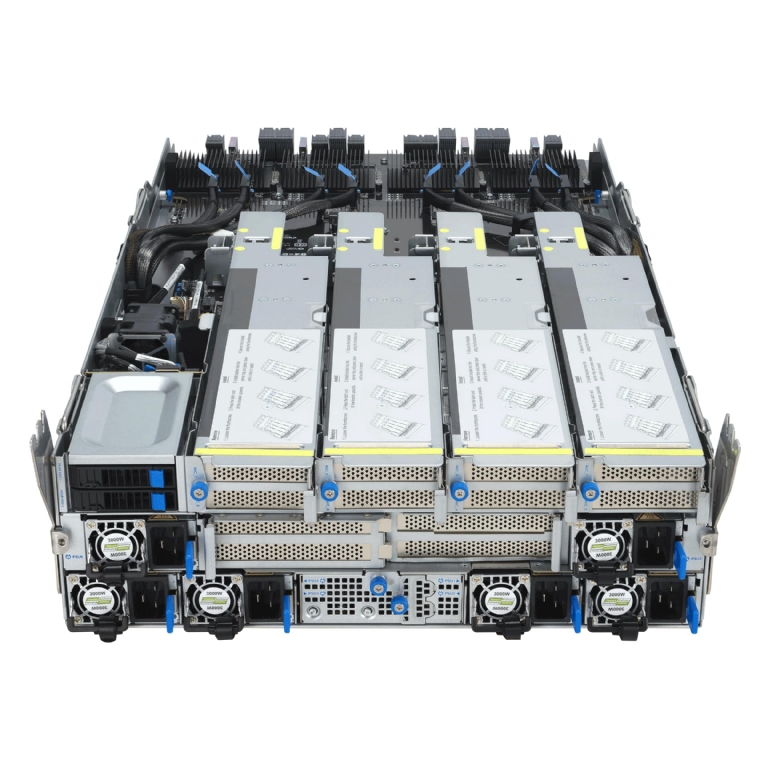

• Rear I/O Ports

  1 x locate button
  1 x power button

• Switch/LED

  Front :
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED
  1 x Q-Code/Port 80 LED
  Rear :
  1 x Location LED
  1 x Power Button/LED

• OS Support

  Please find the latest OS support from http://www.asus.com/

• Management Solution

  ASUS Control Center
  ASUS ASMB11-iKVM (on-board)

• Regulatory Compliance

  BSMI, CB, CE, FCC

• Dimensions

  885mm x 447mm x 306.65mm

• Form Factor

  7U

• Weight

  Net Weight: 108 Kg.
  Gross Weight: 142.4 Kg.

• Power Supply

  5+1 Redundant 80 PLUS 3000W Titanium PSU

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% (Non condensing)
