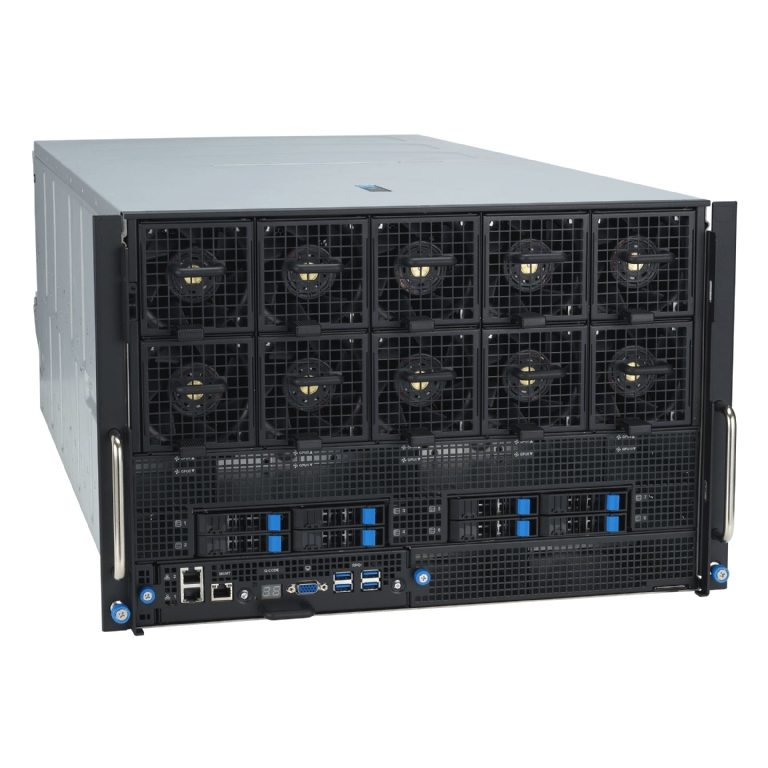

ASUS ESC N8-E11 7U Rackmount Dual Intel Xeon 5th Gen GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU

• Processor / System Bus

  2 x Socket

  4th Intel® Xeon® Processor Scalable Family (Up to 350W)
  5th Intel® Xeon® Processor Scalable Family (Up to 350W)

• Memory

  Total Slots:
  32 (8 channel per CPU, 16 DIMM per CPU)
  Capacity:
  Maximum up to 4TB per CPU socket
  Memory Type:
  4th: DDR5 5600 RDIMM/ 3DS RDIMM (2DPC)
  5th: DDR5 5600 RDIMM/ 3DS RDIMM (2DPC)
  Memory Size:
  64GB, 32GB, 16GB RDIMM
  256GB, 128GB RDIMM 3DS

  * Refer to support page for more information

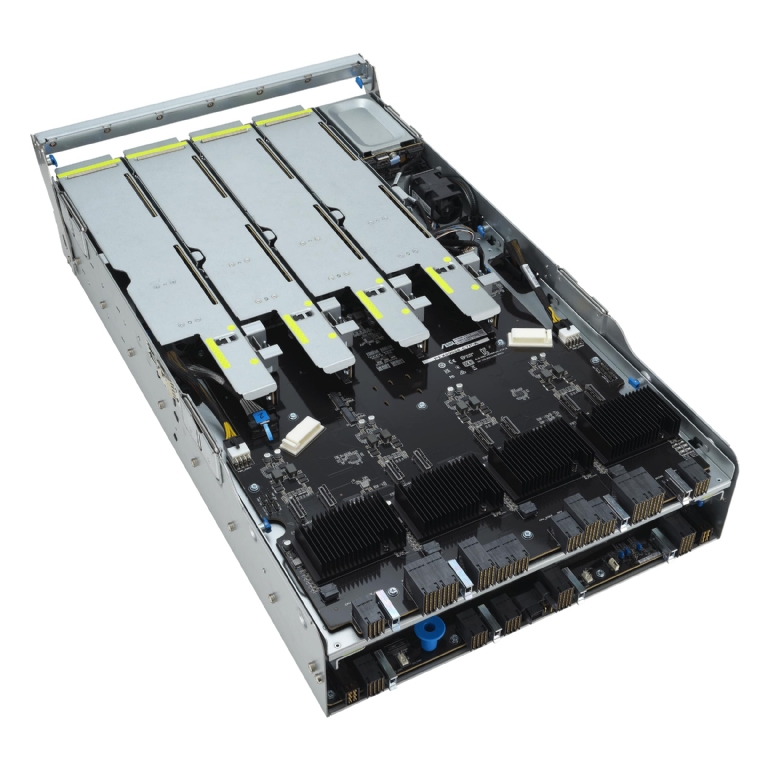

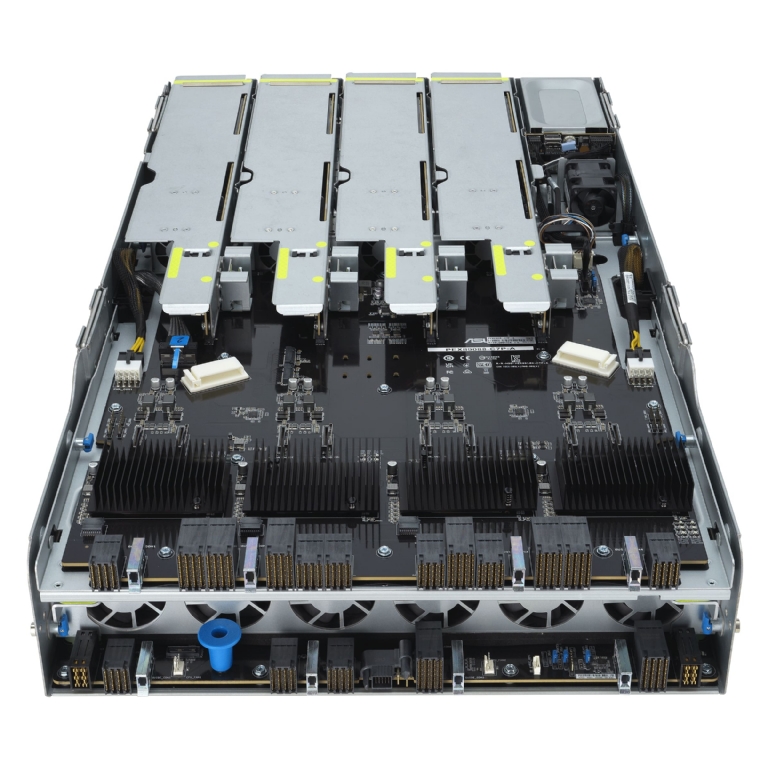

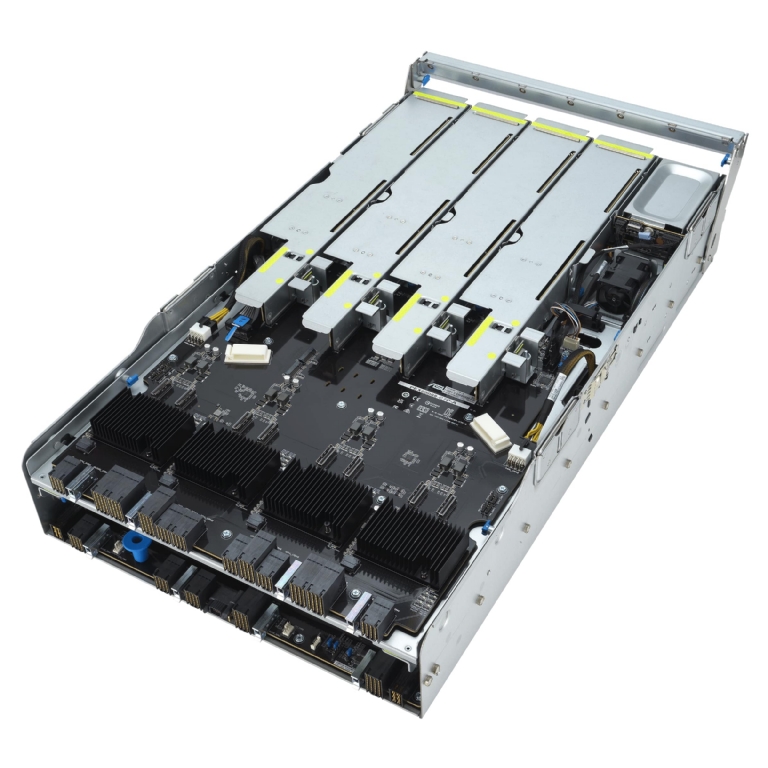

• Expansion Slots

  ESC N8-E11 H100 SKU:
  12 x PCIe Gen5 slots

  [PCIe Switch directly]
  - 8 x PCIe Gen5 x16 link (LP, HL)
  [CPU directly]
  -  1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)*
  -  1 x PCIe Gen5 x8 link (FH, HL) + 1 x PCIe Gen5 x8 link (FH, HL)

  *Support PCIe x16 link for DPU

  ESC N8-E11V H200 SKU:
  10+1 x PCIe Gen5 slots

  [PCIe Switch directly]
  - 8 x PCIe Gen5 x16 link (LP, HL)
  [CPU directly]
  -  1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)*
  -  1 x PCIe Gen4 x8 link from CPU2 DMI (FH, HL)**

  *Support PCIe x16 link for DPU
  **For Raid card to connect storage

  [BF3 operation temperture 30℃ when using transceiver]

• Storage

  Optional Kits:
  -Broadcom MegaRAID 9560-16i
  -Broadcom MegaRAID 9540-8i

• Networking

  2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
  1 x Management Por

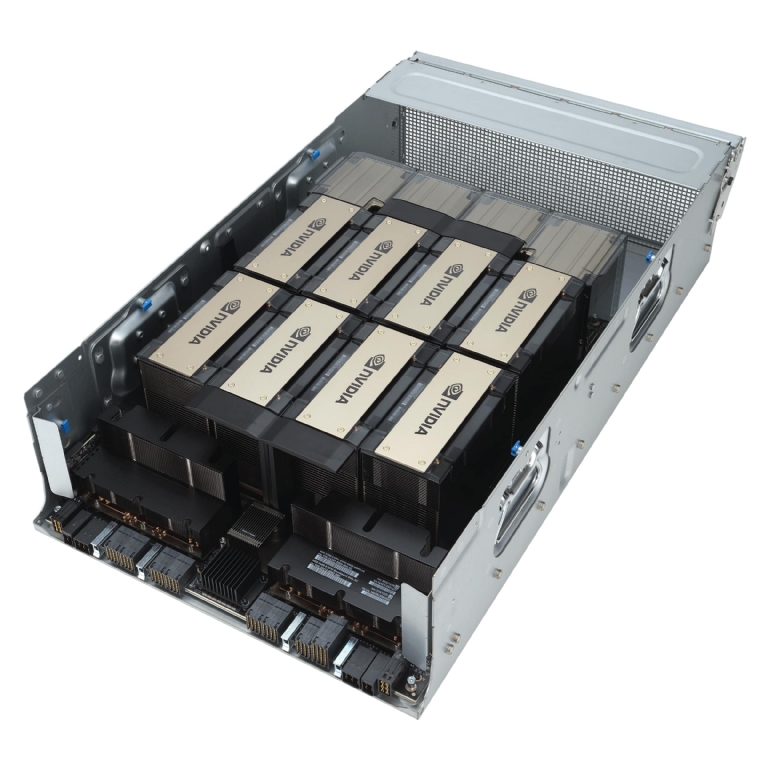

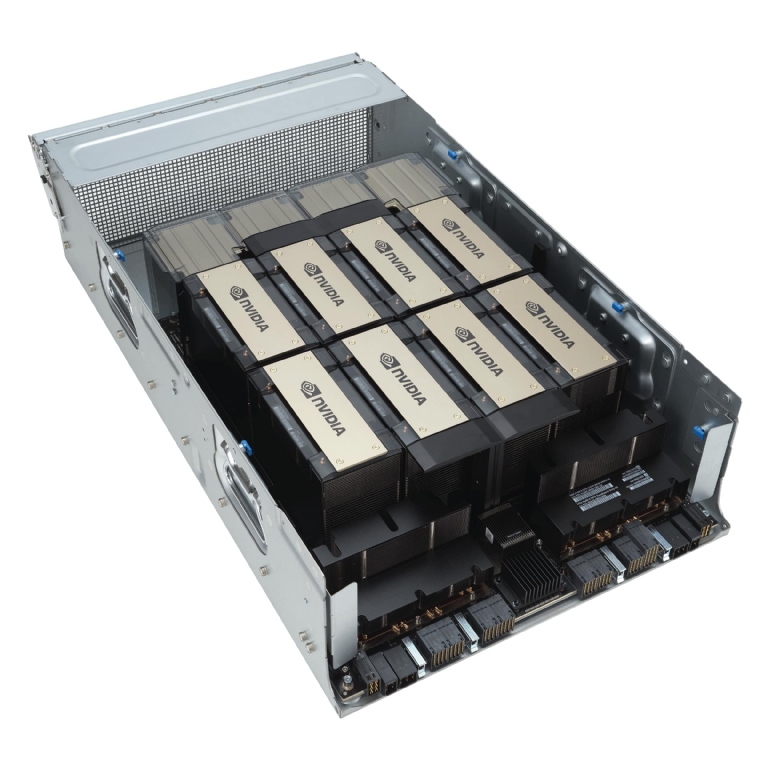

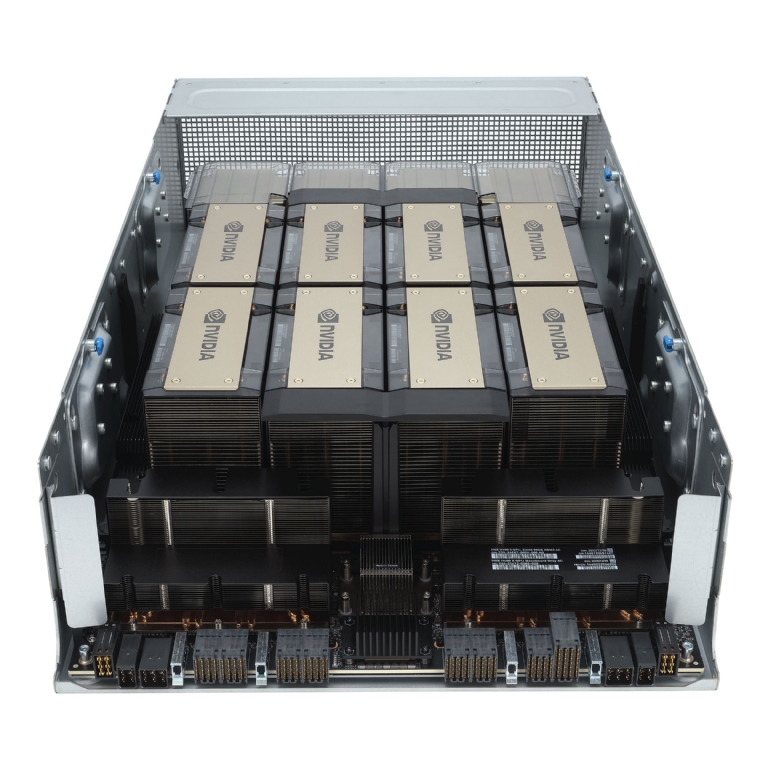

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

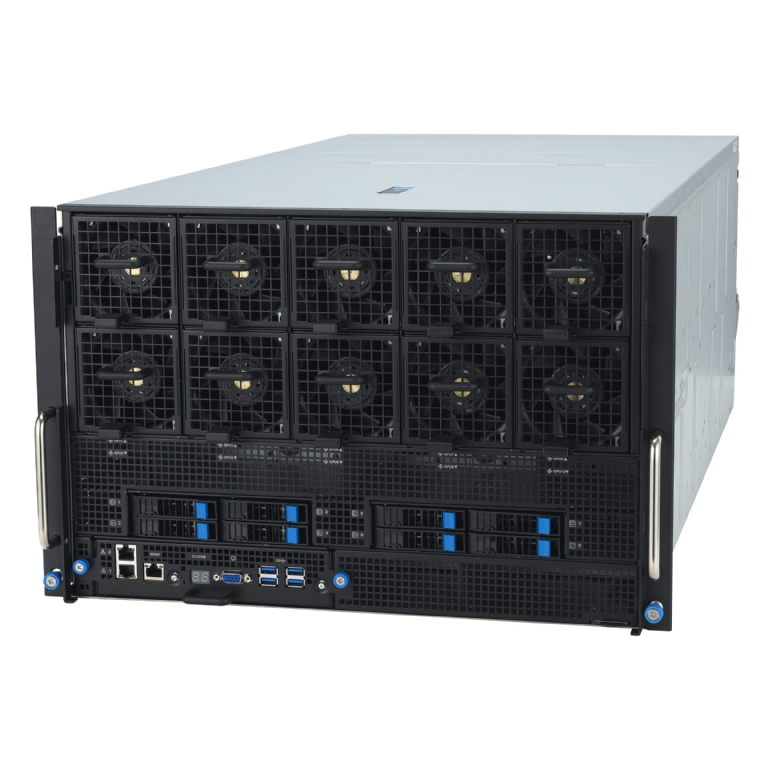

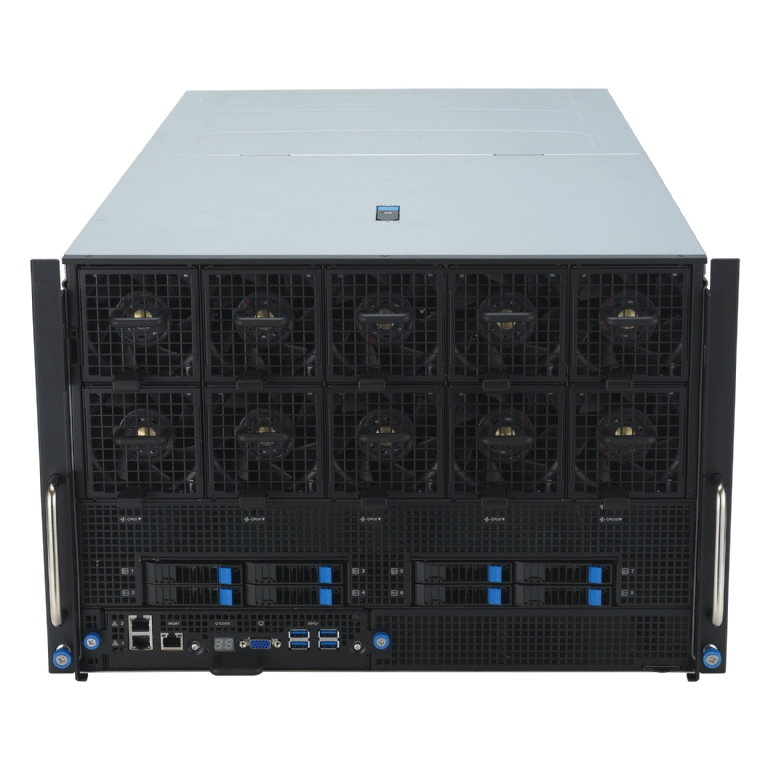

• Front I/O Ports

  4 x USB3.2 Gen1 ports
  1 x VGA port
  2 x 10Gb RJ45 LAN module (Intel-x710 Based)
  1 x Mgmt LAN
  1 x locate button
  1 x power button

• Rear I/O Ports

  1 x locate button
  1 x power button

• Switch/LED

  Front :
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED
  1 x Q-Code/Port 80 LED
  Rear :
  1 x Location LED
  1 x Power Button/LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center
  ASUS ASMB11-iKVM (on-board)

• Regulatory Compliance

  BSMI, CB, CE, FCC, KCC

• Dimensions

  885mm x 447mm x 306.65mm
  *Please note that the addition of the handle will extend the overall chassis length by approximately 5 ~ 8 cm.

• Form Factor

  7U

• Weight

  Net Weight: 99kg (excluding CPU, DRAM, and HDD)
  Gross Weight: 154kg (including packaging, excluding CPU, DRAM, and HDD)

• Power Supply

  4+2 Redundant 3000W 80 PLUS Titanium Power Supply

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
