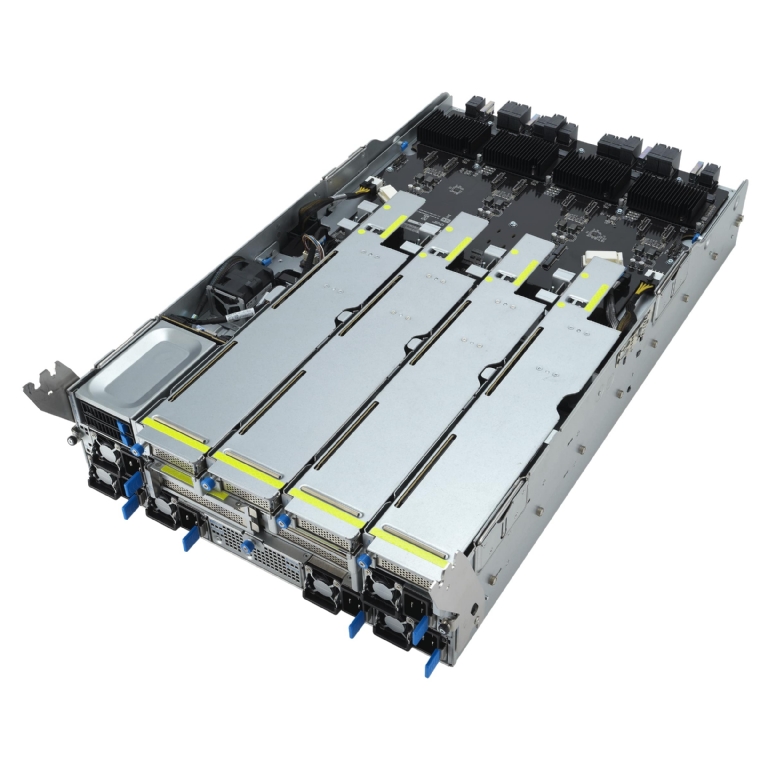

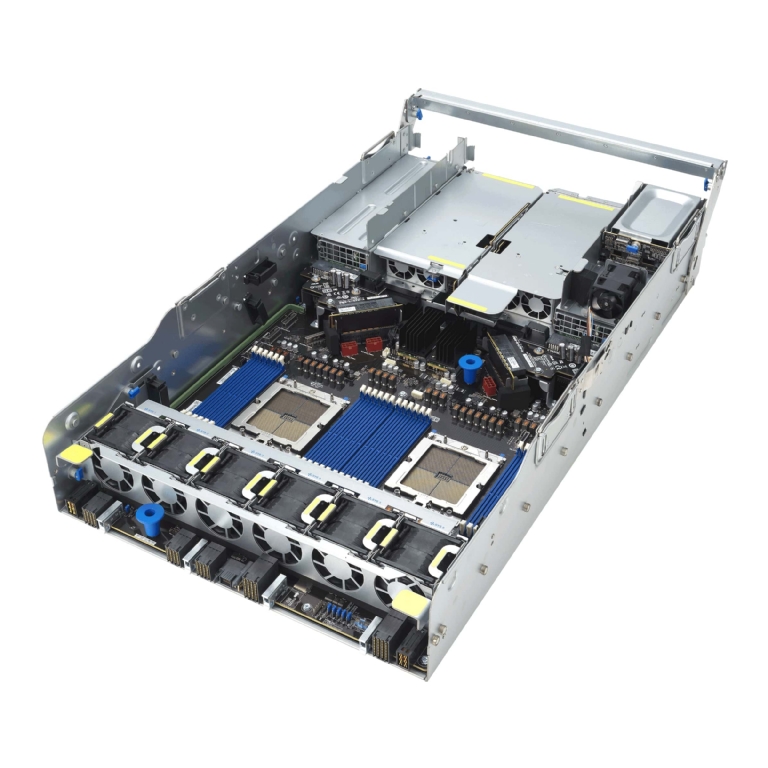

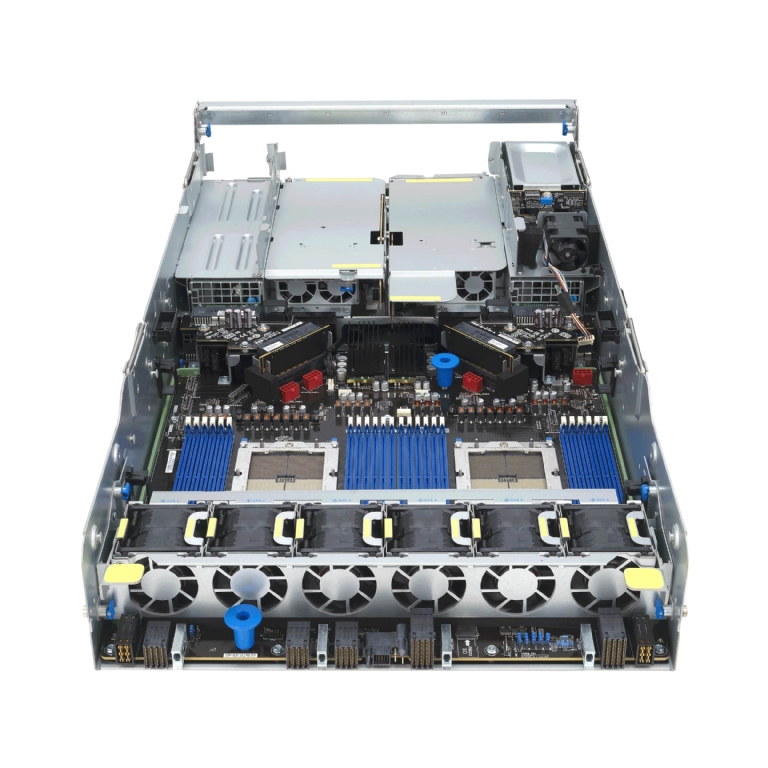

ASUS ESC N8A-E12 7U Rackmount Dual 9004 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU

ESC N8A-E12
ASUS ESC N8A-E12 7U Rackmount Dual 9004 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Redundant PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    2 x Socket (LGA 6096)
    AMD EPYC™ 9004 series(up to 400W)
    4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
  • Memory

    Total Slots:
    24 (12 channel per CPU, 12 DIMM per CPU)
    Capacity:
    Maximum up to 3TB per CPU socket
    Memory Type:
    DDR5 4800/4400 RDIMM/ 3DS RDIMM
    Memory Size:
    96GB, 64GB, 32GB, 16GB RDIMM
    256GB, 128GB RDIMM 3DS

    * Refer to support page for more information

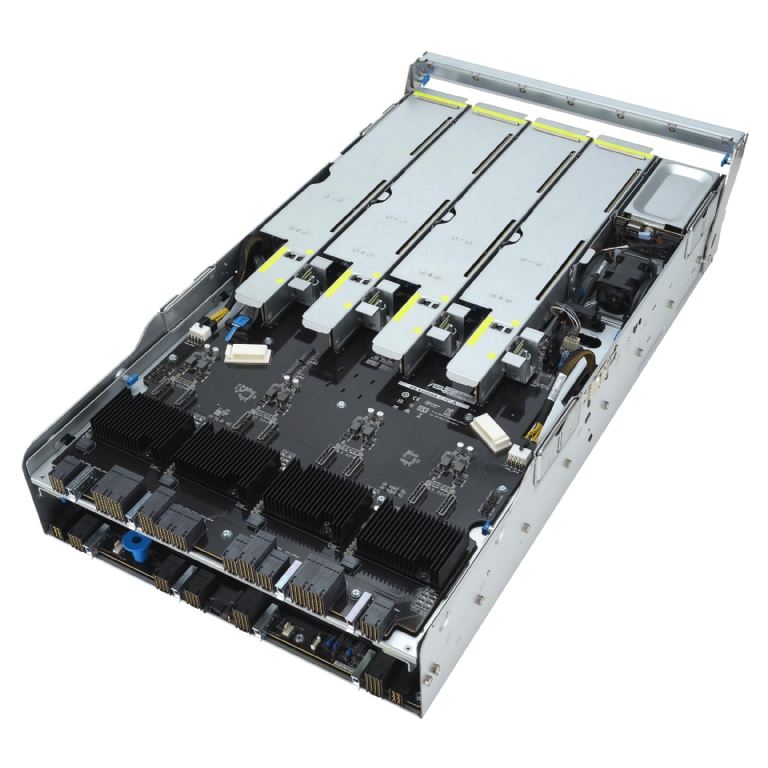

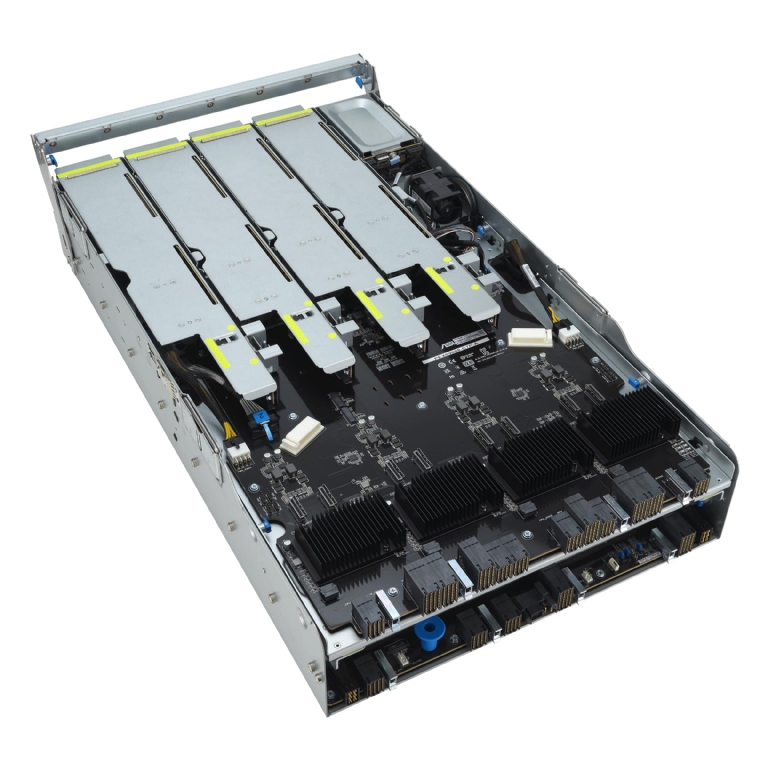

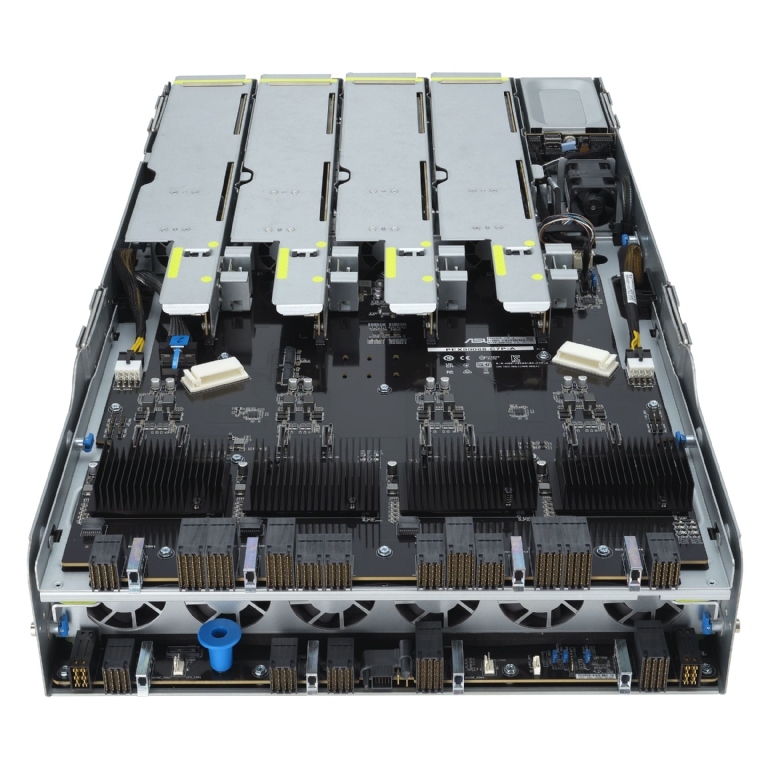

  • Expansion Slots

    12 x PCIe Gen5 slots

    [PCIe Switch directly]
    - 8 x PCIe Gen5 x16 link (LP, HL)
    [CPU directly]
    - 1 x PCIe Gen5 x16 link (FH, HL) +1 x PCIe Gen5 x16 link (FH, HL)
    - 1 x PCIe Gen5 x8 link (FH, HL) +1 x PCIe Gen5 x8 link (FH, HL)
  • Storage

    Optional Kits:
    -Broadcom MegaRAID 9670W-16i
    -Broadcom MegaRAID 9560-16i
  • Networking

    2 x 10GbE LAN ports (Intel X710-AT2 Controller)
    1 x Management Port

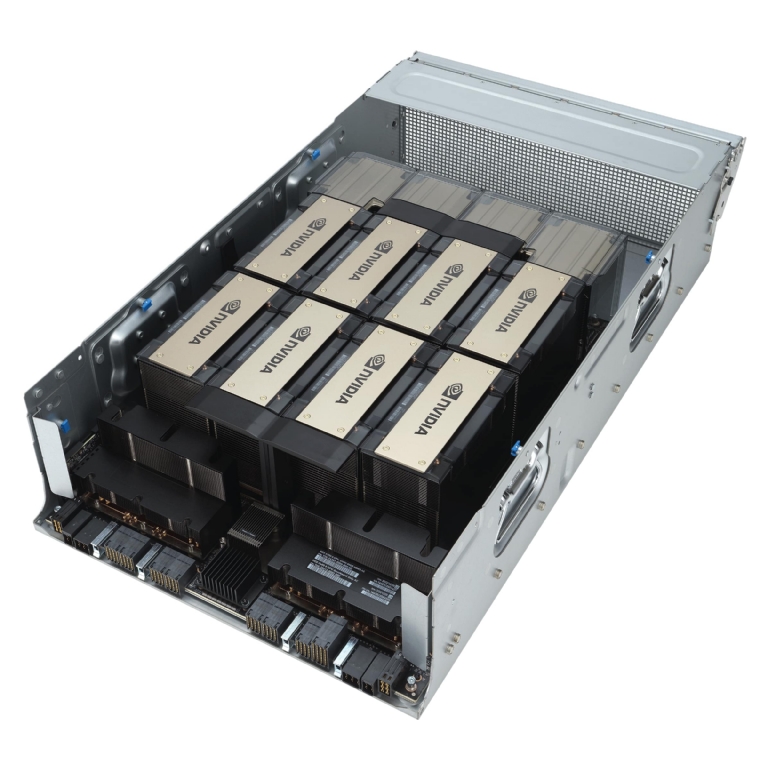

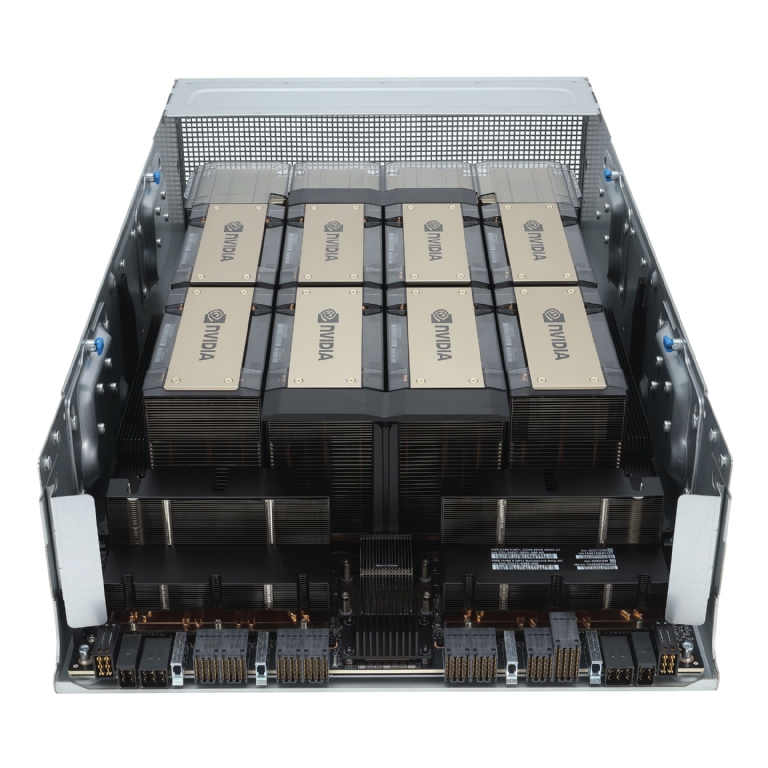

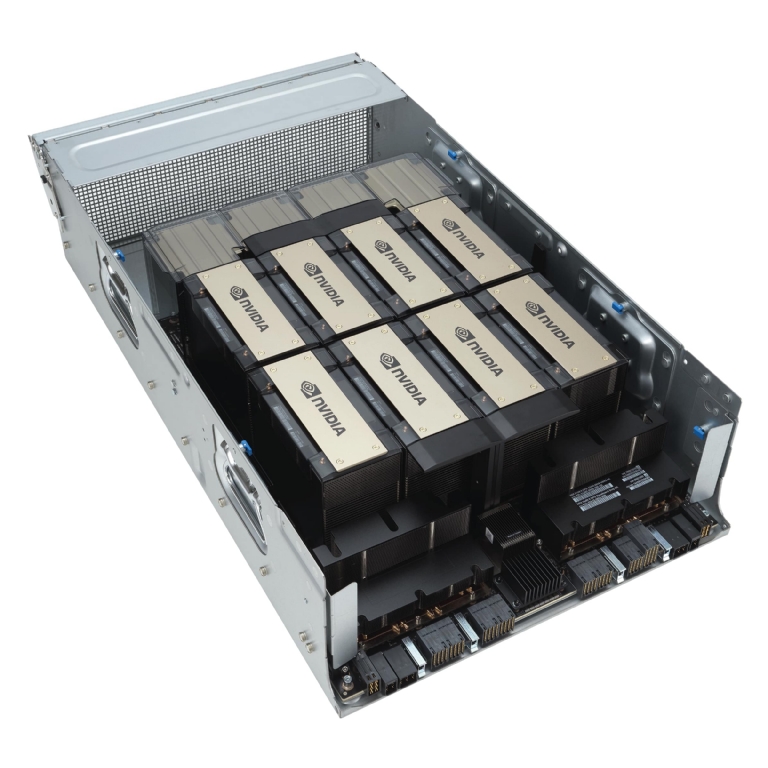

  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu

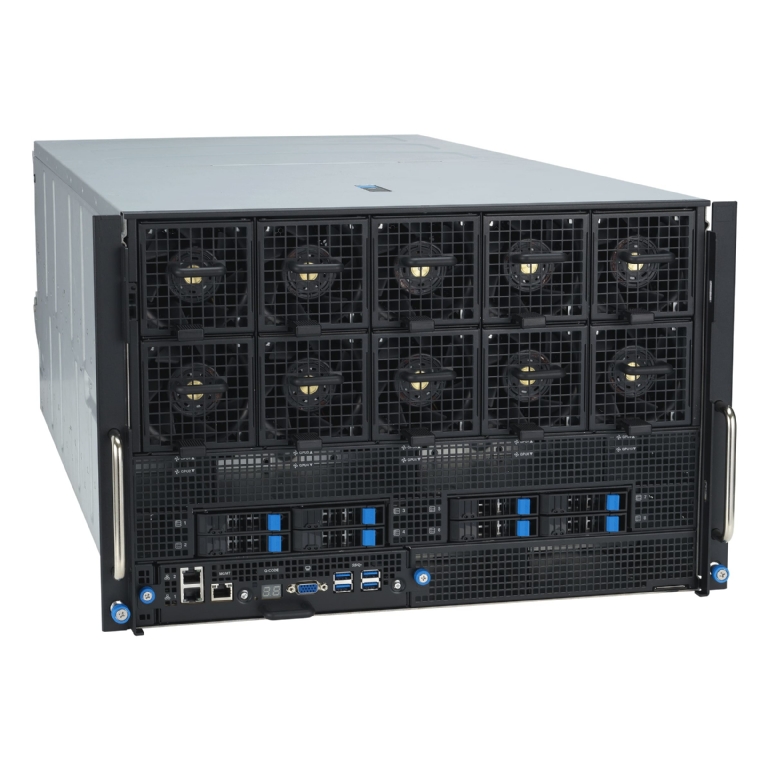

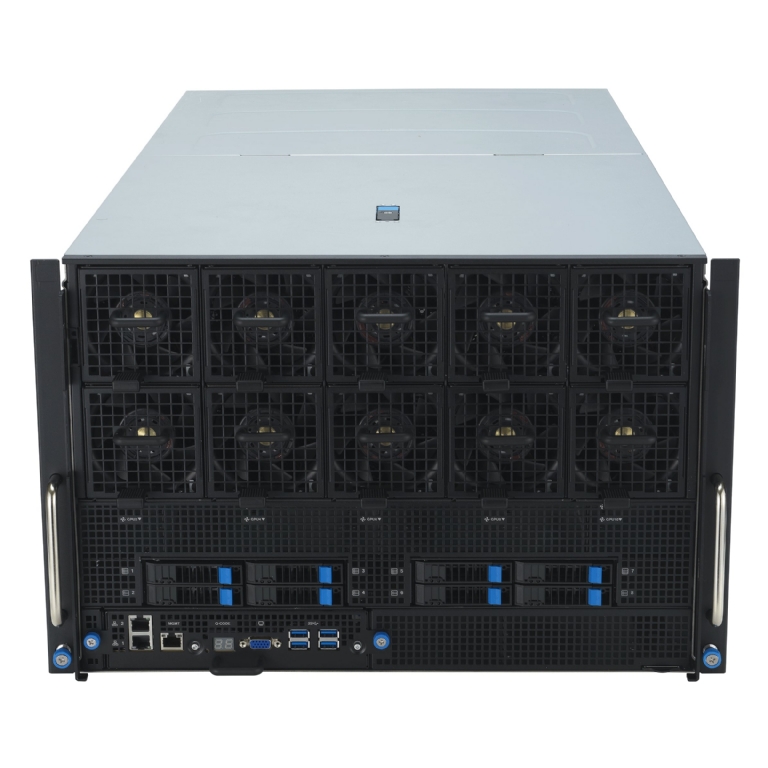

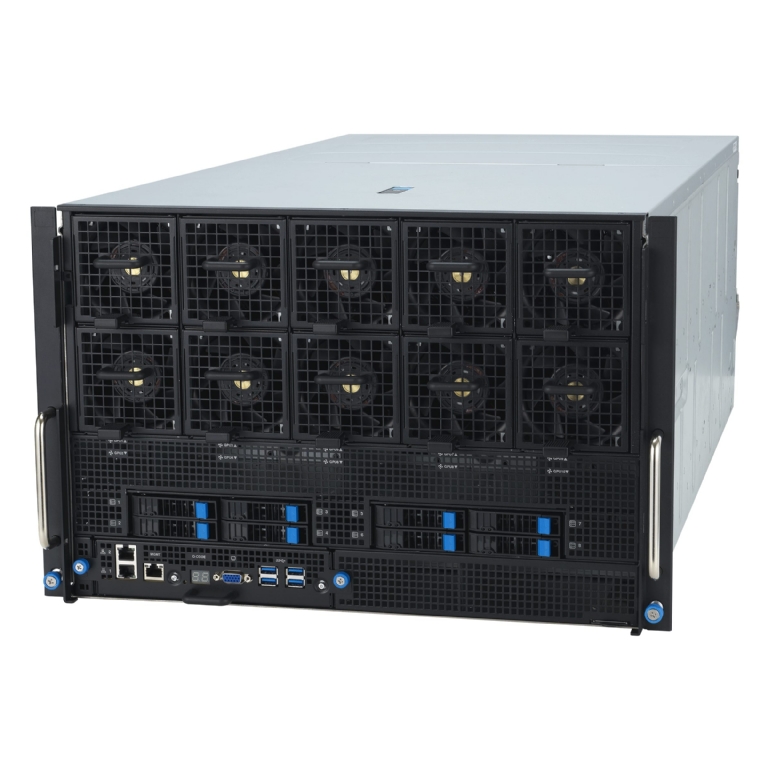

  • Front I/O Ports

    4 x USB 3.2 Gen1 ports
    1 x VGA port
    2 x 10Gb RJ45 LAN module (Intel-x710 Based)
    1 x Mgmt LAN
    1 x Locate button
    1 x Power button
  • Rear I/O Ports

    1 x Locate button
    1 x Power button
  • Switch/LED

    Front :
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    1 x Q-Code/Port 80 LED
    Rear :
    1 x Power Button /LED
    1 x Location Button /LED
  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)
  • Regulatory Compliance

    BSMI, CB, CE, FCC, KCC
  • Dimensions

    885mm x 447mm x 306.65mm
  • Form Factor

    7U
  • Weight

    Net Weight: 99 Kg
    Gross Weight: 154 Kg
  • Power Supply

    4+2 or 3+3 Redundant 3000W 54V 80 PLUS Titanium Power Supply
  • Environment

    Operation temperature: 10℃ ~ 35℃
    *with BlueField-3, the operation temperature will be 10℃ ~ 30℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
