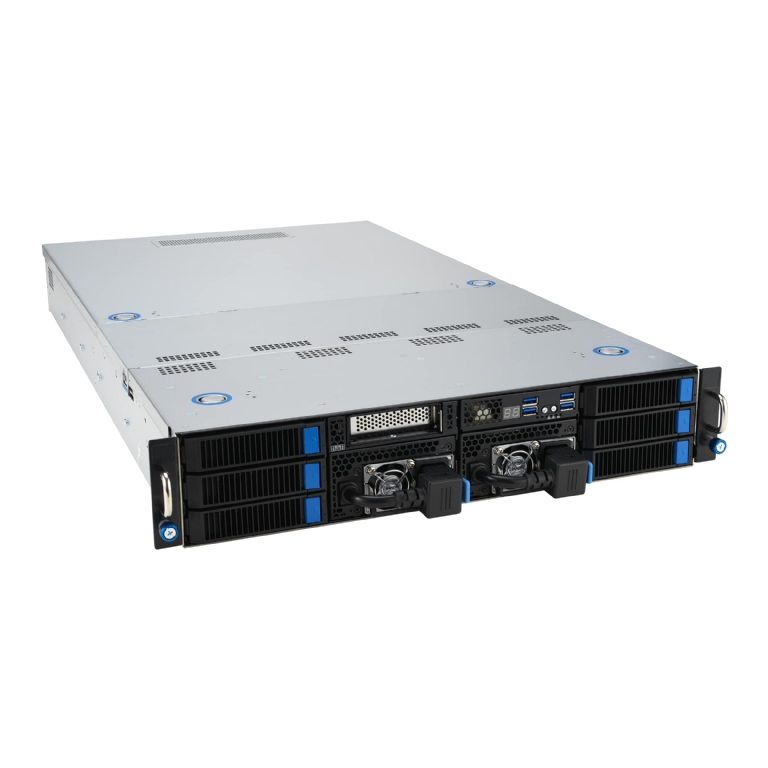

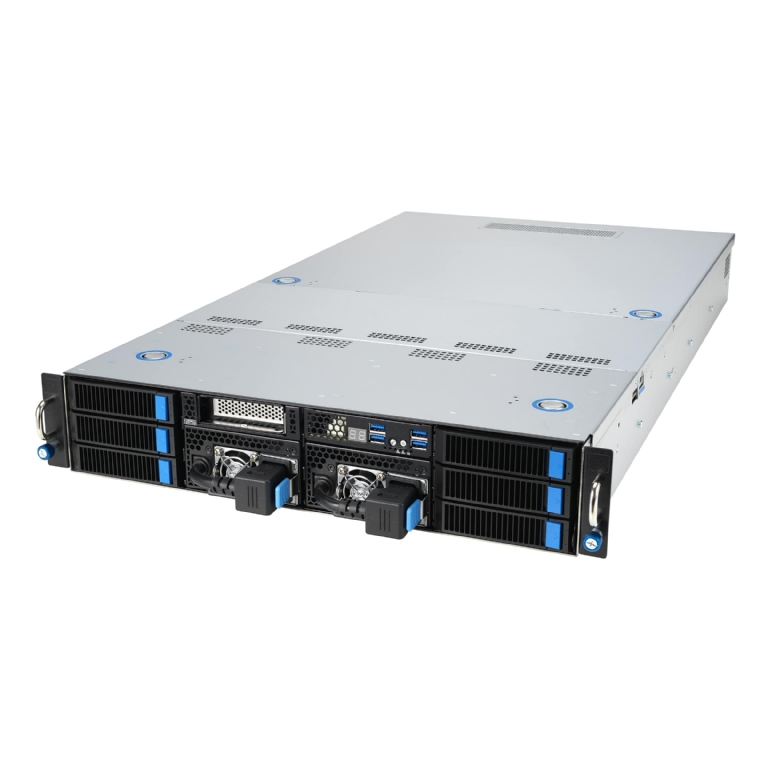

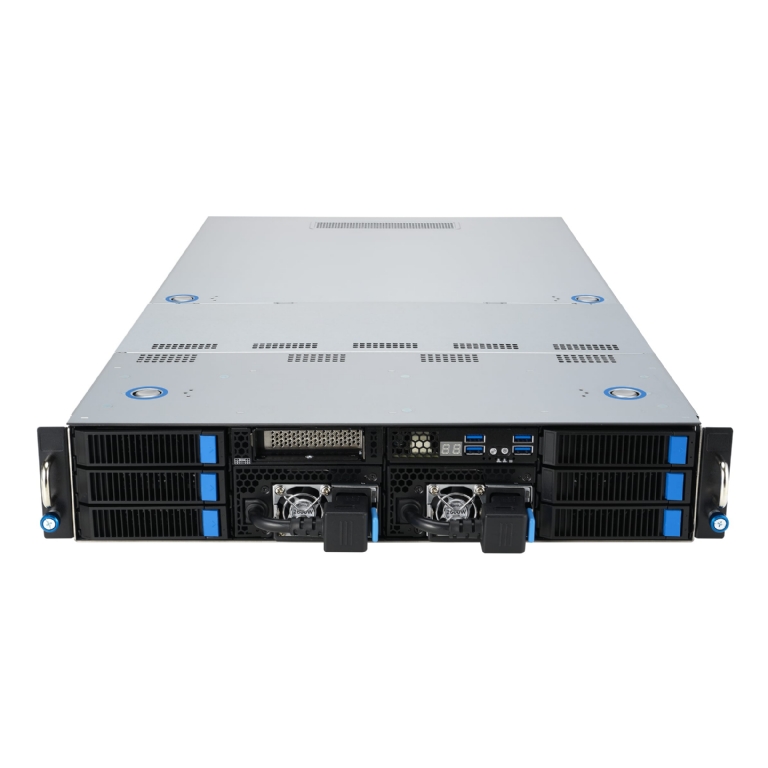

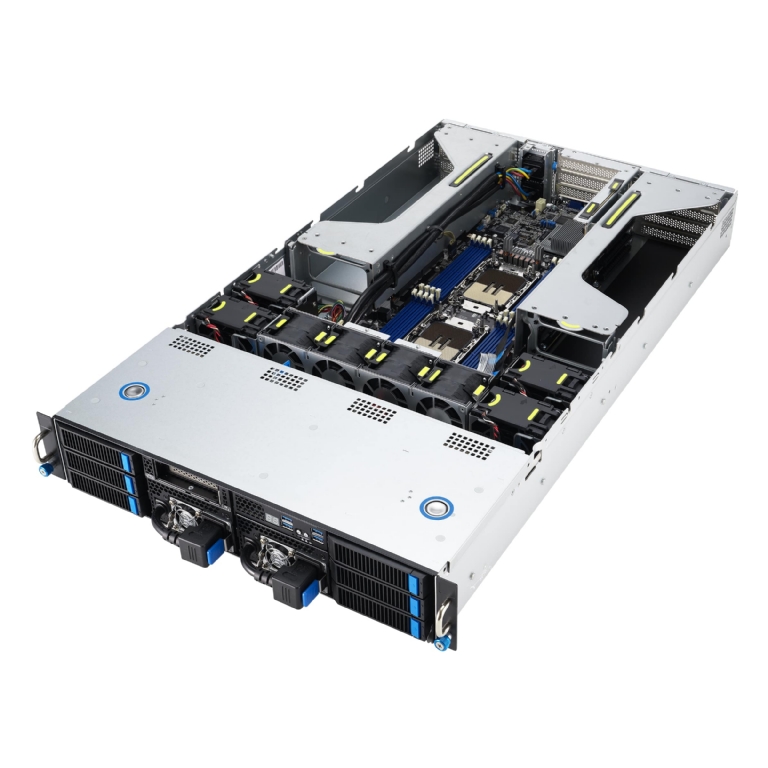

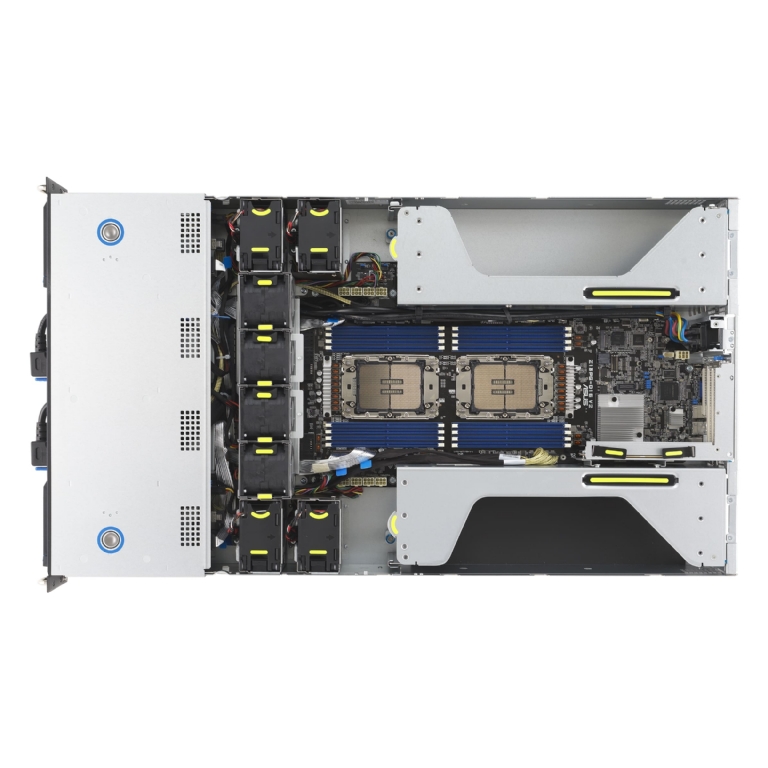

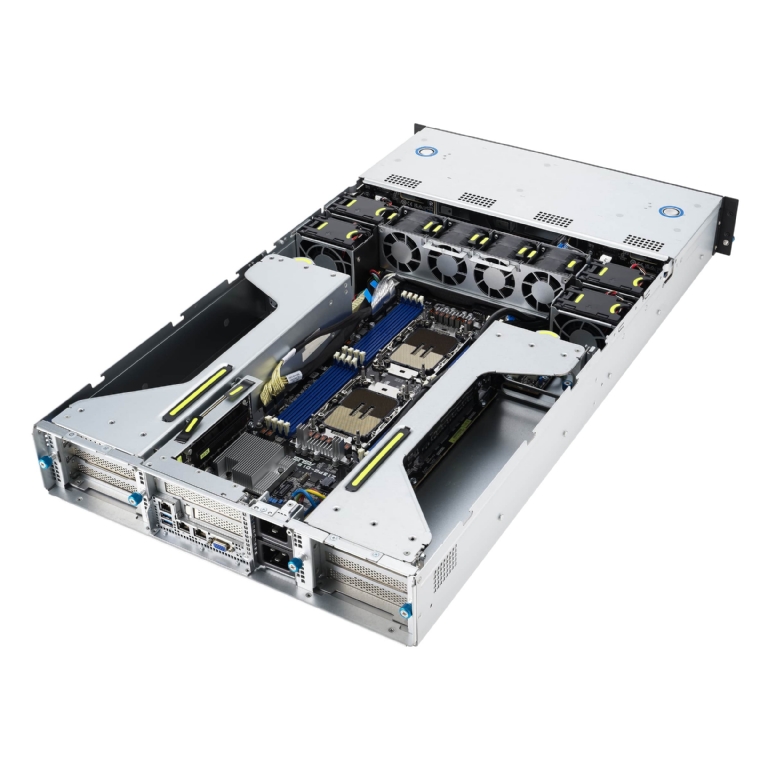

ASUS ESC4000-E11 2U Rackmount Dual Intel 4th Gen Xeon Scalable GPU Server - 6x Hot-Swap Bays - 8x GPU Support - Dual 2600W PSU

90SF02L1-M000T0
ASUS ESC4000-E11 2U Rackmount Dual Intel 4th Gen Xeon Scalable GPU Server - 6x Hot-Swap Bays - 8x GPU Support - Dual 2600W PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    4th Gen Intel® Xeon® Scalable processors (Up to 350W)
  • Core Logic

    Intel® C741 Chipset
  • Memory

    16 x DDR5 4800(1DPC)/4400(2DPC)
  • Expansion Slots

    Rear:
    4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
    8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards
    -2 x PCIe x16 slots (Gen5 x16 link, FH, HL)
    Front:
    1 x PCIe x8 slot (Gen4 x8 link, LP, HL)
  • Storage

    2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays
    SKU1:
    2 x 2.5” SATA/SAS*/NVMe +
    2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS*
    SKU2: Build to order
    2 x 2.5” SATA/SAS*/NVMe +
    4 x 3.5” SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link )
    *SAS support required a HBA/RAID card.
    **For SKU1 additional 2 x NVMe support required a RAID card.

    1 x M.2 socket (Gen3 x4 link PCIe mode, up to 2280)
  • Networking

    2 x 1 Gigabit LAN ports (Intel I350 Controller)
    1 x Management Port
  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu

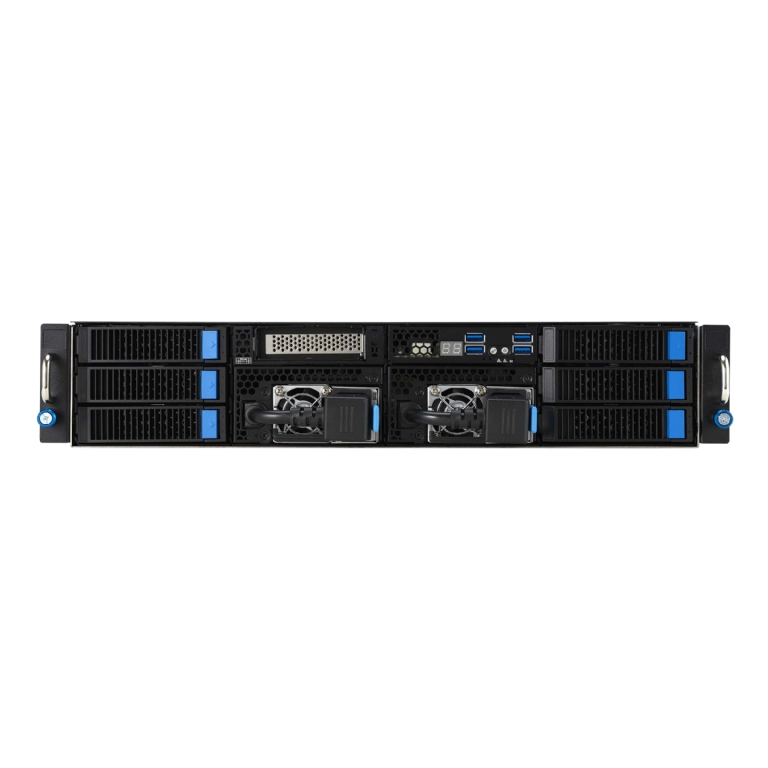

  • Front I/O Ports

    4 x USB 3.2 Gen1 ports

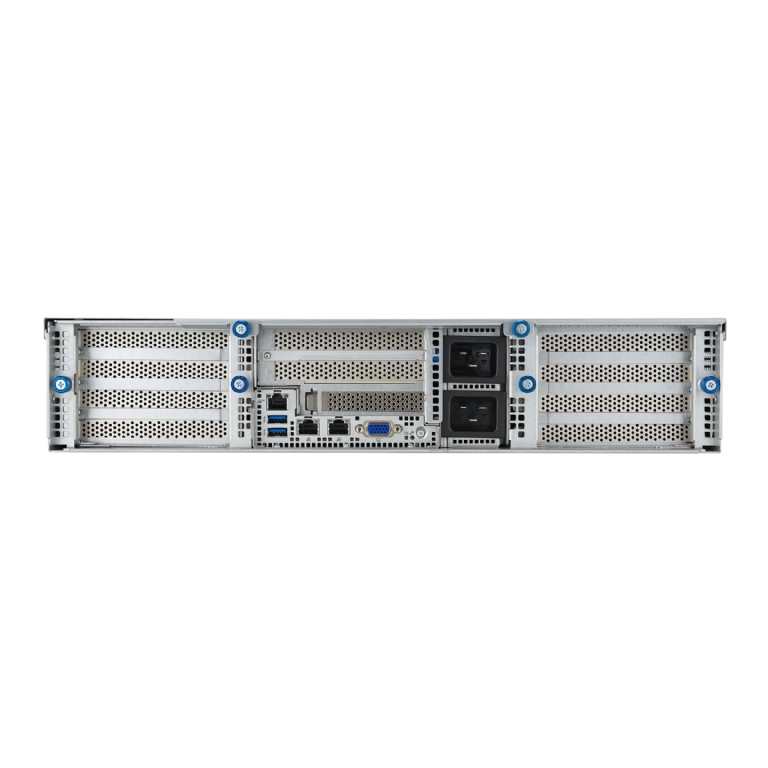

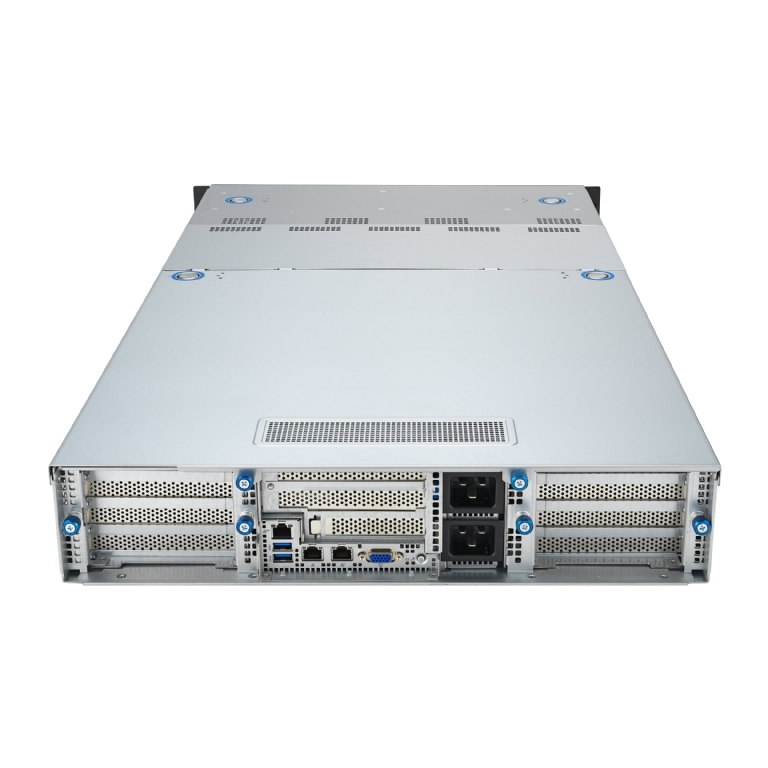

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    2 x Gigabit LAN ports (RJ45)
    1 x MAnagement port (RJ45)
    1 x VGA port
  • Switch/LED

    Front :
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    1 x Q-Code/Port 80 LED
    2 x LAN LED
    Rear :
    1 x Power Button/LED
    1 x Location LED
    1 x Message LED
  • OS Support

    Windows Server
    RedHat® Enterprise Linux
    SuSE® Linux Enterprise Server
    CentOS
    Ubuntu
    Vmware

    *Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)
  • Regulatory Compliance

    BSMI, CE, RCM, FCC(Class A)
  • Dimensions

    800mm x 439.5mm x 88.9mm (2U)
    31.50" x 17.30" x 3.50"
  • Weight

    Net Weight: 26 Kg
    Gross Weight: 36.8 Kg
  • Power Supply

    1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply
  • Environment

    Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
