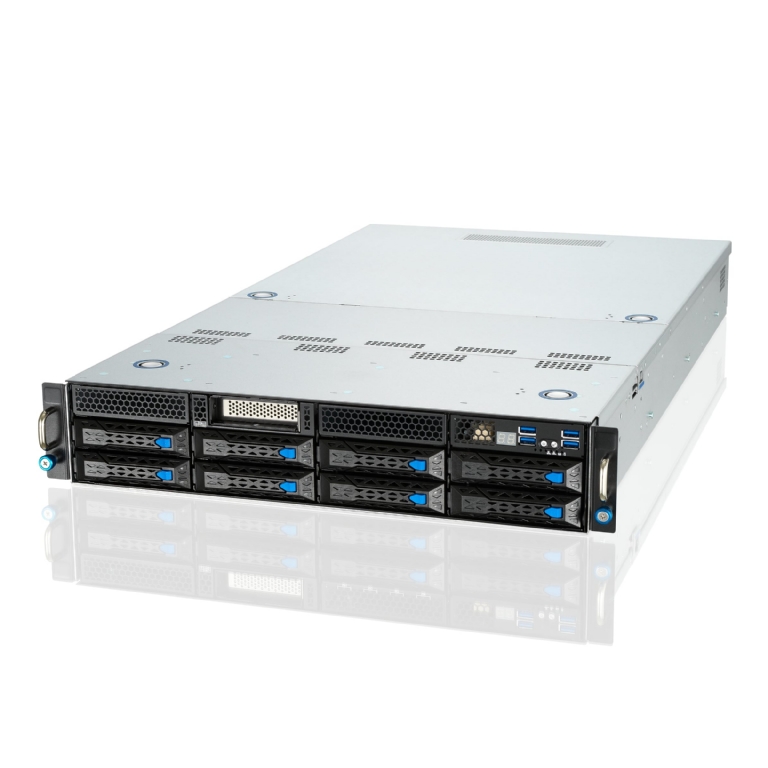

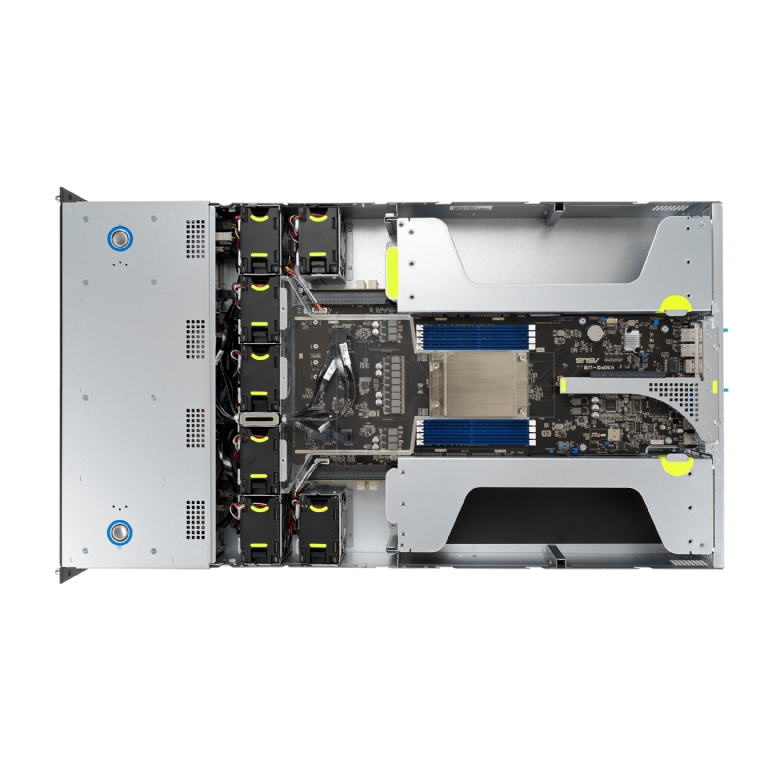

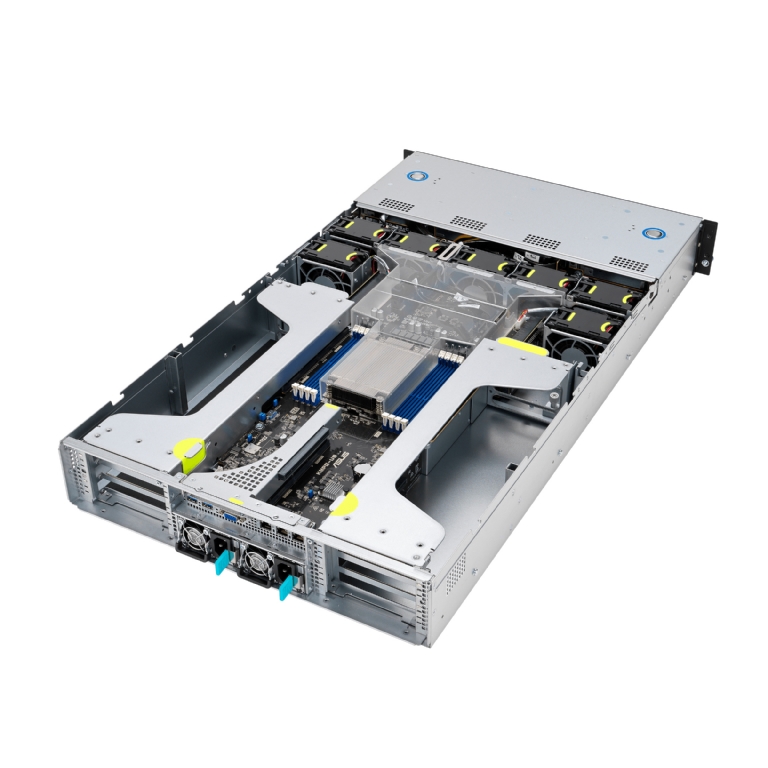

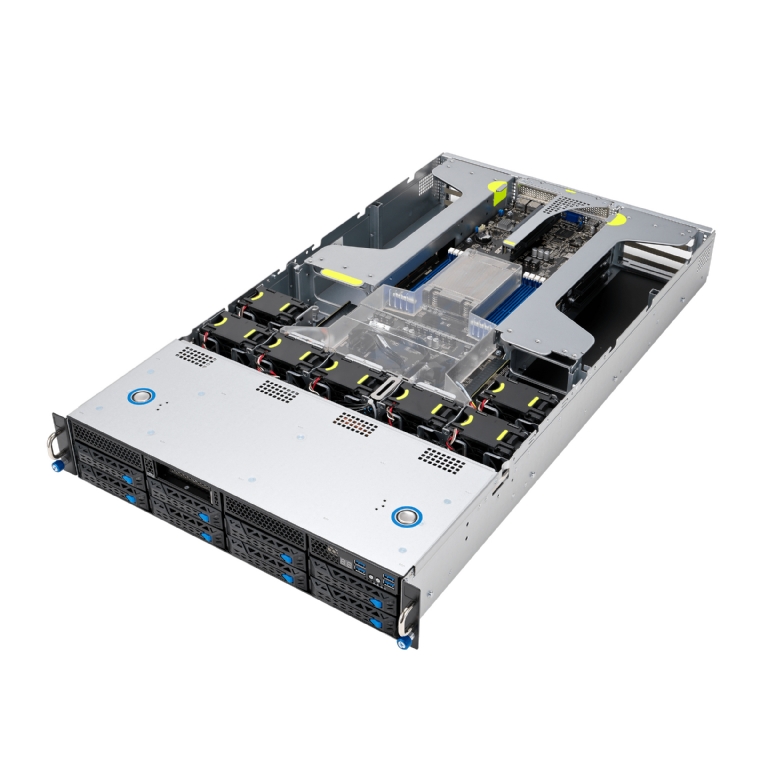

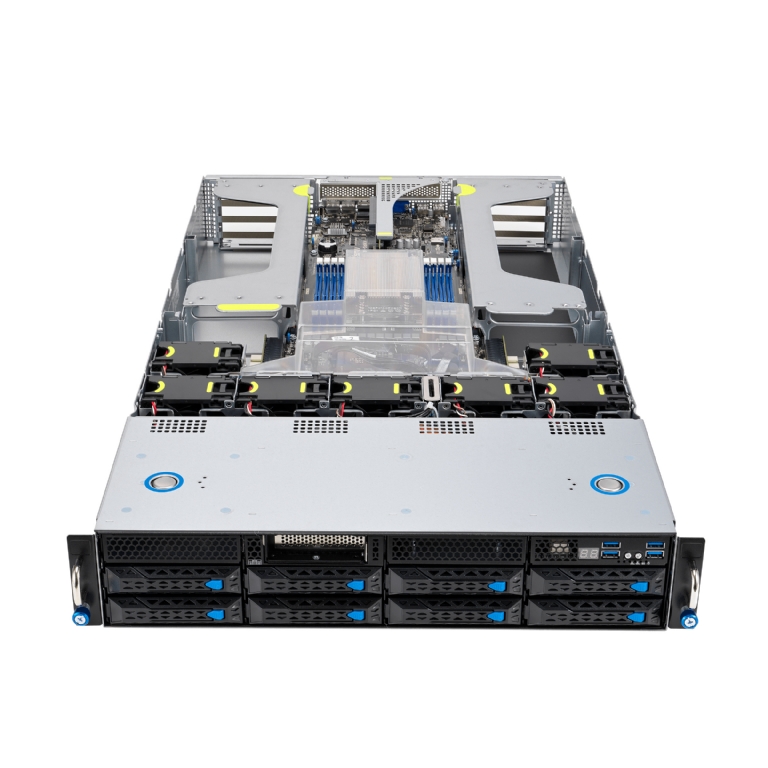

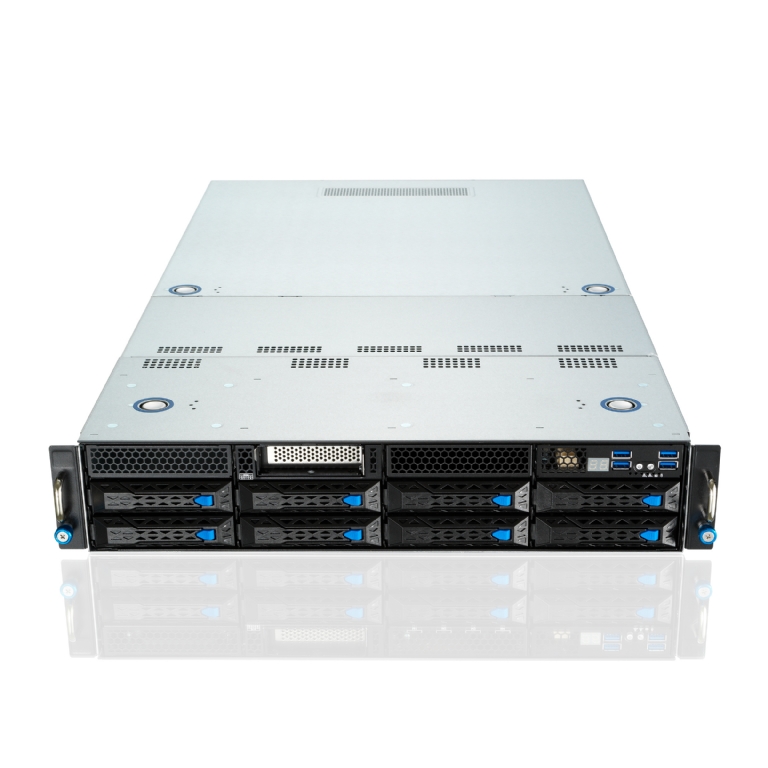

ASUS ESC4000A-E11 2U Rackmount Single 7002/7003 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Dual 2200W PSU

• Processor / System Bus

  1 x Socket SP3 (LGA 4094) Option 1
  AMD EPYC™ 7003 Series
  AMD EPYC™ 7002 Series
  3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology

• Memory

  Total Slots : 8 (8-channel)
  Capacity : Maximum up to 2048GB RDIMM
  Memory Type :
  DDR4 3200 RDIMM
  DDR4 3200 LRDIMM
  DDR4 3200 LR-DIMM 3DS
  Memory Size :
  256GB, 128GB, 64GB, 32GB, 16GB
  * Refer to support page for more information

• Expansion Slots

  Rear:
  - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
    8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards

  - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL)

  Front:
  - SKU-1 (default)
  　1 x PCIe x8 slot (Gen4 x8 link, LP,HL)

  - SKU-2 (by request)
  　1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
  　1 x OCP3.0 slot (Gen4 x8 link) by switching cables

  - SKU-3 (by request)
  　1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
  　2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables

• Storage

  Storage Controller :
  CPU Integrated
  Optional kits Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

• Drive Bays

  8 x 3.5" or 2.5" Hot-swap Storage Bays
  (Backplane Supports 4 x SATA/SAS + 4 x SATA/SAS/NVMe Devices)

  1 x M.2 socket (Gen4 x4 link, up to 22110 on-motherboard)

• Networking

  1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/GPU

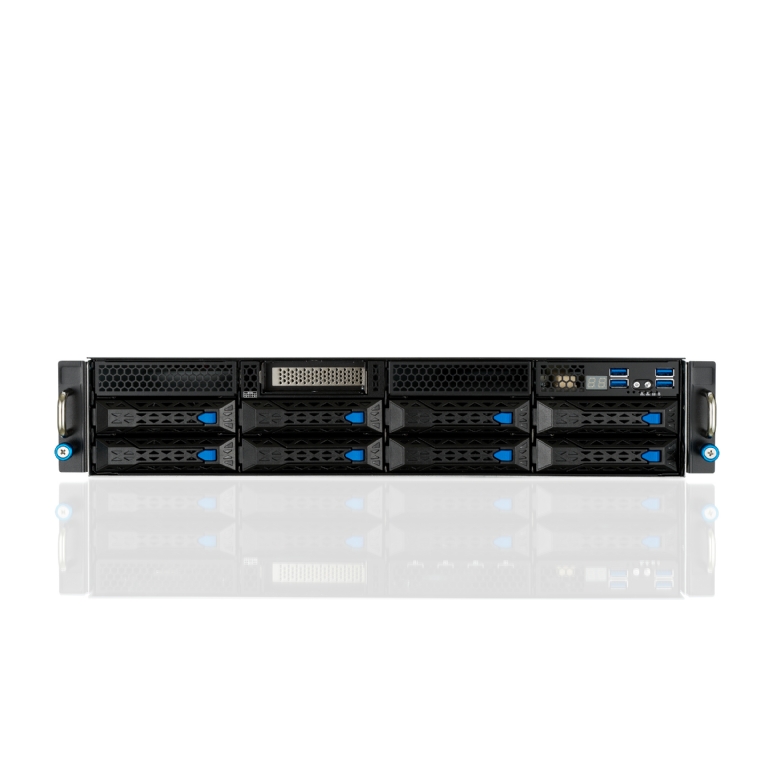

• Front I/O Ports

  1 x Q-code/port-80 LED
  4 x USB 3.2 Gen1 ports

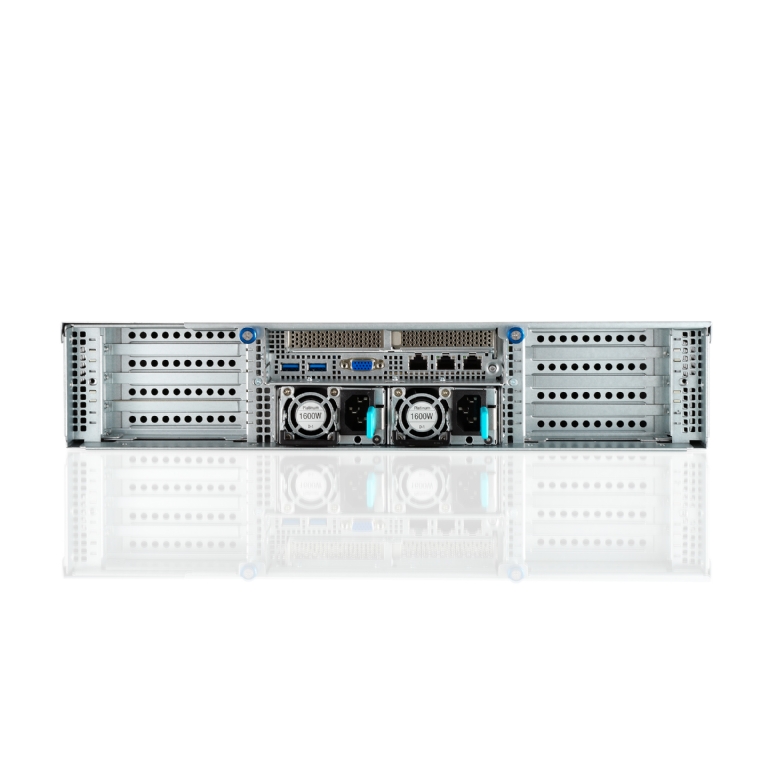

• Rear I/O Ports

  2 x USB 3.2 Gen1 port
  1 x VGA port
  1 x Management port (RJ45)
  2 x Gigabit LAN ports (RJ45)

• Switch/LED

  Rear:
  1 x Power Button/LED
  1 x Location LED
  1 x Message LED
  1 x HDD Access LED

  Front:
  1 x Power Button/LED
  1 x Location Button/LED
  2 x LAN LED
  1 x Message LED
  1 x HDD Access LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center Enterprise (in-band)
  ASMB10-iKVM for KVM-over-IP (out-of-band/BMC AST2600)

• Regulatory Compliance

  BSMI, CE, RCM, FCC(Class A)

• Dimensions

  800mm x 440mm x 88.9mm (2U)
  31.50" x 17.22" x 3.5"

• Weight

  Net Weight: 34 Kg.
  Gross Weight: 44 Kg.

• Power Supply

  1+1 Redundant 1600W 80 PLUS Platinum Power Supply
  Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz

  1+1 Redundant 2200W 80 PLUS Platinum Power Supply
  Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz

• Environment

  Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)

• Note

  *Users need to remove Slimline cables from the PCIe riser board, and re-connect the cables to the backplane for total 4 x NVMe devices.

  ** There is a MicroSD slot on motherboard allowing you to install a MicroSD card to log BMC events.

  ***We also provide special GPU riser cards (with PCIe-switch) could support 8 single-slot GPU cards (x16 link for each). If customers need the customization, please contact ASUS sales representative for detail.
