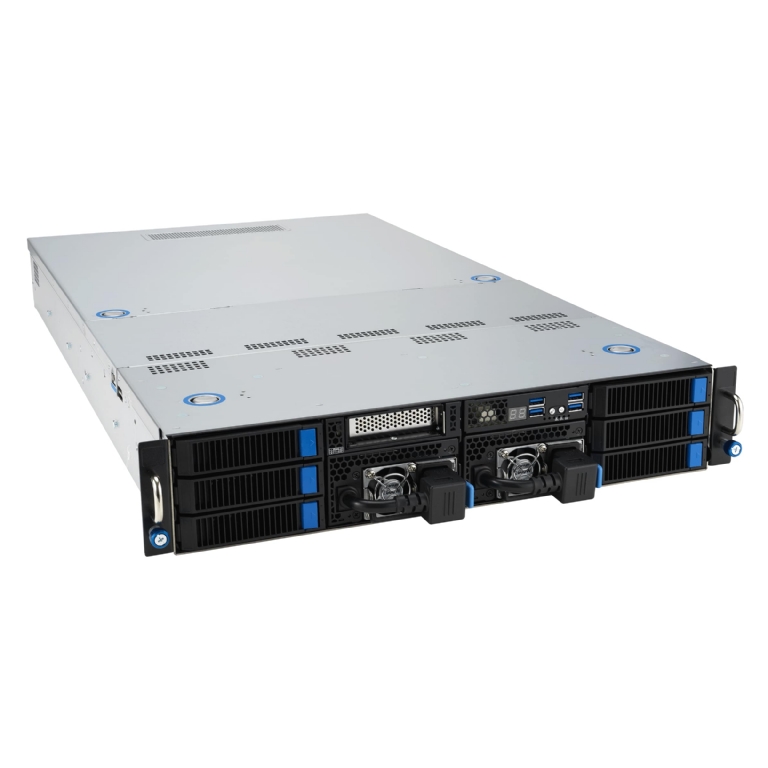

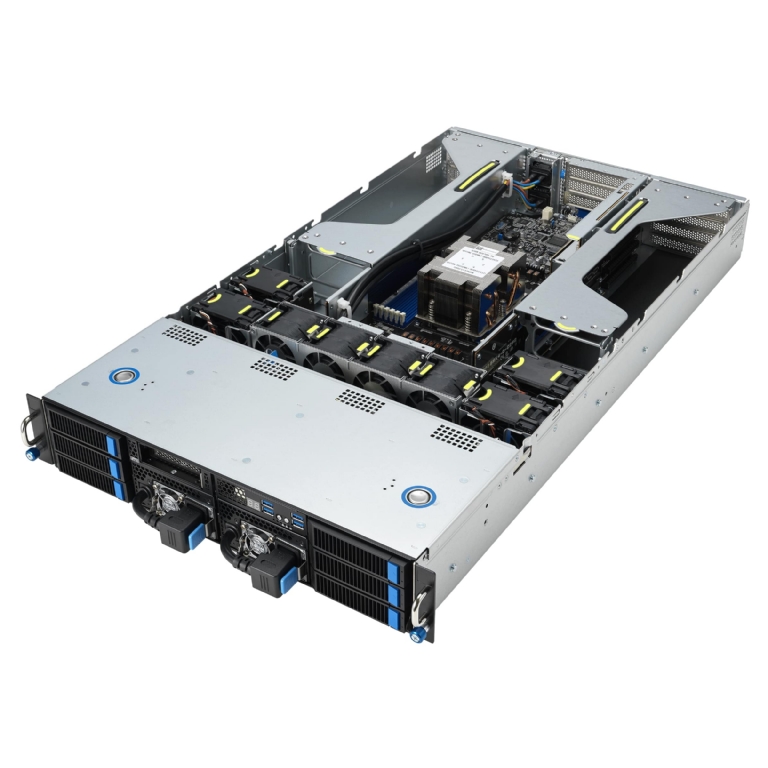

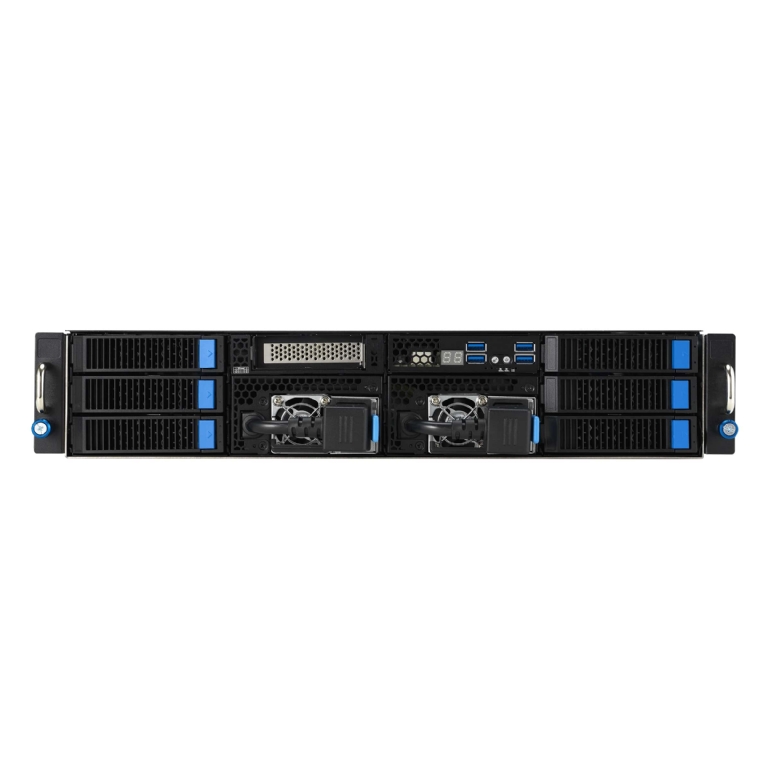

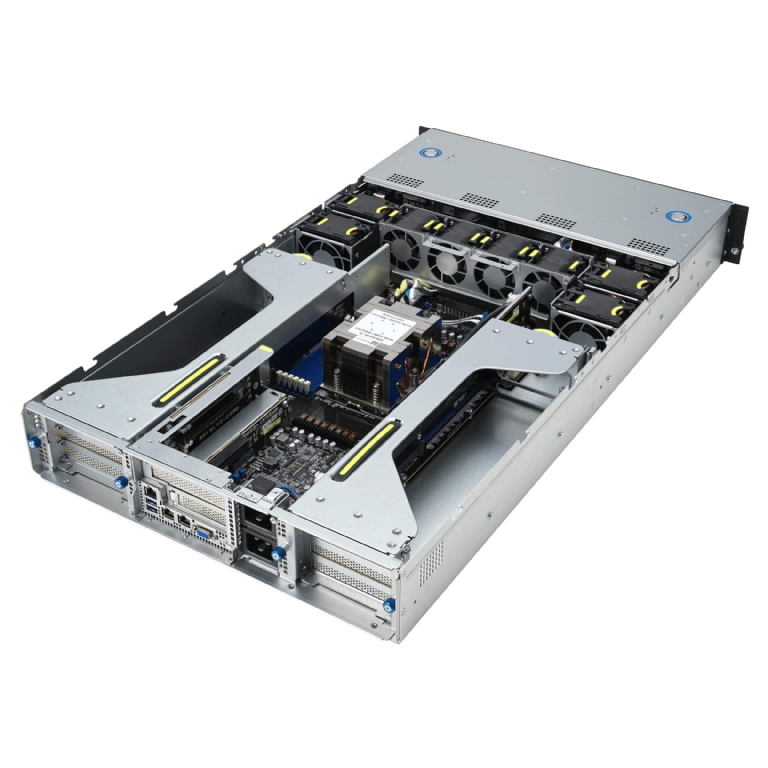

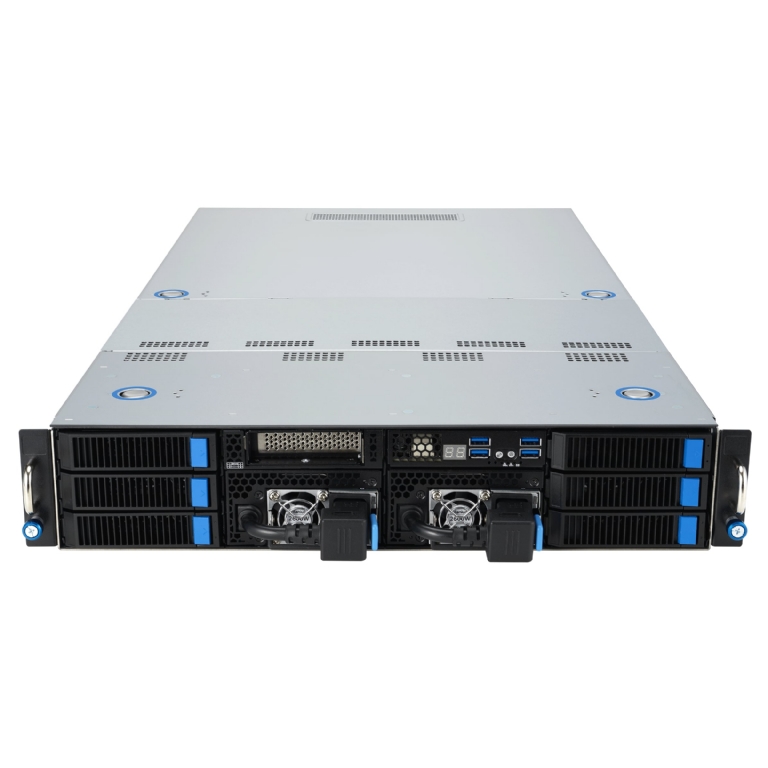

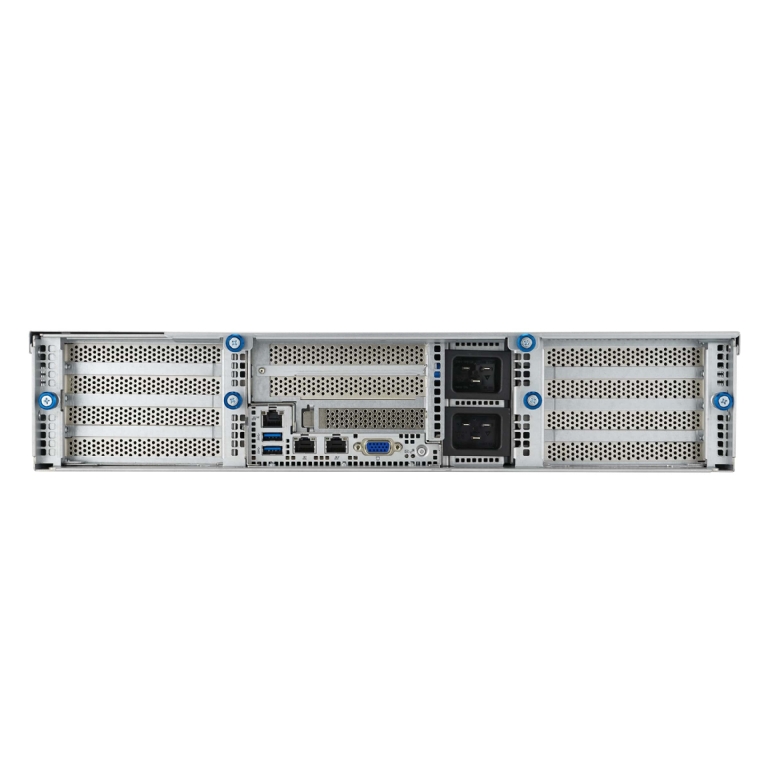

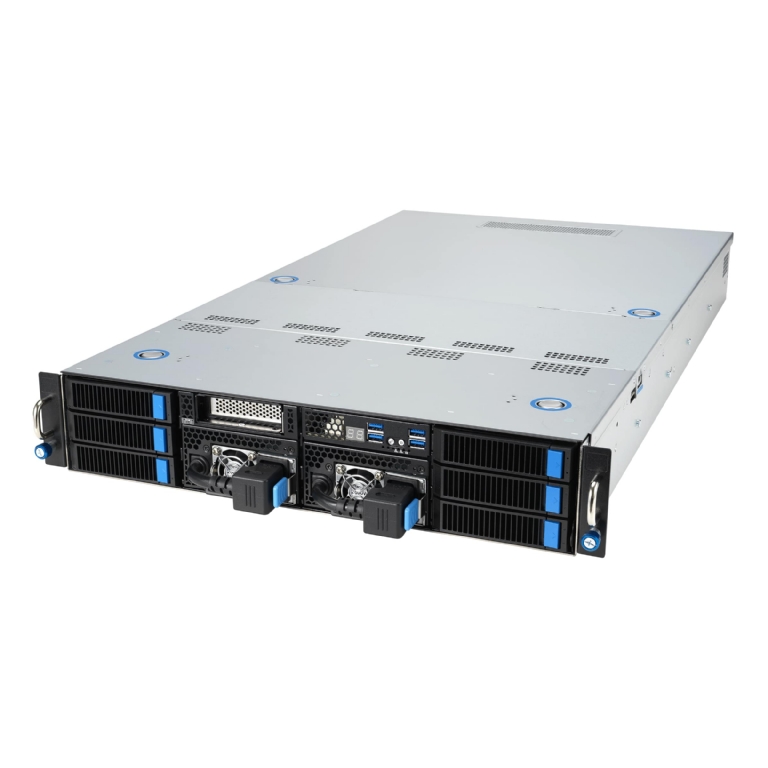

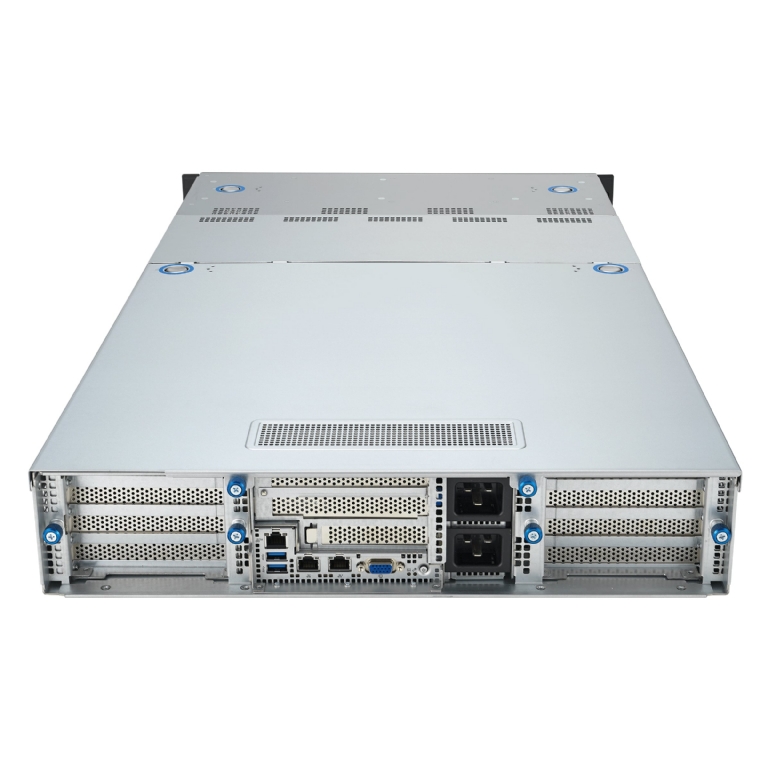

ASUS ESC4000A-E12 2U Rackmount Single 9004 Series AMD EPYC GPU Server - 6x Hot-Swap Bays - 4x GPU Support - Dual 3000W PSU

90SF02M1-M000W0
ASUS ESC4000A-E12 2U Rackmount Single 9004 Series AMD EPYC GPU Server - 6x Hot-Swap Bays - 4x GPU Support - Dual 3000W PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    1 x Socket SP5 (LGA 6096)
    AMD EPYC™ 9004 series (up to 400W)
    4th Generation AMD EPYC Processorswith AMD 3D V-Cache technology
  • Memory

    Total Slots : 12 (12-channel)
    Capacity : Maximum up to 3TB RDIMM
    Memory Type :
    DDR5 4800/4400 RDIMM/RDIMM 3DS
    Memory Size :
    64GB, 32GB, 16GB RDIMM
    256GB, 128GB  3DS RDIMM
    * Refer to support page for more information
  • Expansion Slots

    Rear:
    -4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
    8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards

    -1 x PCIe x16 slots (Gen5 x16 link, FH, HL)
    -1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module
    -1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL)

    Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1
  • Storage

    Storage Controller :
    CPU Integrated

    Optional kits:
    ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card
    ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card
    Broadcom MegaRAID 9540-8i
    Broadcom MegaRAID 9560-16i
  • Drive Bays

    2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays

    SKU1:
    2 x 2.5” SATA/SAS*/NVMe +
    2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS*

    SKU2: Build to order
    2 x 2.5” SATA/SAS*/NVMe +
    4 x 3.5” SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link )

    Optional: 1 x M.2 with riser module


    *RAID card is required to support SAS hard drives
    **For SKU1 additional 2 x NVMe support required a RAID card.
  • Networking

    2 x GbE LAN ports (Intel I350 Controller)
    1 x Management Port
  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu​​
  • Front I/O Ports

    1 x Q-code/port-80 LED
    4 x USB 3.2 Gen1 ports
  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    2 x Gigabit LAN ports
    1 x MAnagement port
    1 x VGA port
  • Switch/LED

    Front :
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    1 x Q-Code/Port 80 LED
    2 x LAN LED

    Rear :
    1 x Power Button/LED
    1 x Location LED
    1 x Message LED
  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)
  • Regulatory Compliance

    BSMI, CE, RCM, FCC(Class A)
  • Dimensions

    800mm x 439.5mm x 88.9mm (2U)
    31.50" x 17.30" x 3.50"
  • Weight

    Net Weight: 24 Kg
    Gross Weight: 34.8 Kg
  • Power Supply

    1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply
  • Environment

    Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
