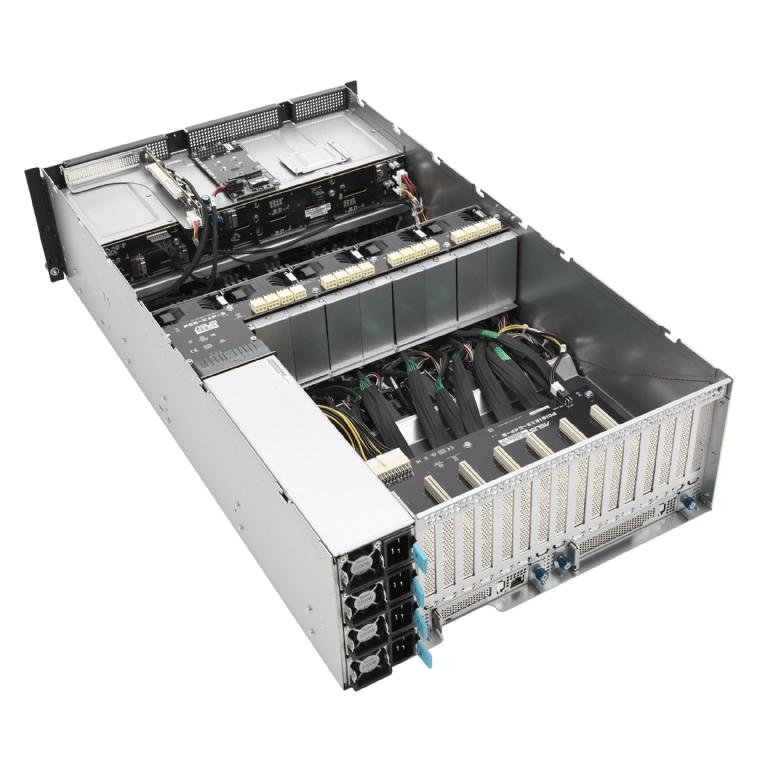

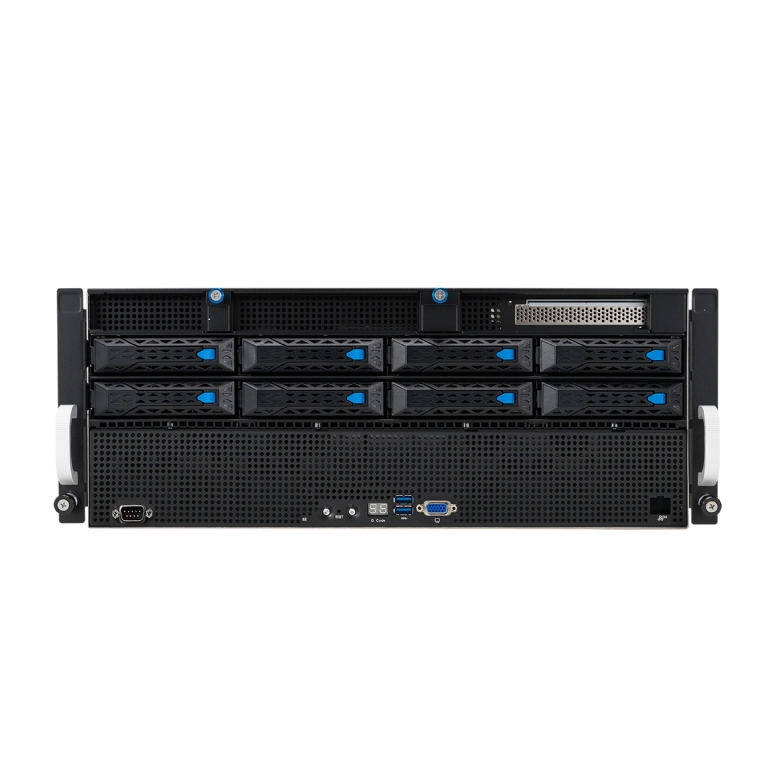

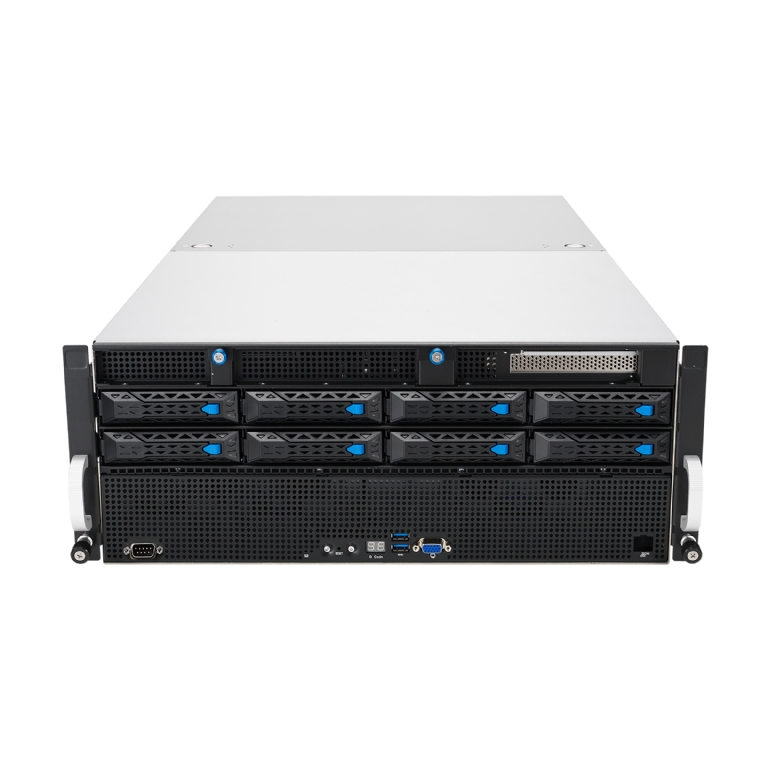

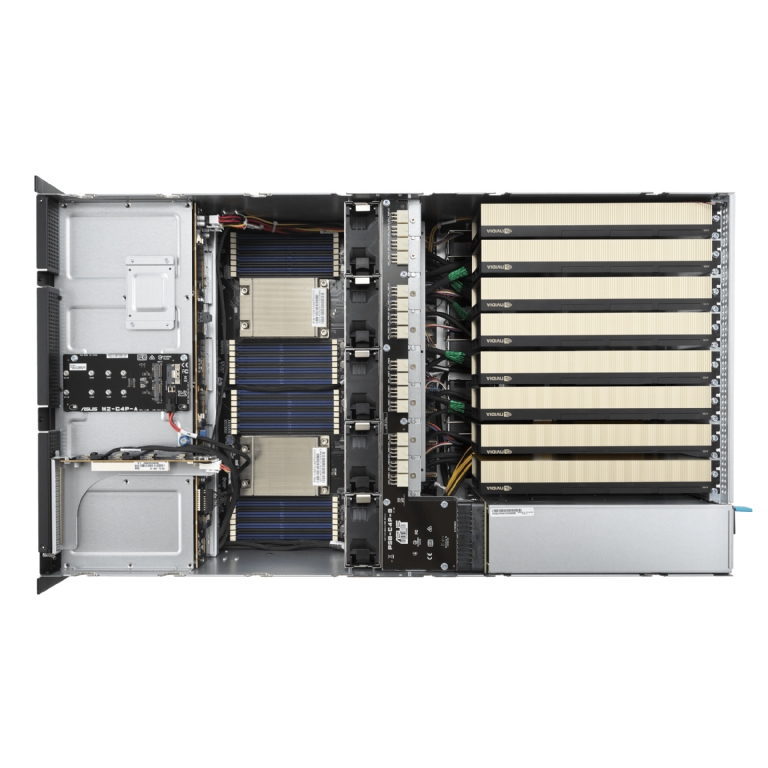

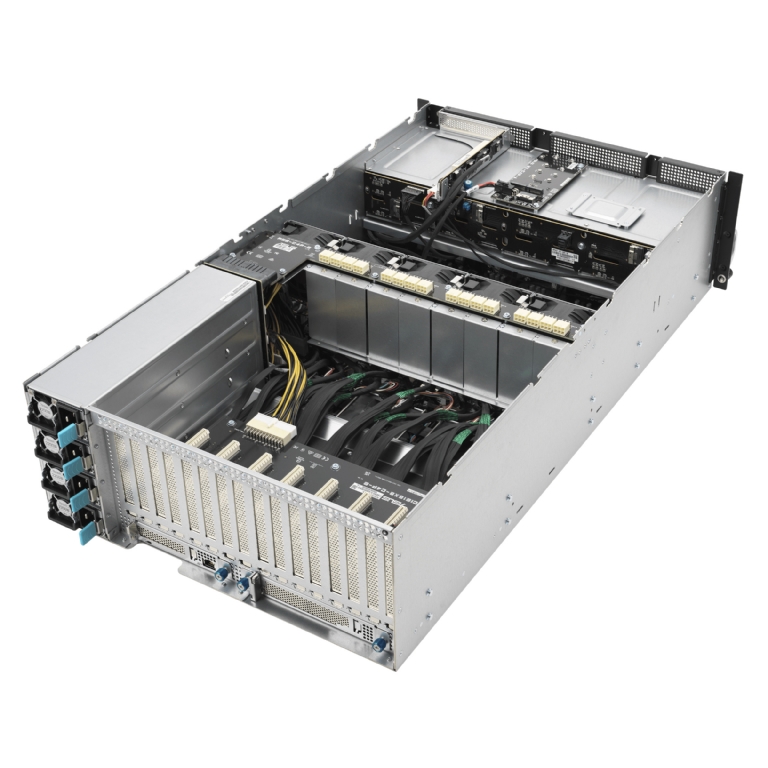

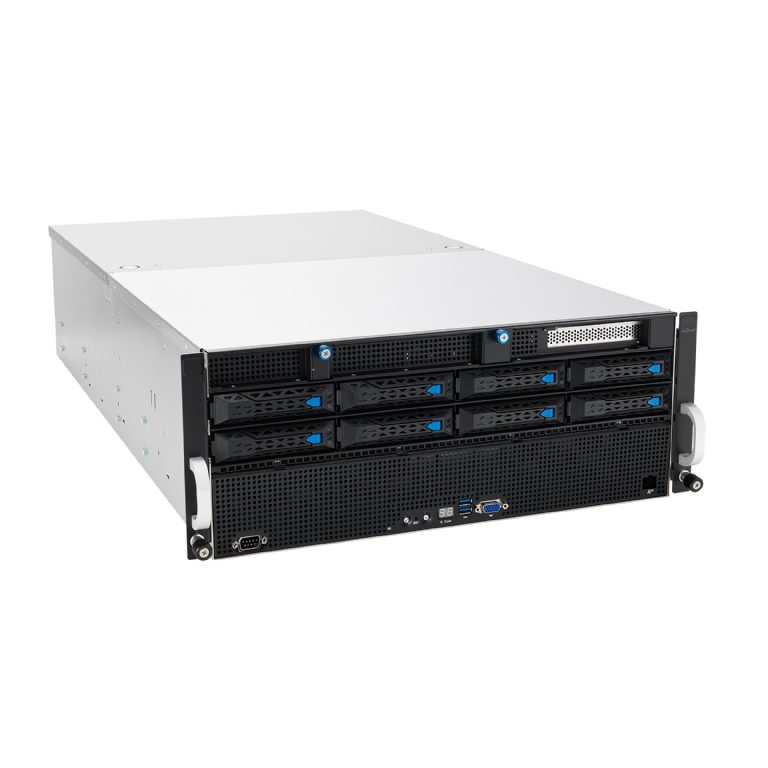

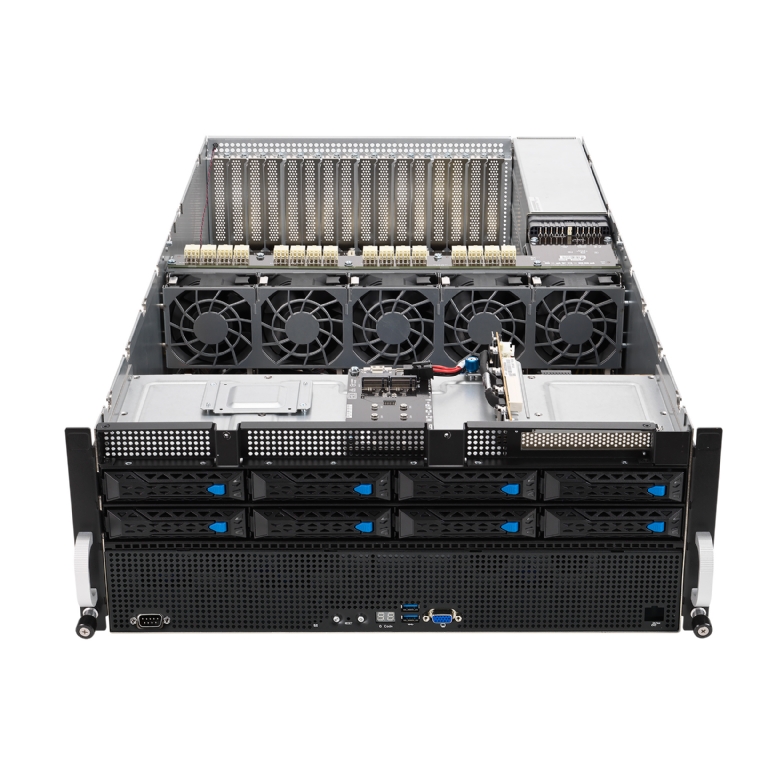

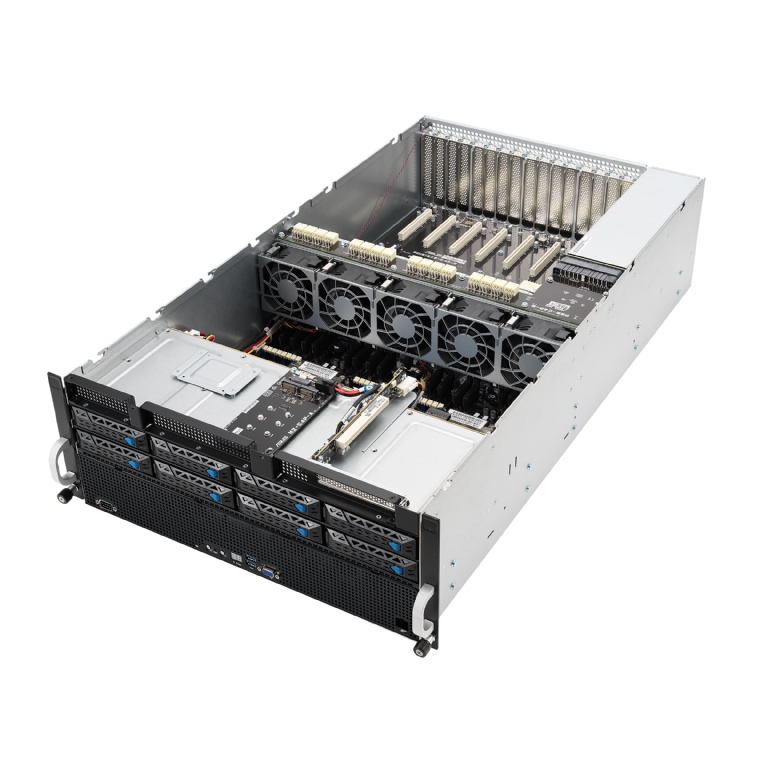

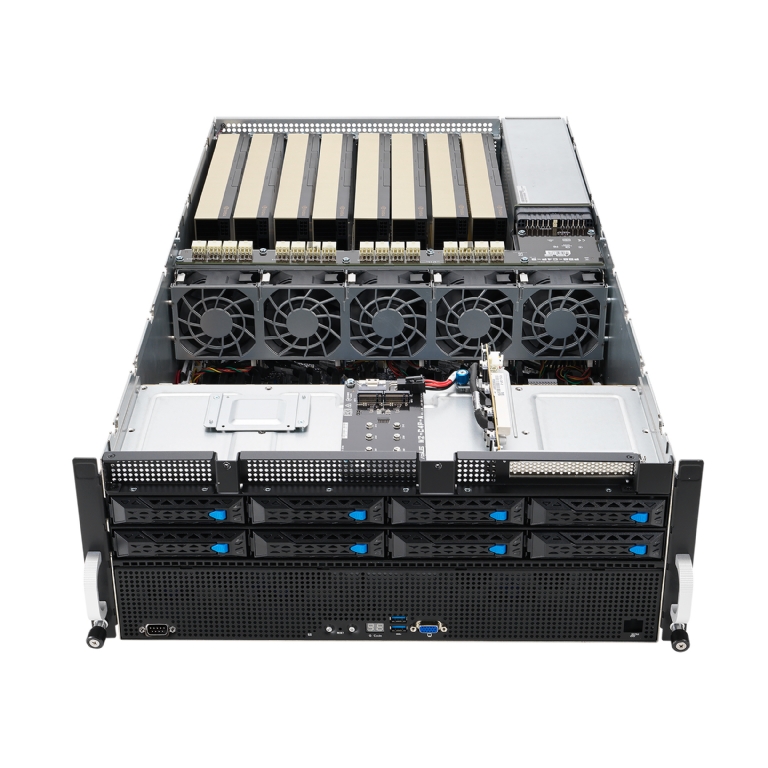

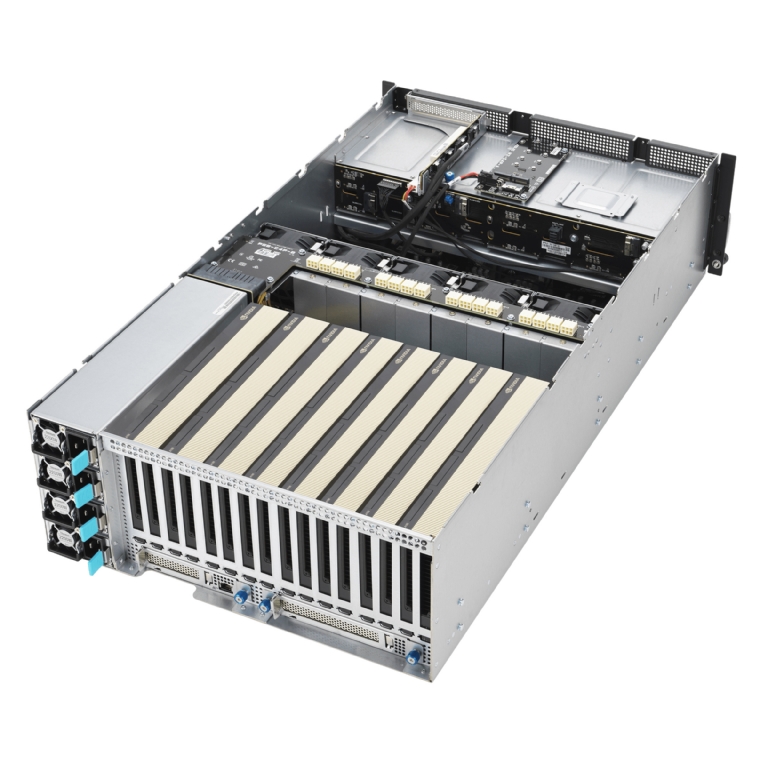

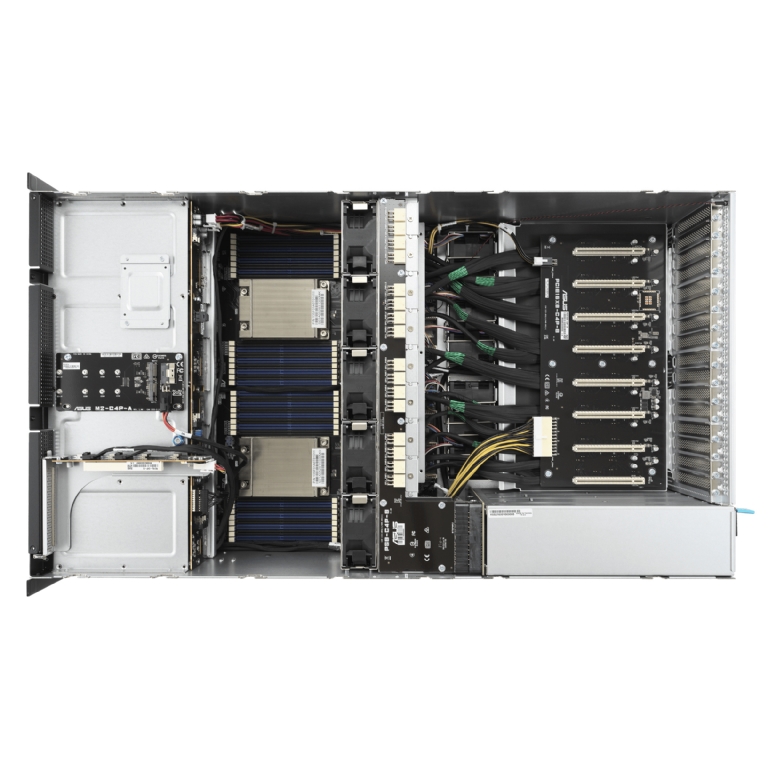

ASUS ESC8000A-E11 4U Rackmount Dual 7003 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Dual 3000W PSU

90SF0214-M000V0
ASUS ESC8000A-E11 4U Rackmount Dual 7003 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Dual 3000W PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    2 x Socket SP3 (LGA 4094)

    AMD EPYC™ 7003 Series
  • Memory

    Total Slots :

    32 (8-channel, 2DPC)


    Capacity :

    Max. 8,192GB


    Memory Type :

    DDR4 3200 RDIMM / LRDIMM / LRDIMM 3DS


    Memory Size :

    256GB, 128GB, 64GB, 32GB, 16GB

    * Refer to support page for more information
  • Expansion Slots

    Rear

      8 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards


      1 x PCIe x16 slots (Gen4 x16 or x8 link, FH,HL) or OCP3.0 NIC socket (optional)

      1 x PCIe x8 slots (Gen4 x8 link, LP,HL) (optional)



    Front

      1 x PCIe x16 slot (Gen4 x8 link, FH,HL) for HBA/RAID cards
  • Storage

    Optional kits Controller :

    ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

    ASUS PIKE II 3108-8i 8-port SAS 12G RAID card
  • Drive Bays

    8 x 3.5" Hot-swap Storage Bays

    (Backplane Supports 4 x SATA/SAS + 4 SATA/SAS/NVMe Devices)*


    Modular support 2 x M.2 sockets (Gen4 x4 link, up to 22110) by SKU configuration.


    *SATA/SAS drive support required an additional HBA/RAID card.
  • Multi-GPU Support

    Please find the latest GPU support from

    https://servers.asus.com/support/gpu
  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
  • Rear I/O Ports

    1 x Management port (RJ45)
  • Switch/LED

    Front :

    1 x Power Button/LED

    1 x Location Button/LED

    1 x Message LED



    Rear :

    1 x Location LED
  • OS Support

    Please find the latest OS support from

    https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center Enterprise (in-band)

    ASMB10-iKVM for (out-of-band/BMC AST2600)
  • Regulatory Compliance

    BSMI, CB, CE, FCC(Class A)
  • Dimensions

    800 x 440 x 175.6mm
  • Form Factor

    4U
  • Weight

    Net Weight: 39 Kg.

    Gross Weight: 49 Kg.
  • Power Supply

    2+2 Redundant 2200W 80 PLUS Platinum Power Supply

    Rating: 100-127/200-240Vac,14A/12.6A,50-60Hz Class I



    2+2 Redundant 3000W 80 PLUS Titanium Power Supply

    Rating: 220-240Vac,15.5A,50-60Hz Class I
  • Environment

    Operation temperature: 10℃ ~ 35℃

    Non operation temperature: -40℃ ~ 70℃

    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Note

    *To support NVMe SSD, from CPU direct signal, the Max. Qty is 2.

    If uesrs equip with Broadcom 9560-16I card, the Max. Qty is 4.
