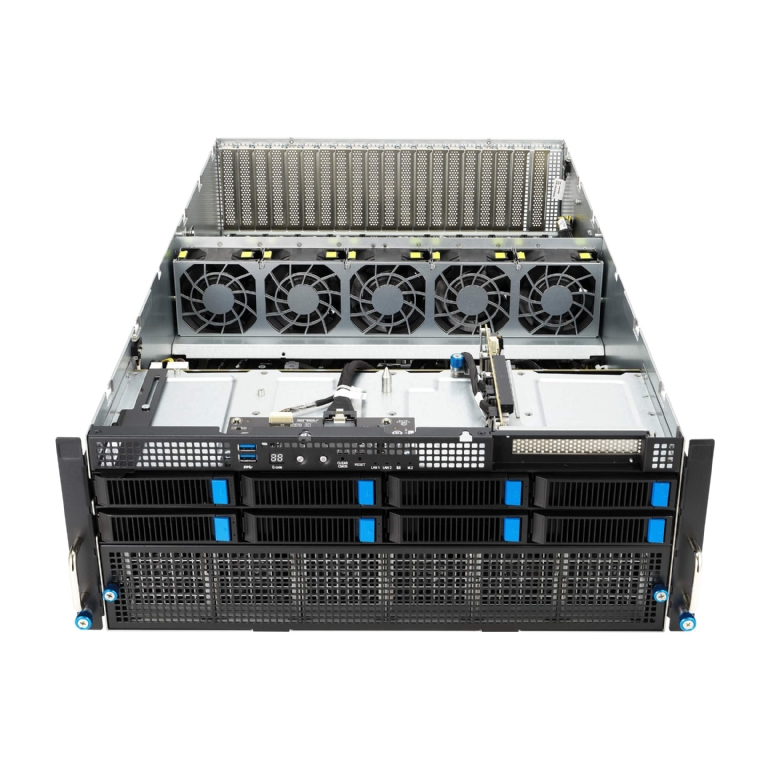

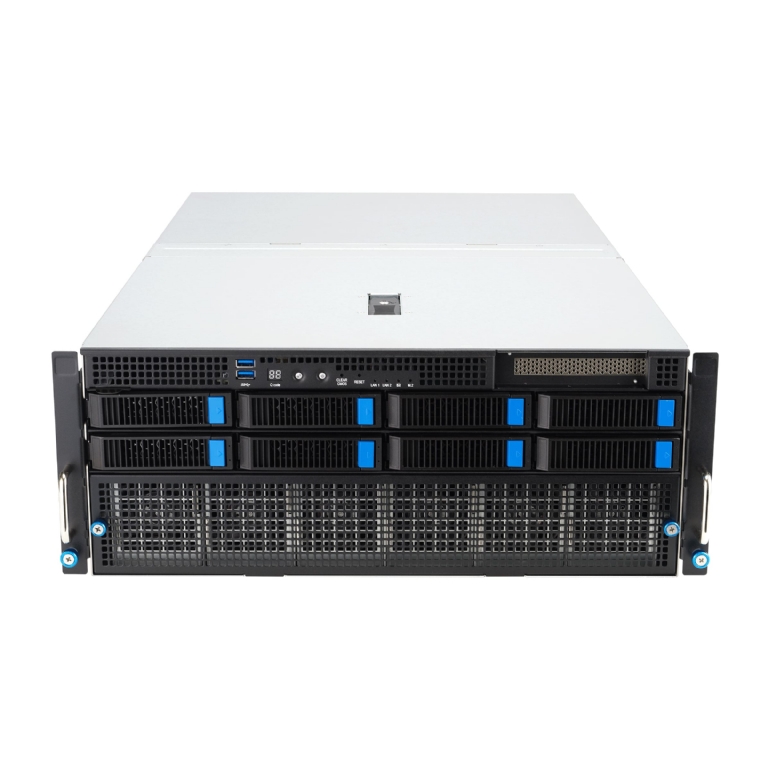

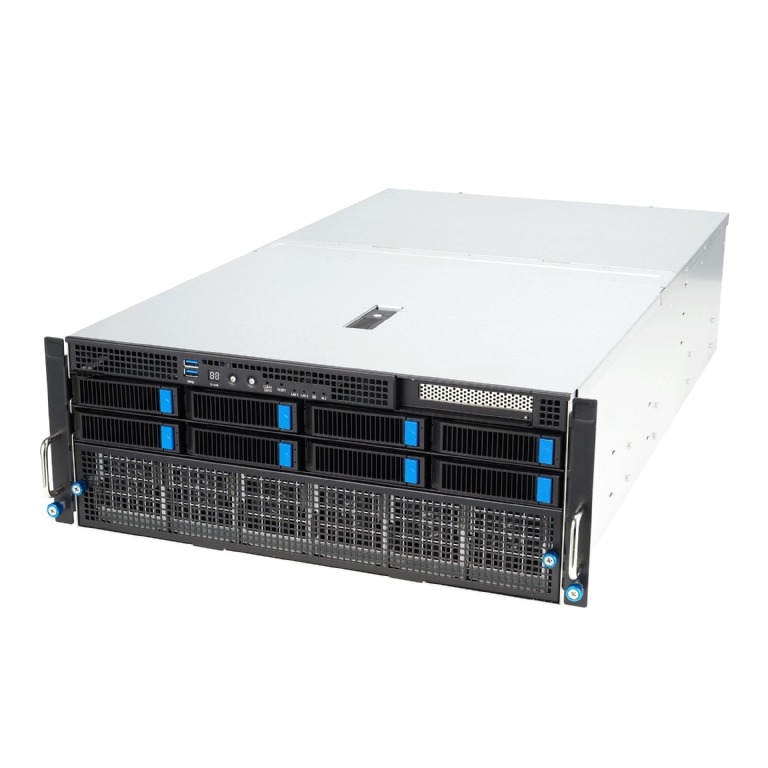

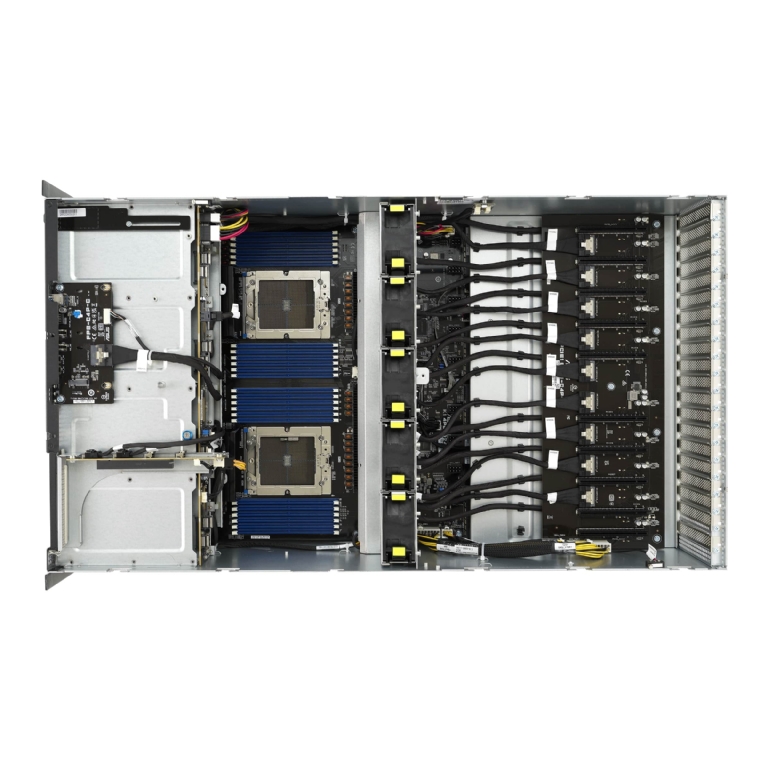

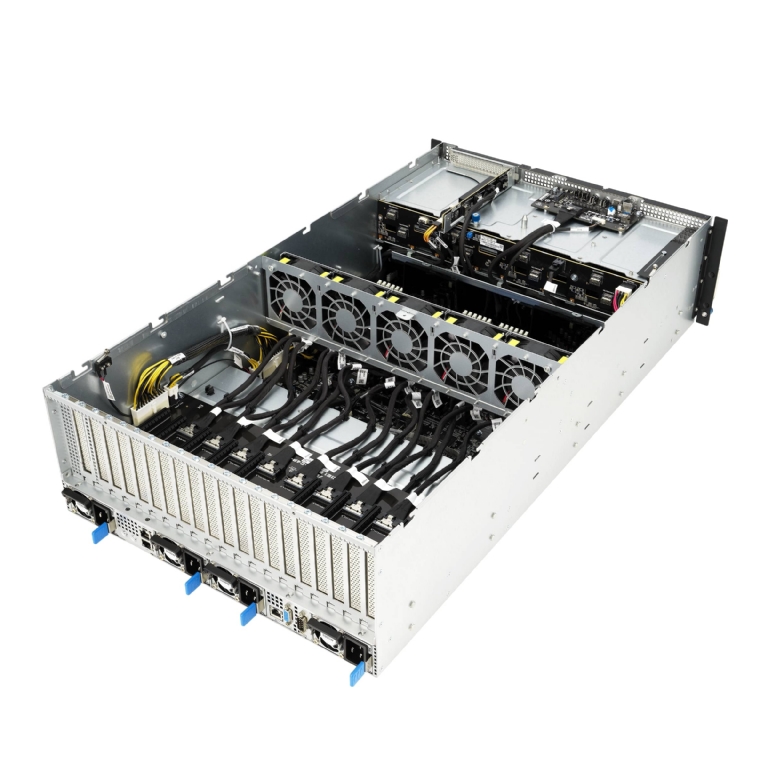

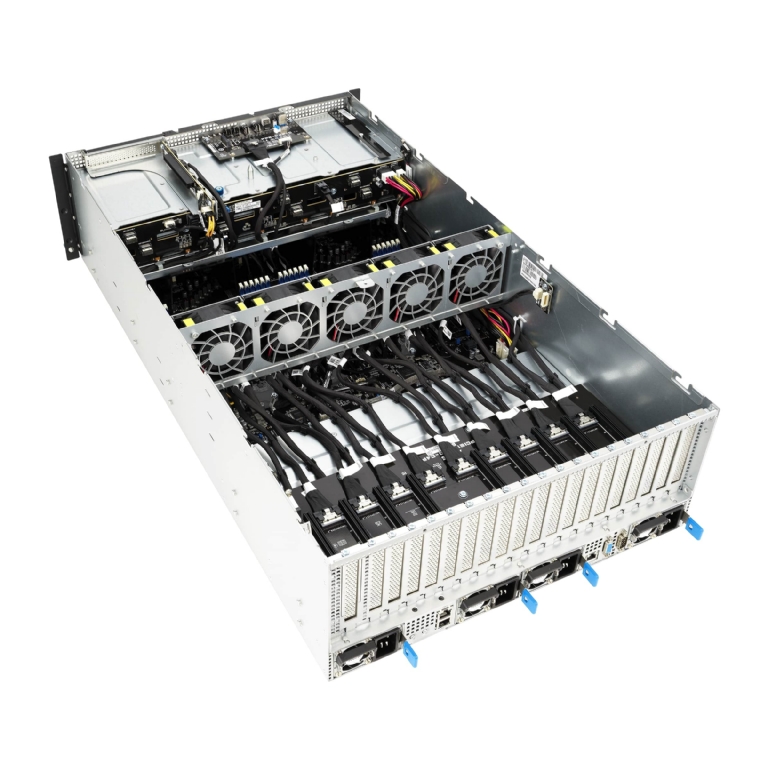

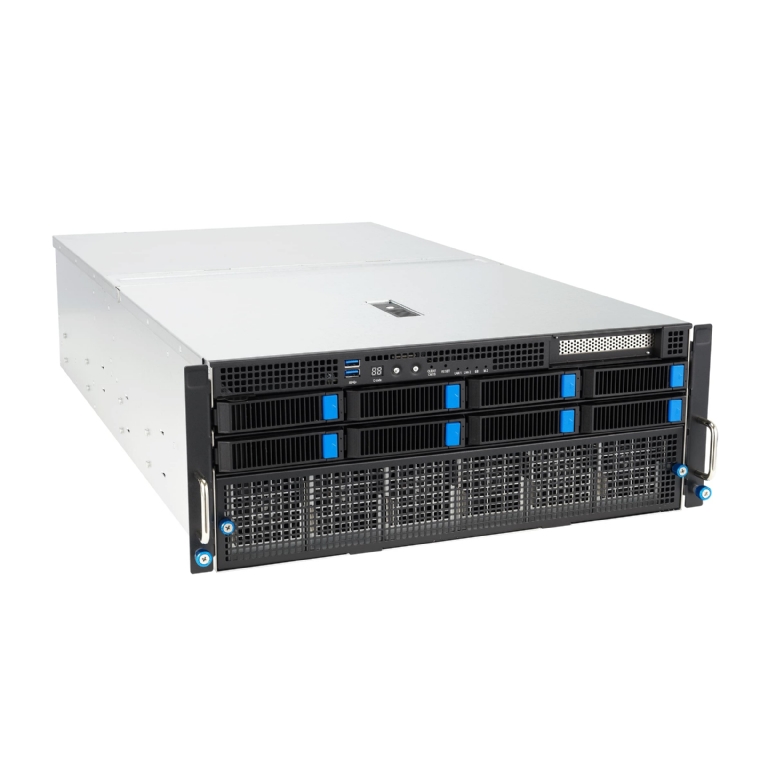

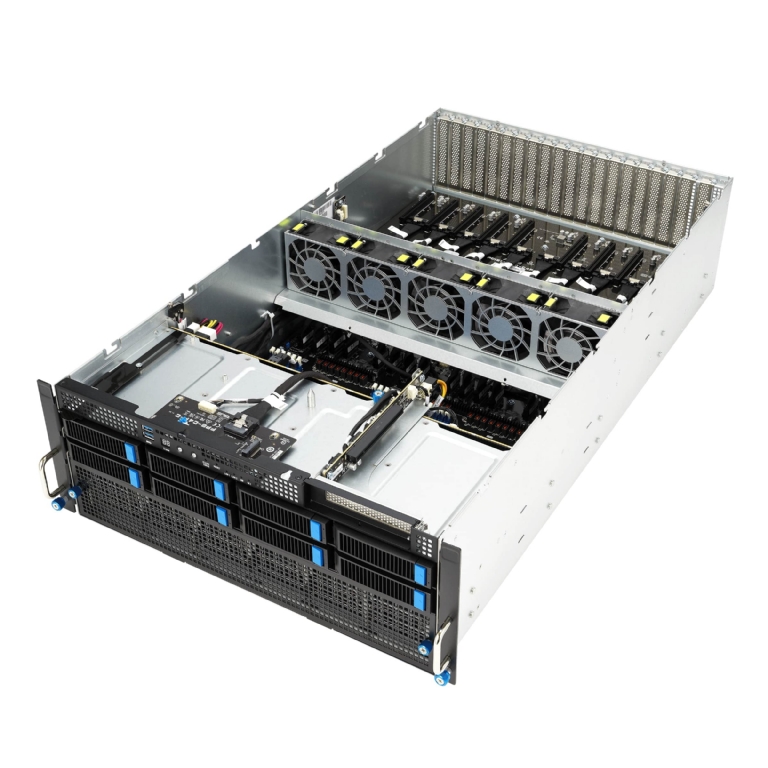

ASUS ESC8000A-E12 4U Rackmount Dual 9004 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Quad 3000W PSU

90SF02H1-M000K0
ASUS ESC8000A-E12 4U Rackmount Dual 9004 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Quad 3000W PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    2 x Socket (LGA 6096)
    AMD EPYC™ 9004 series(up to 400W)
    4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
  • Memory

    Total Slots:
    24 (12 channel per CPU, 12 DIMM per CPU)
    Capacity:
    Maximum up to 3TB per CPU socket
    Memory Type:
    DDR5 4800/4400 RDIMM/ 3DS RDIMM
    Memory Size:
    64GB, 32GB, 16GB RDIMM
    256GB, 128GB RDIMM 3DS

    * Refer to support page for more information
  • Expansion Slots

    8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards

    SKU-1 (3PCIe)
    Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
    Rear: 1 x PCIe slot (Gen5 x16 link) for NIC
              1 x PCIe slot (Gen5 x8 link) for NIC

    SKU-2 (2PCIe + 2NVMe)
    Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
    Rear:  1 x PCIe slot (Gen5 x16 link) for NIC

    SKU-3 (1PCIe + 1OCP3.0 + 2NVMe)
    Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
    Rear:  1 x OCP3.0 NIC socket (Gen5 x16 link)
  • Storage

    Optional Kits:
    -Broadcom MegaRAID 9560-16i
    -Broadcom MegaRAID 9540-8i
    -ASUS PIKE II 3008 8-port HBA Card
    -ASUS PIKE II 3108 8-port HW RAID Card
  • Drive Bays

    8 x 3.5"/2.5" Front Hot-swap Storage Bays
    (Backplane supports up to 8 x NVMe*/SATA/SAS**)
    *NVMe support on selected SKUs
    *SAS support requires an optional HBA/RAID card

    1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)
  • Networking

    2 x 10GbE LAN ports (RJ45, X710-AT2)
    or 2 x Gigabit LAN ports (RJ45, I350-AM2)

    1 x Management Port
  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu
  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

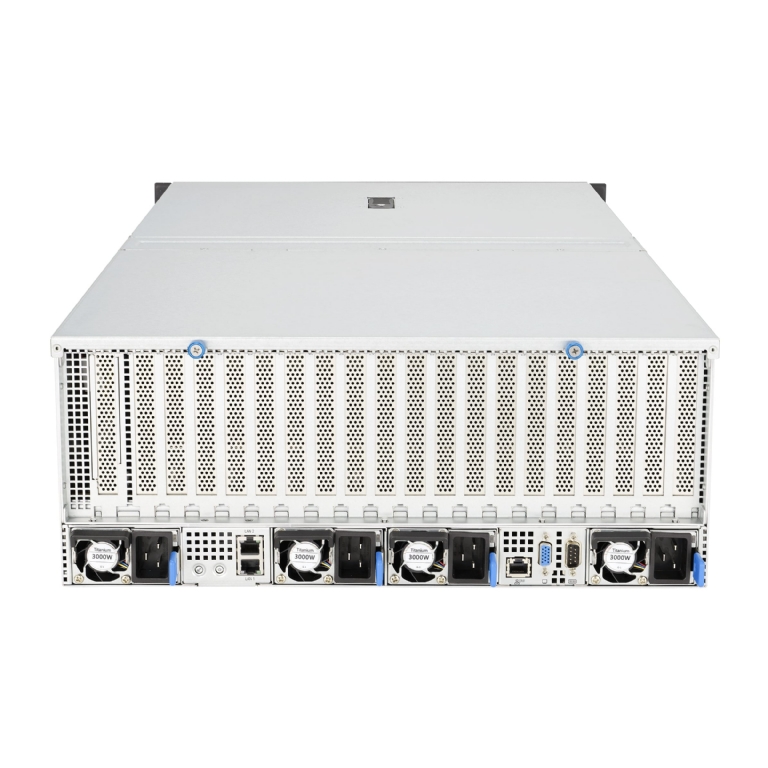

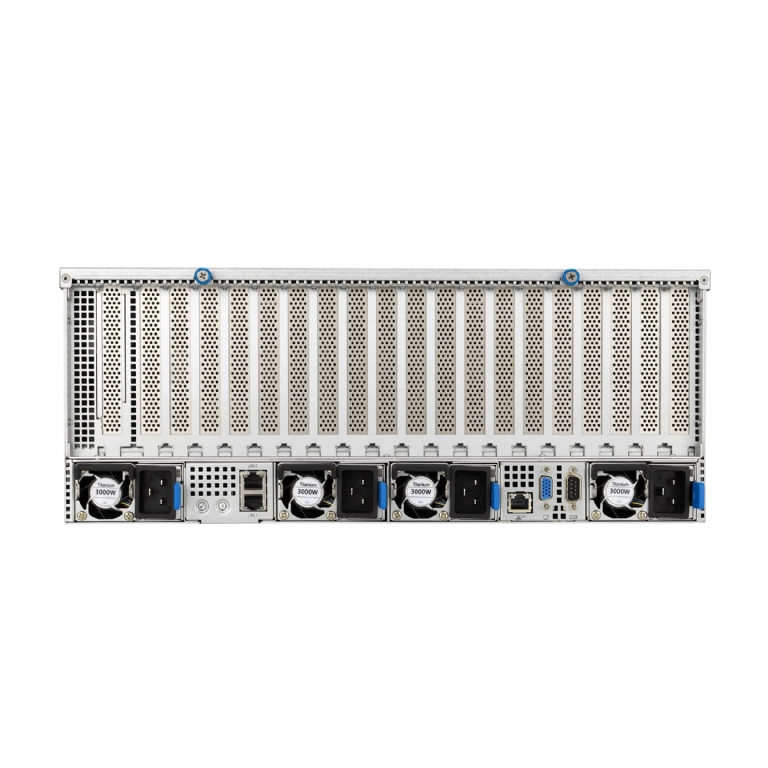

  • Rear I/O Ports

    1 x COM port
    2 x 10GbE/1GbE LAN ports (RJ45, build for order)
    1 x Management port (RJ45)
  • Switch/LED

    Front :
    1 x Power Button w/LED
    1 x Location Button w/LED
    1 x Message LED
    1 x Q-Code/Port 80 LED
    1 x Clear CMOS Switch
    1 x Reset Switch
    1 x M.2 LED
    Rear :
    1 x Power Button w/LED
    1 x Location Button w/LED
  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center Enterprise (in-band)
    ASMB11-iKVM for (out-of-band/BMC AST2600)
  • Regulatory Compliance

    BSMI, CB, CE, FCC(Class A), RCM
  • Dimensions

    800mm x 440mm x 174.5 mm
  • Form Factor

    4U
  • Weight

    Net Weight: 27 Kg.
    Gross Weight: 52 Kg.
  • Power Supply

    2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply
    2+1 Redundant 3000W 80 PLUS Titanium Power Supply
    Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
