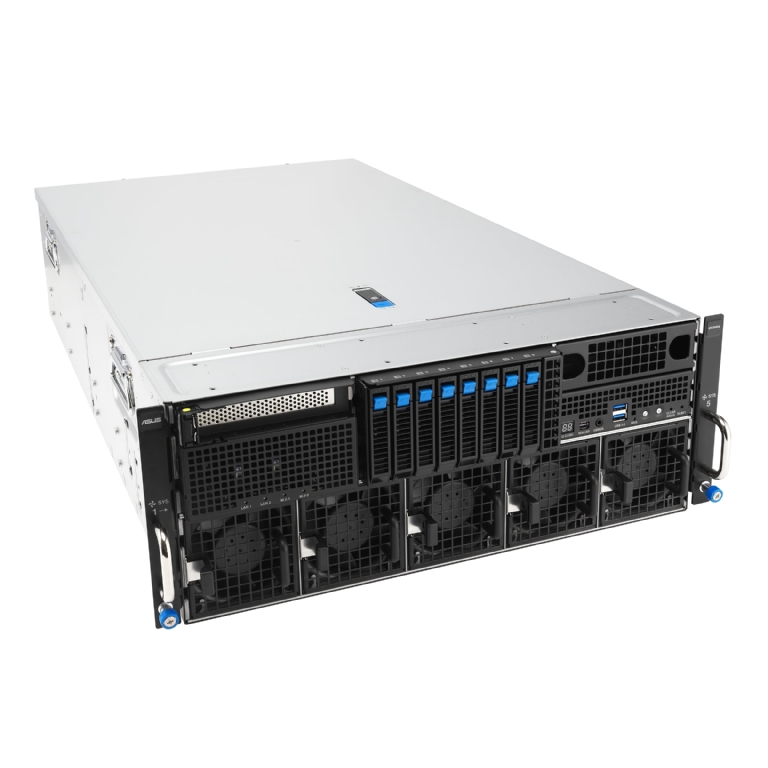

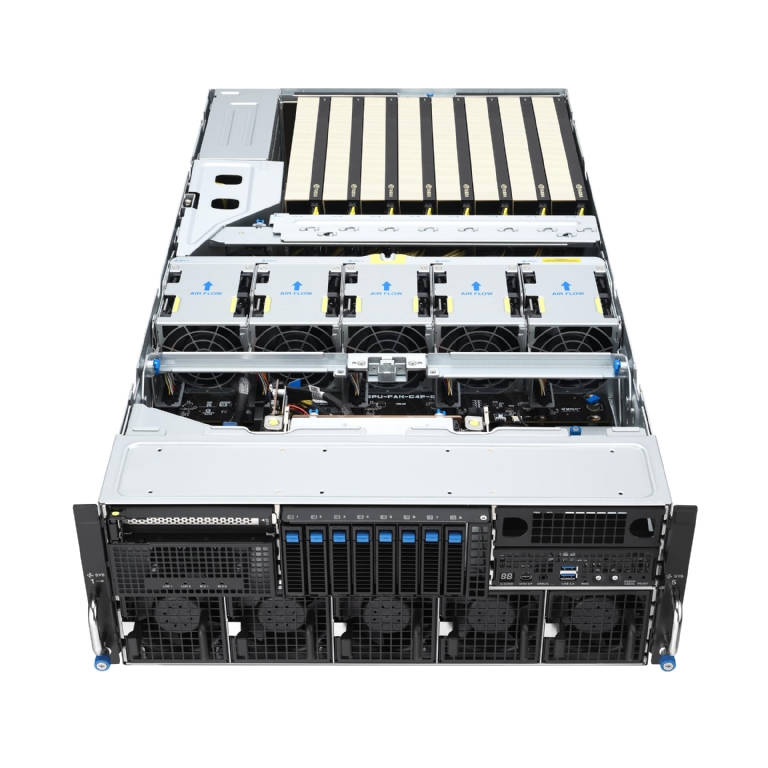

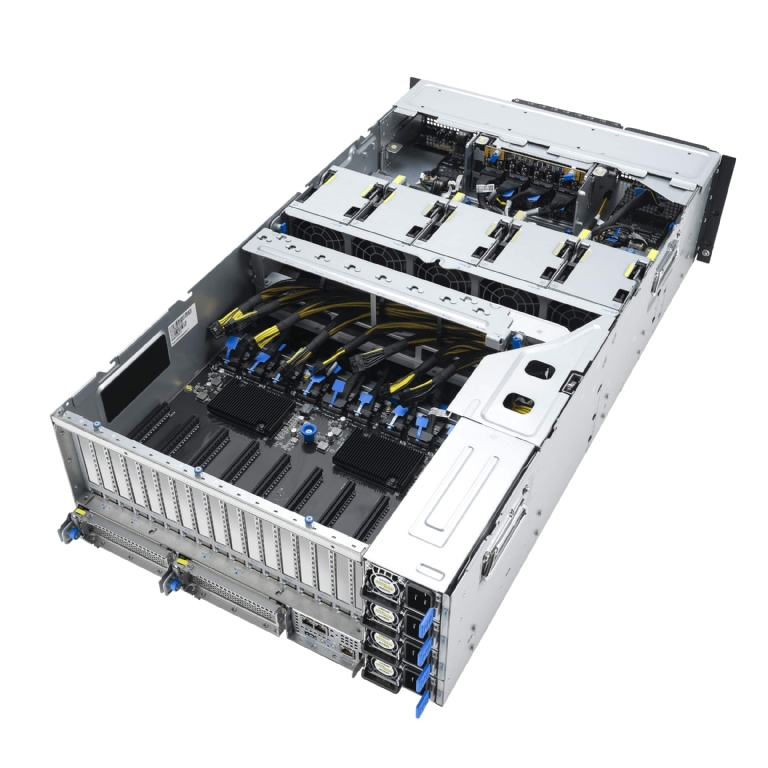

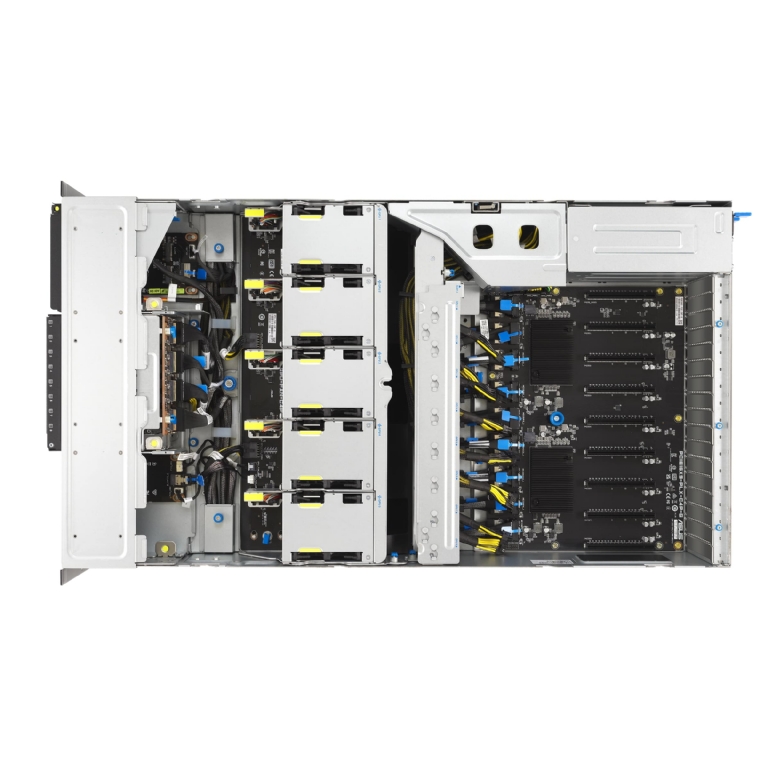

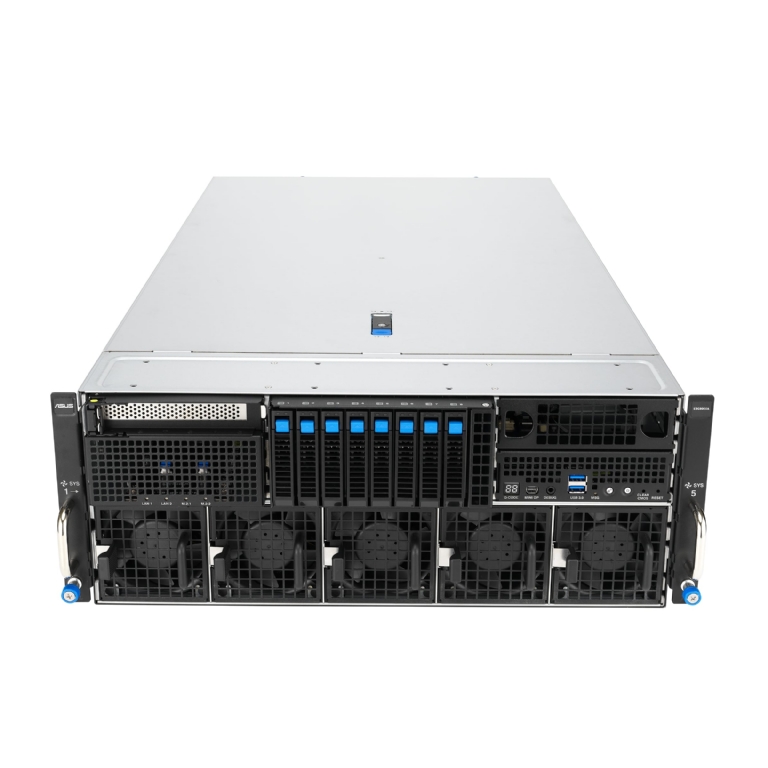

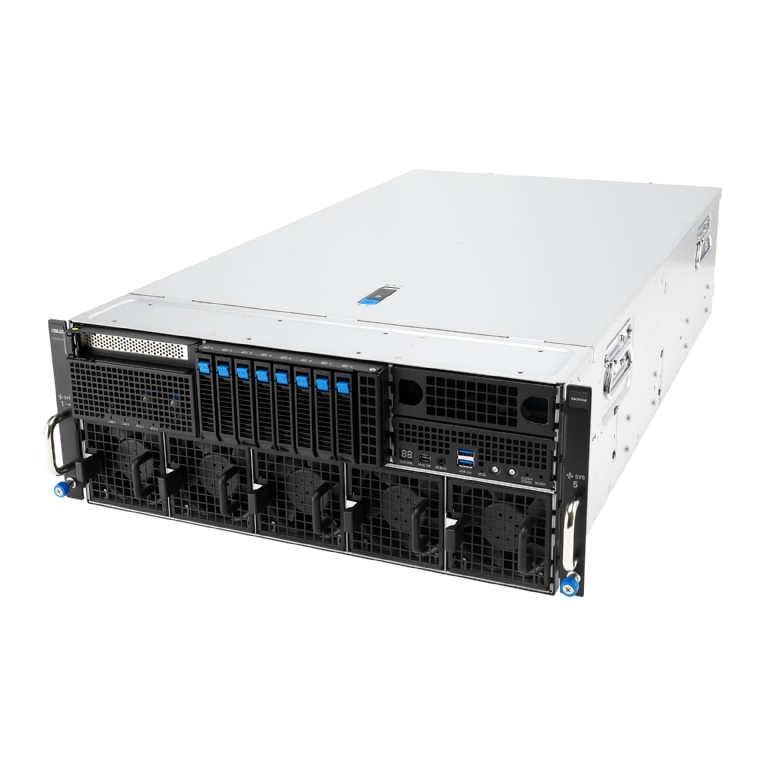

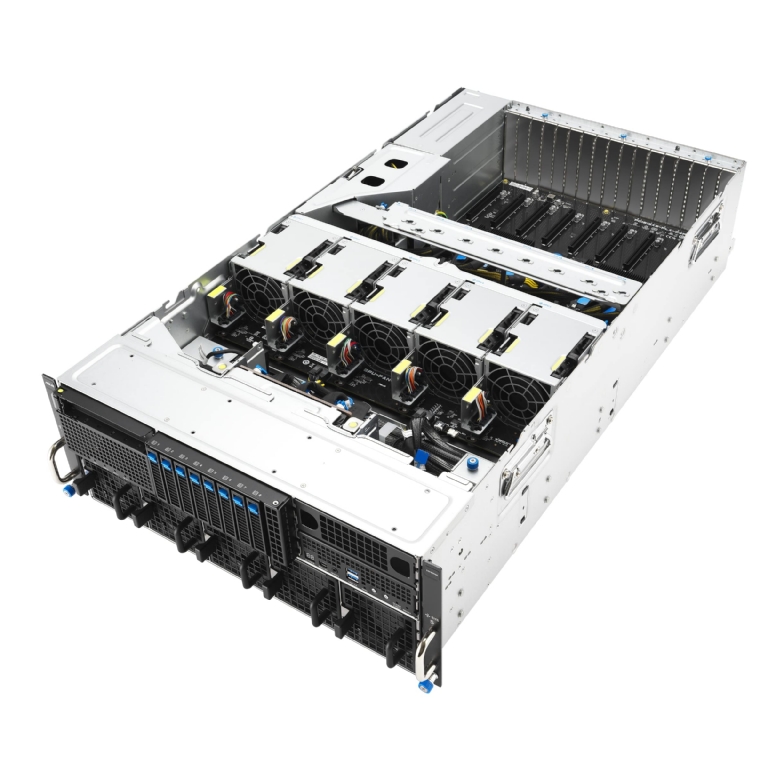

ASUS ESC8000A-E13P 4U Rackmount Dual 9005 Series AMD EPYC GPU Server - 8x Hot-Swap Bays - 8x GPU Support - Dual 3200W PSU

• Processor / System Bus

  2 x Socket SP5 (LGA 6096)
  AMD EPYC™ 9005 series processors*
  * Up to 500W cTDP, TDP support varies by configuration

• Memory

  Total Slots:
  24 (12 channel per CPU, 12 DIMM per CPU)
  Capacity:
  Maximum up to 3TB
  Memory Type:
  DDR5 6400/5600 RDIMM
  Memory Size:
  128GB, 96GB, 64GB, 32GB, 16GB RDIMM

  * Refer to ASUS server AVL for the latest update

• Expansion Slots

  Up to 14 slots

  Rear:
  8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
  5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL)

  Front:
  1 x PCIe x16 (Gen5 x8 link, FH/HL)

• Storage

  8 x 2.5" Front Hot-swap Storage Bays
  (Backplane supports up to 8 x NVMe)

  2 x M.2 Socket, supports up to 22110 type (PCIe Gen5 x4 link)
  (M.2 board supports up to 2 x NVMe

• Networking

  2 x 10GbE LAN ports (RJ45, X710-AT2)
  1 x Management Port

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

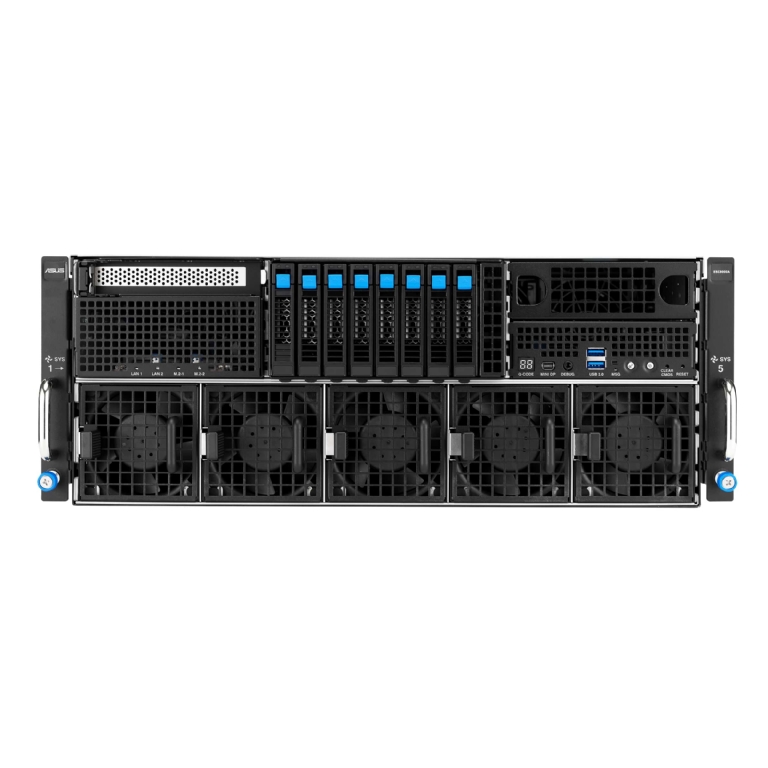

• Front I/O Ports

  1 x Mini DisplayPort
  2 x USB 5Gbps ports
  1 x Debug port

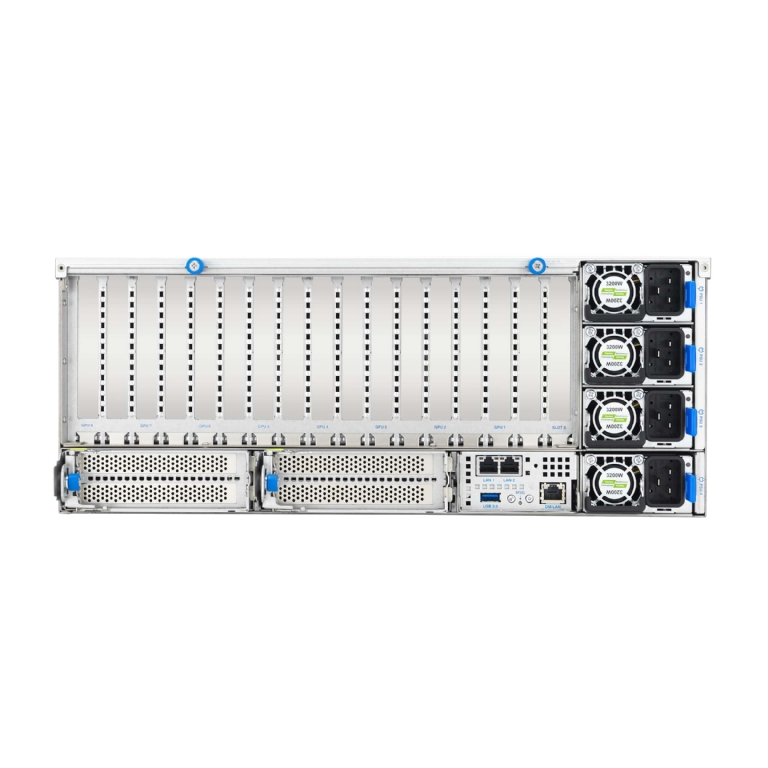

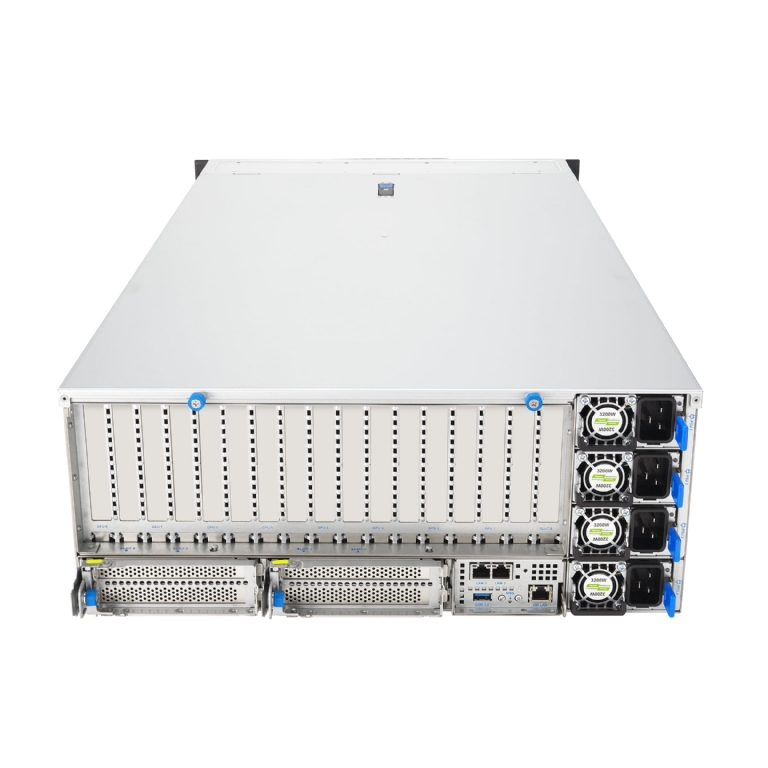

• Rear I/O Ports

  1 x USB 5Gbps port
  2 x RJ-45 LAN ports
  1 x RJ-45 management LAN port

• Switch/LED

  Front :
  1 x Power switch/LED
  1 x Location switch/LED
  1 x Message LED
  1 x Clear CMOS switch
  1 x Reset Switch
  2 x M.2 LEDs
  2 x LAN LEDs
  1 x Q-code/Port 80 LED
  Rear :
  1 x Power switch/LED
  1 x Location switch/LED
  1 x Message LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center Enterprise (in-band)
  ASMB12-iKVM for (out-of-band/BMC AST2600)

• Regulatory Compliance

  BSMI, CB, CE, FCC(Class A), RCM

• Dimensions

  800mm x 439.5mm x 175mm
  31.5” x 17.3” x 6.9”

• Form Factor

  4U

• Weight

  Net Weight: 42 Kg
  Gross Weight: 44.23 Kg

• Power Supply

  3+1 redundant 3200W 80 PLUS Titanium power supply
  20-240 Vac, 16A (x4) 50/60Hz

• Environment

  Operating temperature: 10°C ~ 35°C
  Non-operating temperature: -40°C ~ 60°C
  Non-operating humidity: 20% ~ 95% (Non-condensing)
