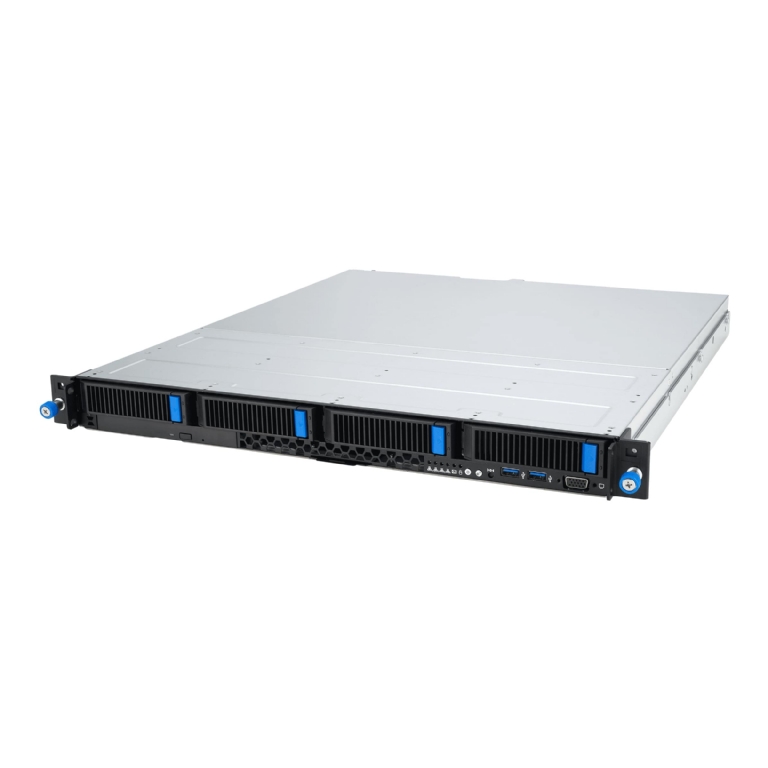

ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU

90SF03A1-M00060
ASUS RS300-E12-PS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Single PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Hour

Min

Sec


Order this product before 4.30pm today and get it delivered for only £9.20* on 16th Jul 2024.

* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.

Product Description
  • Processor / System Bus

    1 x Socket LGA1700
    Intel® Xeon® processor E-2400 family
    Intel® Pentium™ processors
    *Refer to support page for more information
  • Generation

    E12
  • Core Logic

    Intel® C262 Chipset
  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR5 4400/4000/3600 UDIMM
    Memory Size :
    32GB, 16GB, 8GB UDIMM
    * Refer to support page for more information
  • Expansion Slots

    Total PCI-E Slots: 3
    1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
    1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
    1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
    (optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)
  • Storage

    Storage Controller :
    Intel® C262 Chipset
    8 x SATA3 6Gb/s ports
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • HDD Bays

    4 x 3.5” Hot-Swap HDD Bays
    -up to (4*SATA/SAS/NVMe)
    *SAS support only from optional SAS HBA/RAID card
    *NVMe support only from optional NVMe upgrade kit
  • Auxiliary Storage FDD/CD/DVD

    1 x Slim-type Optical Drive Bay
    Options: No Device / DVD-RW / DVD-ROM
  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic

    Aspeed AST2600 with 64MB VRAM
  • Multi-GPU Support

    Please find the latest GPU support from
    https://servers.asus.com/support/gpu

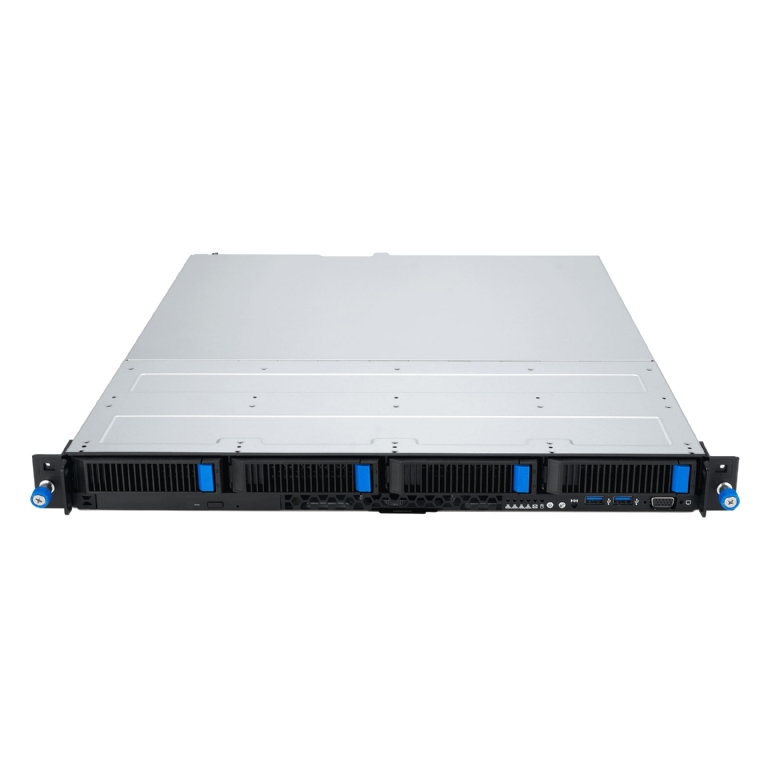

  • Front I/O Ports

    1 x VGA port
    2 x USB 3.2 Gen1 ports

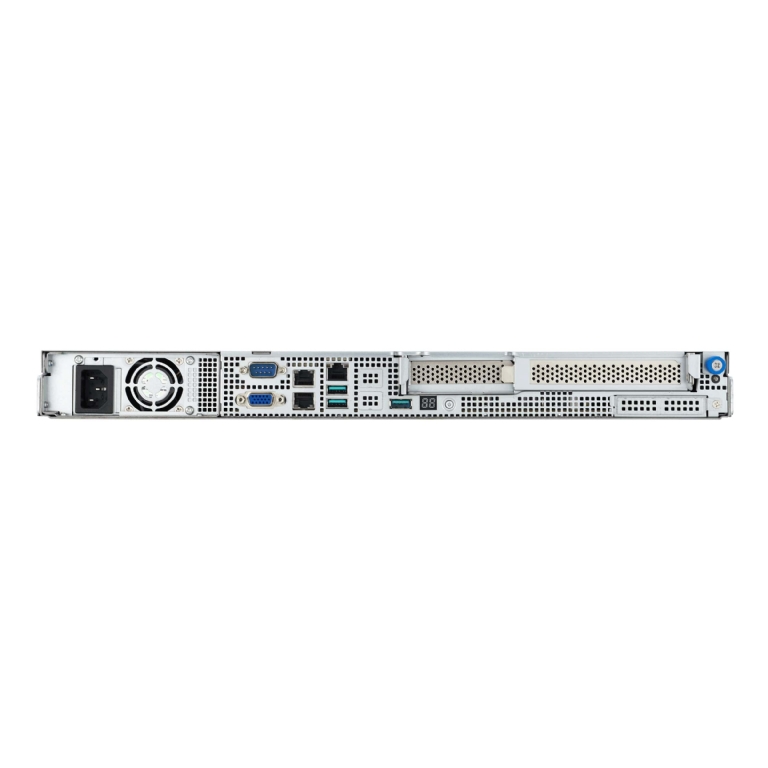

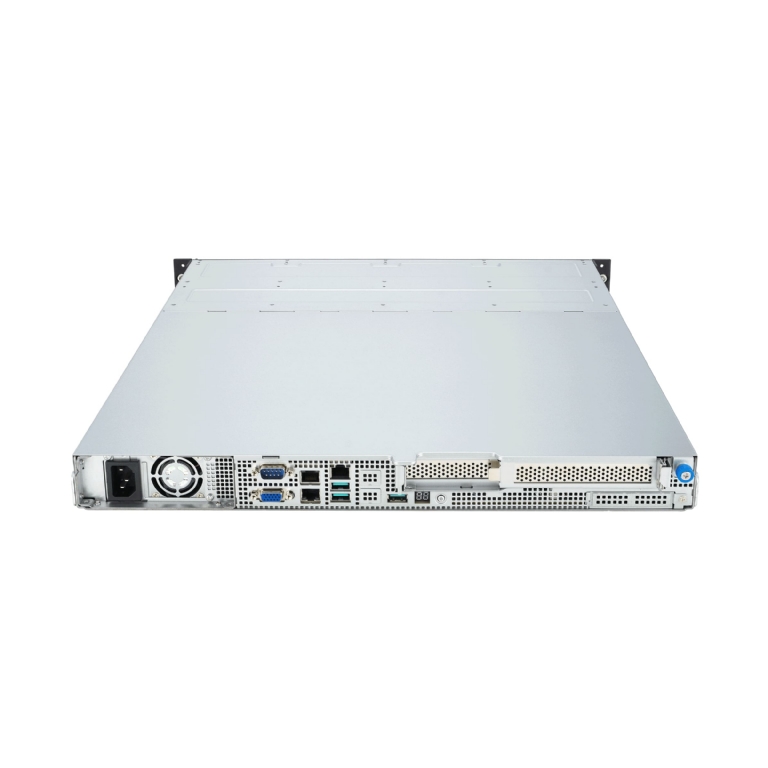

  • Rear I/O Ports

    3 x USB 3.2 Gen 2 ports
    1 x VGA port
    1 x COM port
    1 x RJ-45 ports
  • Switch/LED

    Rear Switch/LED:
    1 x Q-Code/Port 80 LED
    1 x Power switch
    Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Reset switch
    1 x HDD Access LED
    1 x Message LED
    LAN 1-2 LED
  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet
  • Regulatory Compliance

    BSMI, CE, CB, FCC(Class A)
  • Dimensions

    497mm x 439.5mm x 44mm
  • Form Factor

    1U
  • Weight

    13.47kg
  • Power Supply

    Single 350W 80 PLUS Gold Power Supply
    Rating: 100-240Vac, 6.3-3A 60-50Hz, Class 1
  • Environment

    Operating temperature: 10°C ~ 35°C
    Non operating temperature: -40°C ~ 70°C
    Non operating humidity: 20% ~ 90% ( Non condensing)
