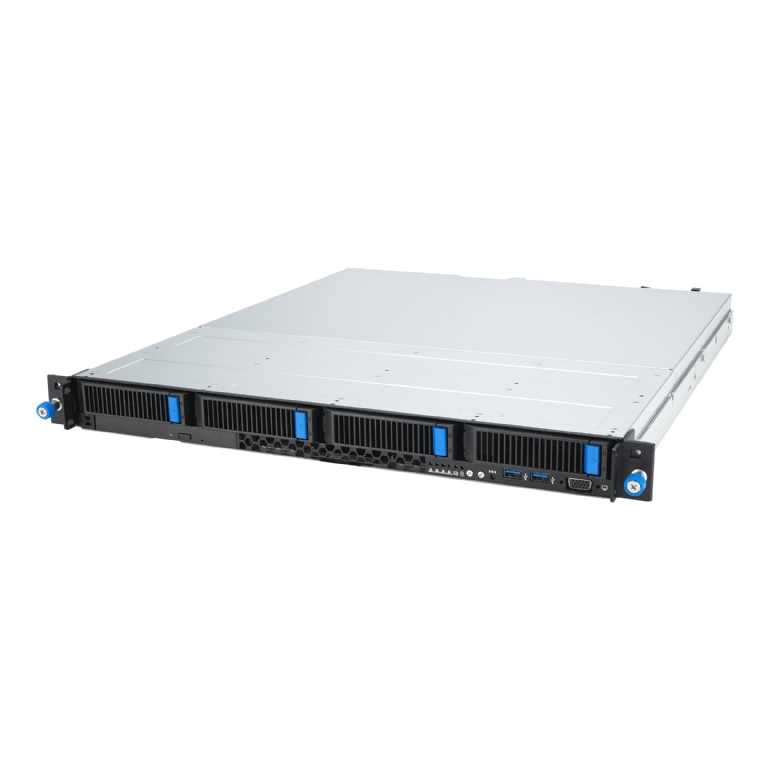

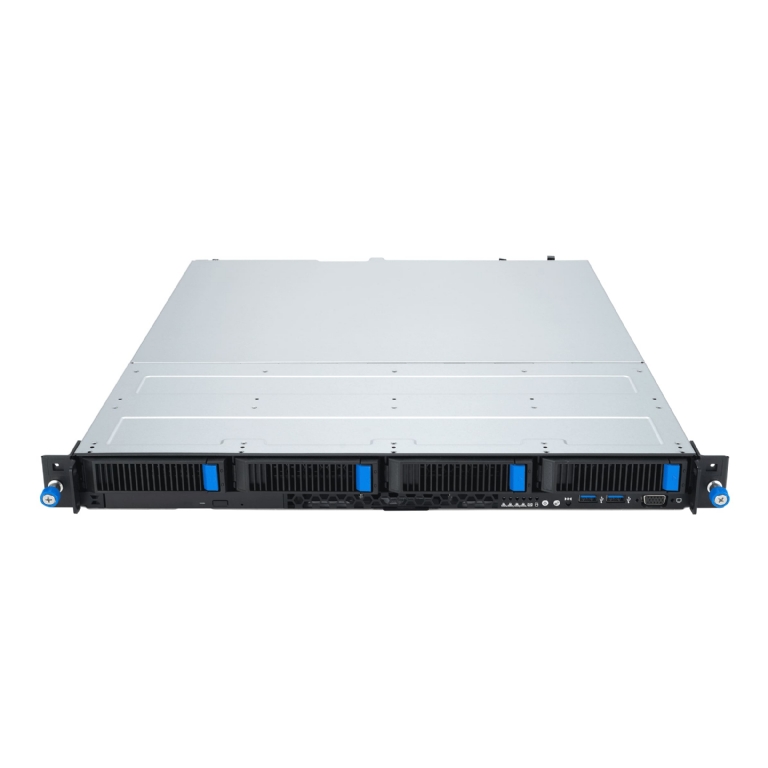

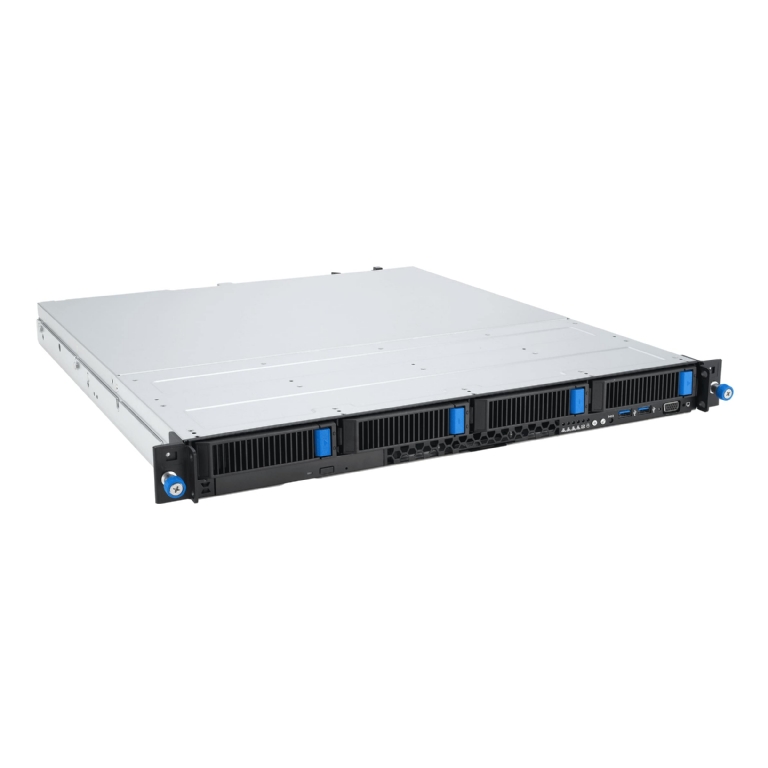

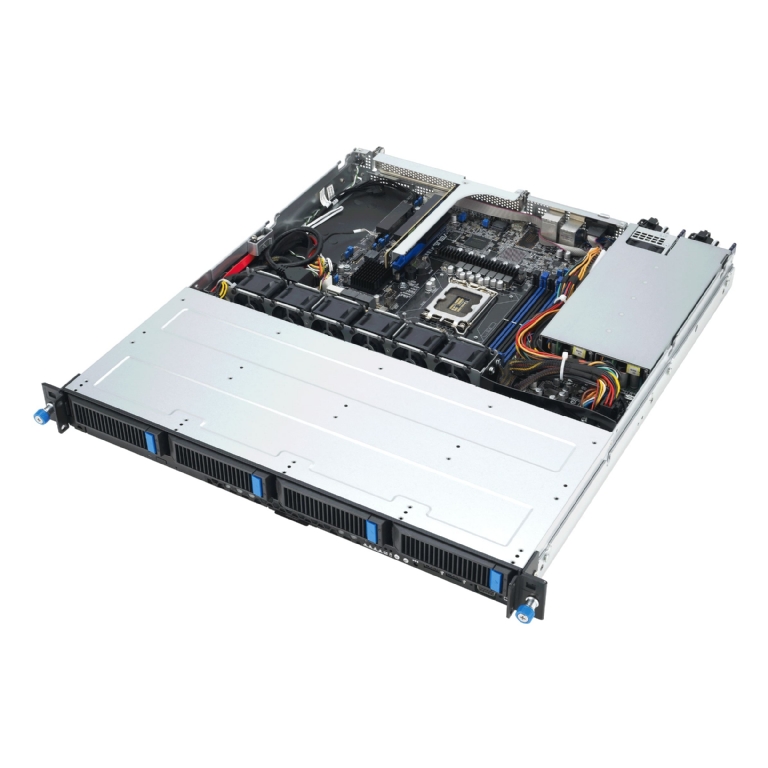

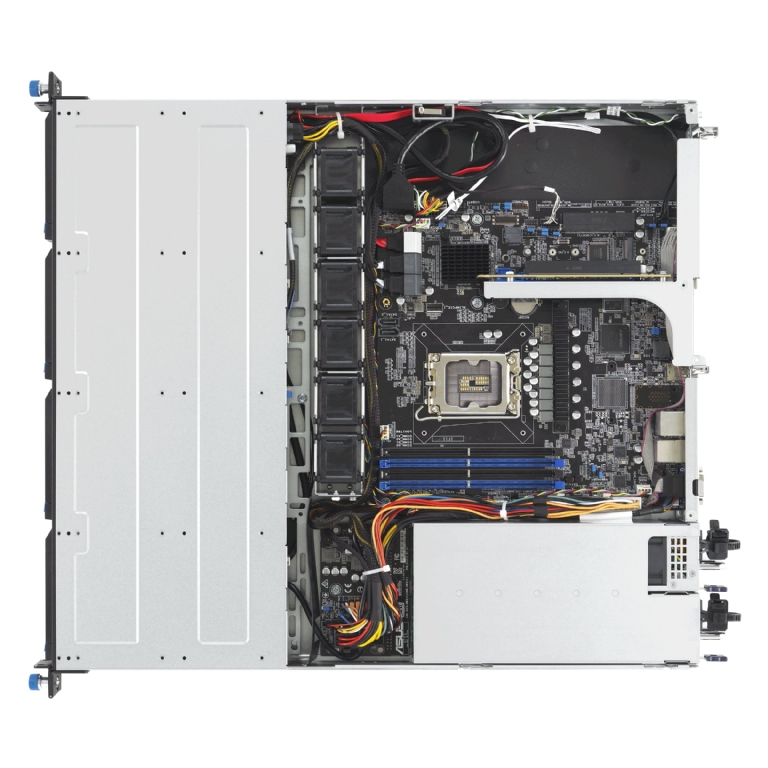

ASUS RS300-E12-RS4 1U Rackmount Xeon E-2400 Series Server - 4x Hot-Swap Bays - Dual Gigabit LAN - Redundant PSU

• Processor / System Bus

  1 x Socket LGA1700
  Intel® Xeon® processor E-2400 family
  Intel® Pentium™ processors
  *Refer to support page for more information

• Generation

  E12

• Core Logic

  Intel® C262 Chipset

• Memory

  Total Slots :
  4 (2-channel)
  Capacity :
  Maximum up to 128GB UDIMM
  Memory Type :
  DDR5 4400/4000/3600 UDIMM
  Memory Size :
  32GB, 16GB, 8GB UDIMM
  * Refer to support page for more information

• Expansion Slots

  Total PCI-E Slots: 3
  1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
  1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
  1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
  (optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)

• Storage

  Storage Controller :
  Intel® C262 Chipset
  8 x SATA3 6Gb/s ports
  SAS Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

• HDD Bays

  4 x 3.5” Hot-Swap HDD Bays
  -up to (4*SATA/SAS/NVMe)
  *SAS support only from optional SAS HBA/RAID card
  *NVMe support only from optional NVMe upgrade kit

• Auxiliary Storage FDD/CD/DVD

  1 x Slim-type Optical Drive Bay
  Options: No Device / DVD-RW / DVD-ROM

• Networking

  2 x Intel® I210AT + 1 x Mgmt LAN

• Graphic

  Aspeed AST2600 with 64MB VRAM

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

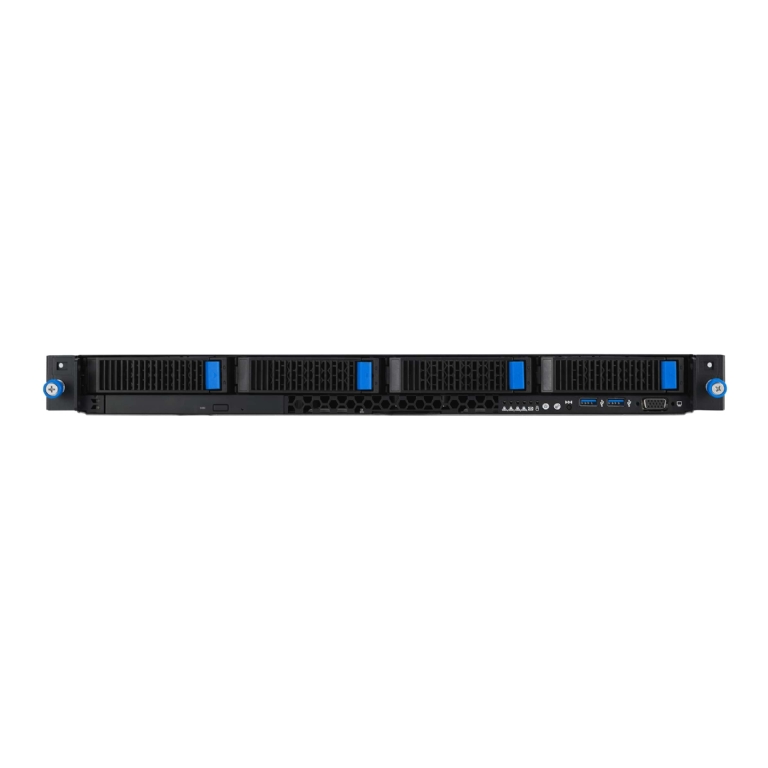

• Front I/O Ports

  1 x VGA port
  2 x USB 3.2 Gen1 ports

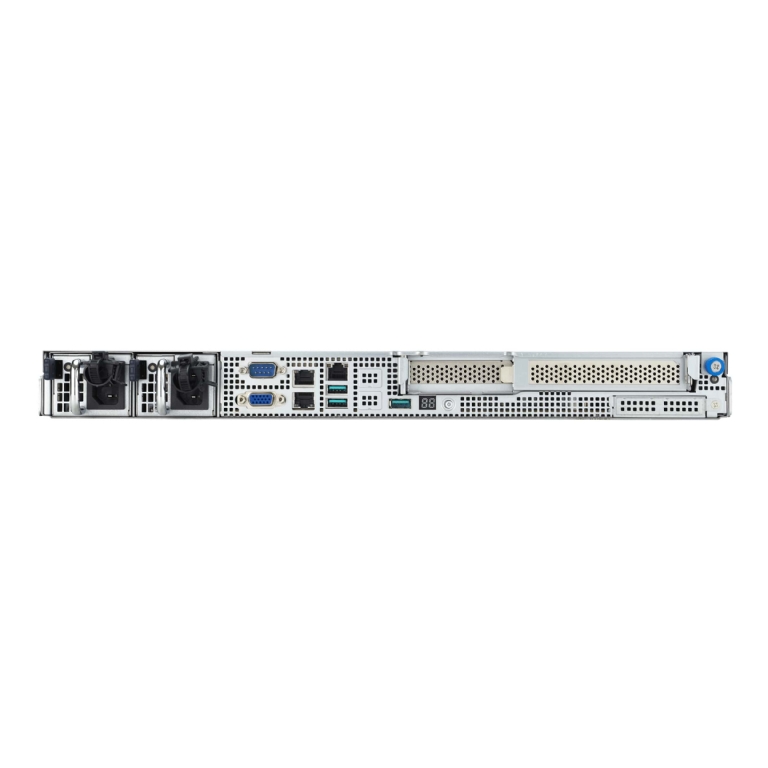

• Rear I/O Ports

  3 x USB 3.2 Gen 2 ports
  1 x VGA port
  1 x COM port
  1 x RJ-45 ports

• Switch/LED

  Rear Switch/LED:
  1 x Q-Code/Port 80 LED
  1 x Power switch
  Front Switch/LED:
  1 x Power switch/LED
  1 x Location switch/LED
  1 x Reset switch
  1 x HDD Access LED
  1 x Message LED
  LAN 1-2 LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet

• Regulatory Compliance

  BSMI, CE, CB, FCC(Class A)

• Dimensions

  497mm x 439.5mm x 44mm

• Form Factor

  1U

• Weight

  15.2kg

• Power Supply

  1+1 Redundant 450W 80 PLUS PLATINUM Power Supply

• Environment

  Operating temperature: 10°C ~ 35°C
  Non operating temperature: -40°C ~ 70°C
  Non operating humidity: 20% ~ 90% ( Non condensing)
