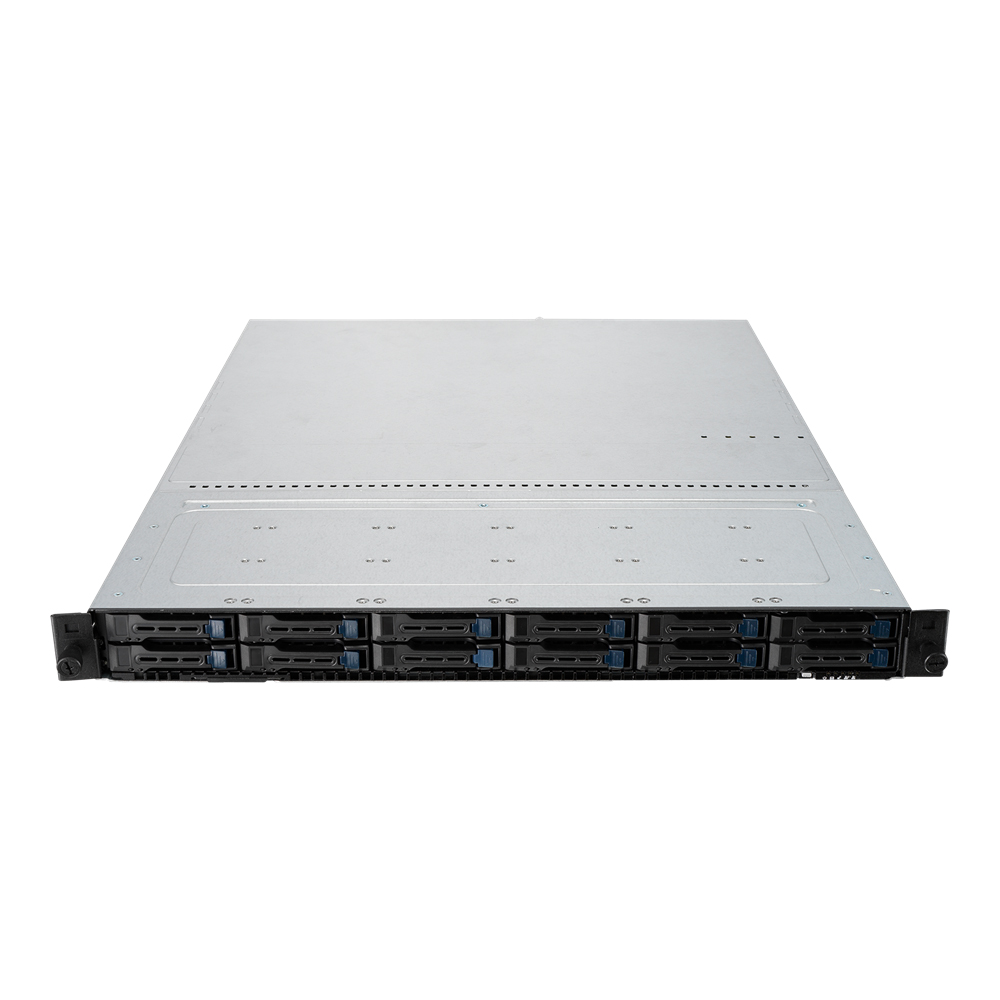

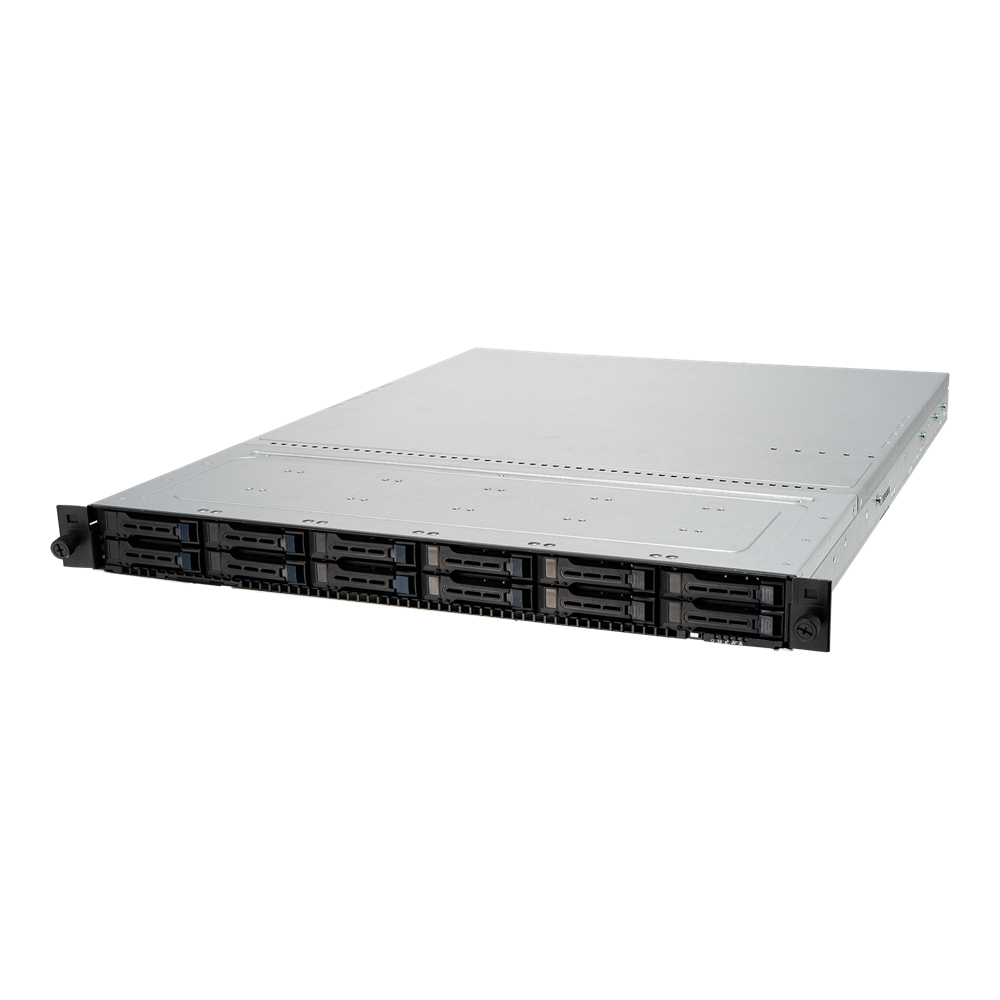

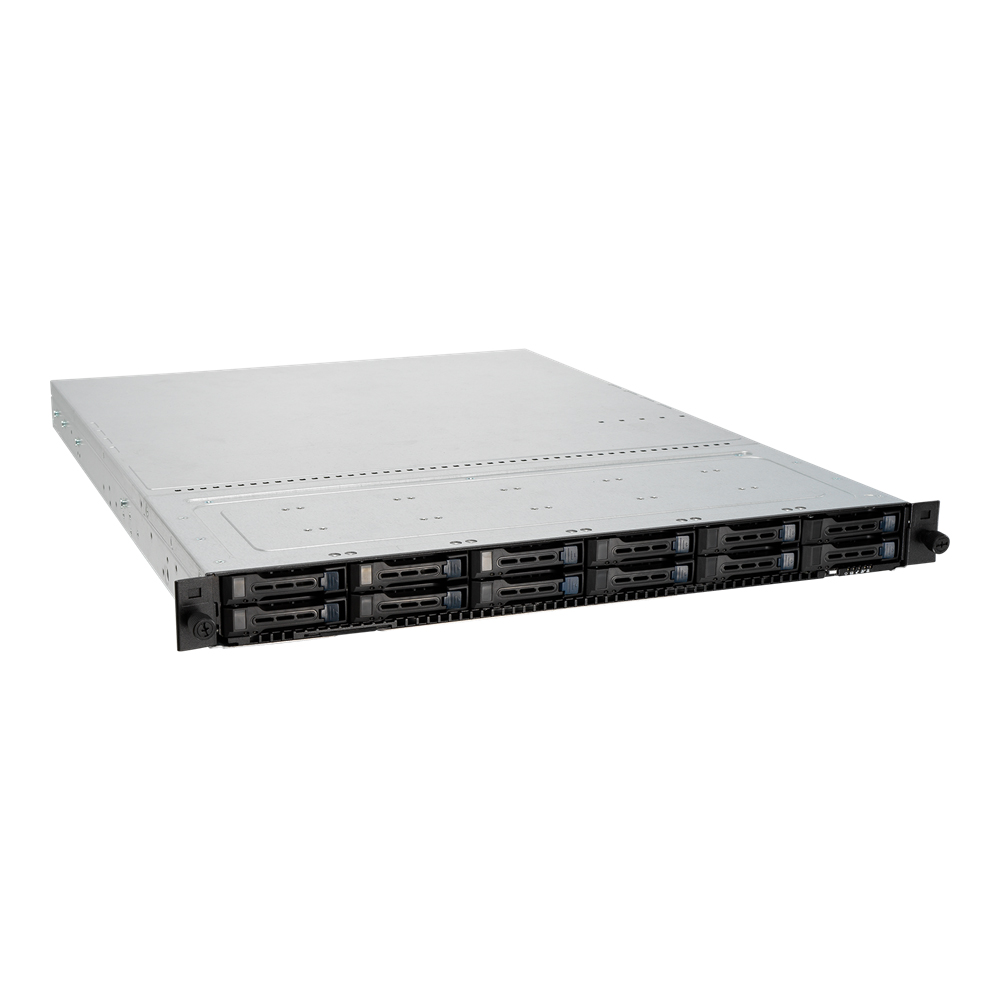

ASUS RS500A-E10-RS12U 1U Rackmount Single 7002/7003 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU

• Processor / System Bus

  1 x Socket SP3 (LGA 4094)
  AMD EPYC™ 7003 Series
  AMD EPYC™ 7002 Series
  *Refer to support page for more information

• Generation

  E10

• Core Logic

  System on Chip (SoC)

• Memory

  Total Slots : 16 (8-channel)
  Capacity : Maximum up to 2048GB LRDIMM
  Memory Type :
  DDR4 3200/2933/2666 RDIMM
  DDR4 3200/2933/2666 LRDIMM
  DDR4 3200/2933/2666 LR-DIMM 3DS
  Memory Size :
  * Refer to support page for more information

• Expansion Slots

  1 x PCIe 4.0 x16 slot (Gen 4 x16 link);FH, HL (LP only when RS12U)
  1 x PCIe 4.0 x8 slot (Gen 4 x8 link);FH, HL (Occupied when RS12U)
  1 x OCP 2.0 Mezzanine Conn.(Gen4 x16 link)

• Storage

  SATA Controller :
  CPU Integrated
  Optional kits Controller :
  ASUS PIKE II 3008 8-port SAS HBA card
  ASUS PIKE II 3108 8-port SAS HW RAID card

• Drive Bays

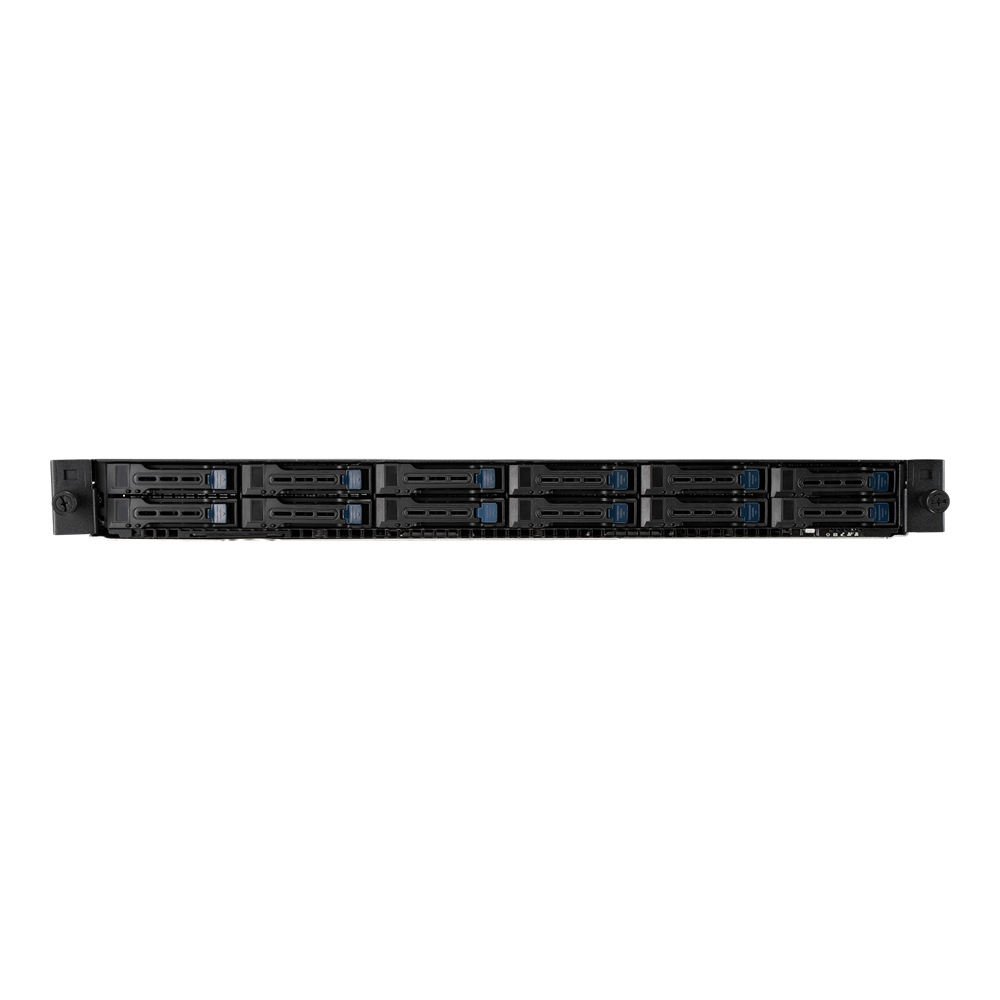

  12 x 2.5” hot-swap storage bays (Backplane Supports 12 x 2.5" NVMe/SATA/SAS Devices)

  1 x M.2 socket (up to 22110, SATA 6Gbps or PCIe Gen3 x4 link)

• Networking

  1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

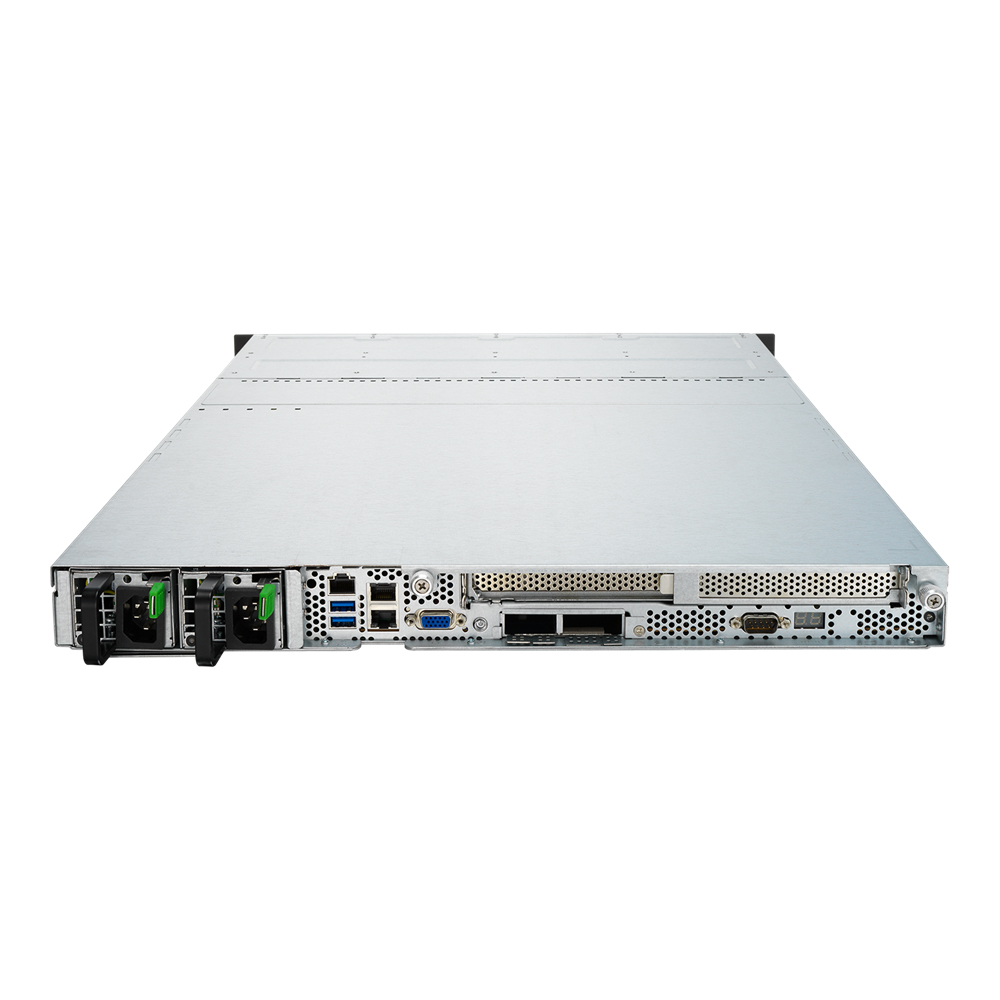

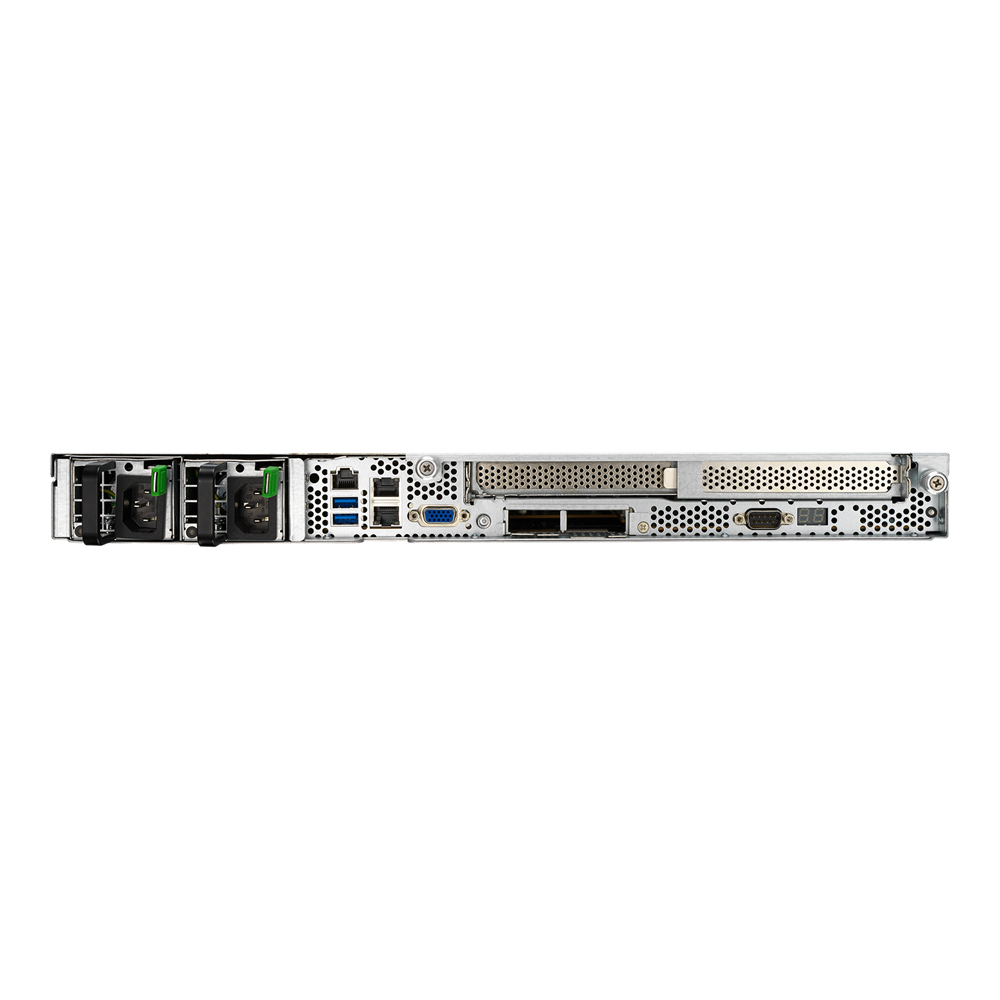

• Rear I/O Ports

  2 x USB 3.0 ports
  1 x VGA port
  2 x RJ-45 1GbE LAN ports
  1 x RJ-45 Management port
  1 x COM port

• Switch/LED

  Front:
  - 1 x Power Button/LED
  - 1 x Location LED
  - 1 x Message LED
  - 2 x LAN LED

  Rear:
  - 1 x Power Button/LED
  - 1 x Q-Code/Port 80 LED
  - 1 x Location LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center Enterprise (Optional)
  ASMB9-iKVM for KVM-over-IP (Default BMC, AST2500)

• Regulatory Compliance

  BSMI, CE, FCC(Class A)

• Form Factor

  1U

• Weight

  Net Weight: 11 Kg
  Gross Weight: 17 Kg

• Power Supply

  1+1 Redundant 650W 80 PLUS Platinum
  Power Supply
  Rating: 100~127/200~240 Vac, 10A/5A,
  50~60Hz, Class I

• Environment

  Operating temperature: 10°C – 35°C
  Non operating temperature: -40°C – 70°C
  Non operating humidity: 20% – 90% (Non condensing)
