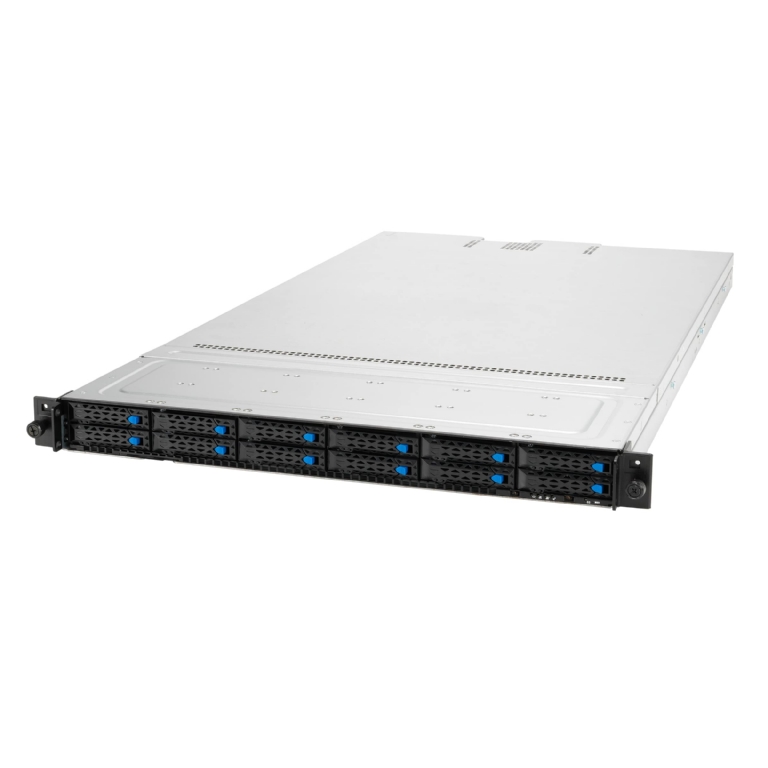

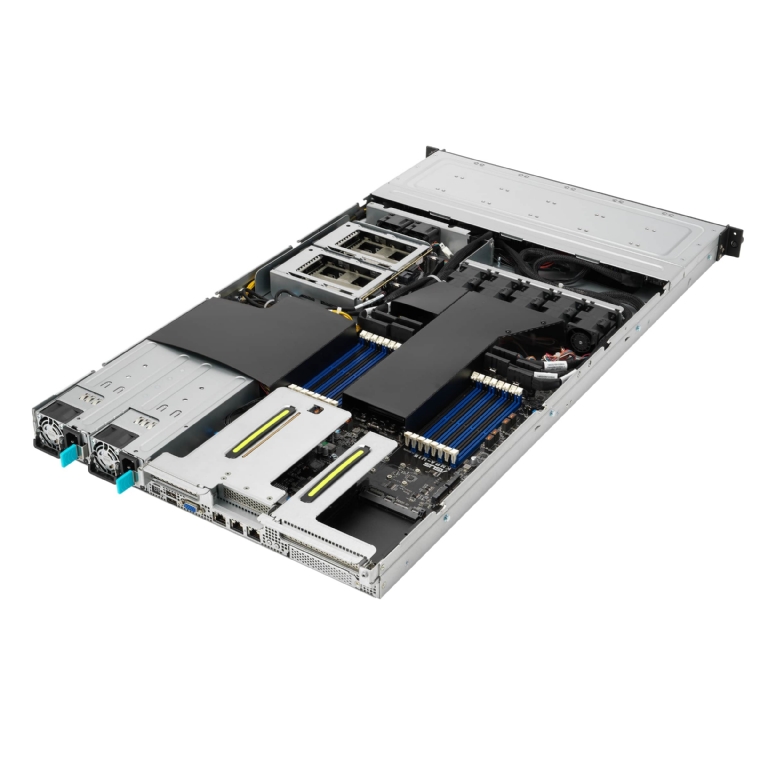

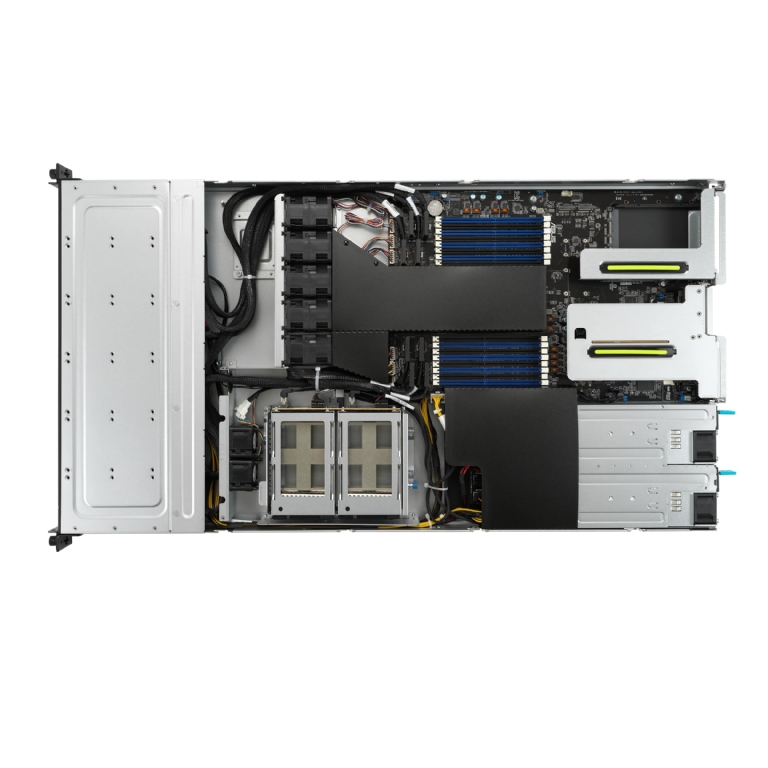

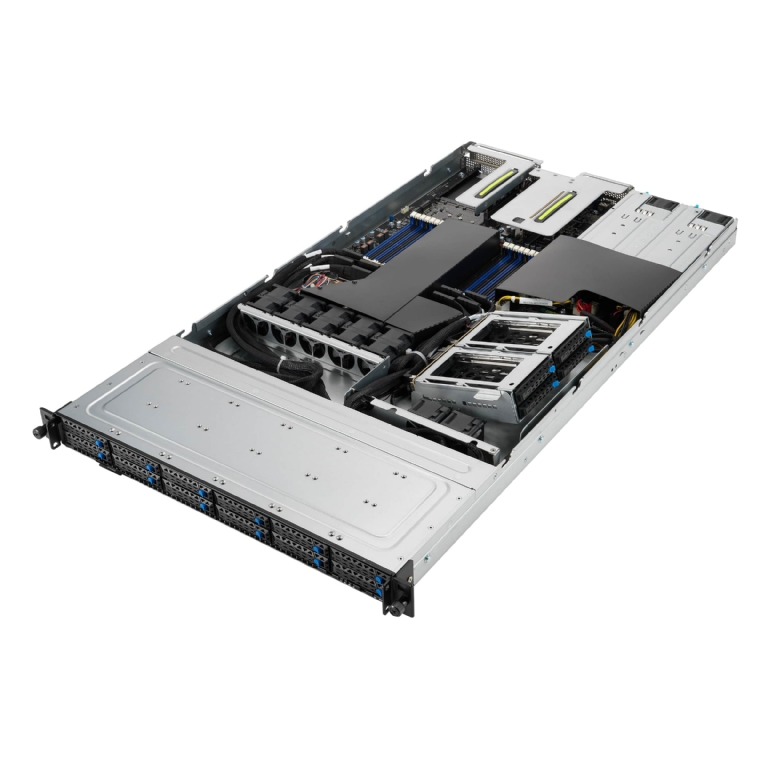

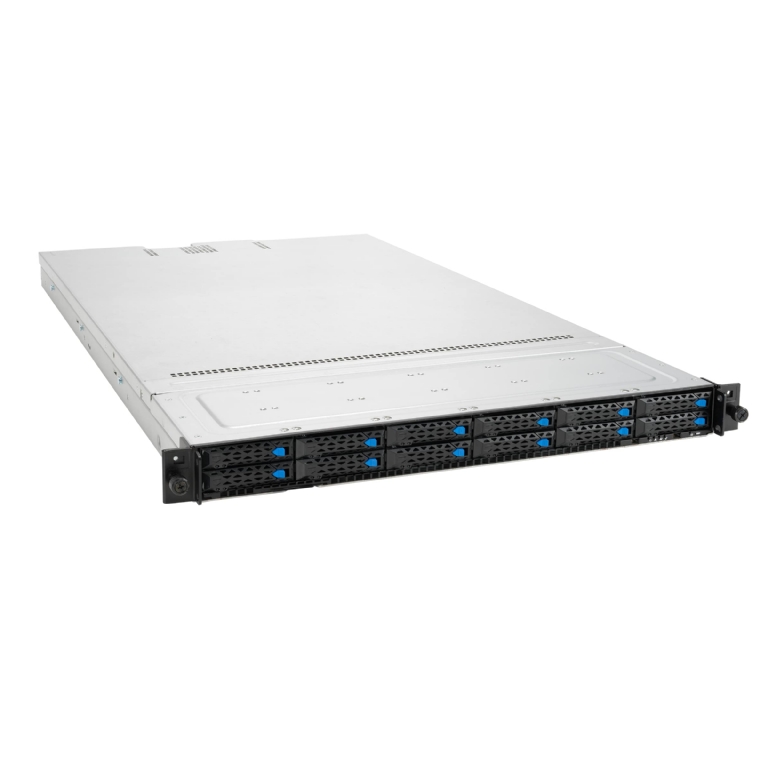

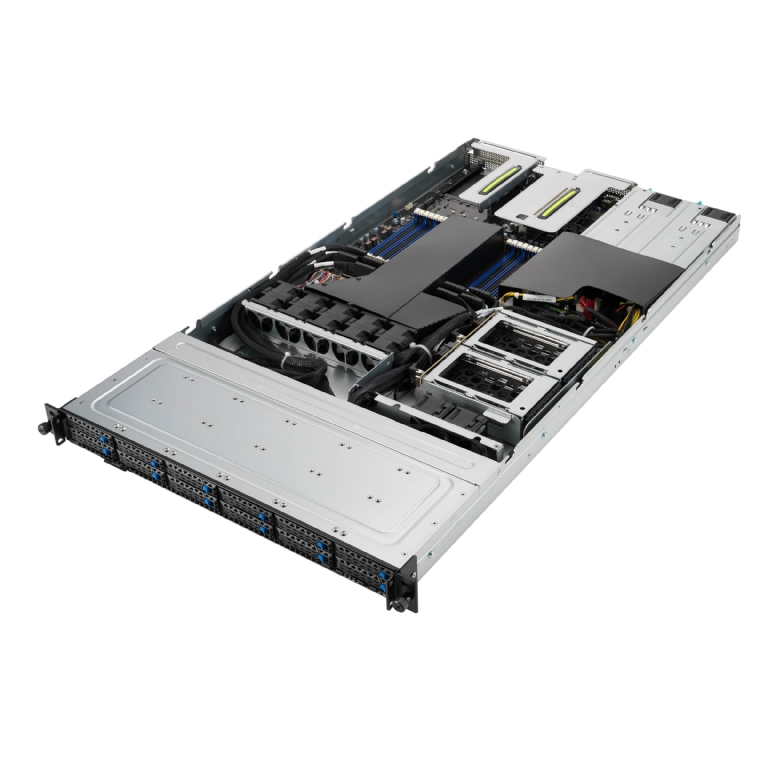

ASUS RS500A-E11-RS12U 1U Rackmount Single 7003 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU

• Processor / System Bus

  1 x Socket SP3 (LGA 4094)
  AMD EPYC™ 7002 Series
  AMD EPYC™ 7003 Series
  3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology

• Memory

  Total Slots :
  16 (8-channel, 2DPC)
  Capacity :
  Max. 4,096GB
  Memory Type :
  DDR4 3200 RDIMM / LRDIMM / LRDIMM 3DS
  Memory Size :
  256GB, 128GB, 64GB, 32GB, 16GB

  * Refer to support page for more information

• Expansion Slots

  1 x PCIe x16 slot (Gen4 x16 link,FH,HL)
  1 x PCIe x16 slot (Gen4 x16 link,LP,HL)
  1 x PCIe x16 slot (Gen4 x8 link,LP,HL)
  1 x OCP3.0 slot (Gen4 x16 link)

• Storage

  Storage Controller :
  CPU Integrated
  Optional kits Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
  ASUS PIKE II 3108-8i 8-port SAS 12G RAID card

• Drive Bays

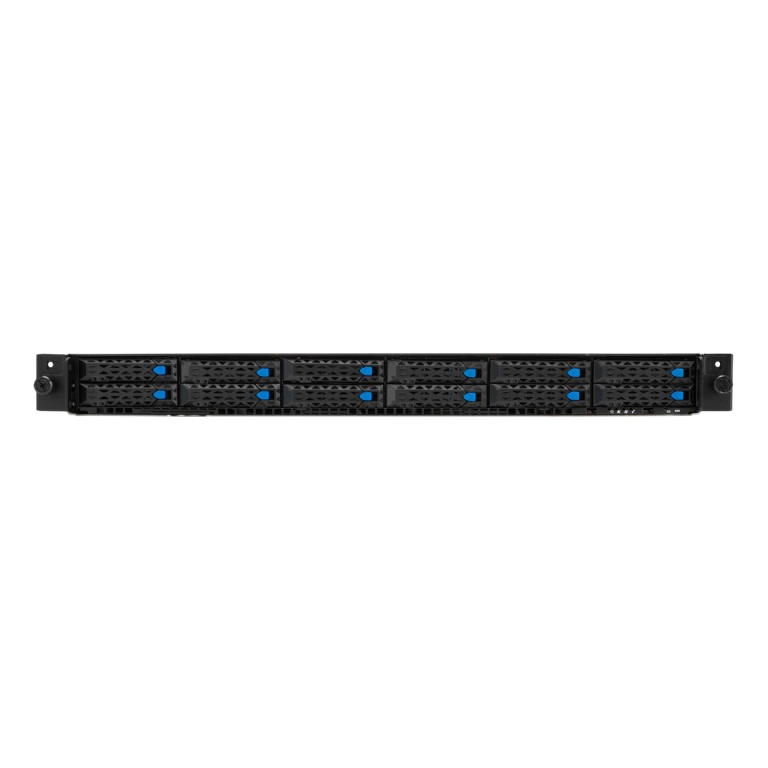

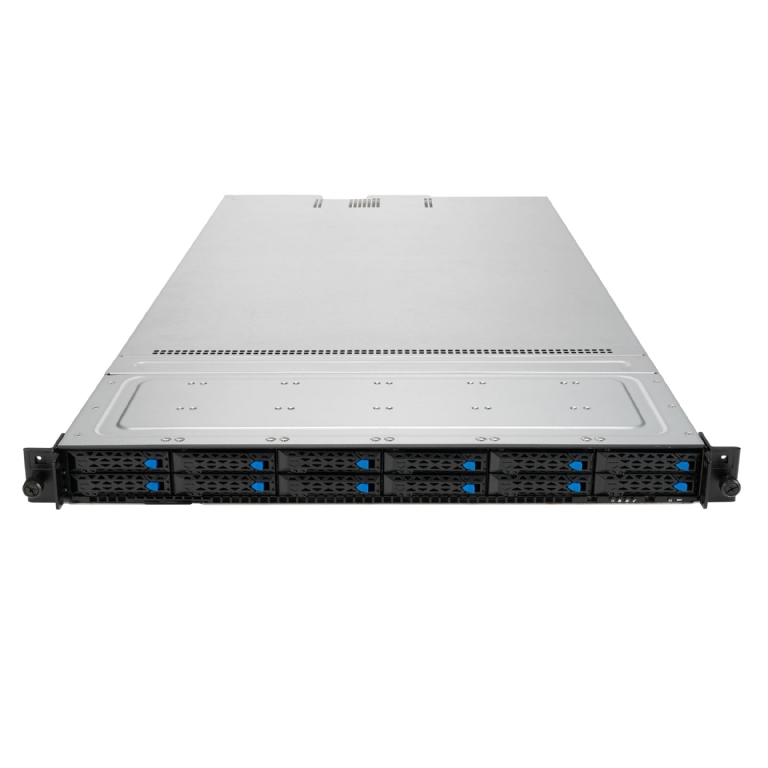

  Front:
  12 x 2.5" Hot-swap Storage Bays
  (Backplane Supports 12 x SATA/SAS/NVMe Devices)
  Internal: (optional)
  4 x 2.5" Easy-swap Storage Bays
  (Backplane Supports 4 x SATA/NVMe Devices)

  2 x M.2 connectors

• Networking

  2 x 1GbE LAN ports (RJ45, Intel I350-AM2)

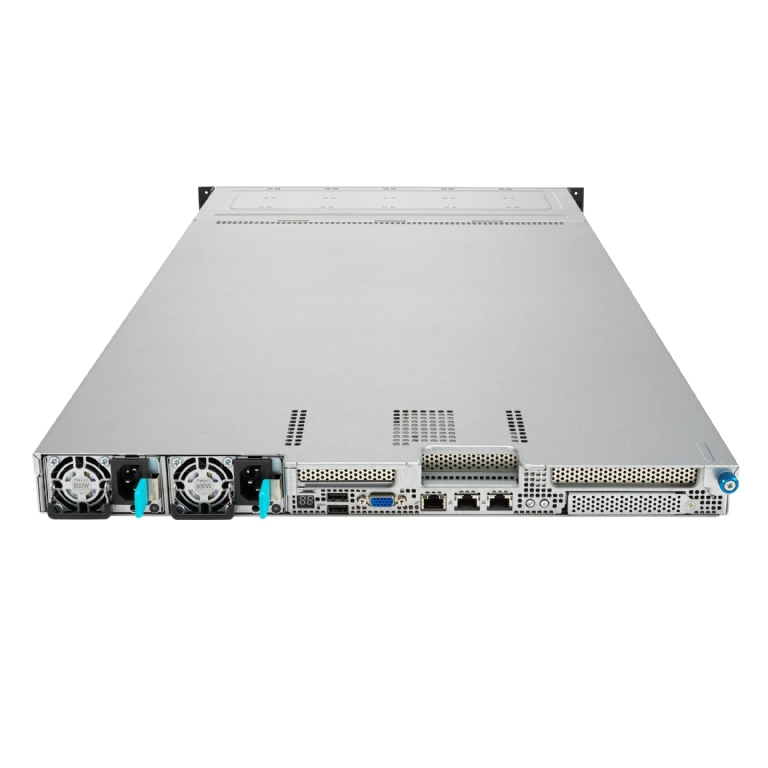

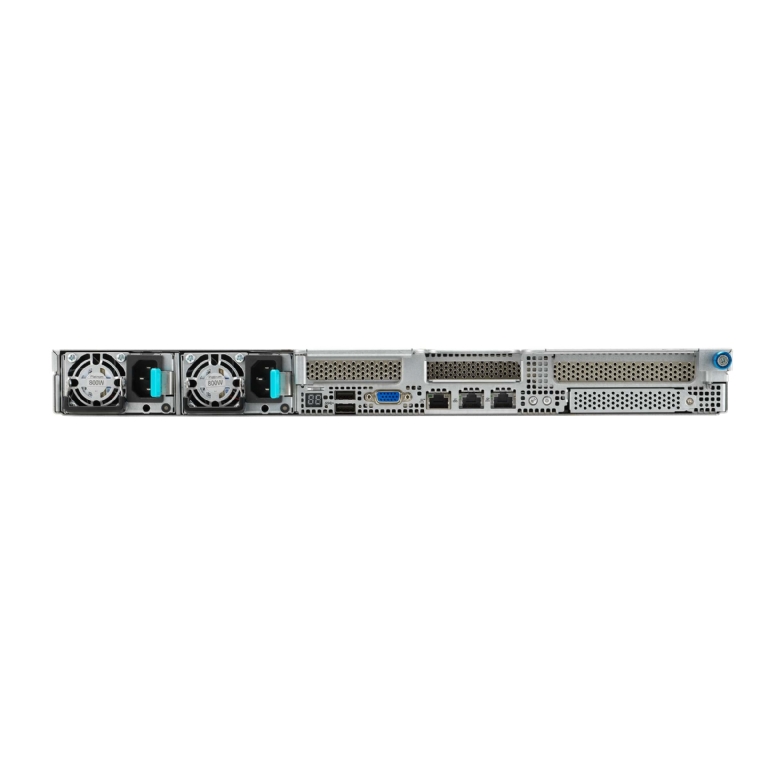

• Rear I/O Ports

  2 x USB 3.2 Gen1 port
  1 x VGA port
  1 x COM port
  2 x 1GbE LAN ports (RJ45)
  1 x Management port (RJ45)

• Switch/LED

  Front :
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED
  Rear :
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED
  2 x LAN LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center Enterprise (in-band)
  ASMB10-iKVM (out-of-band/BMC AST2600)

• Regulatory Compliance

  BSMI, CB, CE, RCM, FCC(Class A)

• Dimensions

  842.5mm x 449mm x 44mm

• Form Factor

  1U

• Weight

  Net Weight: 17 Kg.
  Gross Weight: 22 Kg.

• Power Supply

  1+1 Redundant 800W 80 PLUS Platinum Power Supply
  Rating: 100-127Vac/200-240Vac, 10A/5A, 50/60Hz

• Environment

  Operating temperature: 10°C – 35°C
  Non operating temperature: -40°C – 70°C
  Non operating humidity: 20% – 90% (Non condensing)
