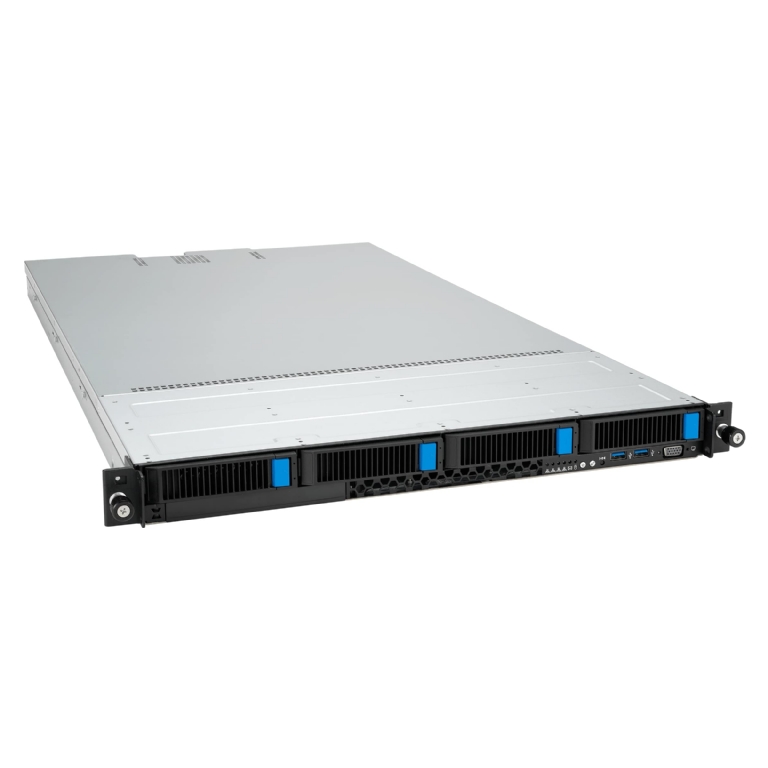

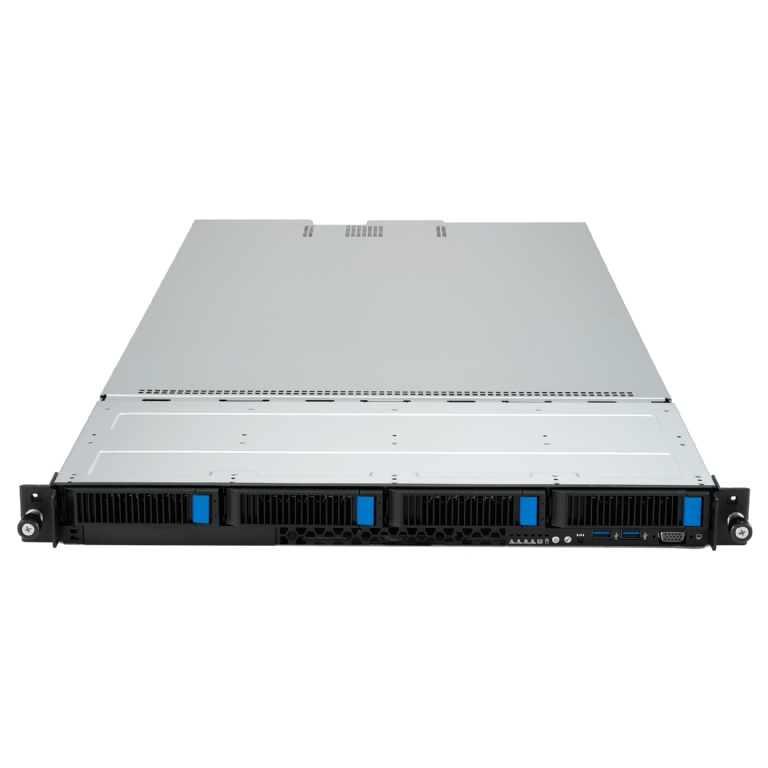

ASUS RS501A-E12-RS4 1U Rackmount Single 9005 Series AMD EPYC Server - 4x Hot-Swap Bays - GPU Support - Redundant PSU

• Processor / System Bus

  1 x Socket SP5 (LGA 6096)
  5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
  AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)

• Memory

  24 x DIMM slots
  DDR5 6400 RDIMM/ 3DS RDIMM
  Maximum 2,304GB

  with AMD EPYC™ 9005 series processors
  2DPC (1 of 2) up to 5200
  2DPC (2 of 2, 1R+1R ) up to 4400,
  2DPC (2 of 2, 2R+2R ) up to 4000

  with AMD EPYC™ 9004 series processors
  2DPC (1 of 2) up to 4800,
  2DPC (2 of 2, 1R+1R ) up to 4000
  2DPC (2 of 2, 2R+2R ) up to 3600

  * Refer to support page for more information

• Expansion Slots

  Up to 3 PCIe Gen5 slots + 1 OCP3.0
  1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
  1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
  1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
  1 x OCP3.0 socket (Gen5 x16 link)

• Storage

  Storage Controller :
  CPU Integrated
  Optional kits Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

• Drive Bays

  Front bays:
  4 x 3.5"/2.5” Hot-swap Storage Bays
  4 x NVMe/SATA/SAS

  *MCIO CABLE is required to support
    NVMe hard drives
  *SAS support only from optional SAS
    HBA/RAID card

  2 x M.2 connectors

• Networking

  1 x Dual Port Intel I350-AM2 GbE LAN Controller
  1 x Management Port

• Graphic

  Up to 2 single-slot GPU cards

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/GPU

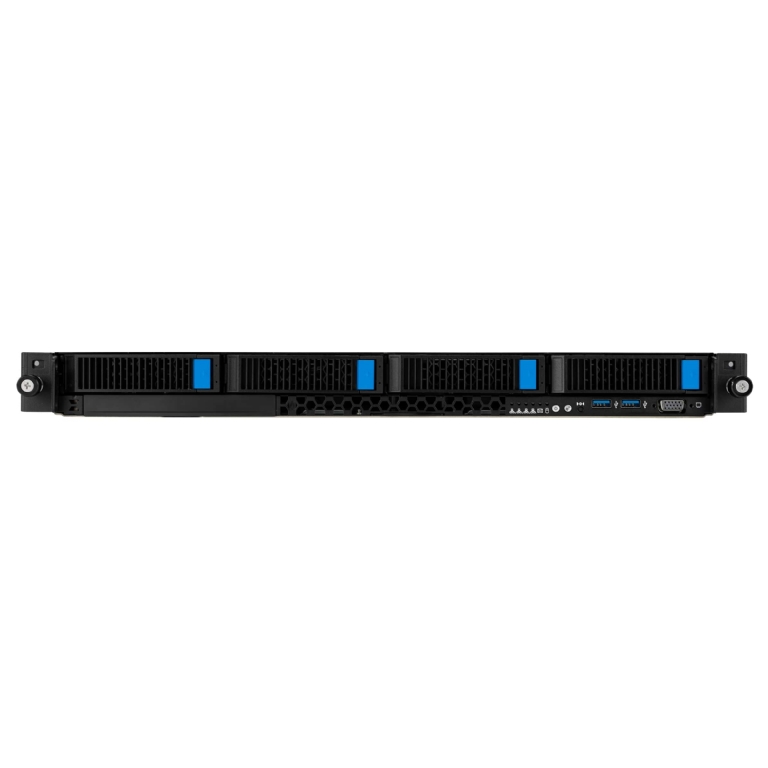

• Front I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA port

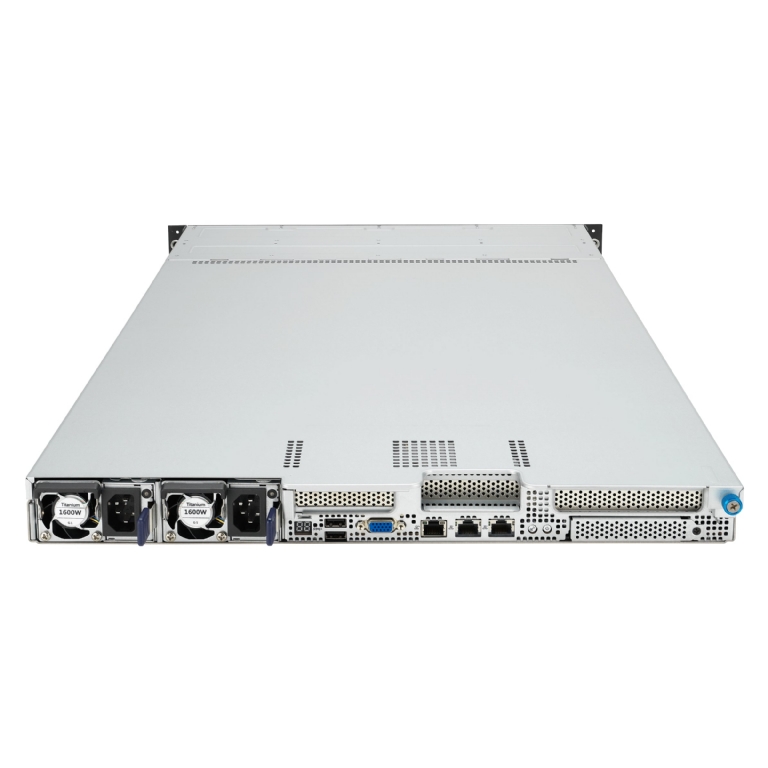

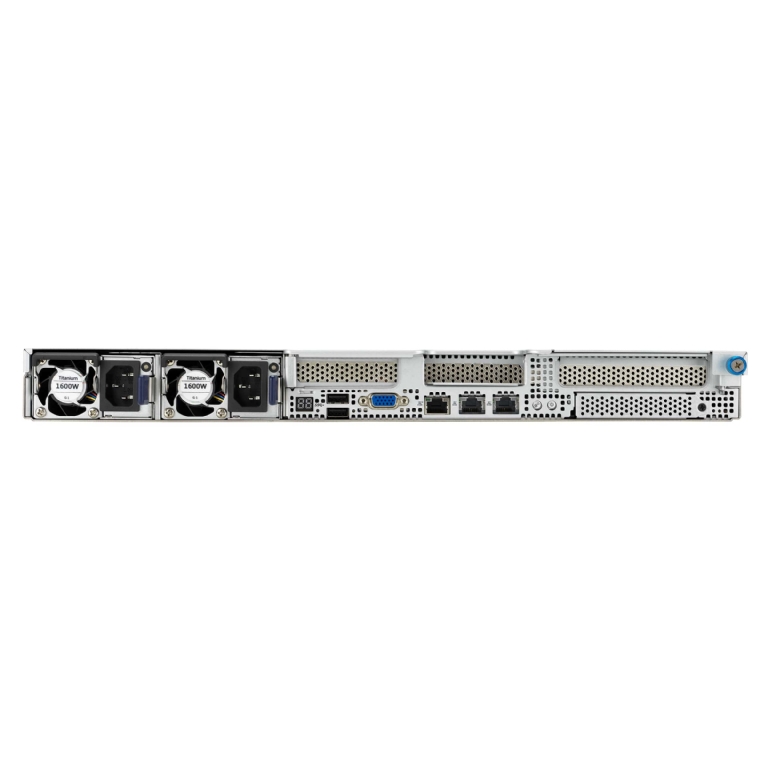

• Rear I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA port
  1 x Management port
  2 x 1GbE LAN ports

• Switch/LED

  Front:
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED
  1 x HDD LED
  4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
  Rear:
  1 x Port80 LED (Q-Code)
  1 x Power Button/LED
  1 x Location Button/LED
  1 x Message LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center
  ASUS ASMB11-iKVM (on-board)

• Regulatory Compliance

  BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®

• Dimensions

  842.5mm x 449mm x 43.85mm (1U)
  33.17" x 17.68" x 1.73"

• Form Factor

  1U

• Weight

  (approximate)
  Net Weight: 13.15 kg
  Gross Weight: 18.15 kg

• Power Supply

  1+1 Redundant 1600W 80 PLUS Titanium
  Power Supply
  1+1 Redundant 1200W 80 PLUS Platinum
  Power Supply

• Environment

  Operating temperature: 10°C – 35°C
  Non operating temperature: -40°C – 70°C
  Non operating humidity: 20% – 90% (Non condensing)

  Note
  Operating Temperature based on configurations

• Optional Items

  Rail Kit:
  Tool-less Friction Rail Kit
  1.2m Half Extension Ball bearing Type Rail Kit
  1m Half Extension Ball bearing Type Rail Kit
  1U Height Full Extension Ball bearing Type Rail Kit
  *Please consult sales if cable arm needed.
  1U Front Bezel

• Note

  Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
