ASUS RS520-E8-RS8 V2 2U Rackmount Xeon E5 Server with 8 Hot-Swap Bays

Effective cooling with Rack-optimised design

RS520-E8-RS8 V2 offers excellent thermal solution, heat dissipation and energy savings. It’s even possible to adjust the fan speed manually, so you have flexible control to meet different working environment. Advanced air-ducting technology and high efficiency 2U heat sink allows RS500-E8-RS8 V2 to work at high operating temperature.

ASUS PIKE II & 12G SAS Integration

ASUS PIKE II offers the latest 12Gb/s SAS together with PCI-E 3.0 solution. While ASUS latest 12Gb/s SAS doubles the data rate running at twice the speed of the previous generation, PCI-E 3.0 offers high reliability and faster speed connection. ASUS PIKE II meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID data protection. Just placing the PIKE II card can immediately enlarge the capacity, improve the performance, and strengthen the signaling, making it the great upgrade option. Additionally, multiple HBAs allow multi-paths which improve over performance.

Comprehensive RAID

The ASUS RAID/HBA card equip with LSI 2208, providing a simple and cost effective path for SAS/SATA storage upgrade and full function RAID and cache vault for data protection.

3+1 expansion

RS520-E8-RS8 V2 has high expandability with 3+1 expansion ports in a configuration: that means one PCI-E Gen3x 16 slot, one PCI-E Gen3x 8 slot, plus one PCI-E Gen3x 8 slot OCP Mezzanine card. This flexible expansion offers diverse applications in storage and networking to meeting the demands of future expansion.

Premium components for premium efficiency

RS520-E8-RS8 V2 benefits from premium components hand-chosen and carefully arranged by ASUS engineers to provide premium efficiency. With ASUS Beat Thermal Chokes, Dr. MOS and 1+1 Redundant 770W 80PLUS Platinum Power Supply, it delivers great durability and up to 94% power efficiency. The 1+1 Redundant 770W 80PLUS Gold Power Supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation. RS520-E8-RS8 V2 has durable 12k solid capacitors that are able to withstand up to 12,000 hours of high ambient temperatures. These 12K capacitors also boast lower equivalent series resistance (ESR) for increased efficiency and minimal heat generation.

Easy Diagnostic and Deployment

RS520-E8-RS8 V2 has a built-in Q-code/port 80 LED display panel for simple monitoring of the entire boot process, from the early hardware-awakening stages to the launch of the operating system and beyond. A bright power lamp on the rear lets you check the server’s status instantly. RS520-E8-RS8 V2 also benefits from an exclusive tool-less rail kit design, easing deployment for systems administrators for increased efficiency.

User friendly design

RS520-E8-RS8 V2 includes a front-side VGA port, so you’re able to connect a display quickly and easily. The server also carries an asset tag for fast identification. RS520-E8-RS8 V2 also offers great freedom when it comes to the choice of operating system drive type and placement, with both M.2 slot for independent OS available.

Complete Remote Server Management

With the Intelligent Platform Management Interface (IPMI) 2.0-compliant ASMB8-iKVM module in RS520-E8-RS8 V2 and you’ll be able to monitor, control and manage the server remotely. ASUS Server Web-based Management (ASWM) Enterprise has a simple and intuitive web-based graphical user interface. Save time and effort by flashing the BIOS remotely, use the new screen-recording function for quick and easy trouble-shooting and exploit the many efficiency benefits of one-to-many centralized management afforded by ASWM Enterprise.

Specifications

• Processor / System Bus
  2 x Socket R3 (LGA 2011-3)
  Intel^® Xeon^® processor E5-2600 v4 product family (145W) *
  Intel^® Xeon^® processor E5-2600 v3 product family(145W)*
  QPI 6.4 / 8.0 / 9.6 GT/s
  *Refer to support page for more information
• Generation
  E8
• Core Logic
  Intel® C612 PCH
• Memory
  Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
  Capacity : Maximum up to 1024GB LRDIMM
  Memory Type :
  DDR4 2400 /2133 /1866/1600 RDIMM
  DDR4 2400 /2133 /1866/1600 LRDIMM
  Memory Size :
  32GB, 16GB, 8GB, 4GB RDIMM
  64GB, 32GB LRDIMM
  * Refer to support page for more information
  * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
• Expansion Slots
  3 + 1

  Low-profile
  1 x PCI-E Gen3 x16 (x8 link)
  2 x PCI-E Gen3 x8 (x8 link)
  1 x OCP Mezzanine (Gen3 x8 link)*

  * Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional)
• Storage
  SATA Controller :
  Intel® C612
  9 x SATA3 6Gb/s ports (8 by 2 mini-SAS Connector)
  1 x M.2 connector
  Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
  (Support Software RAID 0, 1, 5, 10 )
  SAS Controller :
  ASUS PIKE II 3008 8-port SAS HBA card(Optional)
  ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
  12G SAS Support
• HDD Bays

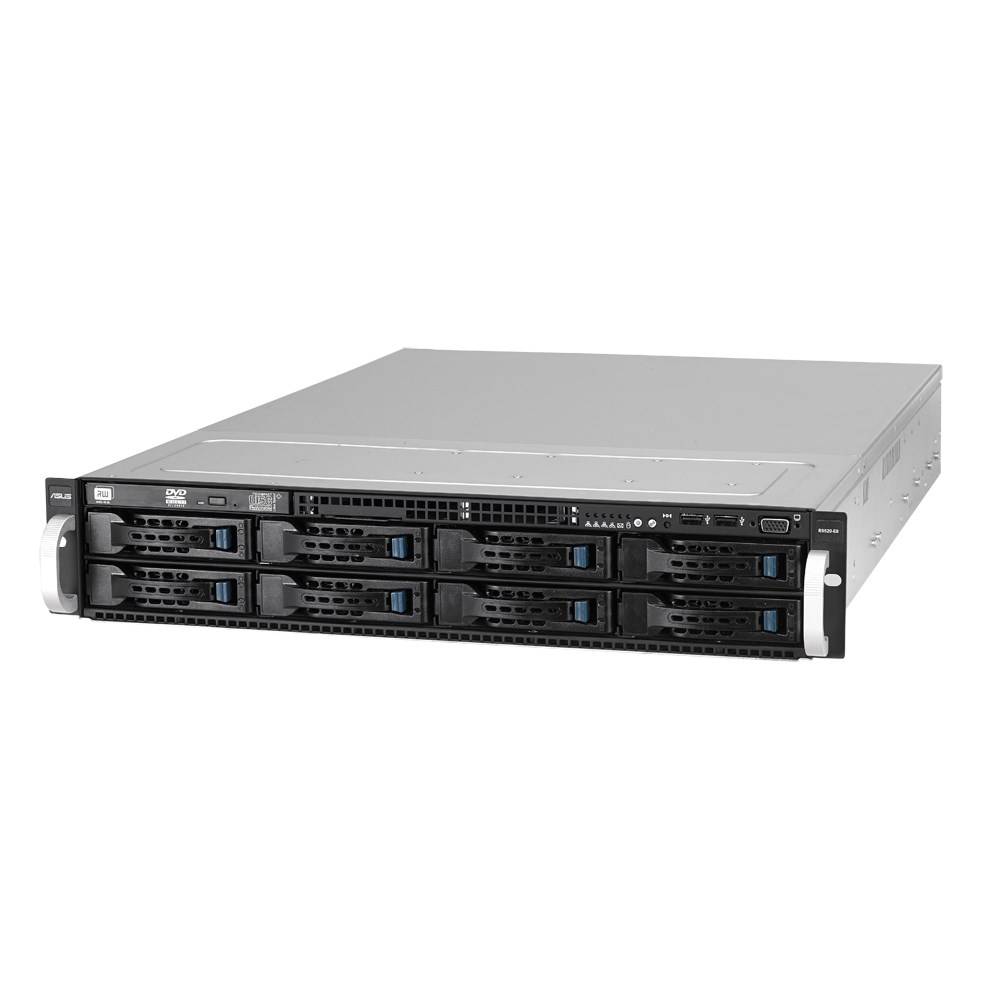

  8 x Hot-swap 3.5" Storage Bays
  1 x M.2 (NGFF 2242)
• Auxiliary Storage FDD/CD/DVD
  1 x Slim-type Optical Drive Bay
  Options: No Device / DVD-RW
• Networking
  2 x Intel® I210AT + 1 x Mgmt LAN
• Graphic
  Aspeed AST2400 with 32MB VRAM
• Front I/O Ports
  2 x USB 2.0 ports
  1 x VGA port

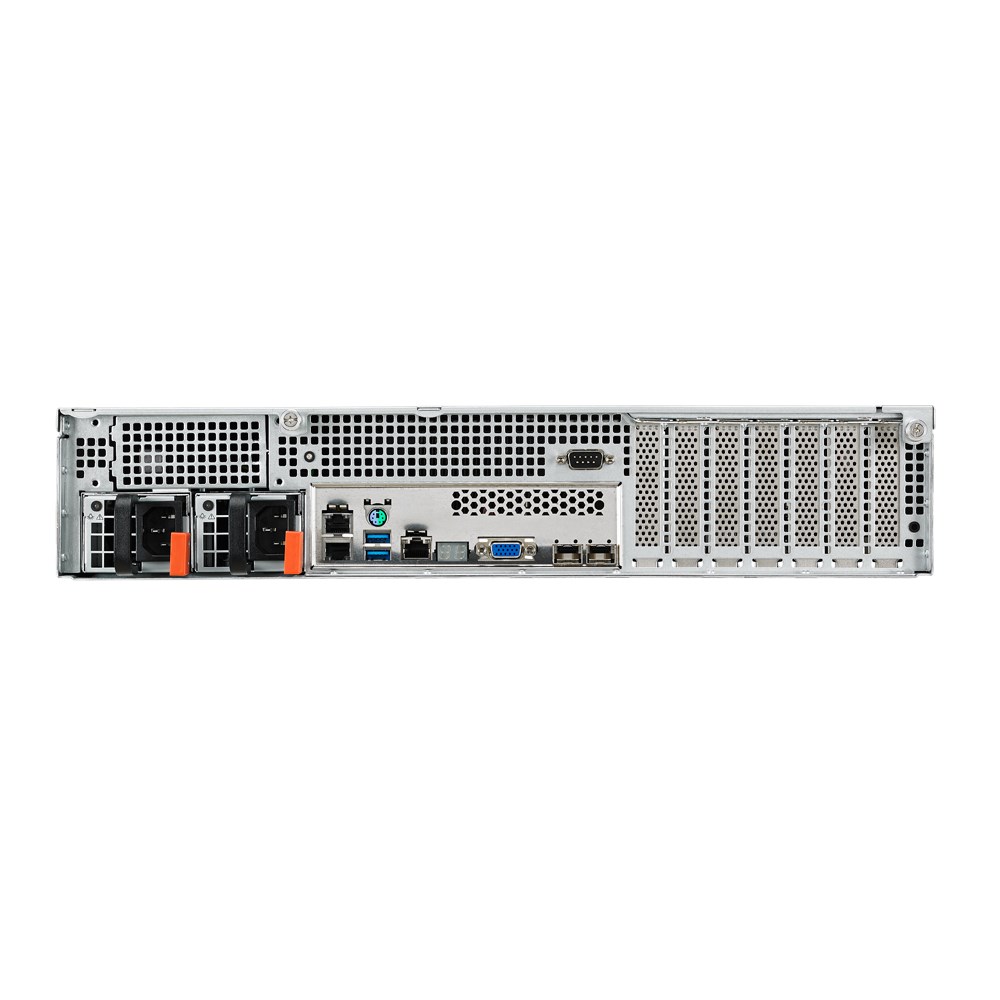

• Rear I/O Ports
  2 x RJ-45 ports
  1 x RJ-45 Mgmt LAN port
  2 x USB 3.0 ports
  1 x VGA port
  1 x PS/2 KB/MS port
  1 x External Serial Port(Optional)
• Switch/LED
  Front Switch/LED:
  1 x Power switch/LED
  1 x Location switch/LED
  1 x Reset switch
  1 x HDD Access LED
  1 x Message LED
  LAN 1-4 LED
  * LAN3-4 for Mezzazine card use

  Rear Switch/LED:
  1 x Q-Code/Port 80 LED
• OS Support
  Windows® Server 2016
  Windows® Server 2012 R2
  Windows® Server 2012
  Windows® Server 2008 R2
  RedHat® Enterprise Linux
  SuSE® Linux Enterprise Server
  CentOS
  Ubuntu
  VMware
  Citrix XenServer

  *Subject to change without any notice
• Management Solution
  ASWM Enterprise
  On-Board ASMB8-iKVM for KVM-over-IP
• Regulatory Compliance
  BSMI, CE, C-Tick, FCC(Class A)
• Dimensions
  615mm x 444mm x 88mm
  24.21" x 17.48" x 3.46"
• Form Factor
  2U
• Weight
  Net Weight: 14.80 Kg
  Gross Weight: 21.53 Kg
• Power Supply
  1+1 Redundant 770W 80PLUS Platinum Power Supply

  Rating: 100-127Vac/200-240Vac,10A/5A ,50-60Hz, Class I
• Environment
  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
