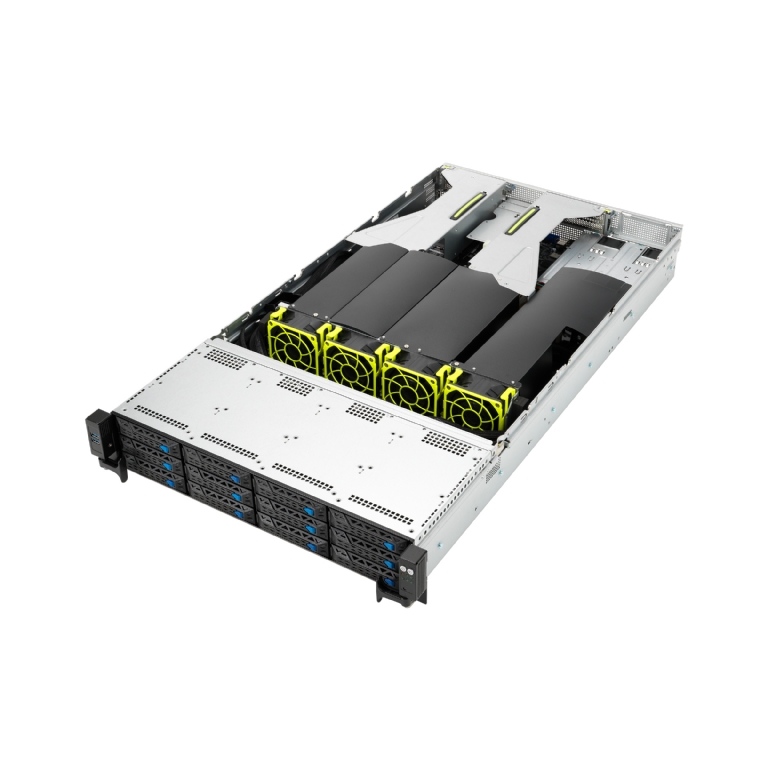

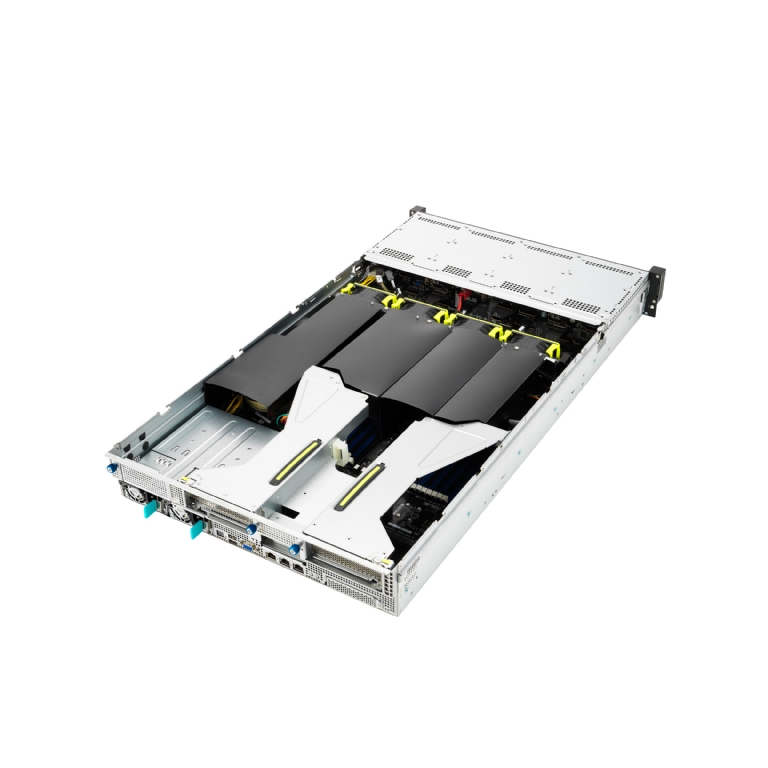

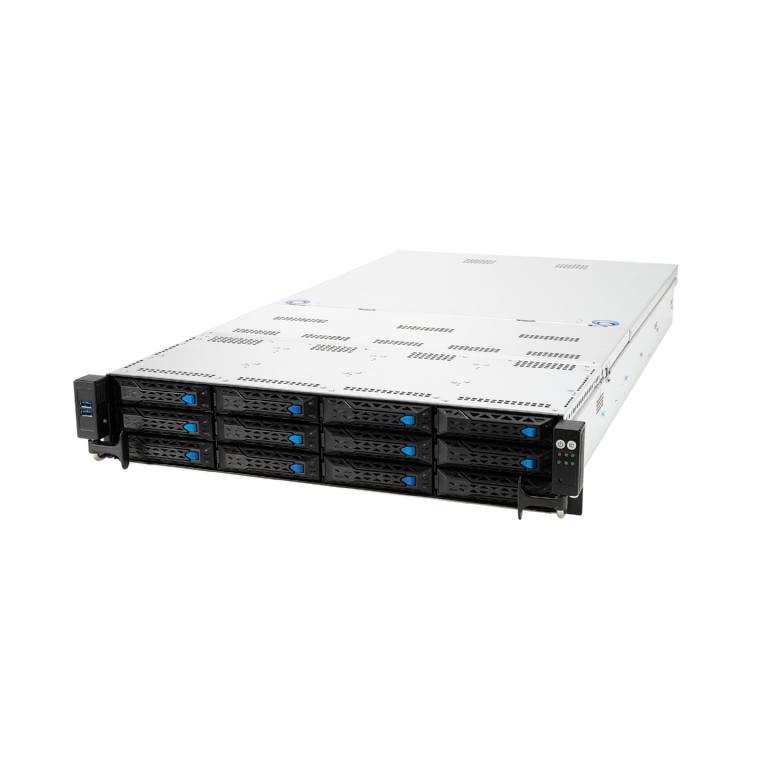

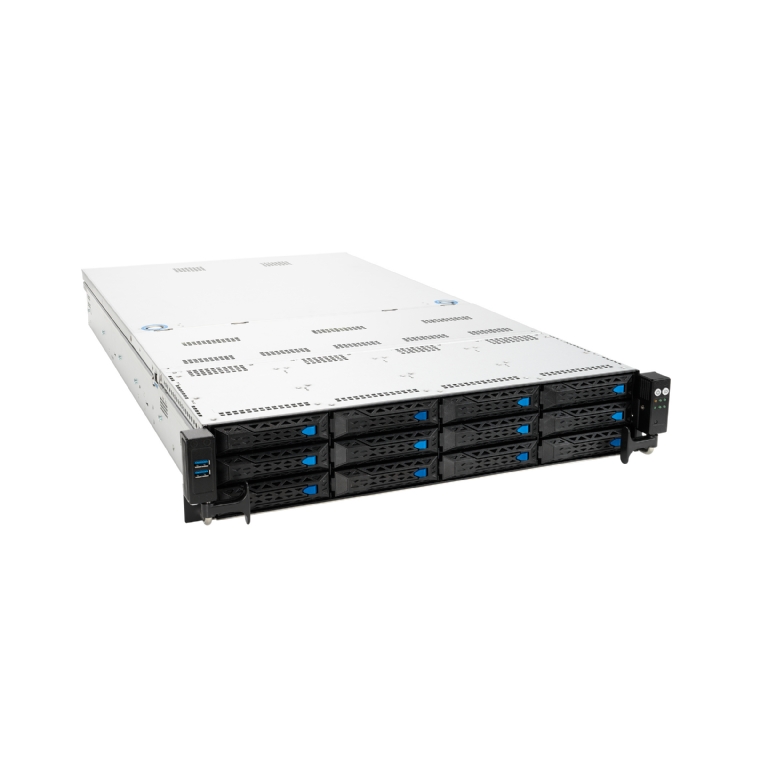

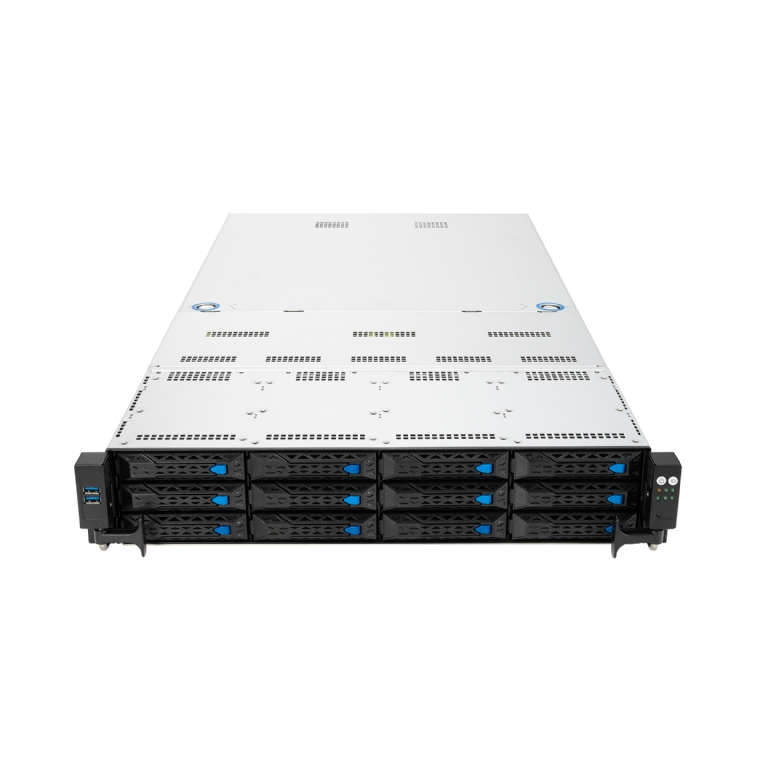

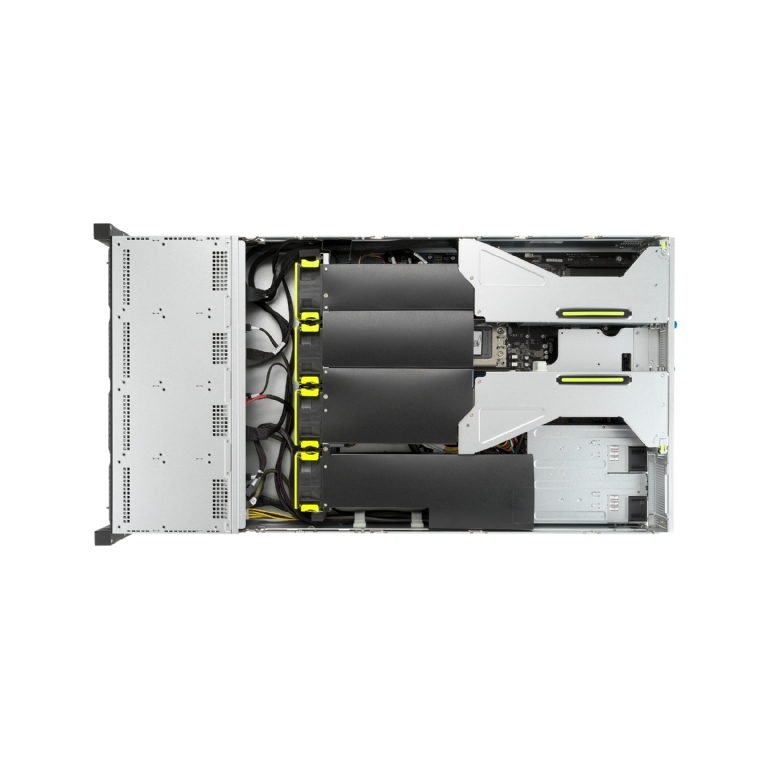

ASUS RS520A-E11-RS12U 2U Rackmount Single 7003 Series AMD EPYC Server - 2x GPU Support - 12x Hot-Swap Bays - Redundant PSU

• Processor / System Bus




  1 x Socket SP3 (LGA 4094)




  3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology




  AMD EPYC™ 7003 Series




  AMD EPYC™ 7002 Series

• Memory

  Total Slots :




  16 (8-channel)




  Capacity :




  Maximum up to 4096GB RDIMM




  Memory Type :




  DDR4 3200/2933 RDIMM




  DDR4 3200/2933 LRDIMM




  DDR4 3200/2933 LR-DIMM 3DS




  Memory Size :




  128GB, 64GB, 32GB, 16GB RDIMM




  128GB, 64GB LRDIMM




  256GB, 128GB, 64GB LR-DIMM 3DS




  * Refer to support page for more information






• Expansion Slots

  2 x PCIe x16 slot(Gen4 x16 link, FHFL)or dual-slot GPU cards or 4 x PCIe x16 slot(Gen4 x8 link, FHFL)




  1 x PCIe x16 slot(Gen4 x8 link, LP)




  1 x OCP 3.0 Mezzanine slo

• Storage

  Storage Controller :




  CPU Integrated




  SAS Controller :




  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)




  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

• Drive Bays

  12 x 3.5” hot-swap drive bays(12x NVMe/SATA/SAS)

  2 x M.2 connector (NGFF 22110/2280/2260/2242. SATA 6Gb/s*2 or PCIe Gen4 x4 link*1 or PCIe Gen4 x2 link*2)

  *SAS support only from SAS HBA/RAID Card

• System Fan

  4 (if choose redundant fan, total:8)

• Networking

  1 x Dual Port Intel I350-AM2 Gigabit LAN controller
  + 1 x Mgmt LAN

• Graphic

  Aspeed AST2600 with 64MB VRAM

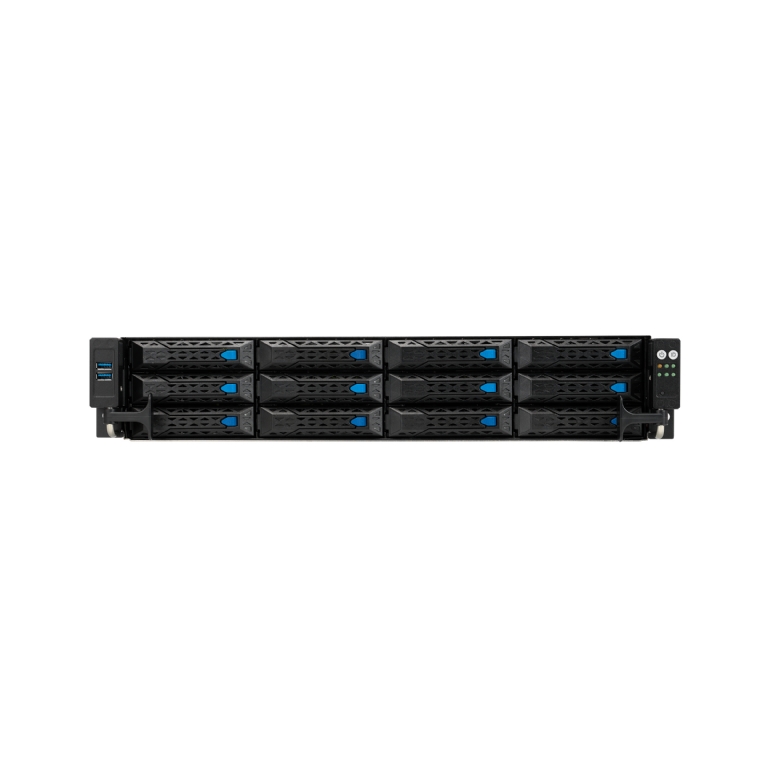

• Front I/O Ports

  2 x USB 3.2 Gen1 ports

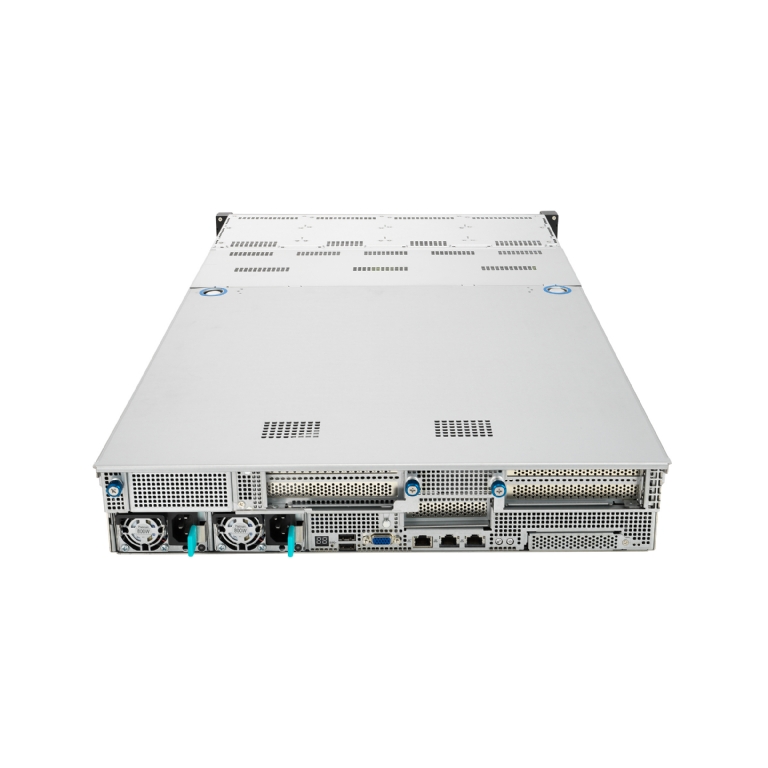

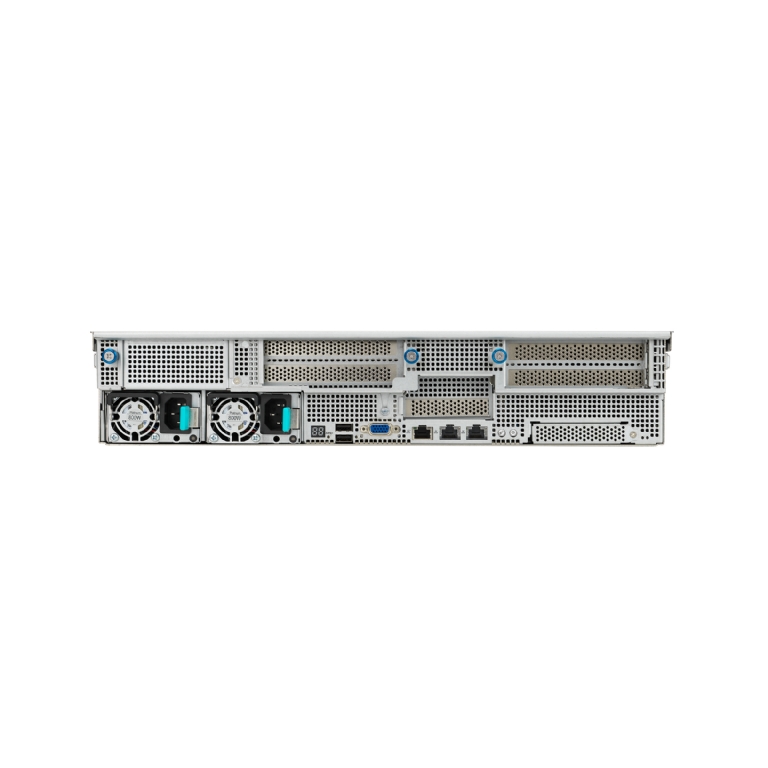

• Rear I/O Ports




  2 x USB 3.2 Gen1 port




  1 x VGA port




  1 x Management port (RJ45)




  2 x Gigabit LAN ports (RJ45)

• Switch/LED

  Front Switch/LED:

  1 x Power switch (w/LED)

  1 x Reset Switch

  1 x Location Switch (w/LED)

  1 x HDD Access LED

  1 x Message LED

  LAN 1-2 LED



  Rear Switch/LED:

  1 x Power switch w/LED

  1 x Port 80 LED(Q-Code)

  1 x Location Switch w/LED

  1 x Message LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  ASUS Control Center Enterprise (Optional)




  On-Board ASMB10-iKVM for KVM-over-IP

• Regulatory Compliance

  BSMI, CE, RCM, FCC(Class A)

• Dimensions

  840mm x 449mm x 88.1mm

  (33.07" x 17.68" x 3.47")

• Form Factor

  2U

• Weight

  Net Weight : 18.83KG

  Gross Weight : 28.42KG

• Power Supply

  1+1 Redundant 800W 80 PLUS Platinum Power Supply
  Rating: 100-127 / 200-240Vac, 10A / 5A (for each inlet), 50-60Hz, Class I

  1+1 Redundant 850W 80 PLUS Titanium Power Supply

  Rating: 100-127 / 200-240Vac, 11A / 5A (for each inlet), 47-63Hz or 240Vdc, 4A

  1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply

  Rating: 100-127 / 200-240Vac, 10A / 8A (for each inlet), 50-60Hz or 240Vdc, 6A

  240Vdc Only for China

• Environment



  Operation temperature: 10℃ ~ 35℃

  Non operation temperature: -40℃ ~ 60℃

  Non operation humidity: 20% ~ 90% (Non condensing)








• CPU Heatsink/ Cooler
