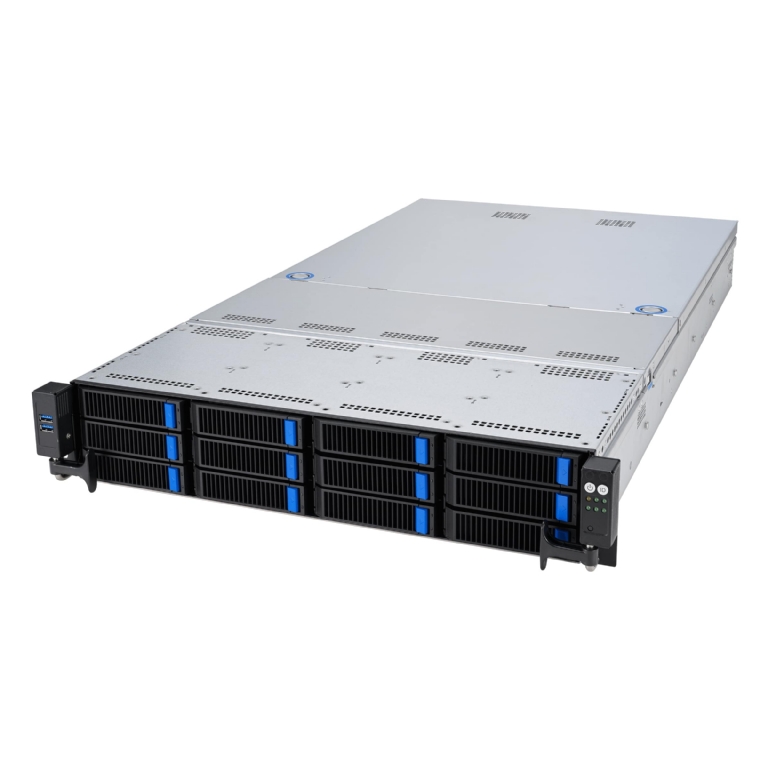

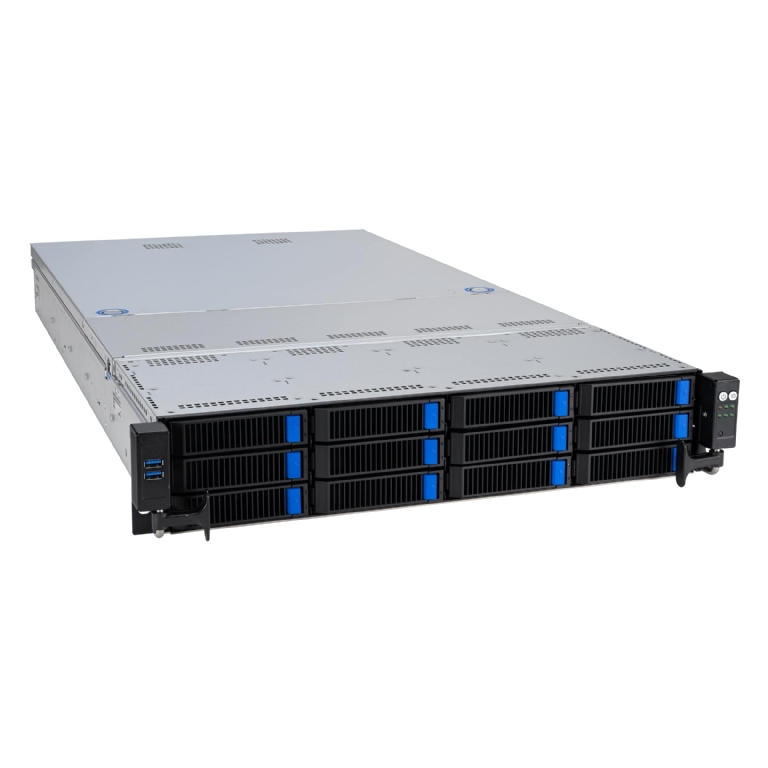

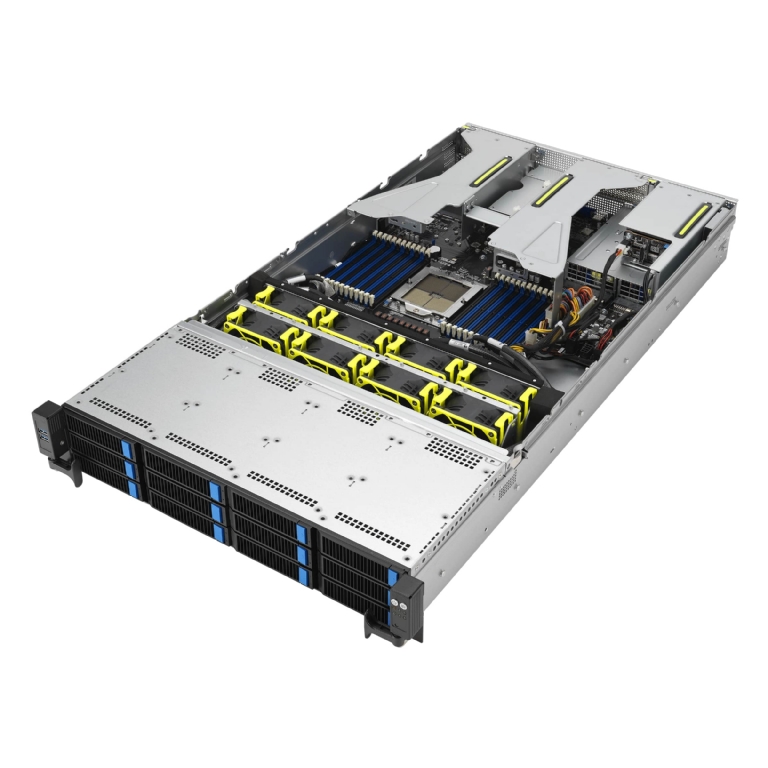

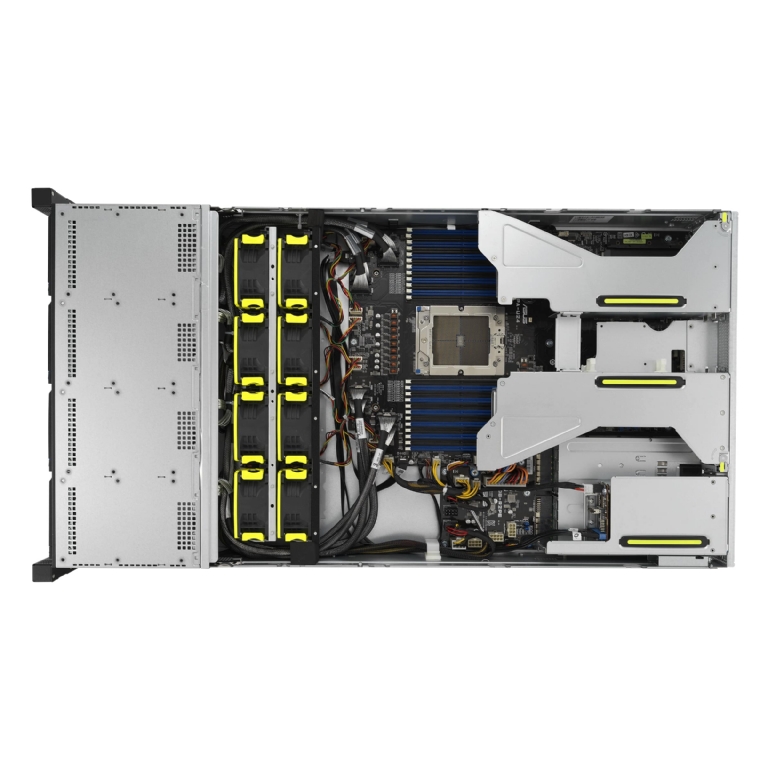

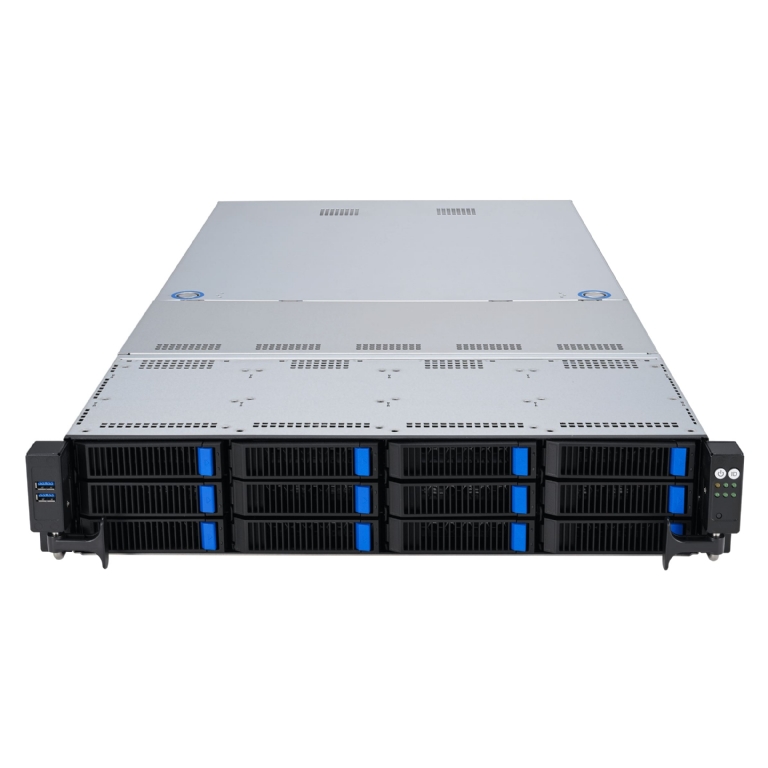

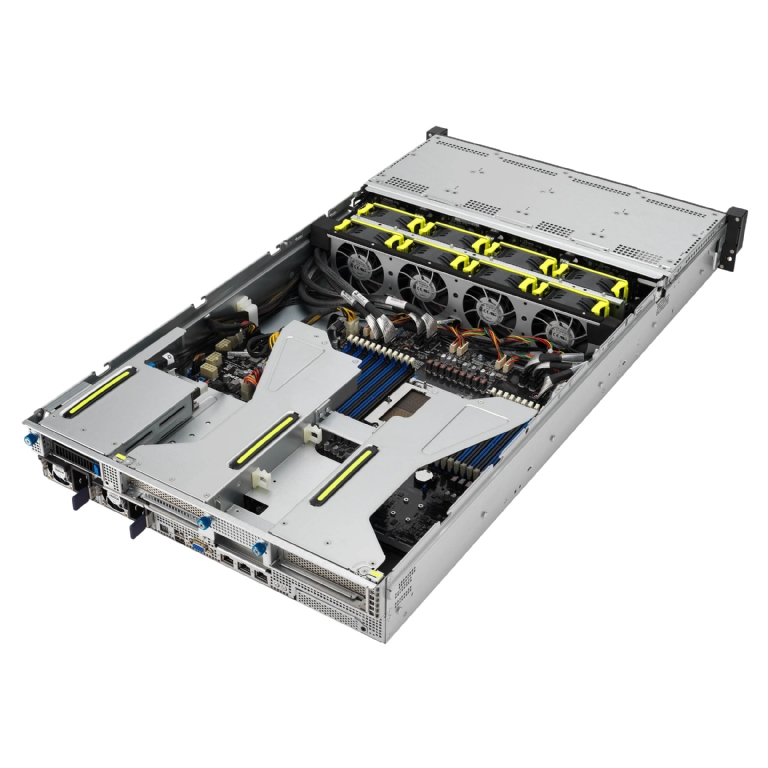

ASUS RS520A-E12-RS12U 2U Rackmount Single 9004 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU

90SF02G1-M002Y0
ASUS RS520A-E12-RS12U 2U Rackmount Single 9004 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    1 x Socket SP5 (LGA 6096)
    AMD EPYC™ 9004 Series Processors (up to 400W)
  • Memory

    24 x DIMM slots
    DDR5 4800/4400 RDIMM/ 3DS RDIMM
    Maximum 6144GB
    *2DPC support depends on AMD schedule
    * Refer to support page for more information
  • Expansion Slots

    Up to 5 PCIe Gen5 slots + 1 OCP3.0
    2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
    1 x PCIe Gen5 x8, LP
    1 x OCP Mezz. 3.0 Slot ( (PCIe Gen5 x16)
  • Storage

    Storage Controller :
    CPU Integrated

    Optional kits Controller :
    Broadcom Mega RAID 9560-16i
    ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
  • Drive Bays

    Front bays:
    12 x 3.5” hot-swap drive bays
    Support up to 12NVMe/SAS/SATA

    Rear bays:
    2 x 2.5” SATA hot-swap drive bays

    *SAS support only from optional SAS HBA/RAID
    card

    2 x M.2 connectors
  • Networking

    1 x Dual Port Intel I350-AM2 GbE LAN Controller
    1 x Management Port
  • Graphic

    Up to 4 single-slot or 2 double-slot GPU cards

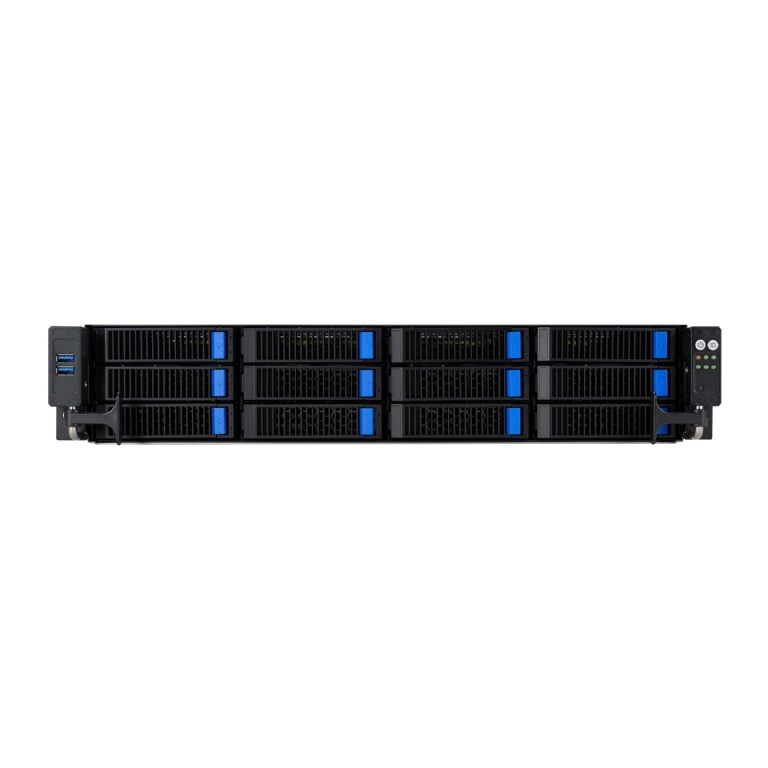

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

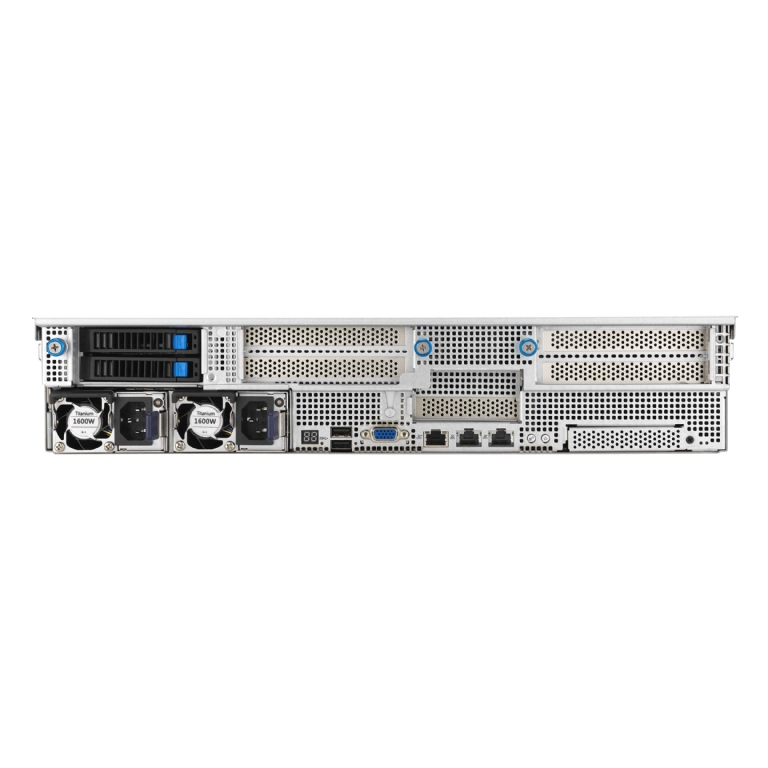

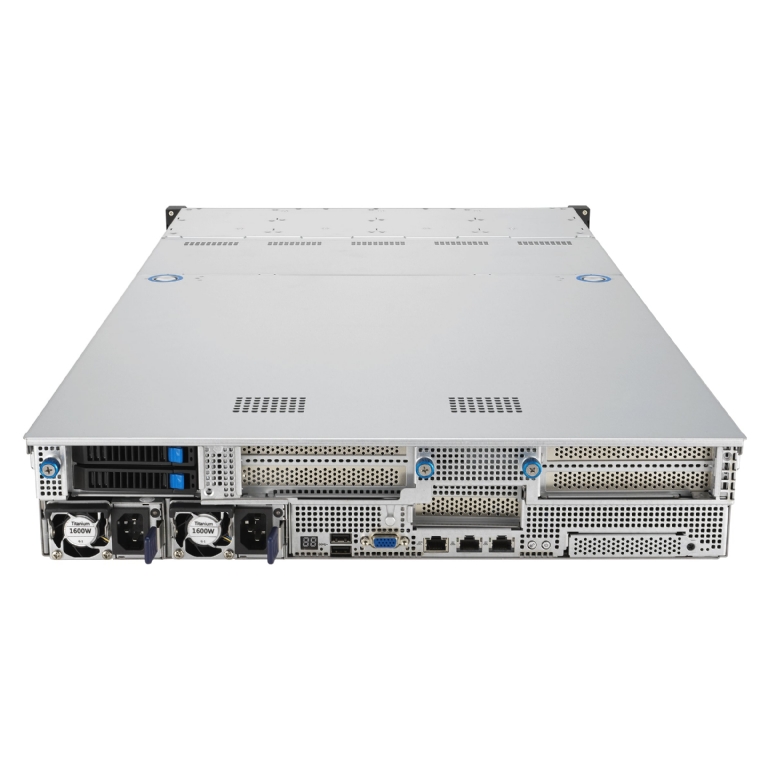

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x Management port
    2 x 1GbE LAN ports
  • Switch/LED

    Front:
    1 x Power Button/LED
    1 x Reset Switch
    1 x Location Button/LED
    1 x HDD Access LED
    1 x Message LED
    LAN 1-2 LED
    Rear:
    1 x Port80 LED (Q-Code)
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)
  • Regulatory Compliance

    CB, CE, RCM, FCC(Class A)
  • Dimensions

    840mm x 449mm x 88.1mm (2U)
    33.07” x 17.68” x 3.47
  • Form Factor

    2U
  • Weight

    (approximate)
    Net Weight: 17.95 kg
    Gross Weight: 25.14 kg
  • Power Supply

    1+1 Redundant 1600W 80 PLUS Titanium
    Power Supply
    1+1 Redundant 1600W/1200W 80 PLUS Platinum
    Power Supply
  • Environment

    Operating temperature: 10°C – 35°C
    Non operating temperature: -40°C – 70°C
    Non operating humidity: 20% – 90% (Non condensing)

    Note
    Operating Temperature based on configurations
  • Optional Items

    Rail Kit:
    Tool-less Friction Rail Kit
    1.5U Height Full Extension Ball bearing Type Rail Kit
    *Please consult sales if  cable arm needed.
    2U Front Bezel
