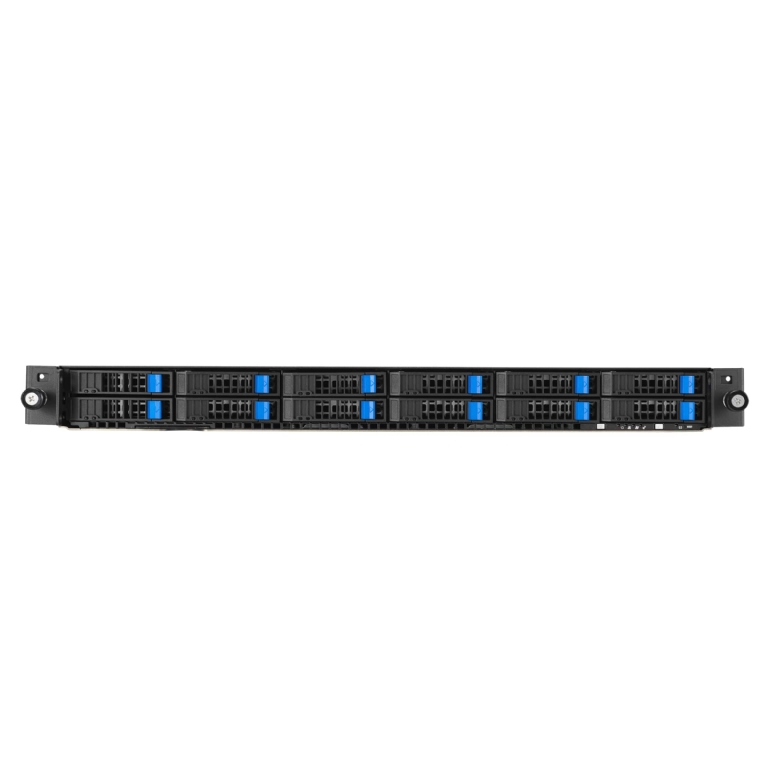

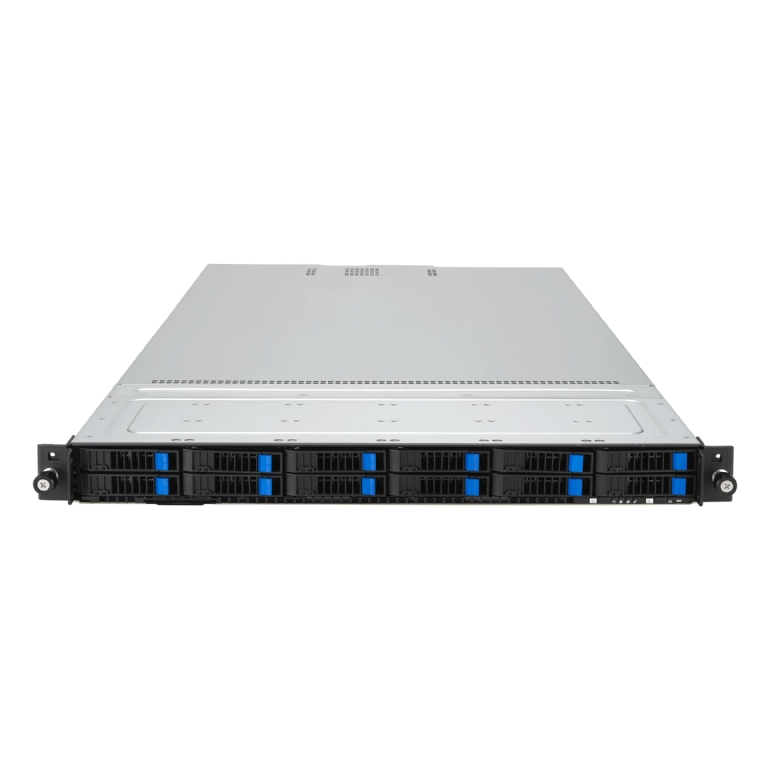

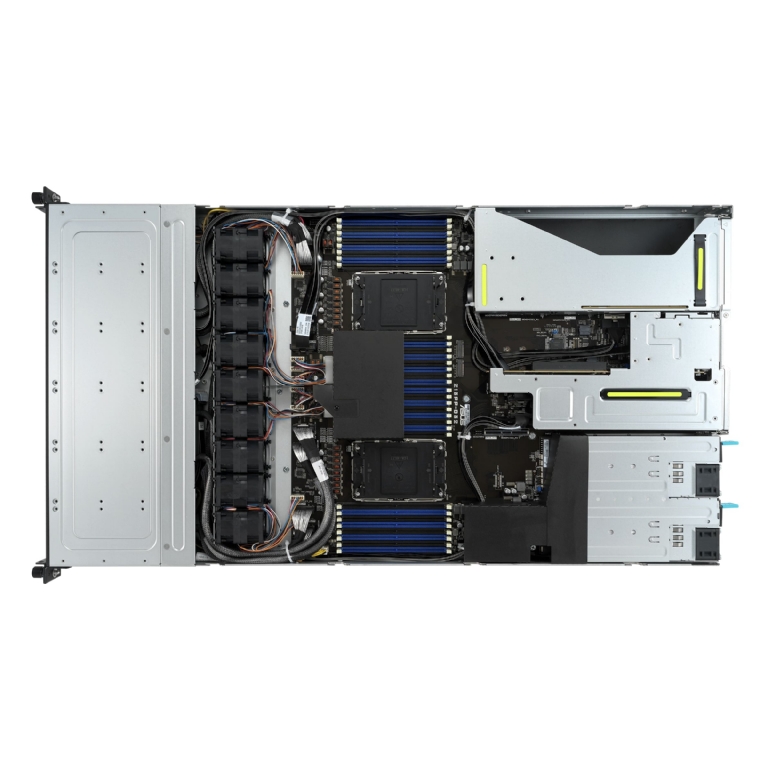

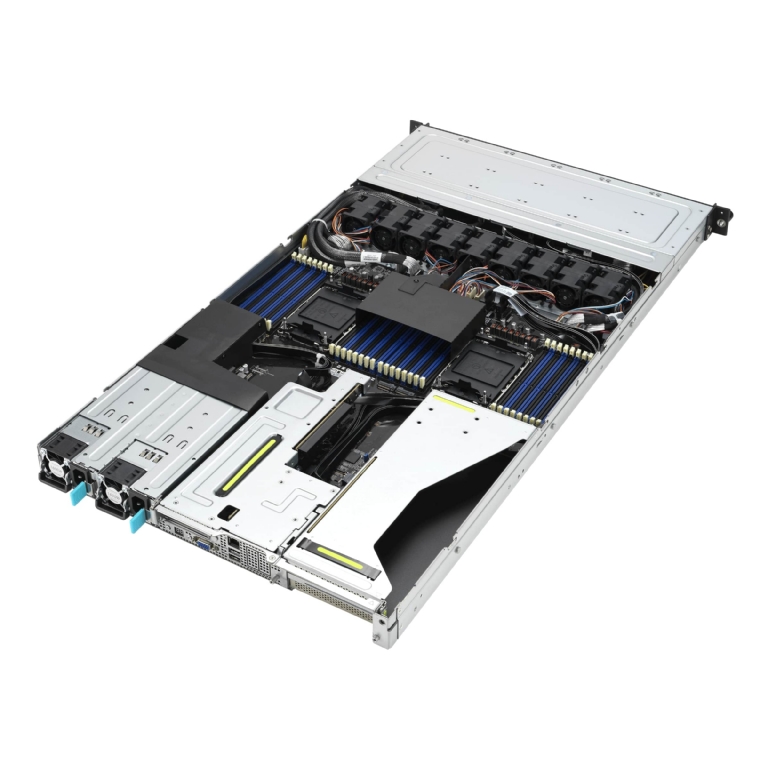

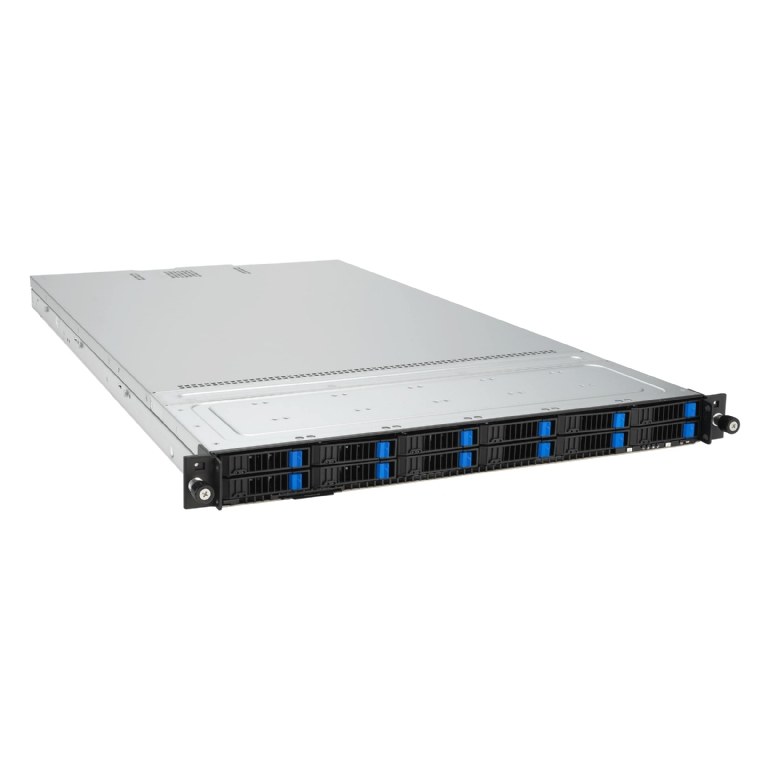

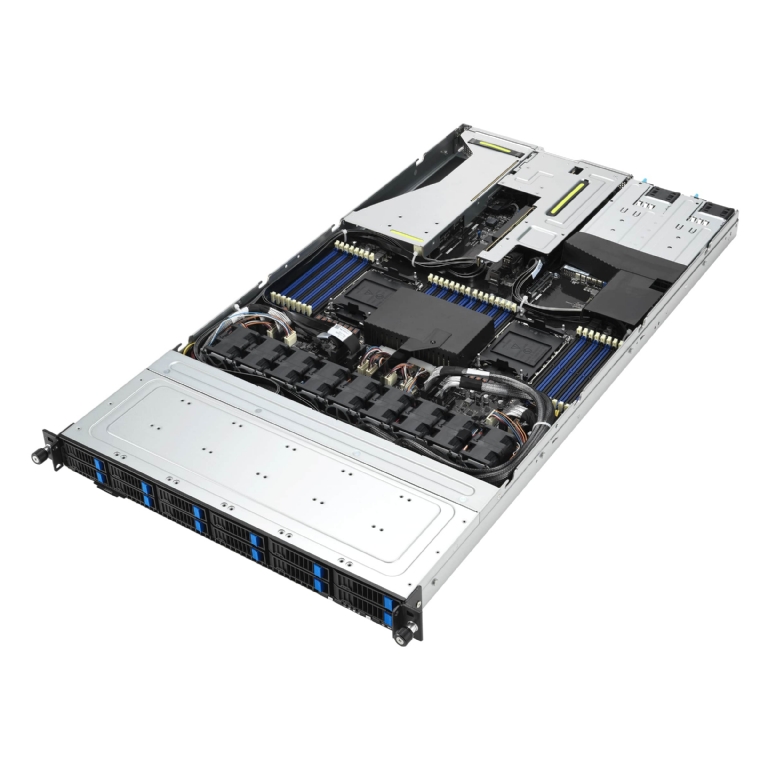

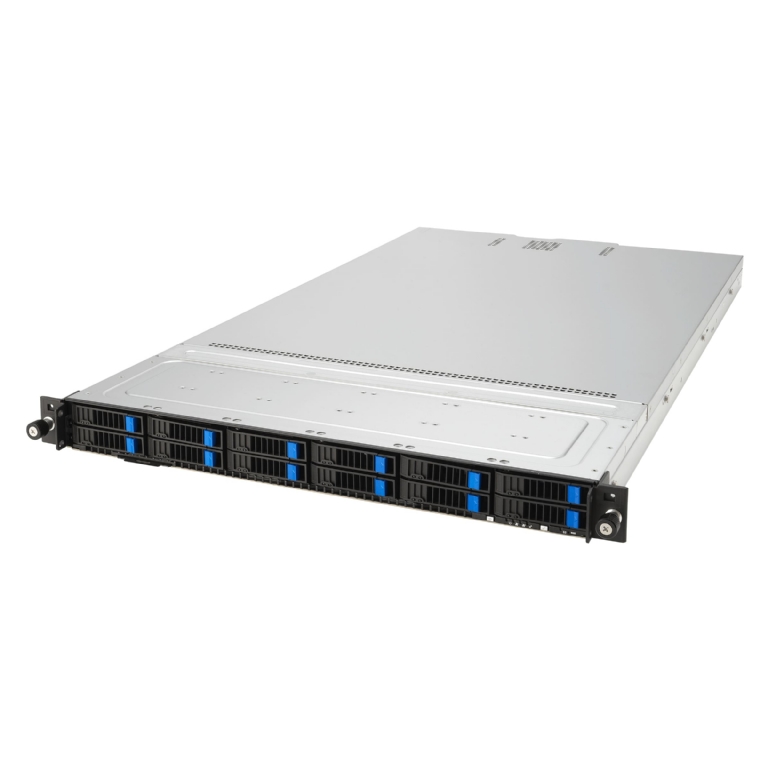

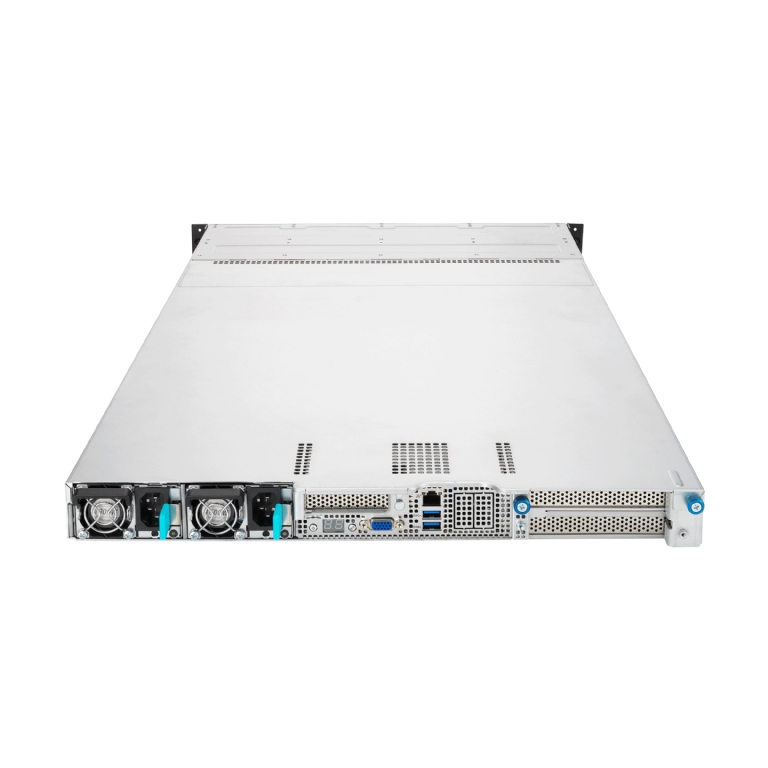

ASUS RS700-E11-RS12U 1U Rackmount Dual 4th Gen Xeon Scalable Server - 12x Hot-Swap Bays - Redundant PSU

90SF01U1-M004E0
ASUS RS700-E11-RS12U 1U Rackmount Dual 4th Gen Xeon Scalable Server - 12x Hot-Swap Bays - Redundant PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    Intel®Xeon® Processor Scalable Family
  • Generation

    4th
  • Core Logic

    Intel® C741 Chipset
  • Memory

    32 x DDR5 4800(1DPC)/4400(2DPC)
  • Expansion Slots

    Up to 3+1 PCIe slot
    1 x OCP 3.0 or PCIe G5 x16 FHFL
    1 x PCIe G5 x16 FHFL
    1 x PCIe G5 x8. LP (Internal)
    1 x PCIe G5 x16, LP
  • Storage

    12x2.5” NVMe/SATA/SAS* hot-swap bay
    (HBA/RAID is required to support SATA/SAS hard drives)
  • Drive Bays

    12 x 2.5" hot-swap bay
    2 x M.2 slot
  • System Fan

    9
  • Networking

    4 x1Gbe(Intel I350-AM4) RJ45 port or
    2 x 10Gbe(Intel X710-AT2) RJ45 port
  • Graphic

    Aspeed AST2600 64MB
  • Front I/O Ports

    2 x USB 3.2 Gen1 ports

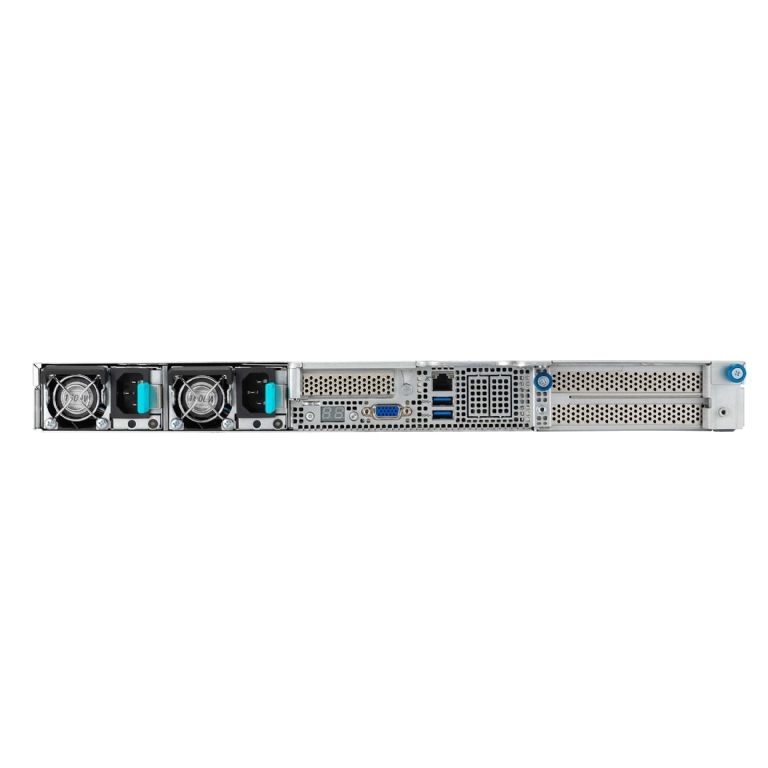

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x RJ-45 Management LAN port
    2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
  • Switch/LED

    Front Switch/LED:
    1 x Power Switch (w/ LED)
    1 x Location Switch (w/ LED)
  • Dimensions

    842.5mm x 439.5mm x 44mm
  • Form Factor

    1U
  • Weight

    22.56kg
  • Power Supply

    1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply
  • CPU Heatsink/ Cooler

    Standard/ EVAC Heatsink
