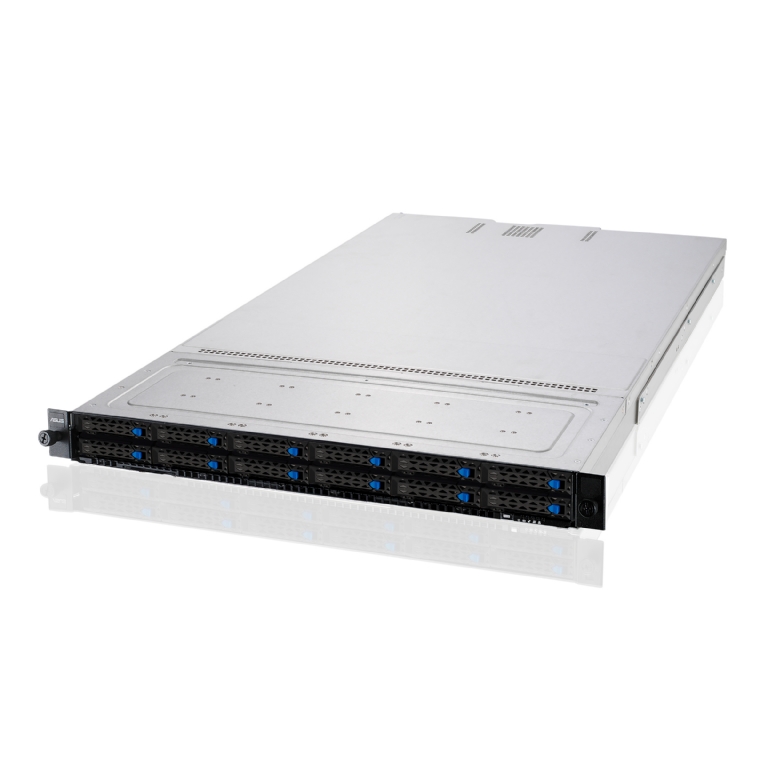

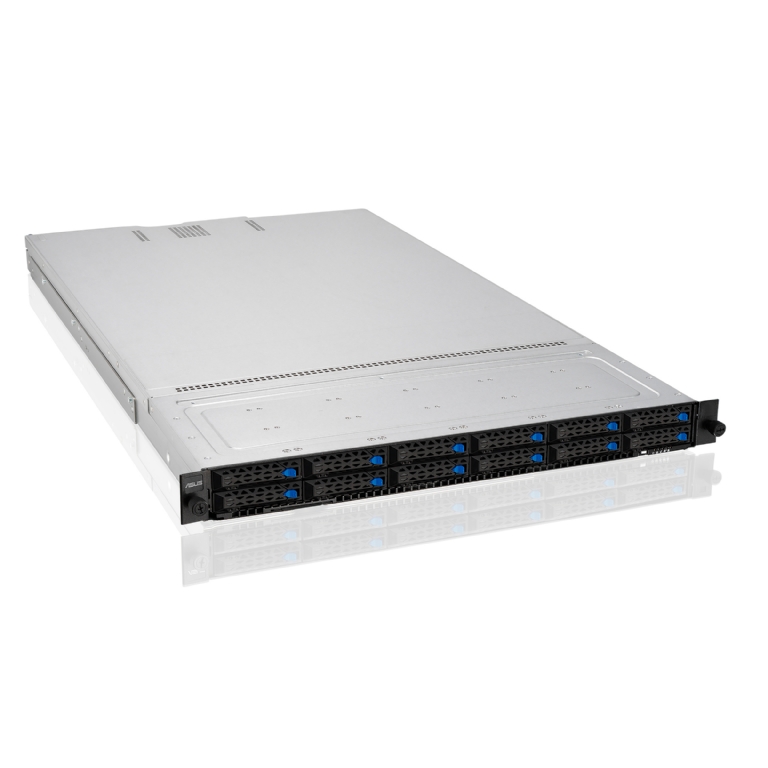

ASUS RS700A-E11-RS12U 1U Rackmount Dual 7003 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU

90SF01E2-M00K20
ASUS RS700A-E11-RS12U 1U Rackmount Dual 7003 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU
Call our Solutions Specialists - 01283 576162

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
  • Processor / System Bus

    3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology
    Max TDP : 280W
    AMD EPYC™ 7003 Series
    2 x Socket SP3 (LGA 4094)
    AMD EPYC™ 7002 Series
  • Generation

    E11
  • Memory

    Maximum up to 4096GB per socket
    Total Slots :
    32 (8-channel per CPU, 16 DIMM per CPU)
    Capacity :
    Maximum up to 4096GB RDIMM
    Dual ChannelDDR43200/2933LRDIMM
    Dual ChannelDDR43200/2933LR-DIMM 3DSnon ECC
    Capacity : Maximum up to 4096GB RDIMM
    Dual ChannelDDR43200/2933RDIMM
    Dual Channel3200/2933
    Dual Channel3200/2933non ECC
    128GB, 64GB LRDIMM
    256GB, 128GB, 64GB LR-DIMM 3DS
    64GB, 32GB, 16GB RDIMM
    Total Slots : 32 (8-channel per CPU, 16 DIMM per CPU)
    Memory Type :
    Memory Size :
    * Refer to support page for more information
  • Graphic Card

    Please refer to GPU support list
    NVIDIA® Quadro RTX 8000 48GB GDDR6
    NVIDIA® Quadro RTX 6000 24GB GDDR6
  • Expansion Slots

    Up to 3 x Expansion slots + 1 x Internal PIKE slot
    1 x PCIe Gen4 x16, FHFL (CPU1)
    1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2)
    1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)

    *Installing GPU cards will occupied expansion slots.
    Up to 3 x Expansion slots + 1 x Internal PIKE slot
    1 x PCIe Gen4 x16, FHFL (CPU1)
    1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2)
    1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
    Up to 3 x Expansion slots + 1 x Internal PIKE slot
    1 x PCIe Gen4 x16, FHHL (CPU1)
    1 x PCIe Gen4 x16, FHHL or OCP3.0 (CPU2)
    1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
    Up to 3 x Expansion slots
    1 x PCIe x16 (Gen4 x16 link), FH, HL (CPU1)
    1 x PCIe x16 (Gen4 x16 link), FH, HL or OCP3.0 (CPU2)
    1 x PCIe Gen4 x8 or x16, LP, HL (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
    1 x PCIe x16 (Gen4 x16 link), FH, HL (CPU1) 1 x PCIe x16 (Gen4 x16 link), FH, HL or OCP3.0 (CPU2) 1 x PCIe Gen4 x8 or x16,LPHL (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
  • Storage

    Broadcom MegaRAID 9560-16i (Optional)
    12 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link)
    Broadcom MegaRAID 9560-16i
    2 x M.2 connector (SATA 6Gb/s & PCIe® Gen4 x4 link)

    Storage Controller :
    2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
    12 x SATA3 6Gb/s ports
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

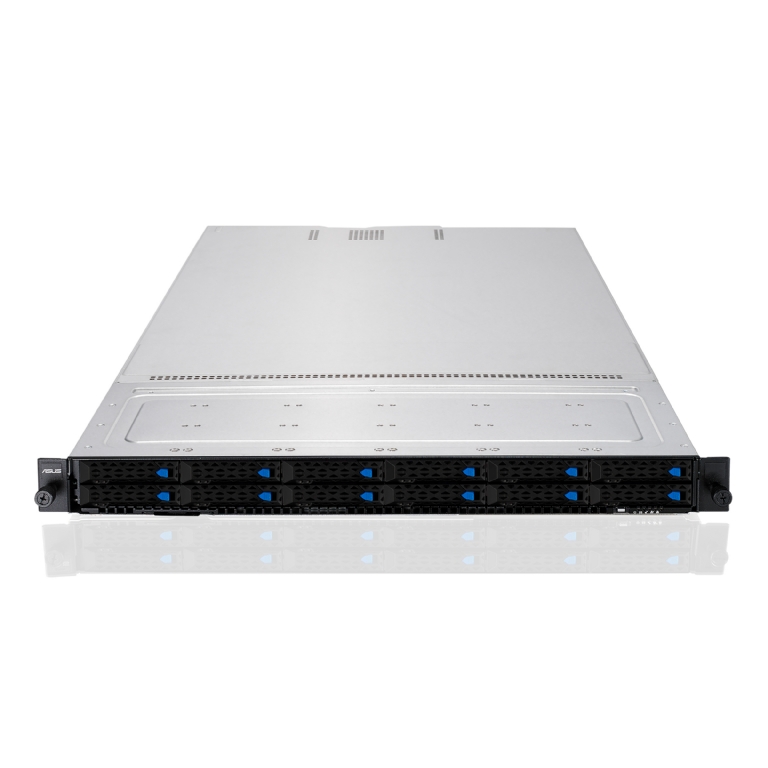

  • Drive Bays

    12 x 2.5" hot-swap drive bays (12 x NVMe/SATA/SAS*)
    2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)

    *must with PIKE/RAID card
    12 x 2.5" hot-swap drive bays (12 x NVMe/SATA/SAS)
    2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)
    12 x 2.5" hot-swap drive bays (12 x NVMe/SATA/SAS) 2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2) *SAS support only from SAS HBA/RAID Card
  • System Fan

    8
    8 (if support GPU SKU, it will have external fan)
  • Networking

    None x + 1 x Mgmt LAN
    Non
    Option 1
    Option 2
    1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
    1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
  • Graphic

    Aspeed AST2600 with 64MB VRAM
  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu

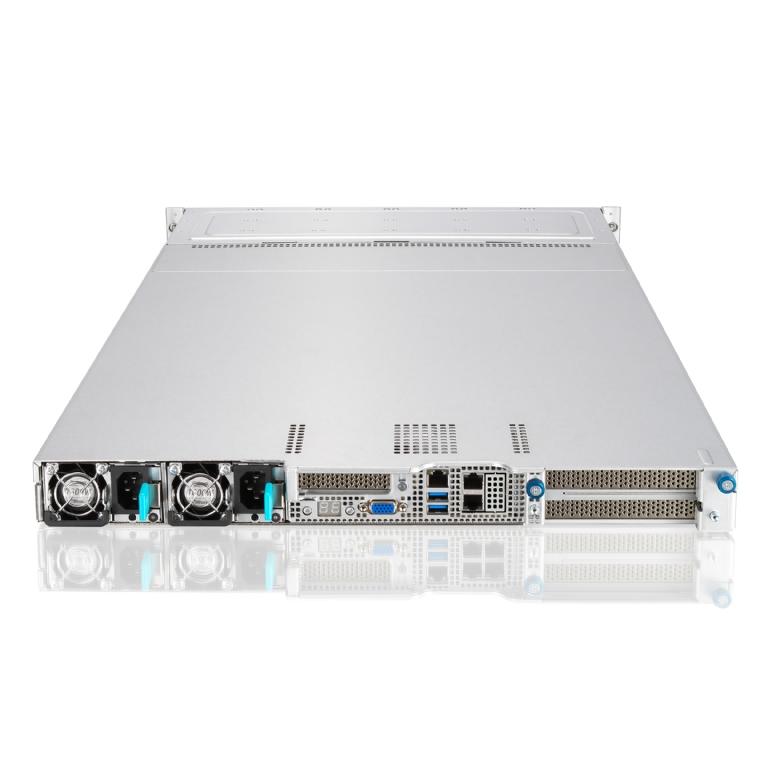

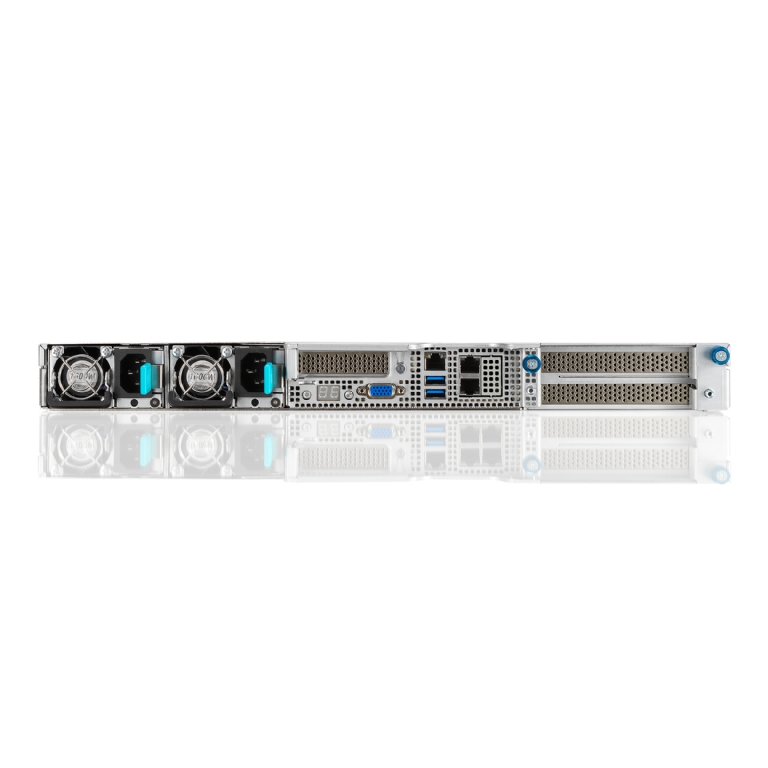

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x RJ-45 Mgmt LAN port
    1 x OCP3.0 port (Please remember to insert OCP3.0 Board)
    2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN ports 1 x OCP3.0 port
  • Switch/LED

    Front Switch/LED:
    1 x Power switch (w/LED)
    1 x Reset Switch
    1 x Location Switch (w/LED)
    1 x HDD Access LED
    1 x Message LED LAN 1-4 LED (on NIC Module)

    Rear Switch/LED:
    1 x Power switch w/LED
    1 x Port 80 LED(Q-Code)
    1 x Location Switch w/LED
    1 x Message LED
    Front Switch/LED:1 x Power switch (w/LED) 1 x Reset Switch 1 x Location Switch (w/LED) 1 x HDD Access LED 1 x Message LED LAN 1-4 LED (on NIC Module) Rear Switch/LED:1 x Power switch w/LED 1 x Port 80 LED(Q-Code) 1 x Location Switch w/LED 1 x Message LED
  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os
  • Management Solution

    On-Board ASMB10-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Optional)
    ASUS Control Center Enterprise (Optional) On-Board ASMB10-iKVM for KVM-over-IP
  • Regulatory Compliance

    BSMI, CE, FCC(Class A)
  • Dimensions

    842.5mm x 449mm x 43.85mm (33.17" x 17.68" x 1.73")
  • Form Factor

    1U
  • Weight

    Net Weight : 18.85KG
    Gross Weight : 23.89KG
    Net Weight : 30.9KG Gross Weight : 39.56KG
  • Power Supply

    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply
    Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)

    *1600W RPSU is required while choosing GPU SKU
    Optional
    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply
    Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)
    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply
    Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)
    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)
  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% (Non condensing)
    Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% (Non condensing)
  • Optional Items

    Standard Cooling Solution or
    Water Cooling Solution
    Water cooling solution
  • Note

    *If only 1 CPU is installed, some functions might be not available.
    * SAS support only from SAS HBA/RAID Card
    If only 1 CPU is installed, some functions might be not available.
  • CPU Heatsink/ Cooler

    2
  • Fan

    1 (For supporting GPU SKU, it will have external fan)
