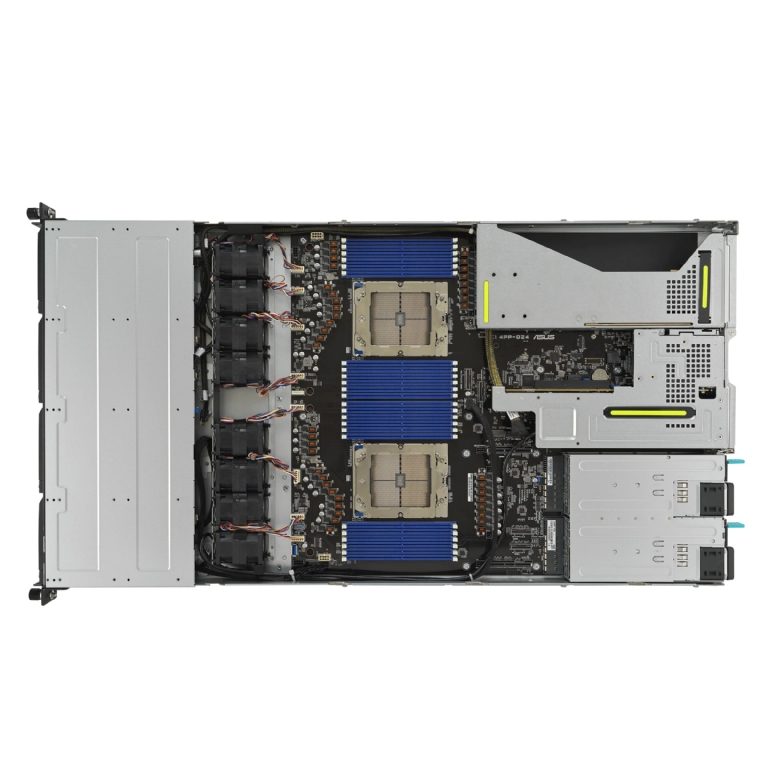

2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series
Max TDP : 400W
-
E12
-
Total Slots :
24 (12-channel per CPU, 1 DIMM per CPU)
Capacity :
Maximum up to 3072GB per socket
Memory Type :
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size :
128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM
* Refer to www.asus.com/support for more information
-
Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
1 x PCIe Gen5 x16 (FHFL)
1 x PCIe Gen5 x16 or OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LP)
1 x PCIe Gen4 x8 (LP, internal)
*Installing GPU cards will occupied expansion slots.
*GPU SKU do not support OCP3.0.
-
SATA Controller :
4 x SATA 6Gb/s ports
2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
SAS Controller :
Braodcom HBA CARD 9500-16i (Optional)
Broadcom MegaRAID 9540-8i (Optional)
Broadcom MegaRAID 9560-16i (Optional)
-
4 x 3.5" Hot-Swap drive bays
Support up to 4 x NVMe/SATA/SAS*
*RAID card is required to support SAS hard drives
-
8
-
Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
Option 3: None x + 1 x Mgmt LAN
-
Aspeed AST2600 64MB
-
Please find the latest GPU support from
https://servers.asus.com/support/gpu
-
2 x USB 3.2 Gen1 ports
1 x VGA
-
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
1 x OCP3.0 port (Optional)
*GPU SKU do not support OCP3.0.
-

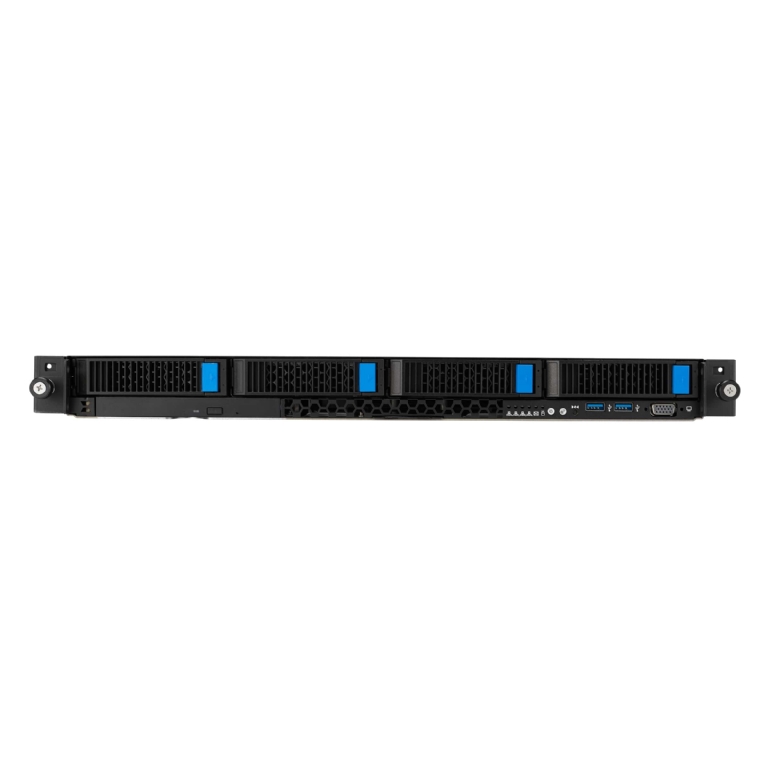

Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Reset Switch
1 x Location Switch (w/ LED)
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED (on NIC module)

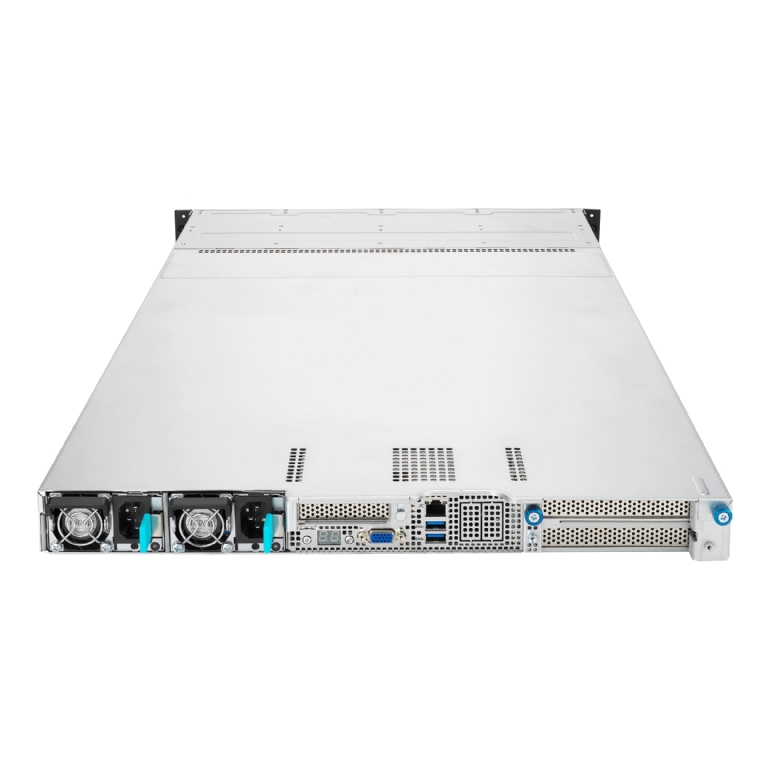

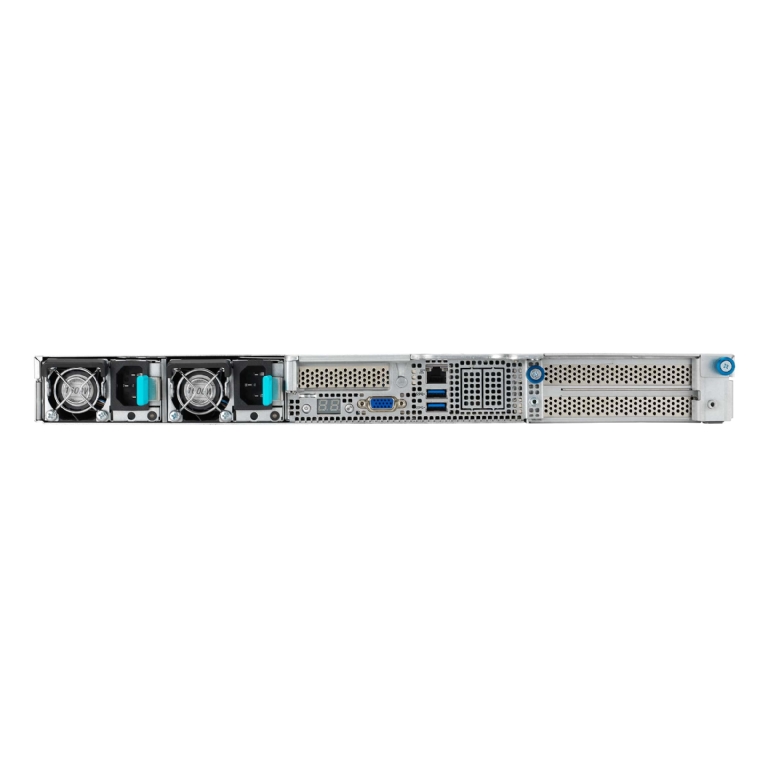

Rear Switch/LED:
1 x Port 80 LED (Q-Code)
1 x Power Switch w/ LED
1 x Location Switch w/LED
1 x Message LED
-
Please find the latest OS support from
https://servers.asus.com/support/os
-
On-Board ASMB11-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)
-
BSMI, CE, CB, C-Tick, FCC(Class A)
-
842.5mm x 449mm x 43.85mm (33.17" x 17.68" x 1.73")
-
1U
-
Net Weight : 13.93KG
Gross Weight : 18.93KG
-
1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply
Rating:
100-127/220-240Vac,12A/9.5A(x2),50/60Hz
100-127/240Vac,13.8A/16A(x2), 50/60Hz
220-240Vac, 10A(x2), 50/60Hz
-
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% (Non condensing)
-
Rail Kit:
Tool-less Friction Rail Kit
1.2m Half Extension Ball bearing Type Rail Kit
1m Half Extension Ball bearing Type Rail Kit
1U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if cable arm needed.
1U Front Bezel
-
*SAS support only from SAS HBA/RAID Card
-
2
-
1 (For supporting GPU SKU, it will have external fan)
