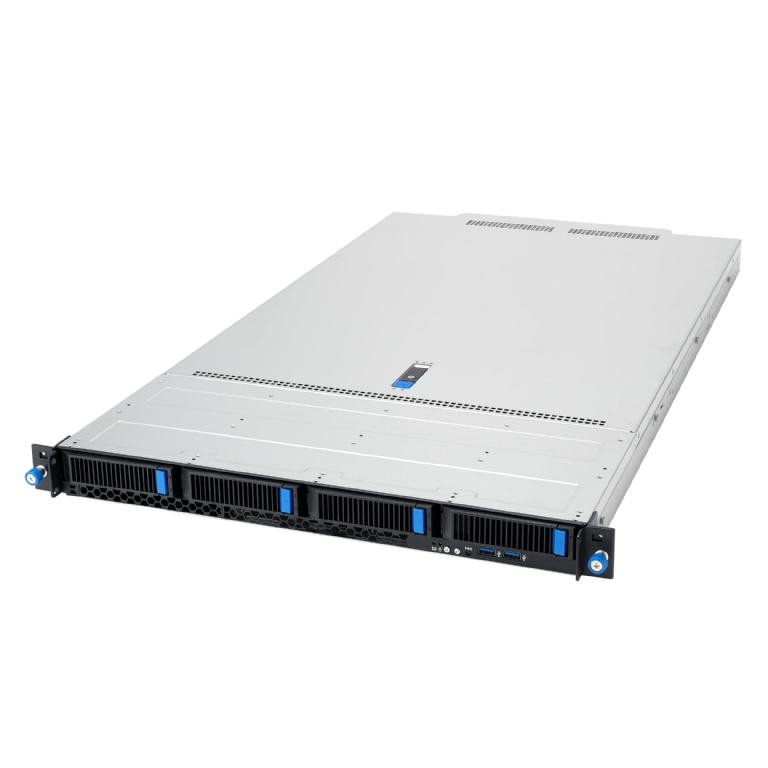

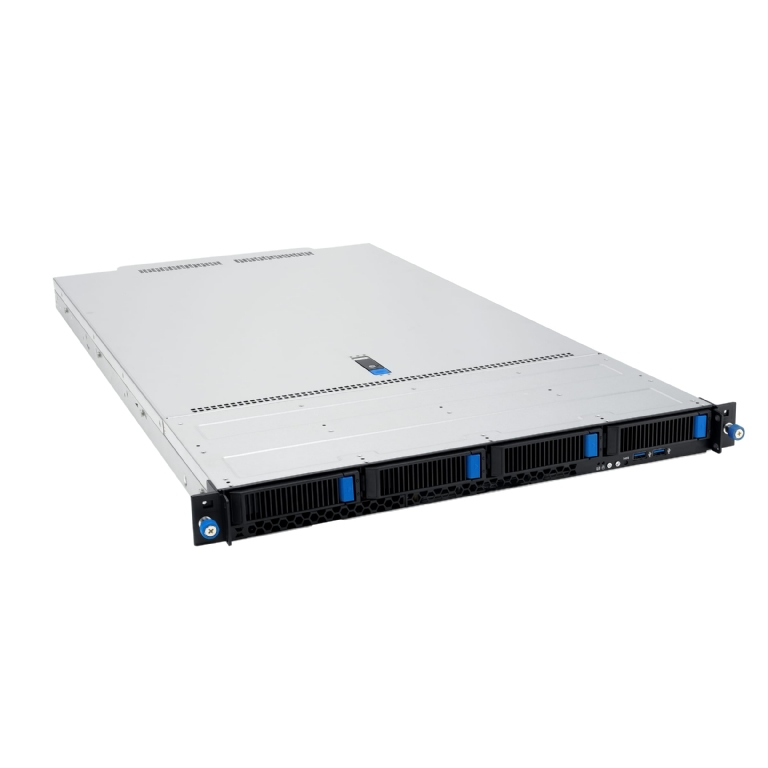

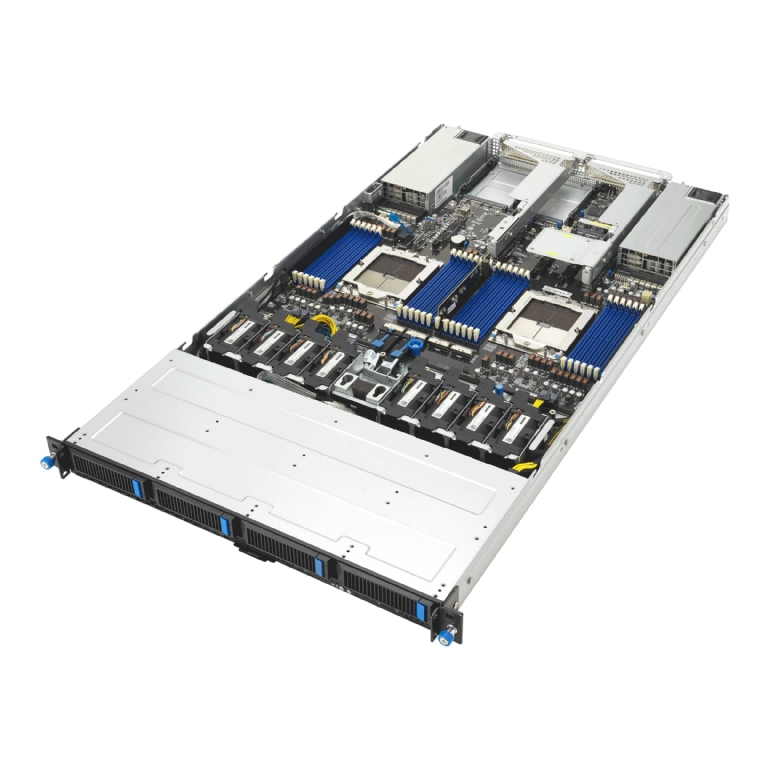

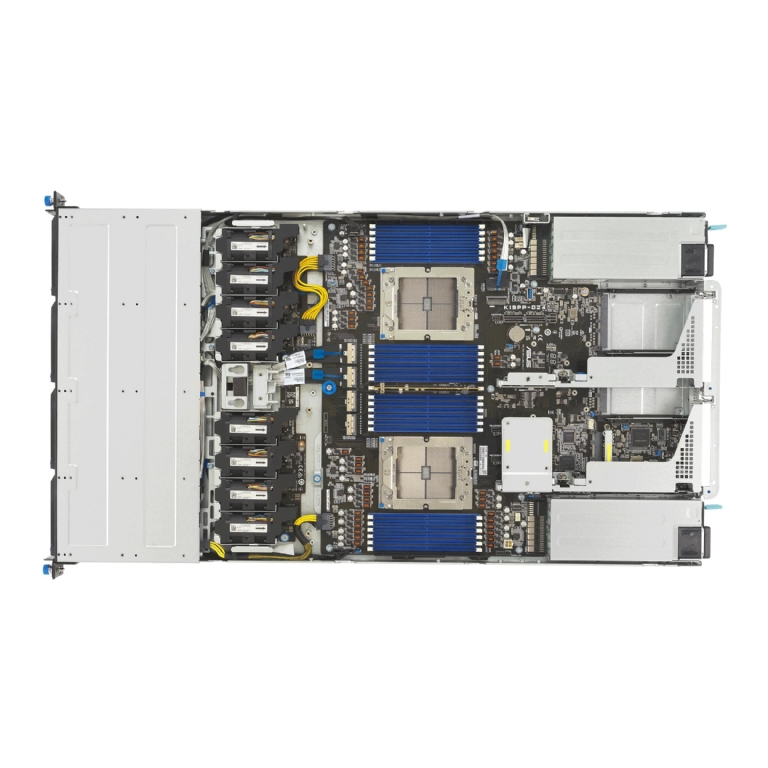

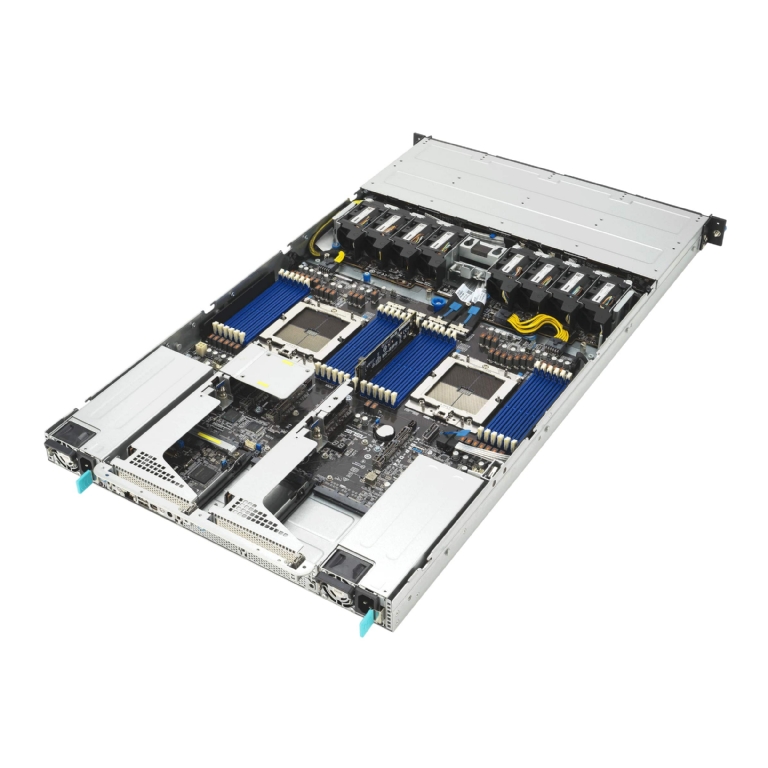

ASUS RS700A-E13-RS4U 1U Rackmount Dual 9005 Series AMD EPYC Server - 4x Hot-Swap Bays - Redundant PSU

• Processor / System Bus

  2 x Socket SP5 (LGA 6096P)
  AMD EPYC™ 9005 processors (Up to TDP 400W)
  *TDP support by configuration.

• Generation

  E13

• Memory

  Total Slots :
  24 (12-channel per CPU, 1 DIMM per CPU)
  Capacity :
  Total Maximum up to 3072GB
  Memory Type :
  DDR5 6400/5600 RDIMM/ 3DS RDIMM
  Memory Size :
  128GB, 96GB, 64GB, 32GB RDIMM
  128GB, 96GB, 64GB, 32GB 3DS RDIMM
  * Refer to www.asus.com/support for more information

• Expansion Slots

  Total 4 expansion slots
  2 x PCIE Gen5 x16 (FHHL)
  2 x OCP3.0 Gen5 x16 (SFF)

• Drive Bays

  4x 2.5”/3.5" hot-swap drive bays
  Support 4x NVMe/SATA/SAS*

  *HBA/ RAID card is required to support SAS hard drives

• System Fan

  8

• Networking

  1 x Management Port

• Graphic

  Aspeed AST2600 64MB

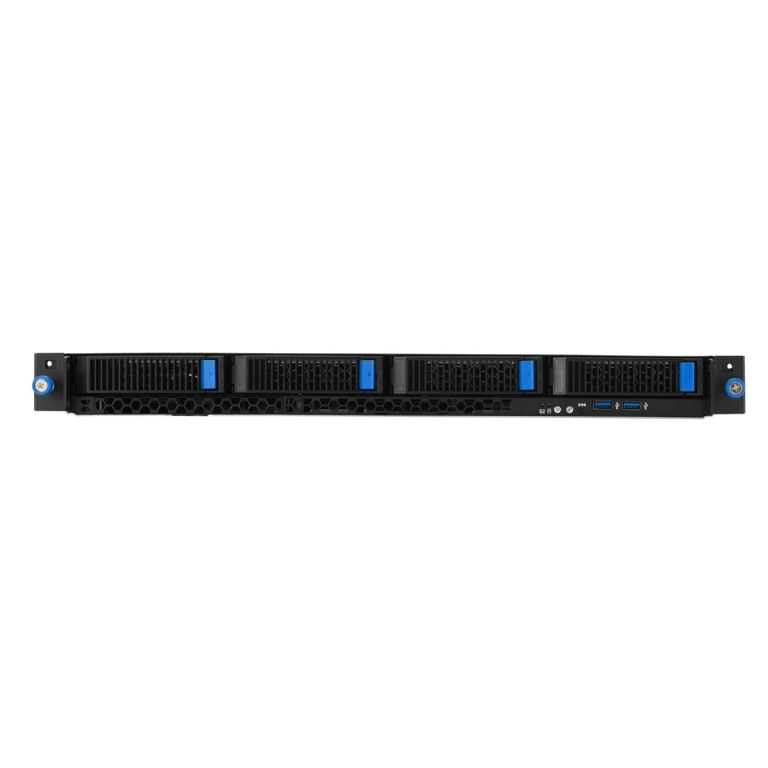

• Front I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA

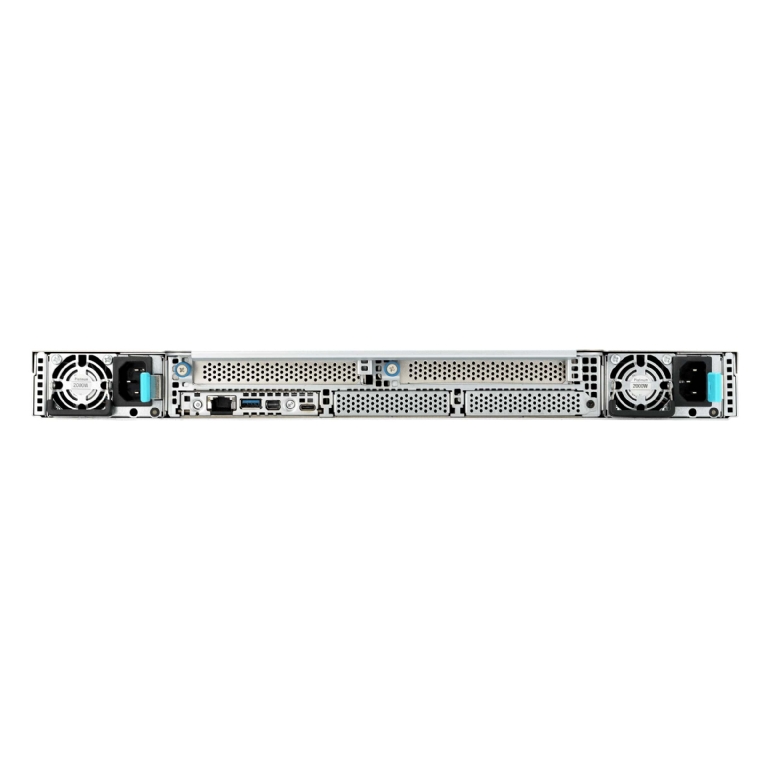

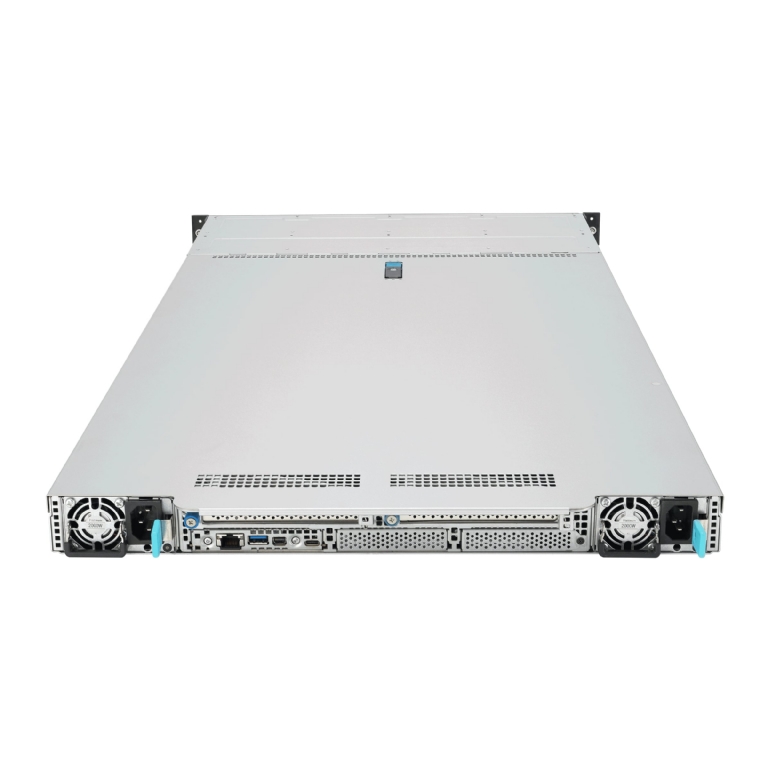

• Rear I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x Mini-DP port
  1 x RJ-45 Management LAN port
  1 x Debug port

• Switch/LED

  Front Switch/LED:
  1 x Power Switch w/ LED
  1 x Reset Switch
  1 x Location Switch w/ LED
  1 x HDD Access LED
  1 x Message LED
  Rear Switch/LED:
  1 x Power Switch w/ LED
  1 x Location Switch w/LED
  1 x Message LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  On-Board ASMB12-iKVM for KVM-over-IP
  ASUS Control Center Enterprise (Classic C)(Optional)

• Regulatory Compliance

  BSMI, CE, CB, RCM, FCC(Class A), ISED

• Dimensions

  821.7(L) x 483(W) x 43.2(H) mm
  32.35(L) x 19(W) x 1.7(H) inch

• Form Factor

  1U

• Weight

  Net Weight : 13.81KG
  Gross Weight : 16.71KG

• Power Supply

  1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU
  Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 60℃
  Non operation humidity: 20% ~ 90% (Non condensing)

• Optional Items

  Security:
  Dual BMC Module (default)
  Accessory:
  1U Front Bezel
  1U Height Full Extension Ball bearing Type Rail Kit
  *Please consult sales if  cable arm needed.

• Note

  *SAS support only from SAS HBA/RAID Card

• CPU Heatsink/ Cooler

  2 x 1U EVAC Heatsink
