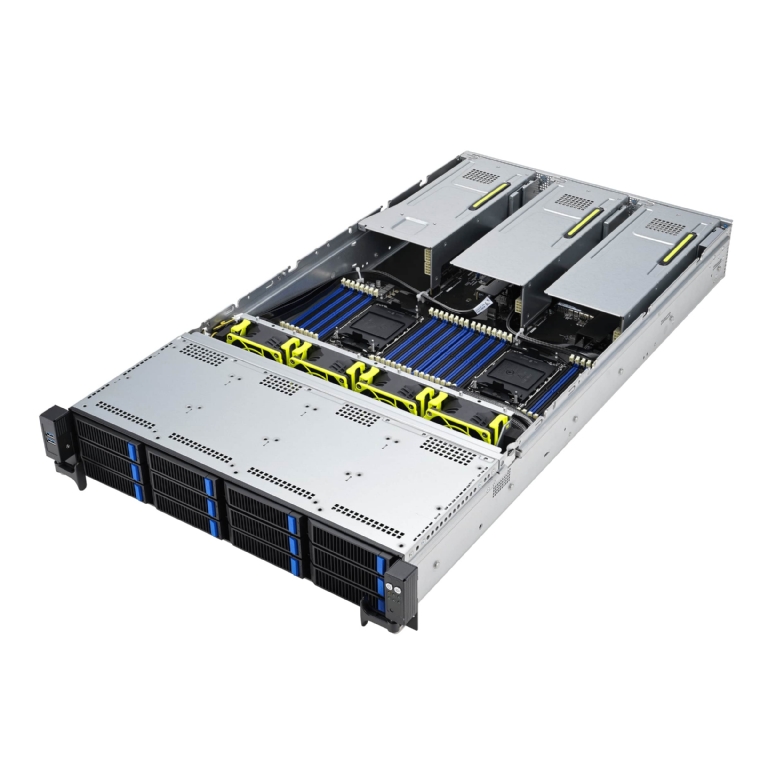

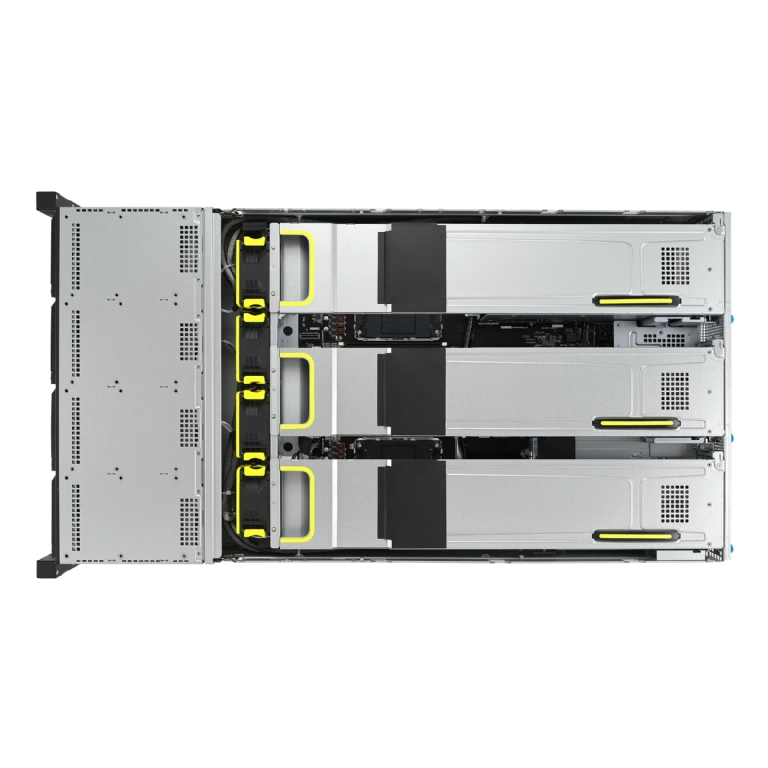

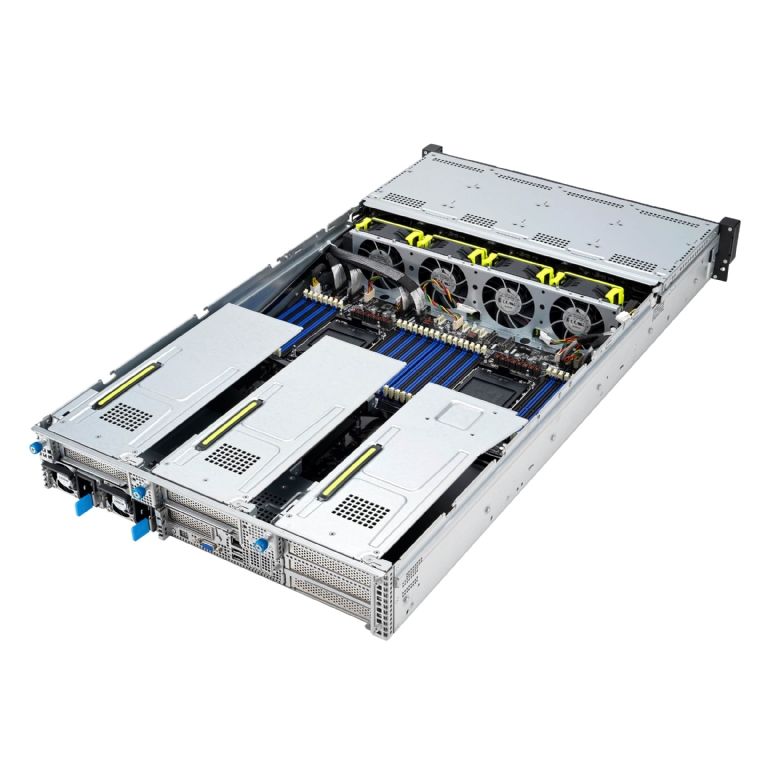

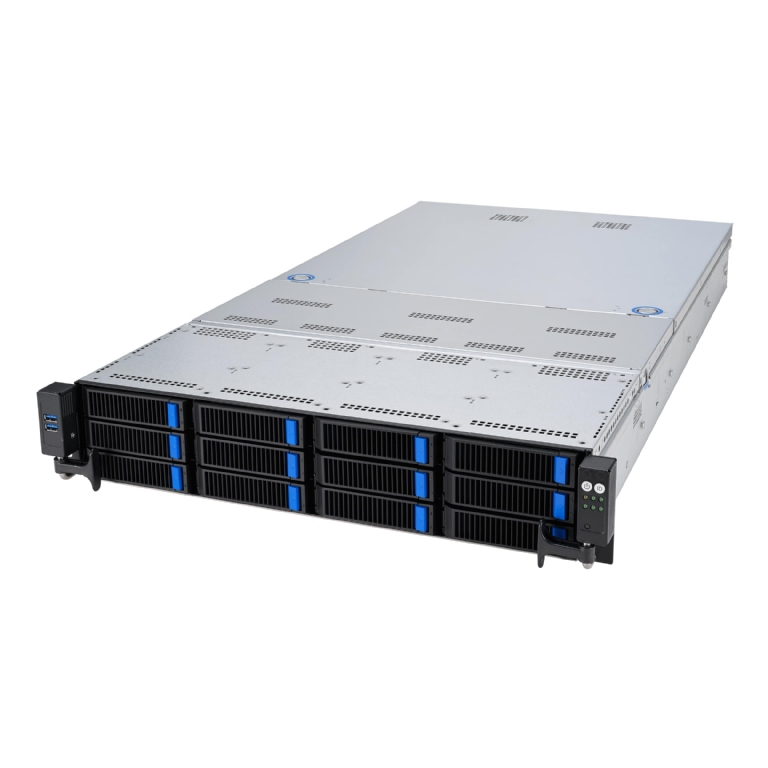

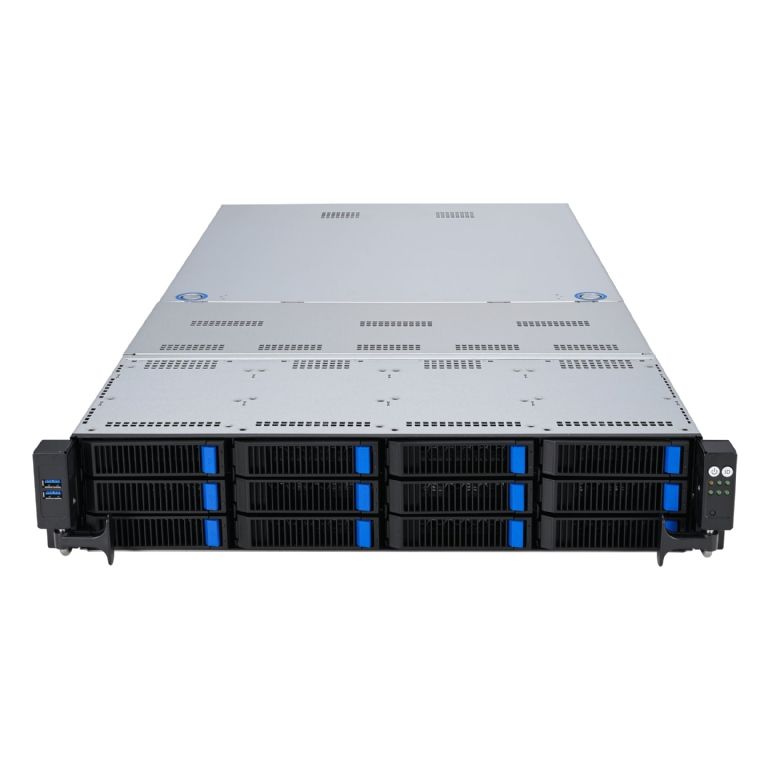

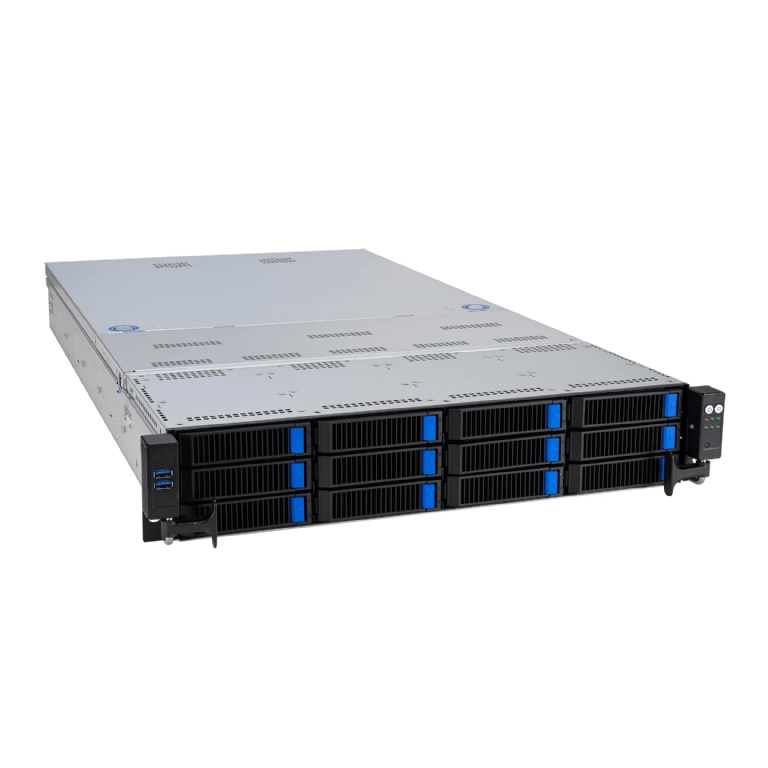

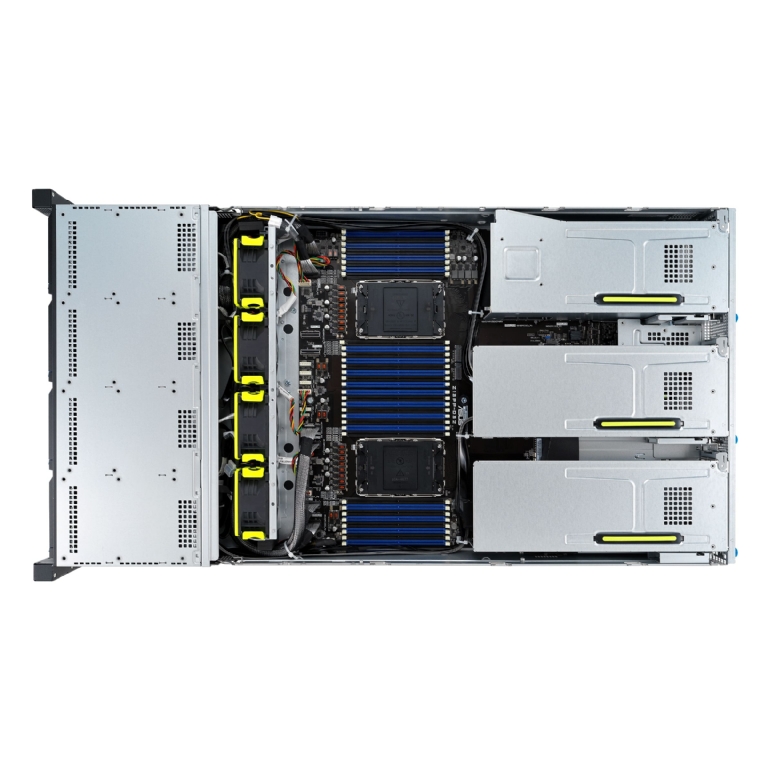

ASUS RS720-E11-RS12U 2U Rackmount Dual 4th Gen Intel Xeon Scalable Server - 12x Hot-Swap Bays - Redundant PSU

• Processor / System Bus

  Intel^®Xeon^® Processor Scalable Family

• Generation

  4^th

• Core Logic

  Intel^® C741 Chipset

• Memory

  32 x DDR5 4800(1DPC)/4400(2DPC)

• Expansion Slots

  Up to 9 slots
  6 x PCIe G5 x8 link or 3 x PCIe G5 x16 link (FHFL or FHHL)
  1 x PCIe G5 x16 link (FHHL)
  1 x OCP 3.0/PCIe Gen5 x16 link (FHHL)
  1 x PCIe G5 x16, LP

• Storage

  12 x 3.5”/2.5" hot-swap bay
  8 x NVMe/SAS*/SATA + 4 NVMe/SATA
  Optional 2 x 2.5" Rear
  Hot-swap Storage Bays (Up to 2x NVMe/SATA)
  (*HBA/RAID card is required to support SAS hard drives)

• Drive Bays

  12 x 3.5”/2.5" hot-swap bay
  2 x M.2 slot

• System Fan

  4

• Networking

  4 x1Gbe(Intel I350-AM4) RJ45 port or
  2 x 10Gbe(Intel X710-AT2) RJ45 port

• Graphic

  Aspeed AST2600 64MB

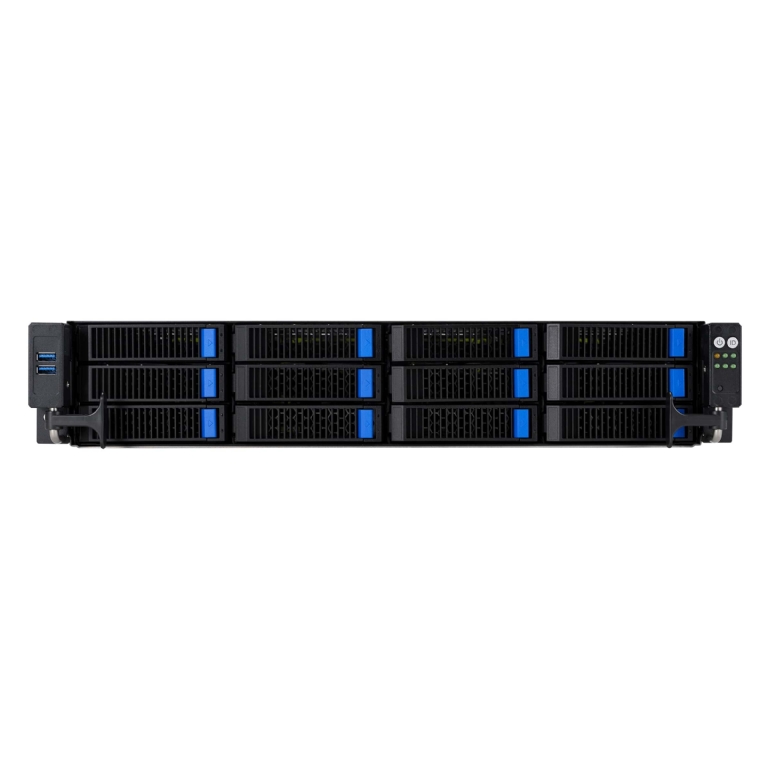

• Front I/O Ports

  2 x USB 3.2 Gen1 ports

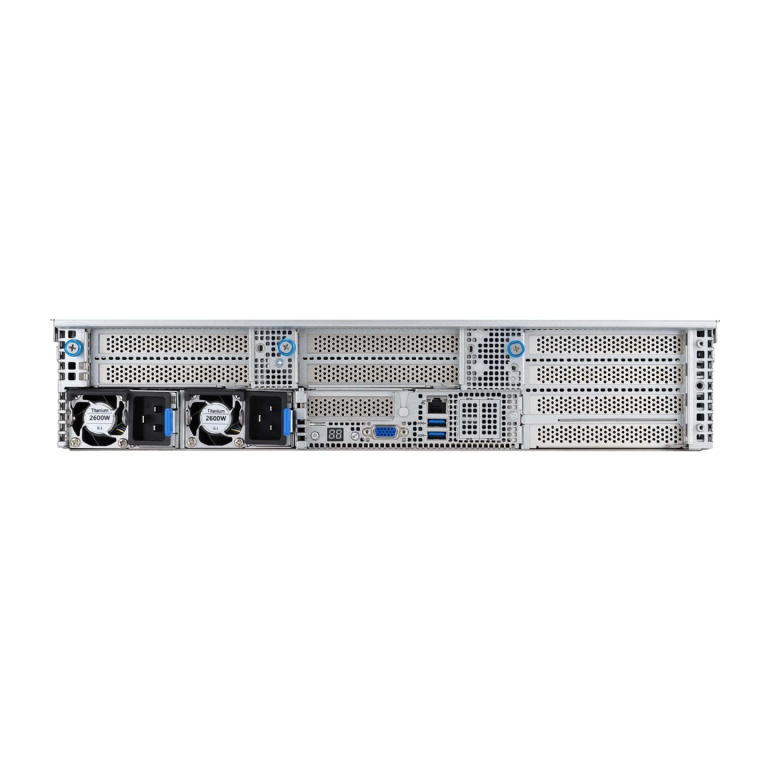

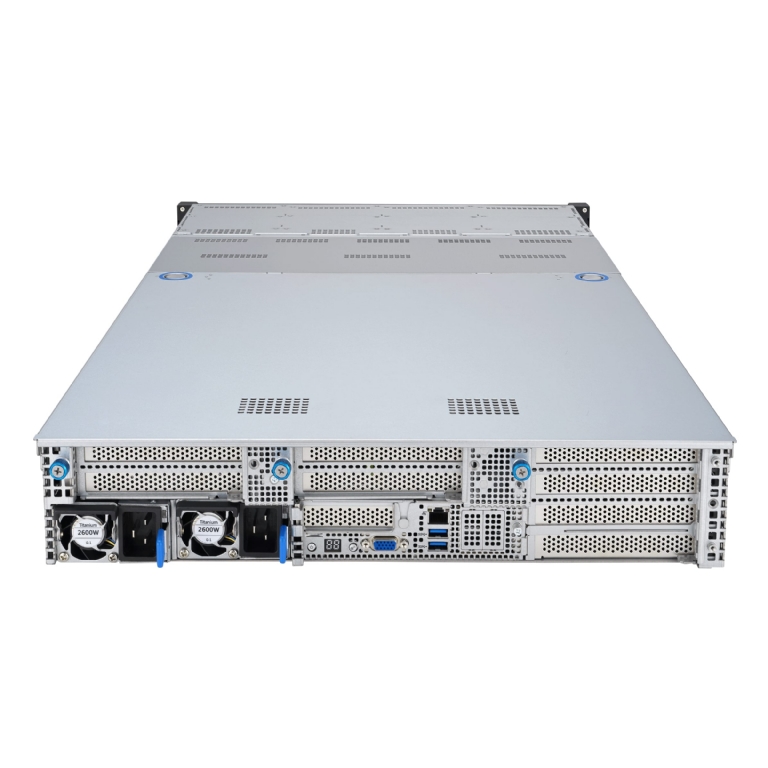

• Rear I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA port
  1 x RJ-45 Management LAN port
  2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)

• Switch/LED

  Front Switch/LED:
  1 x Power Switch (w/ LED)
  1 x Location Switch (w/ LED)

• Dimensions

  840mm x 447mm x 88mm

• Form Factor

  2U

• Weight

  26.855kg

• Power Supply

  1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium/ Platinum Power Supply

• CPU Heatsink/ Cooler

  Standard/ EVAC Heatsink
