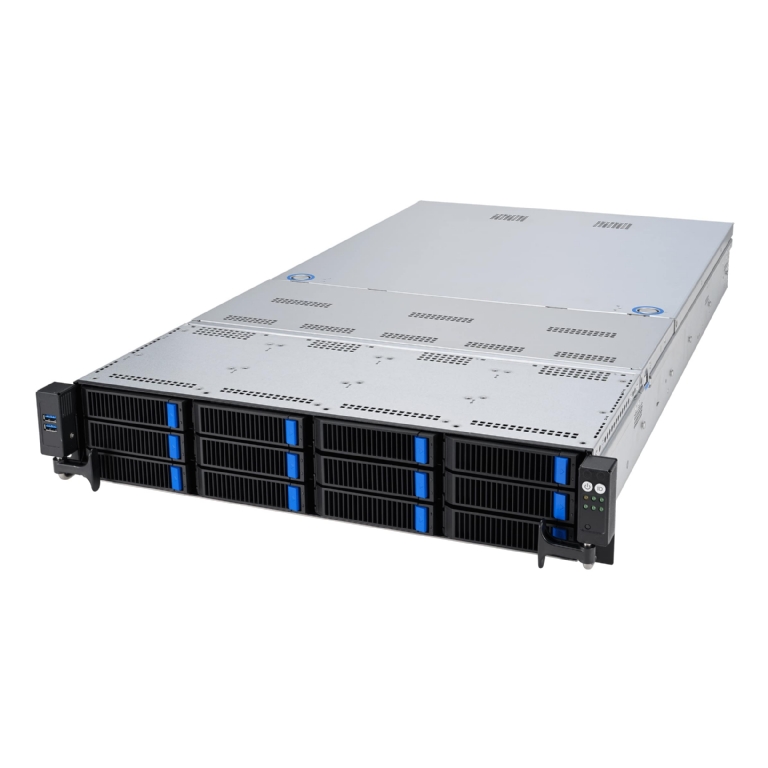

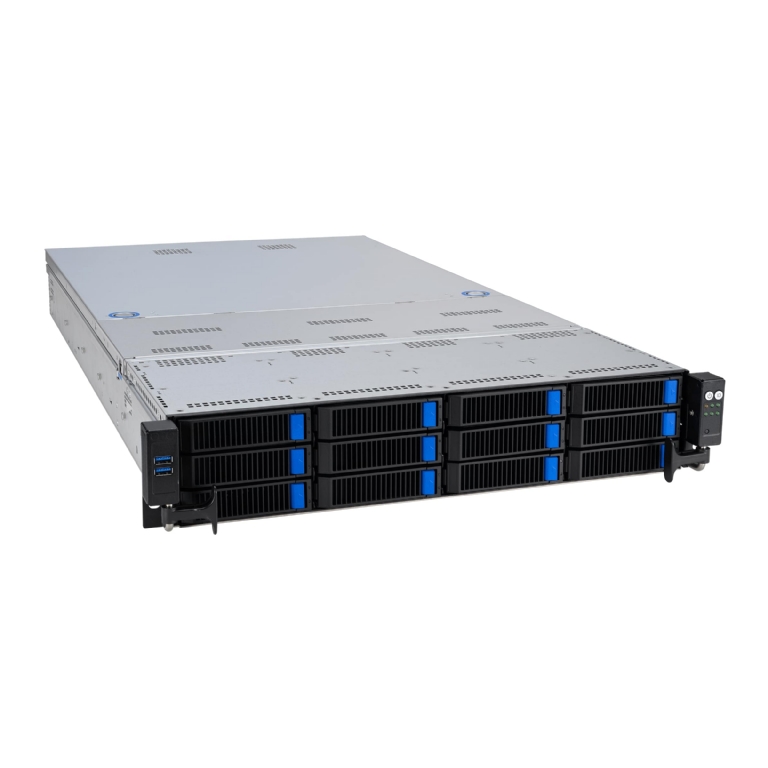

ASUS RS720A-E12-RS12 2U Rackmount Dual 9004 Series AMD EPYC Server - 12x Hot-Swap Bays - Redundant PSU

• Processor / System Bus

  2 x Socket SP5 (LGA 6096)
  AMD EPYC™ 9004 Series
  Max TDP : 400W

• Generation

  E12

• Memory

  Total Slots :
  24 (12-channel per CPU, 1 DIMM per CPU)
  Capacity :
  Maximum up to 3072GB per socket
  Memory Type :
  DDR5 4800/4400 RDIMM/ 3DS RDIMM
  Memory Size :
  128GB, 64GB, 32GB RDIMM
  128GB, 64GB, 32GB 3DS RDIMM
  * Refer to www.asus.com/support for more information

• Expansion Slots

  Up to 9 PCIe Gen5 slots + 1 x internal RAID slot
  6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)
  2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)
  1 x PCIe Gen5 x16 (LPHL)
  1 x PCIe Gen4 x8 (LP, internal)
  *Installing GPU cards will occupied expansion slots.
  *GPU SKU do not support OCP3.0.

• Storage

  SATA Controller :
  8 x SATA 6Gb/s ports
  2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
  SAS Controller :
  Braodcom HBA CARD 9500-16i (Optional)
  Broadcom MegaRAID 9540-8i (Optional)
  Broadcom MegaRAID 9560-16i (Optional)

• Drive Bays

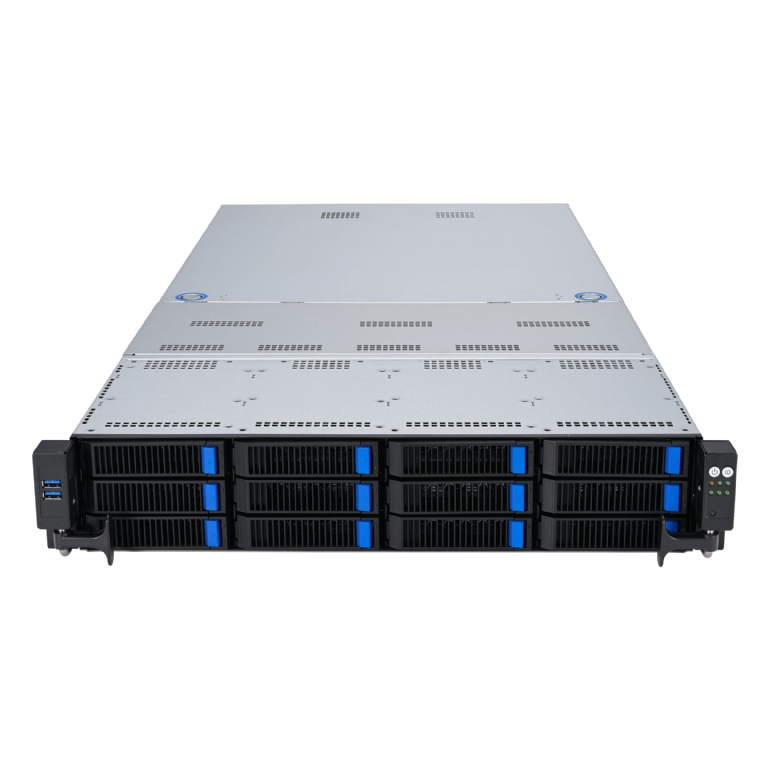

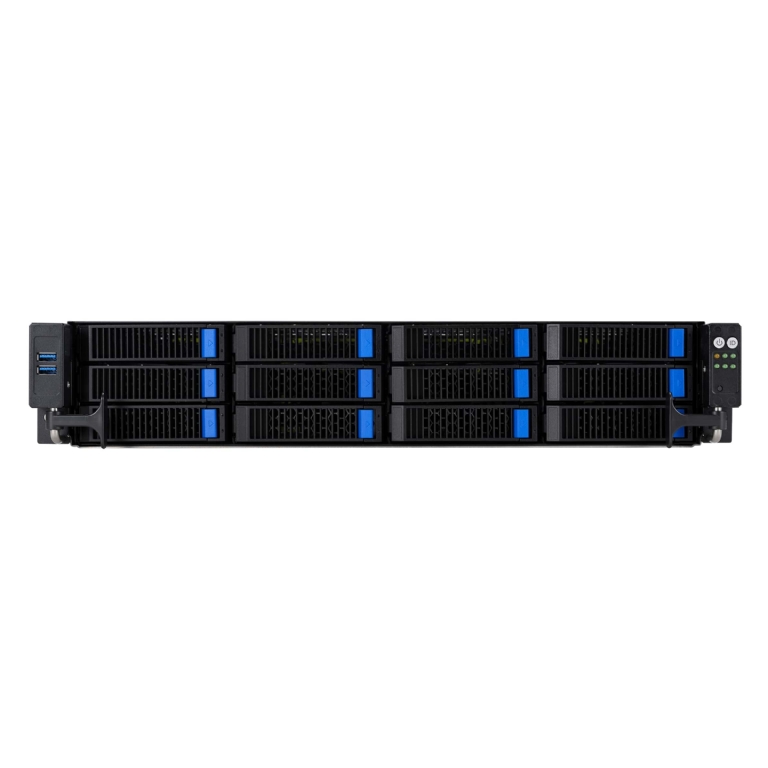

  Front Bays:
  12 x 3.5" Hot-Swap drive bays
  Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS*
  *RAID card is required to support SAS hard drives
  Rear Bays (Optional):
  2 x 2.5" Hot-Swap drive bays (Will occupied 2 PCIe slots)
  Support 2 x NVMe

  Front Bays:
  12 x 3.5" Hot-Swap drive bays
  Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS*

  Rear Bays:
  2 x 2.5" Hot-Swap drive bays (Optional)
  Support 2NVMe**
  *RAID card is required to support SAS hard drives.
  **Will occupied 2 PCIe slots

• System Fan

  4

• Networking

  Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
  Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
  Option 3: None x + 1 x Mgmt LAN

• Graphic

  Aspeed AST2600 64MB

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

• Front I/O Ports

  2 x USB 3.2 Gen1 ports

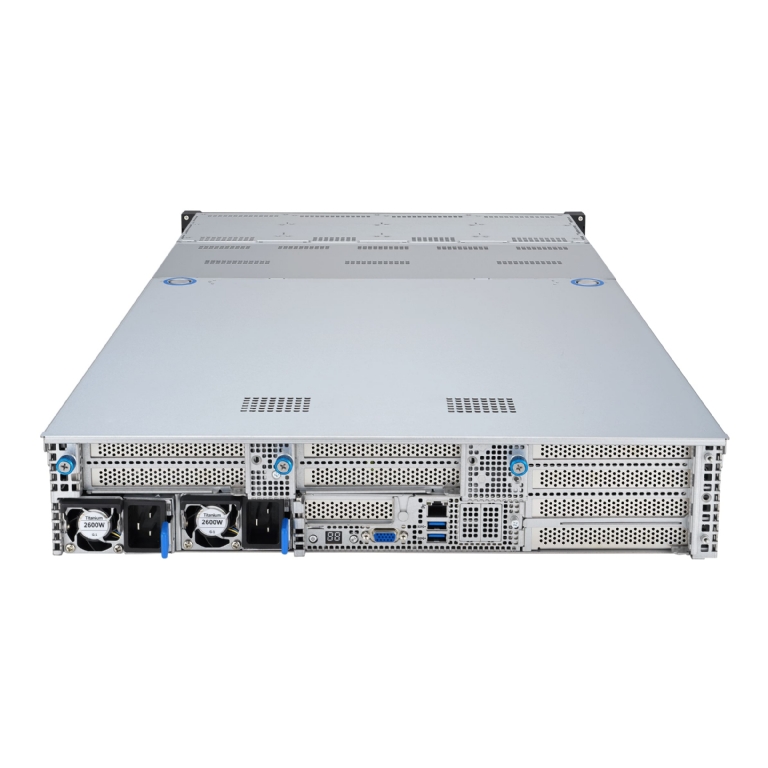

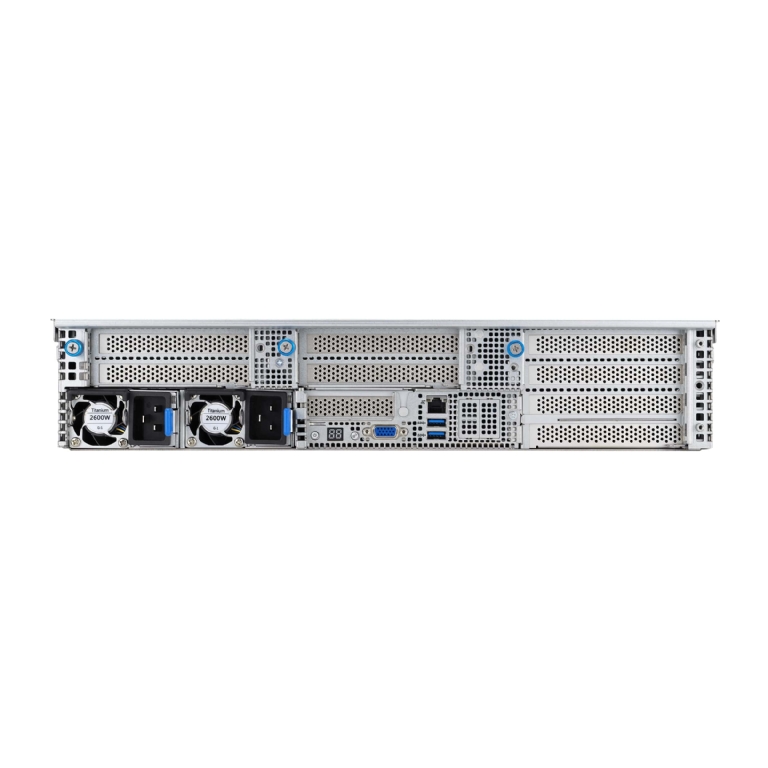

• Rear I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA port
  1 x RJ-45 Mgmt LAN port
  2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
  1 x OCP3.0 port (Optional)
  *GPU SKU do not support OCP3.0.

• Switch/LED

  Front Switch/LED:
  1 x Power Switch (w/ LED)
  1 x Reset Switch
  1 x Location Switch (w/ LED)
  1 x HDD Access LED
  1 x Message LED LAN 1-4 LED (on NIC module)
  Rear Switch/LED:
  1 x Port 80 LED (Q-Code)
  1 x Power Switch w/ LED
  1 x Location Switch w/LED
  1 x Message LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  On-Board ASMB11-iKVM for KVM-over-IP
  ASUS Control Center Enterprise (Optional)

• Regulatory Compliance

  BSMI, CE, CB, C-Tick, FCC(Class A)

• Dimensions

  840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")

• Form Factor

  2U

• Weight

  Net Weight : 19.3KG
  Gross Weight : 25.77KG

• Power Supply

  1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
  1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply
  Rating:
  100-127/220-240Vac,12A/9.5A(x2),50/60Hz
  100-127/240Vac,13.8A/16A(x2), 50/60Hz
  220-240Vac, 10A(x2), 50/60Hz

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 60℃
  Non operation humidity: 20% ~ 90% (Non condensing)

• Optional Items

  Heat Sink:
  Standard Cooling Solution
  Enhanced Volume Air Cooling Solution.
  Rail Kit:
  Tool-less Friction Rail Kit
  1.5U Height Full Extension Ball bearing Type Rail Kit
  *Please consult sales if  cable arm needed.
  2U Front Bezel

• Note

  *SAS support only from SAS HBA/RAID Card

• CPU Heatsink/ Cooler

  2

• Fan

  1 (For supporting GPU SKU, it will have external fan)
