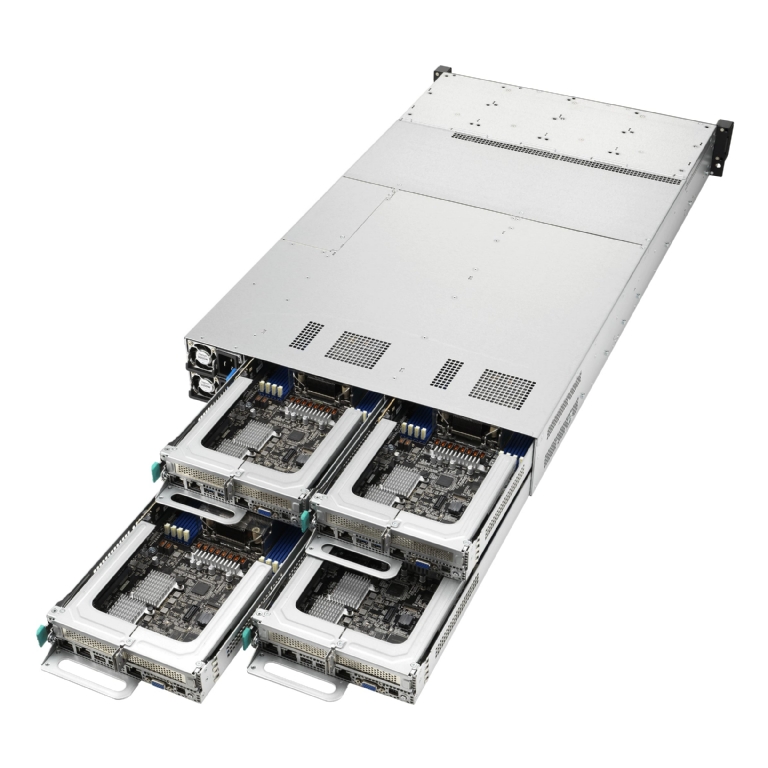

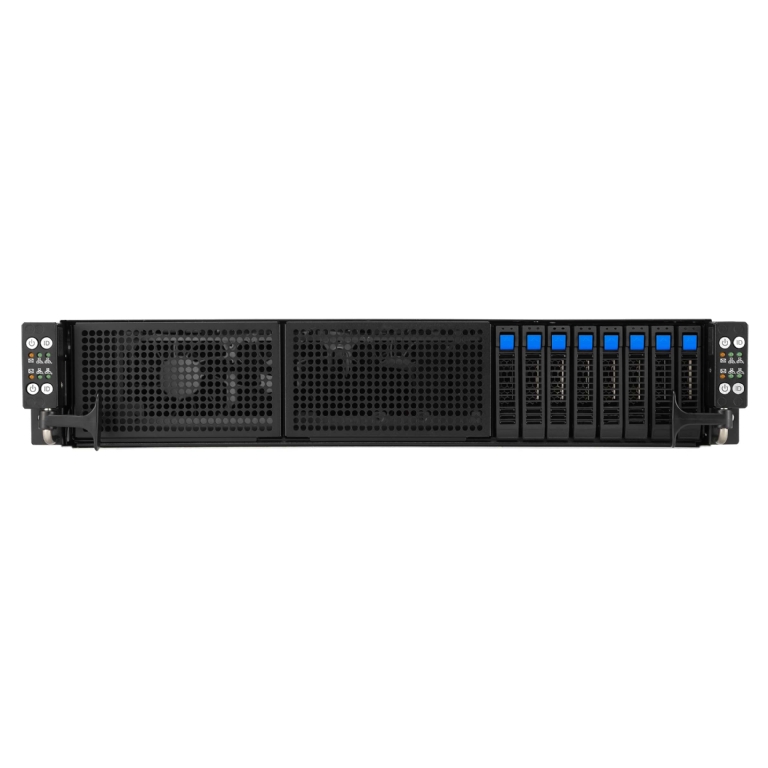

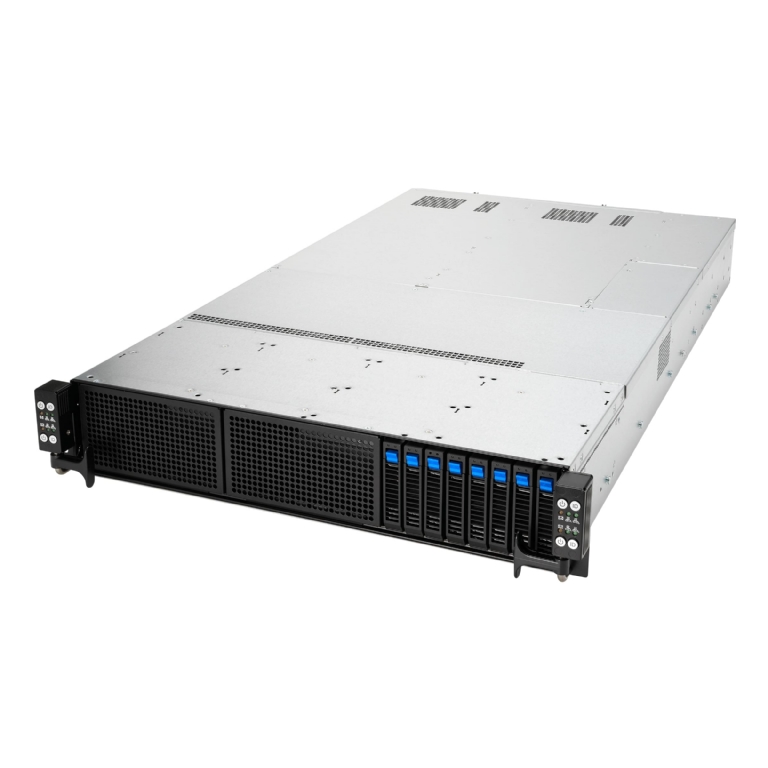

ASUS RS720Q-E11-RS8U 2U Rackmount Quad Node Dual Socket 4th Gen Intel Xeon Scalable Server - Redundant PSU

• Processor / System Bus

  Per node:
  2 x Socket P (LGA 4677)
  4th Gen Intel® Xeon® Scalable processors
  (Up to 350W)

• Generation

  E11

• Core Logic

  Intel® C741

• Memory

  Per node:
  16 x DIMM slots
  DDR5 4800 RDIMM/RDIMM 3DS
  Maximum up to 2 + 4 TB (Per Node, DDR5 + Crow Pass)

• Expansion Slots

  Per node:
  Up to 2 slots
  2 x PCIe x16 slot (Gen5 x16 link, HHHL)

• Storage

  Per node:
  SAS/SATA Controller :
  LSI 3008 8-port SAS 12G Controller (Option)

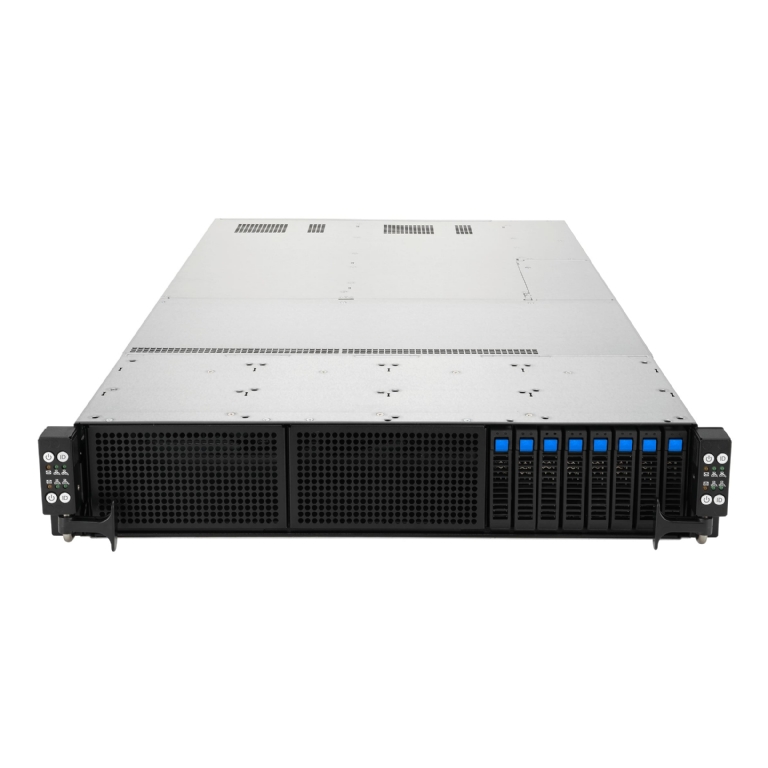

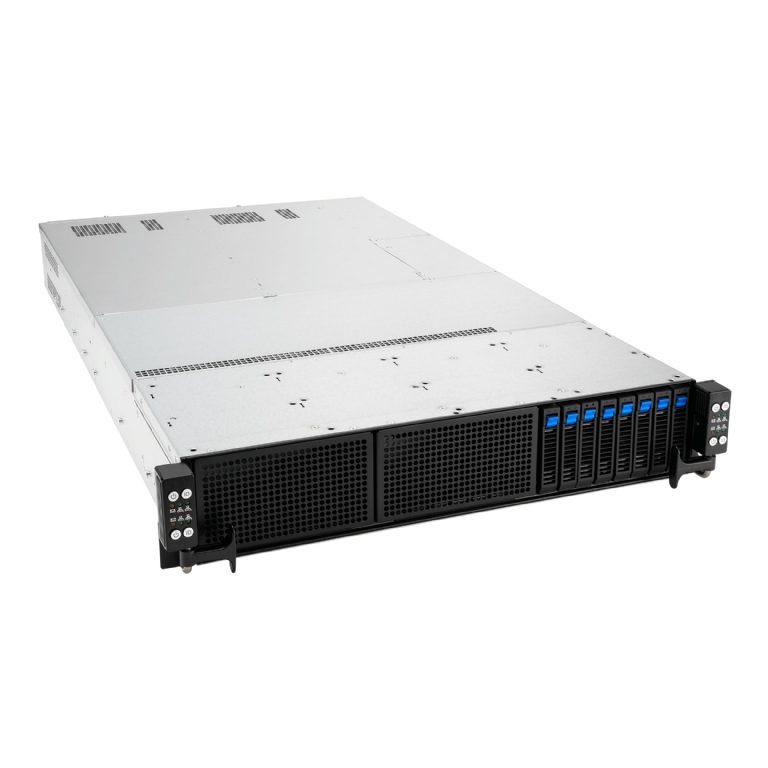

• Drive Bays

  8 x 2.5" Front Hot-swap drive bays
  (Up to 8 x NVMe/SATA/SAS)*

  Per node:
  2 x M.2  (Up to 22110, SATA or Gen4 x2 link)

  * Converter Board with SAS 3008 is required to support RAID and SATA/SAS
  hard drives

• Networking

  Per node:
  2 x Intel X710
  1 x Management Port

• Graphic

  Aspeed AST2600 with 64MB VRAM

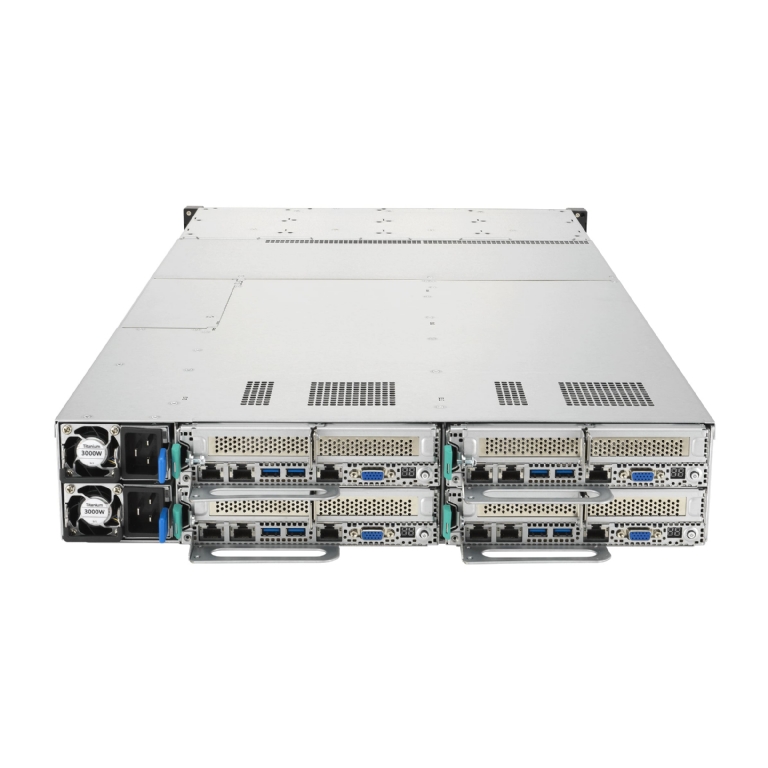

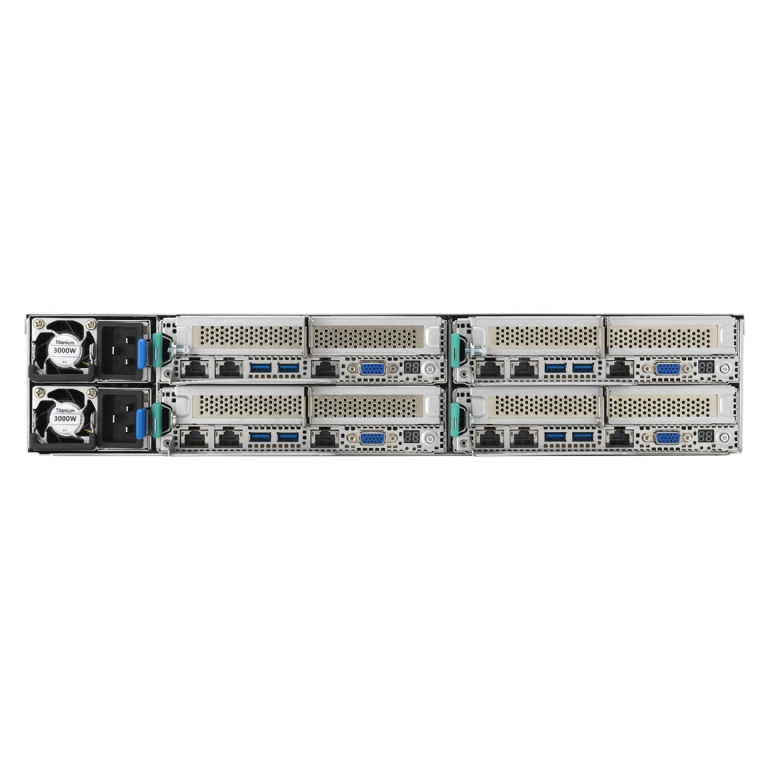

• Rear I/O Ports

  Per Node:
  2 x USB 3.0 ports
  1 x VGA port
  1 x RJ-45 GbE LAN ports
  1 x RJ-45 Management port

• Switch/LED

  Per Node:
  Rear:
  1 x Power Switch/LED
  1 x Q-Code/Port 80 LED
  Front:
  1 x Power Switch/LED
  1 x Location Switch/LED
  1 x Message LED
  2 x LAN LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  Optional ASUS Control Center Enterprise
  On-Board ASMB11-iKVM

• Dimensions

  800 x 444 x 88mm
  31.5" x 17.48" x 3.46"

• Form Factor

  2U

• Weight

  Net Weight: 32.50 kg
  Gross Weight: 41.50 kg

• Power Supply

  1+1 Redundant 3000W 80 PLUS Titanium Power Supply

  *1+1 redundant mode only supports CPUs under 205W

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% (Non
  condensing)

• Note

  1. For the full function of the system, please install both CPUs on each node.

  2. Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
