ASUS RS720Q-E9-RS24-S 2U Rackmount Quad Node Xeon Scalable Server

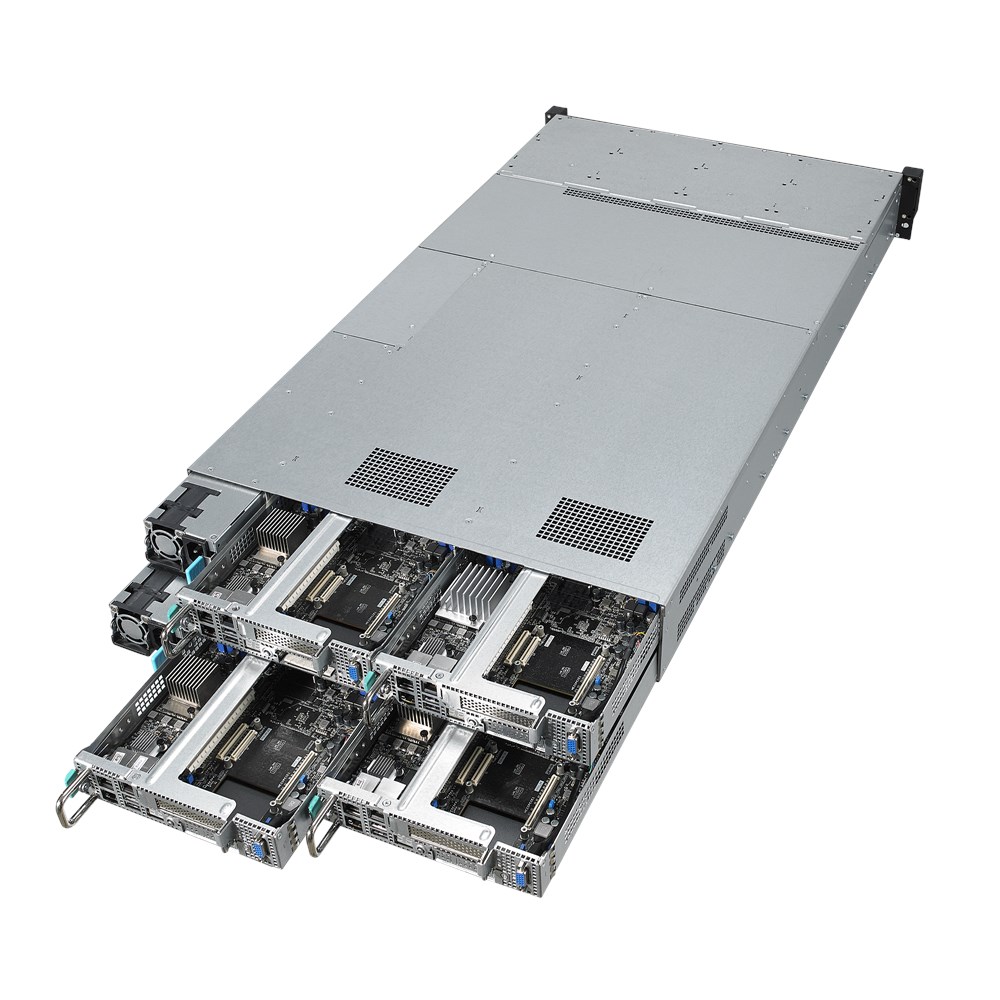

• 2U4N design with great scalability for compute-intensive workloads
• Robust native storage interface support with up to 24 SATA/SAS drives or a combination of up to 8 NVMe SSDs and 16 SATA/SAS drives.
• Comprehensive IT infrastructure management solution – ASUS Control Center and ASMB9-iKVM
• High density, power efficiency and Intel® Omni-Path Architecture support for HPC
• Exclusive thermal radar technology for energy efficiency
• Simplified maintenance and management

Specifications

• Processor / System Bus

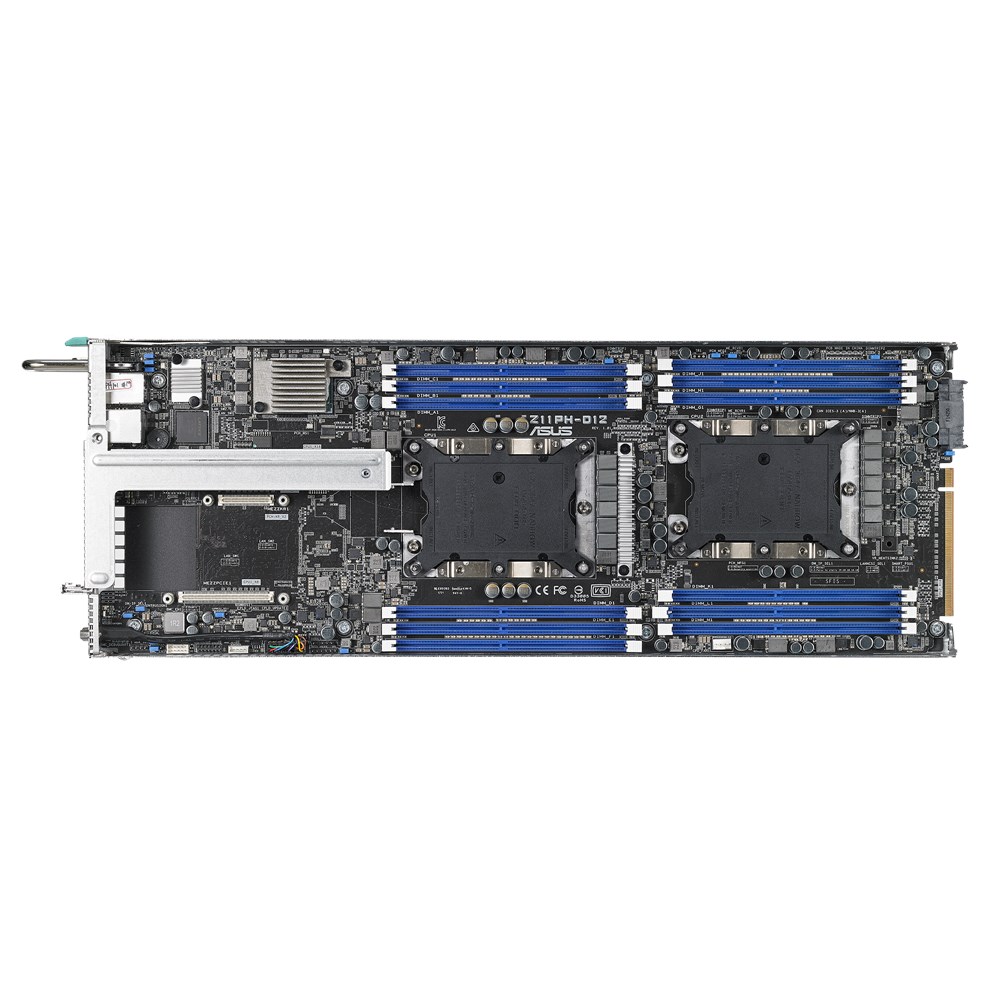

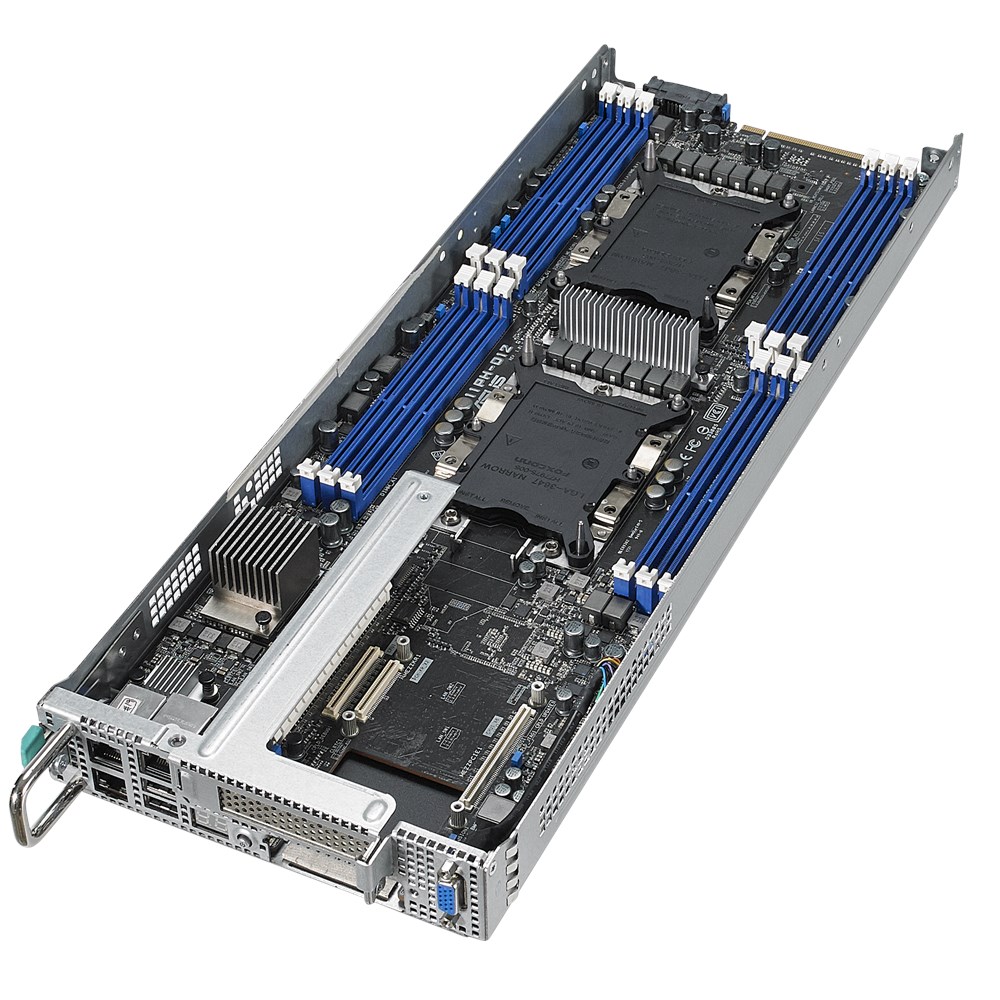

  2 x Socket P (LGA 3647) per Node
  Intel® Xeon® Scalable Processors Family (165W)
  Intel® Xeon® Scalable Processors Family with OMNI-PATH FABRIC(165W)
  UPI (10.4 GT/s)
• Generation
  E9
• Core Logic
  Intel® Lewisburg PCH C621
• Memory
  Total Slots : 12 (6-channel per CPU, 6 DIMM per CPU) per Node
  Capacity : Maximum up to 1536GB RDIMM
  Memory Type :
  DDR4 2666/2400 /2133 RDIMM
  DDR4 2666/2400 /2133 LRDIMM
  DDR4 2666/2400 /2133 LR-DIMM 3DS
  Memory Size :
  128GB, 64GB, 32GB, 16GB, 8GB RDIMM/LRDIMM/LR-DIMM 3DS
• Expansion Slots
  Per Node:
  1 x PCI-E x16 (Gen3 x16 link), LP, HL
  1 x OCP 2.0 Mezzanine (Gen3 x16 link)
• Storage
  per Node
  SAS/SATA Controller :
  Onboard LSI 3008 8-port SAS 12G Controller
• Drive Bays

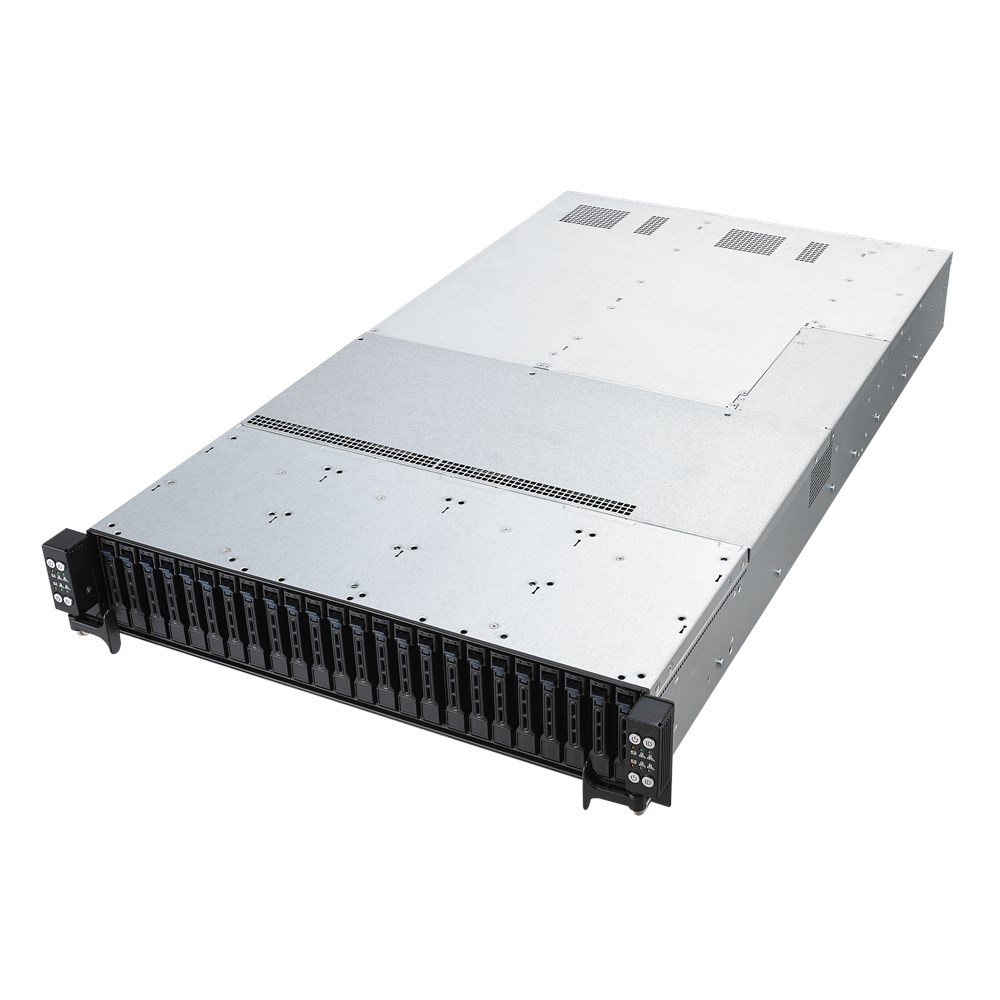

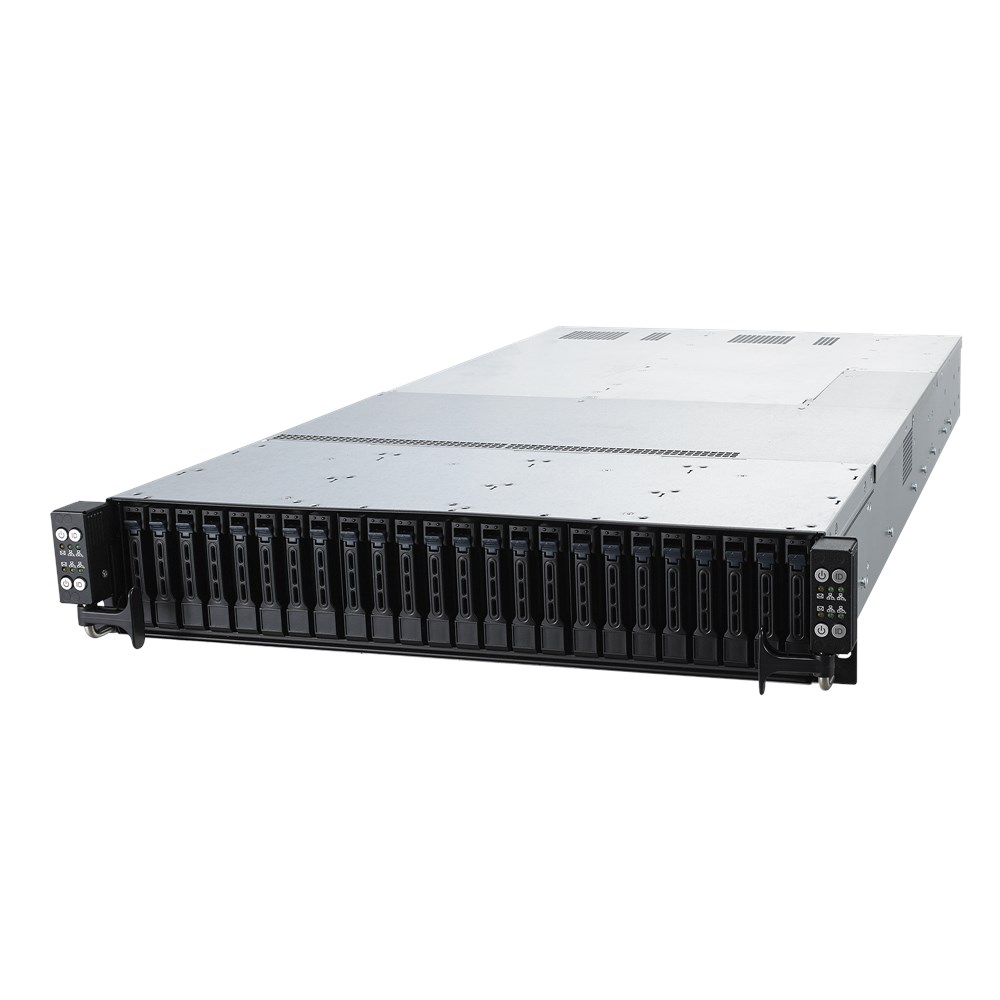

  24 x 2.5" Hot-swap Storage Bays (16 x SATA/SAS supported + 8 x SATA/SAS/NVMe supported)

  * each node could control 6 storage bays.
  ** CPU2 is necessary for the function of front hot-swap bays.
• Networking
  per Node
  1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
• Graphic
  Aspeed AST2500 with 64MB VRAM
• Front I/O Ports
  N/A

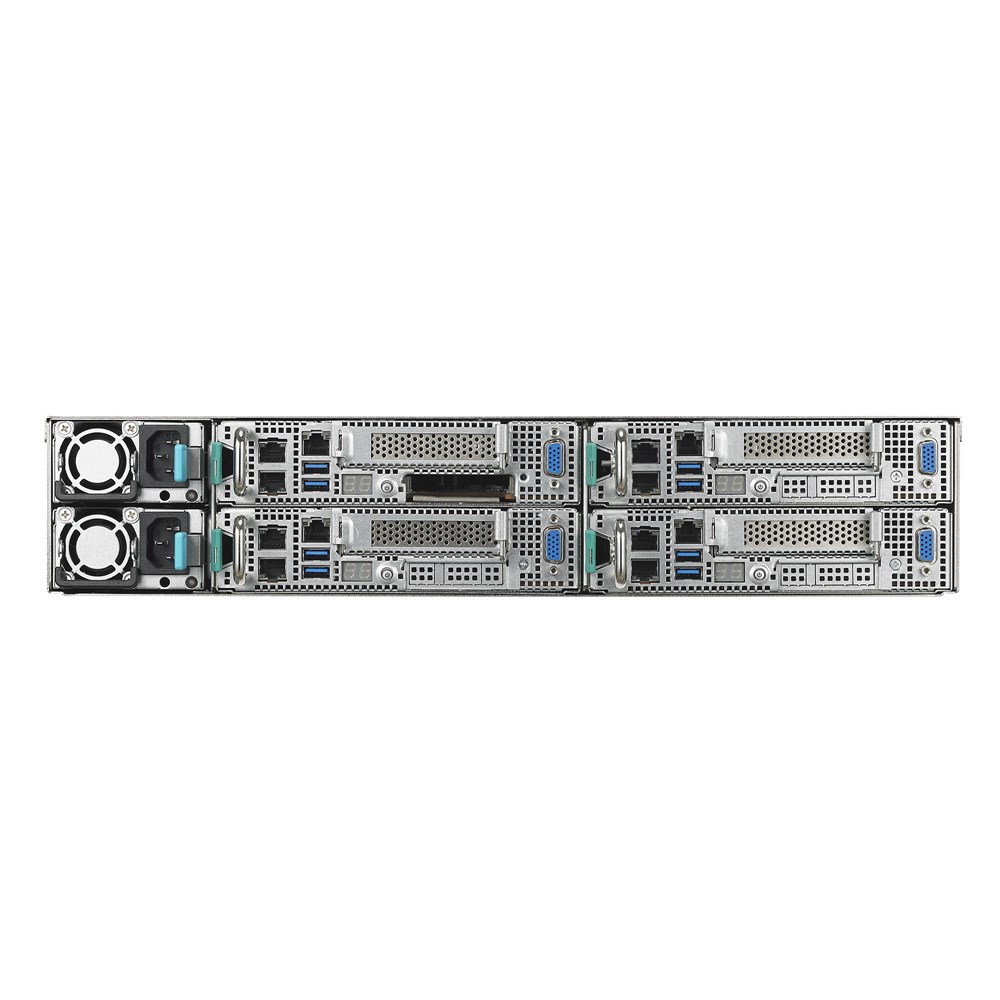

• Rear I/O Ports
  Per Node:
  2 x USB 3.0 ports
  1 x VGA port
  2 x RJ-45 GbE LAN ports
  1 x RJ-45 Management port
• Switch/LED
  Per Node:
  Rear:
  - 1 x Power Switch/LED
  - 1 x Q-Code/Port 80 LED
  Front:
  - 1 x Power Switch/LED
  - 1 x Location Switch/LED
  - 1 x Message LED
  - 2 x LAN LED
• OS Support
  Windows® Server 2016
  RedHat® Enterprise Linux
  SuSE® Linux Enterprise Server
  CentOS
  Ubuntu
  VMware
  Citrix XenServer
• Management Solution
  ASUS Control Center
  ASMB9-iKVM for KVM-over-IP
• Regulatory Compliance
  BSMI, CE, FCC(Class A)
• Dimensions
  800 x 444 x 88mm
• Form Factor
  2U
• Weight
  Net Weight: 44 Kg
  Gross Weight: 48 Kg
• Power Supply
  1+1 Redundant 1600/2200W 80 PLUS Platinum Power Supply
  Rating: 200-240 Vac, 9.5A (for each inlet), 47-63Hz, Class I
• Environment
  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
• Note
  1. If NVMe SSD is equipped, Intel® VROC function could be enabled by VROC Hardware Key.

  2. For the full function of the system, please install both CPUs on each node.
