ASUS RS720QA-E12-RS8U Quad Node Dual Socket AMD EPYC 9004 Series Server

• Processor / System Bus

  Per node: 2 x Socket SP5 (LGA 6096)
  AMD EPYC™ 9004 Series Processors (up to 400W)
  4th Generation AMD EPYC Processors
  with AMD 3D V-Cache technology

• Generation

  E12

• Memory

  Total Slots :
  Per node: 24 x DIMM slots
  Capacity :
  Maximum 6TB
  Memory Type :
  DDR5 up to 4800 RDIMM
  DDR5 up to 4800 RDIMM 3DS
  Memory Size :
  64GB, 32GB RDIMM
  64GB, 32GB RDIMM 3DS
  * Refer to support page for more information

• Expansion Slots

  Per node:
  2 x PCI-E x16 (Gen5 x16 link), LP, HL (CPU1)
  2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode (CPU1)

• Storage

  Per node
  SAS/SATA Controller :
  LSI 3008 8-port SAS 12G Controller

• Drive Bays

  8 x 2.5” hot-swap drive bays (NVMe/SATA/SAS*)
  *SATA/SAS support from optional CB board

• Networking

  Per node:
  2 x 10GbE LAN port
  1 x Management Port

• Graphic

  Aspeed AST2600 with 64MB VRAM

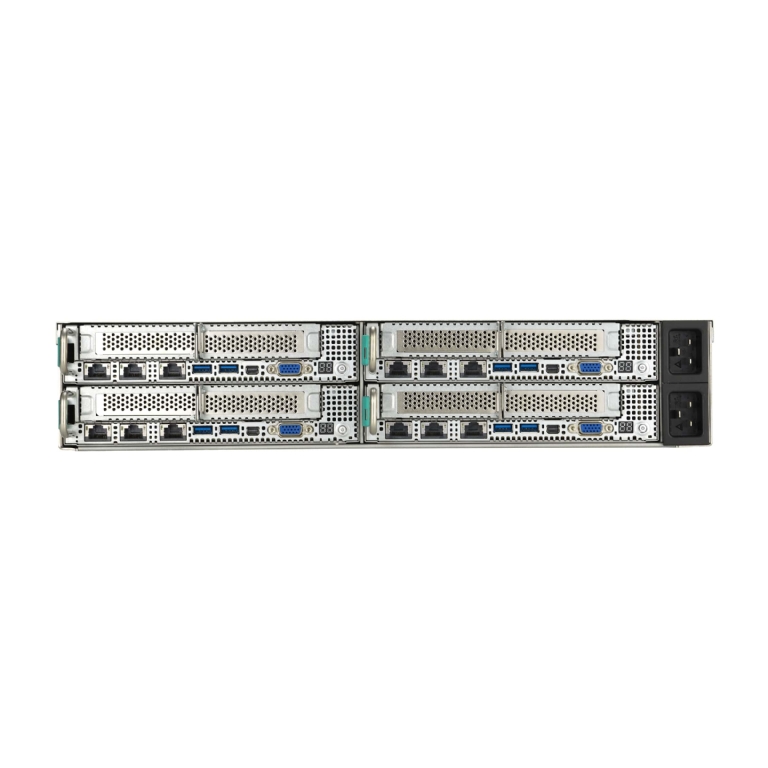

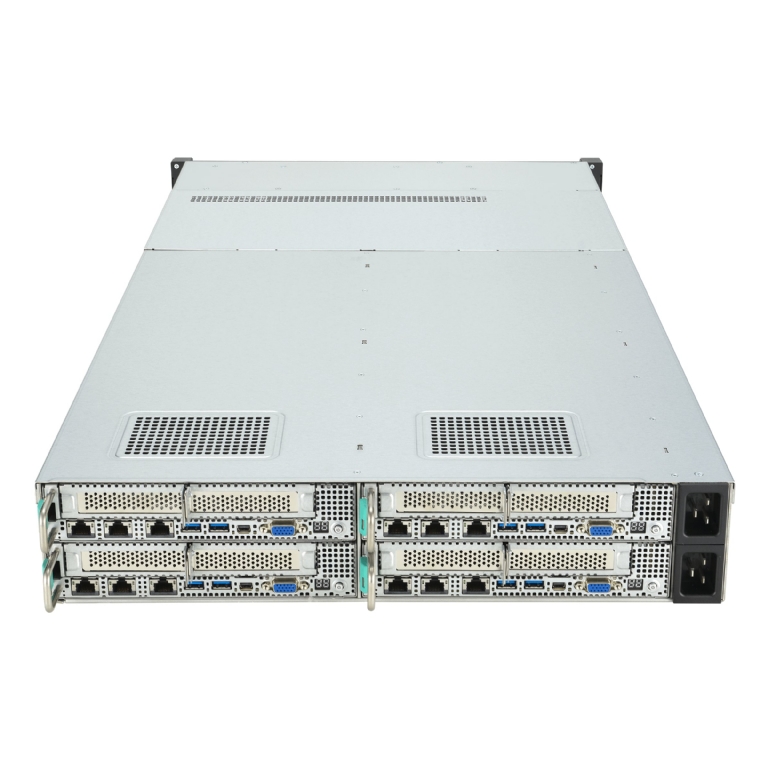

• Rear I/O Ports

  Per node:
  2 x USB 3.2 Gen1 ports
  1 x VGA port
  1 x Mini-DP port
  1 x Management port
  2 x 10GbE LAN ports

• Switch/LED

  Per node:
  Rear Switch/LED:
  1 x Power Switch/LED
  1 x Q-Code/Port 80 LED
  Front Switch/LED:
  1 x Power Switch/LED
  1 x Location Switch/LED
  1 x Message LED
  2 x LAN LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  On-Board ASMB11-iKVM for KVM-over-IP
  ASUS Control Center Enterprise (Optional)

• Regulatory Compliance

  BSMI, CE, FCC(Class A)

• Dimensions

  847mm x 444mm x 87.3mm (2U)
  33.35" x 17.48" x 3.44"

• Form Factor

  2U

• Weight

  Net Weight : 29.25KG
  Gross Weight : 33.37KG

• Power Supply

  1+1 Redundant 2600W 80 PLUS Titanium Power Supply
  1+1 Redundant 3200W 80 PLUS Titanium Power Supply

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 60℃
  Non operation humidity: 20% ~ 90% (Non condensing)
