Dimensions (WxHxD, mm)
1U
438 x 43.5 x 520
CPU
AMD Ryzen™ 7000 series processors
Single processor, 5nm technology
TDP up to 105W
*Overclocking not supported due to thermal limitation.
Memory
4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM modules up to 32GB supported
ECC Unbuffered DIMM 1Rx8/2Rx8 modules supported
Non-ECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 modules supported
Memory speed: up to 5200 MHz (1DPC), 3600 MHz (2DPC)
LAN
Rear side:
2 x 1Gb/s LAN ports (2 x Broadcom® BCM5720)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
2 x 2.5" SATA hot-swappable bays
SATA supported only
Expansion Slots
PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU
Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from FCH
- Supports 2280/22110 cards
Internal I/O
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Front panel header
1 x Back panel header
2 x Fan headers (4 pin)
1 x M.2 slot
1 x TPM header
1 x PMBus header

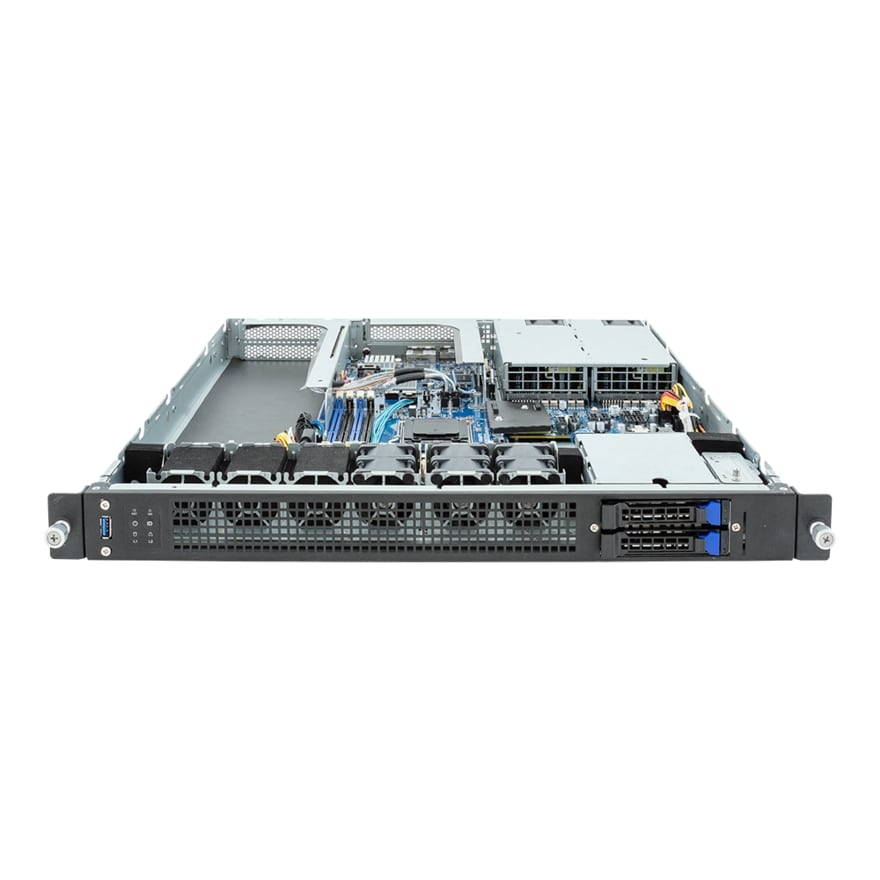

Front I/O
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

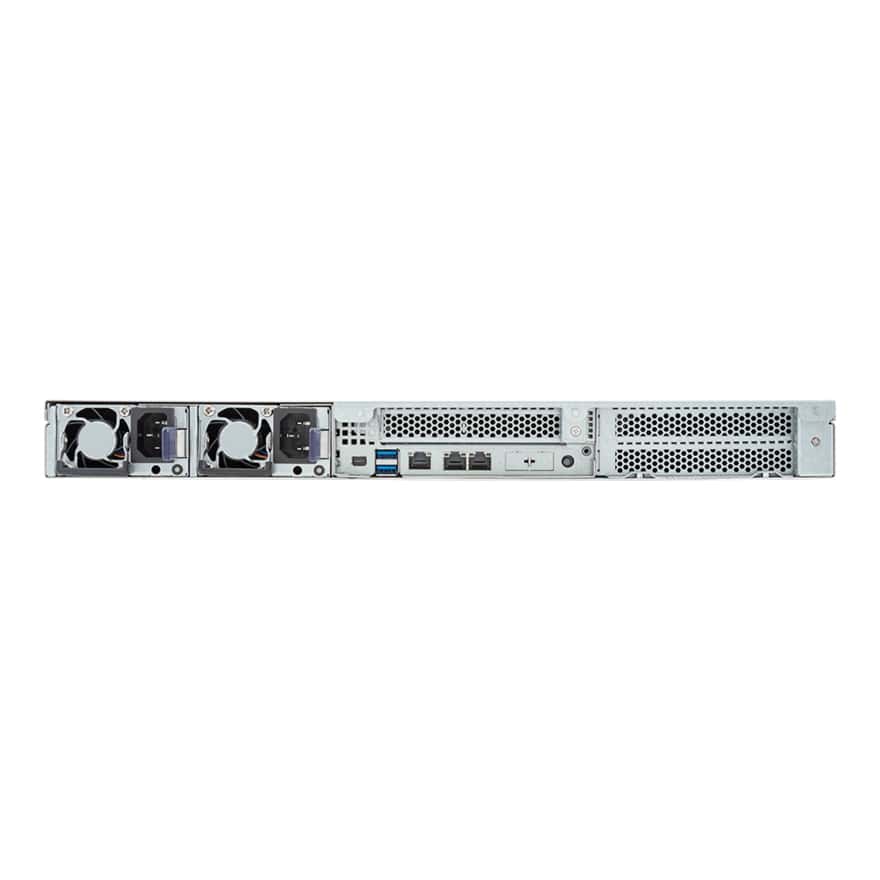

Rear I/O
2 x USB 3.2 Gen2
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Speed and bandwidth:
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:
CTM010
Power Supply
1+1 800W (240V) 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz
DC Input:
- 240Vdc/ 5A
DC Output:
- Max 800W
+ 12.2V/ 65A
+ 12Vsb/ 3A
System Management
Aspeed
® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced Power Capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows 10 21H2 (x64)
Windows 11 (x64)
System Fans
3 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
782 x 588 x 212 mm
Packaging Content
1 x E133-C10
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
*Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NE133C10MR000AAG1*
- Motherboard: 9MC13BL1NR-000
- CPU heatsink: 25ST1-121100-A7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBP2023: 9CBP2023NR-00
- Fan module: 25ST2-405623-A0R
- Riser card - CRSE016: 9CRSE01016NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-20800A-G1S
Optional parts:
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
