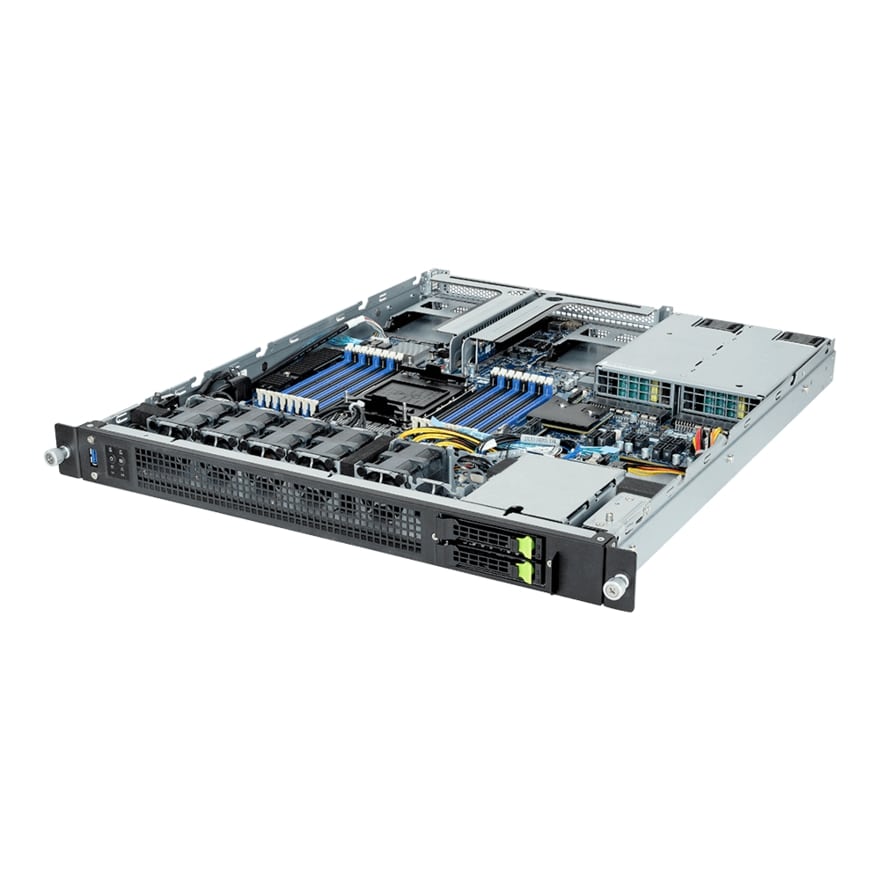

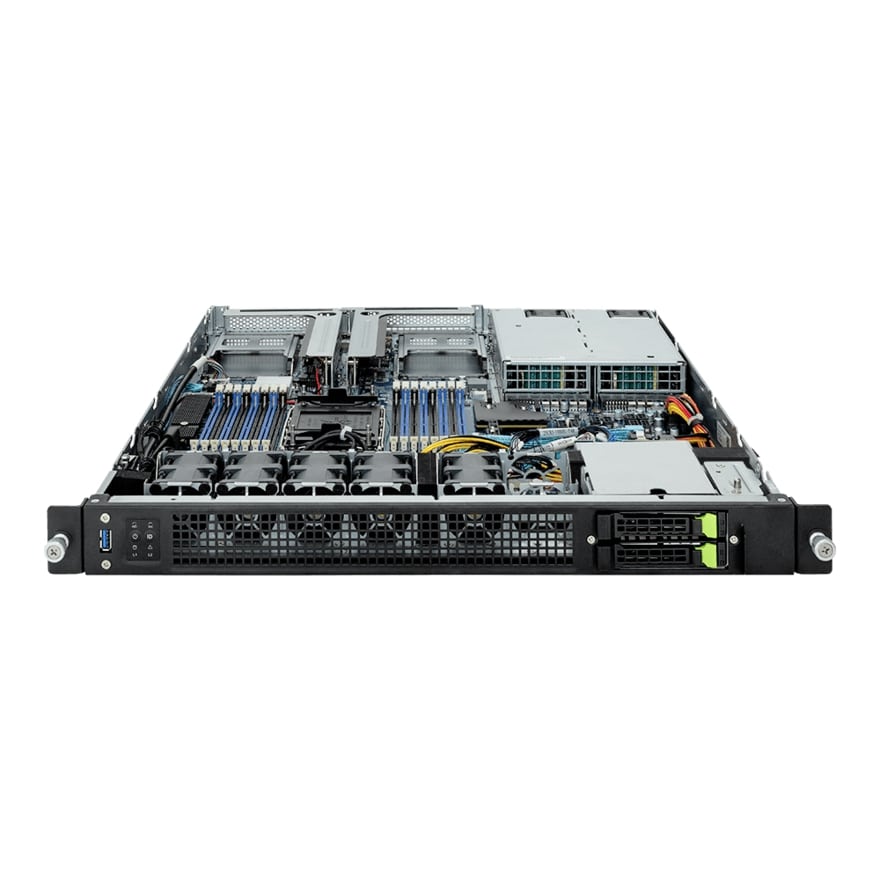

Gigabyte E163-S30 1U Rackmount Single Socket 4th Gen Intel Xeon Scalable Server - Short Depth Edge Platform - 2x Hot-Swap Bays - Redundant PSU

E163-S30

Call our Solutions Specialists - 01283 576162

Great news, we have this product available for special order on a 5 day lead time.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 520

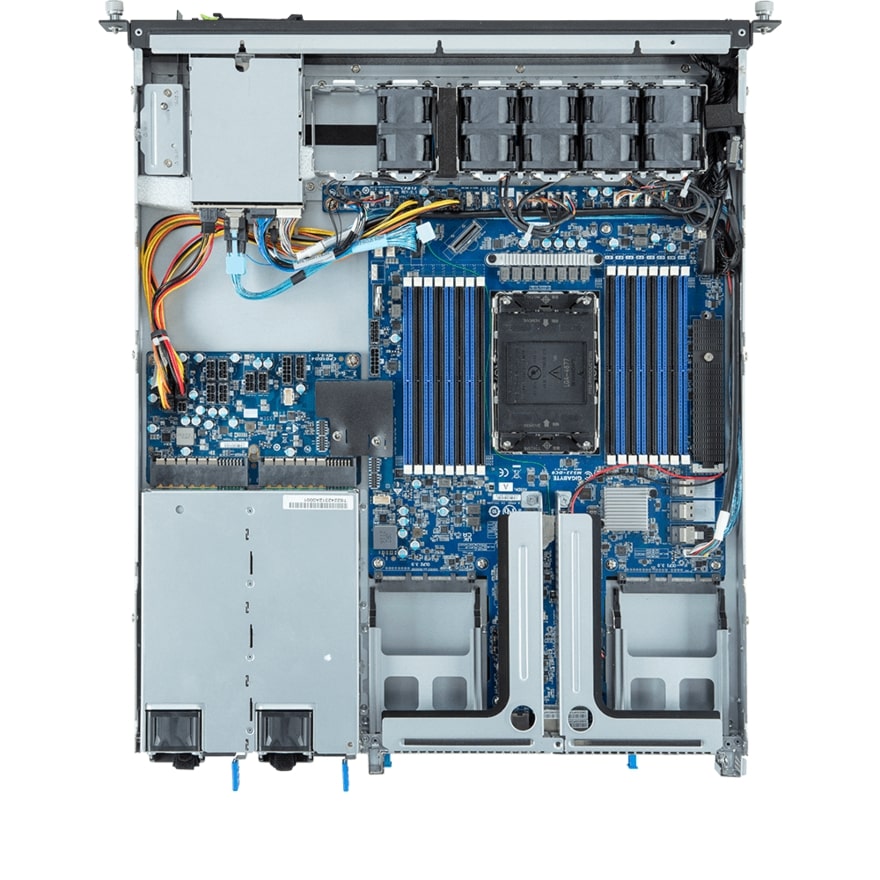

Motherboard

MS33-DC0

CPU

4th Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® CPU Max Series
Intel^® Xeon^® Platinum Processor, Intel^® Xeon^® Gold Processor, Intel^® Xeon^® Silver Processor
Single processor, CPU TDP up to 350W

Socket

1 x LGA 4677
Socket E

Chipset

Intel^® C741 Chipset

Memory

16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400MHz (2DPC)

LAN

Rear side:
1 x 1Gb/s LAN port (1 x Intel^® I210-AT)
Supports NCSI function

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

SAS

Depends on SAS Add-on card

RAID

Intel^® SATA RAID 0/1

Expansion Slots

Riser Card CRS101O:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

Riser Card CRS101P:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards

Internal I/O

1 x M.2 slot
1 x TPM header
1 x VROC connector
2 x OCP 3.0 slots

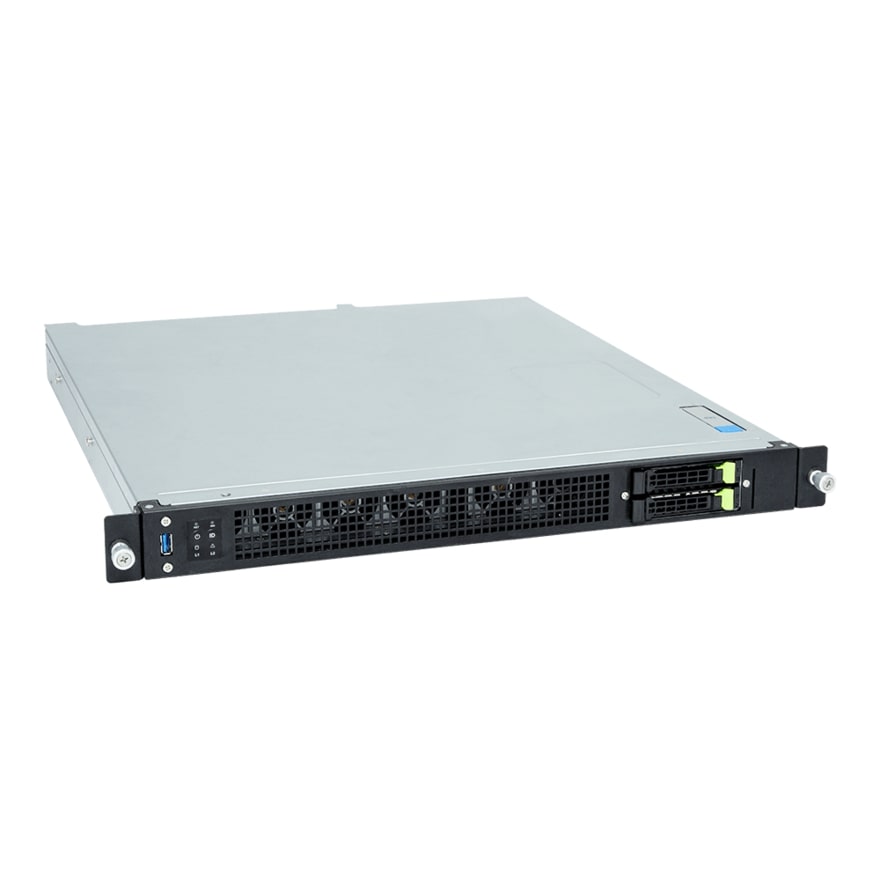

Front I/O

1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x HDD activity LED
1 x System status LED

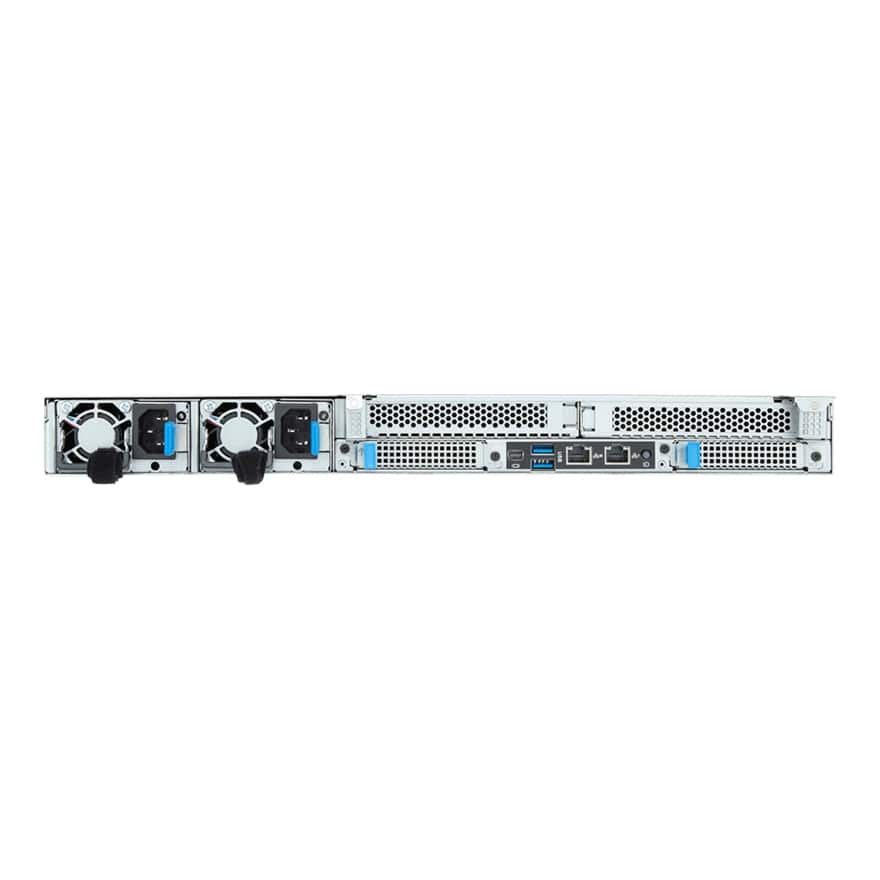

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

1+1 800W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 10-4A, 50-60Hz

DC Input:
- 240Vdc/ 4.5A

DC Output:
- Max 800W
+ 12V/ 66A
+ 12Vsb/ 2.5A

NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)

System Fans

5 x 40x40x56mm (30,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

782 x 588 x 212 mm

Packaging Content

1 x E163-S30
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
3 x Carrier clips

*Rail kit not included. Please refer to optional parts for compatible rail kit.

Part Numbers

- Barebone package: 6NE163S30DR000AAB1*
- Motherboard: 9MS33DC0UR-000
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBP2023: 9CBP2023NR-00
- Fan module: 25ST2-40562E-A0R
- Riser card - CRS101O: 9CRS101ONR-00
- Riser card - CRS101P: 9CRS101PNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-208004-L0S

Optional parts:

- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
