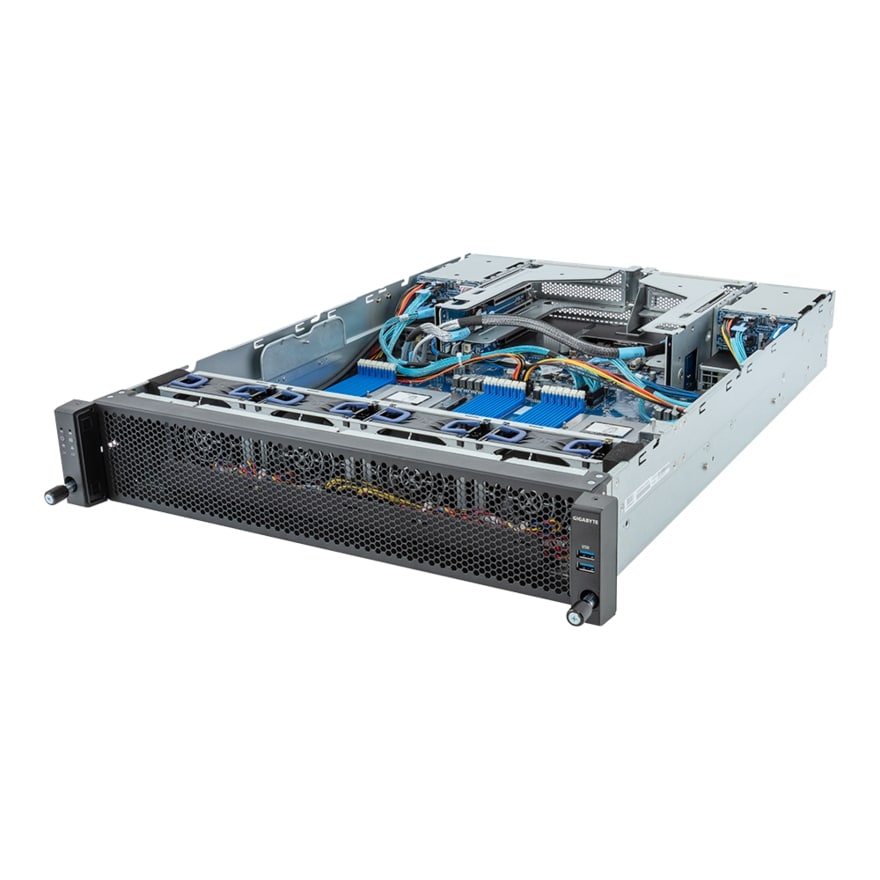

Dimensions (WxHxD, mm)
2U
438 x 87 x 625
CPU
AMD EPYC™ 9004 series processors
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 35°C
*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 6096
Socket SP5
Memory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Rear side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA via CRS2810 from CPU_1)
SAS card is required for SAS devices support
*SATA hotplug utility can be downloaded on support page.
SAS
Depends on SAS Add-on card
Expansion Slots
Riser Card CRS101T:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
Riser Card CRS101Q:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
Riser Card CRS202M:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU_0
Riser Card CRS202N:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
- 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 4 x SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
Internal I/O
2 x M.2 slots
1 x TPM header
2 x OCP 3.0 slots

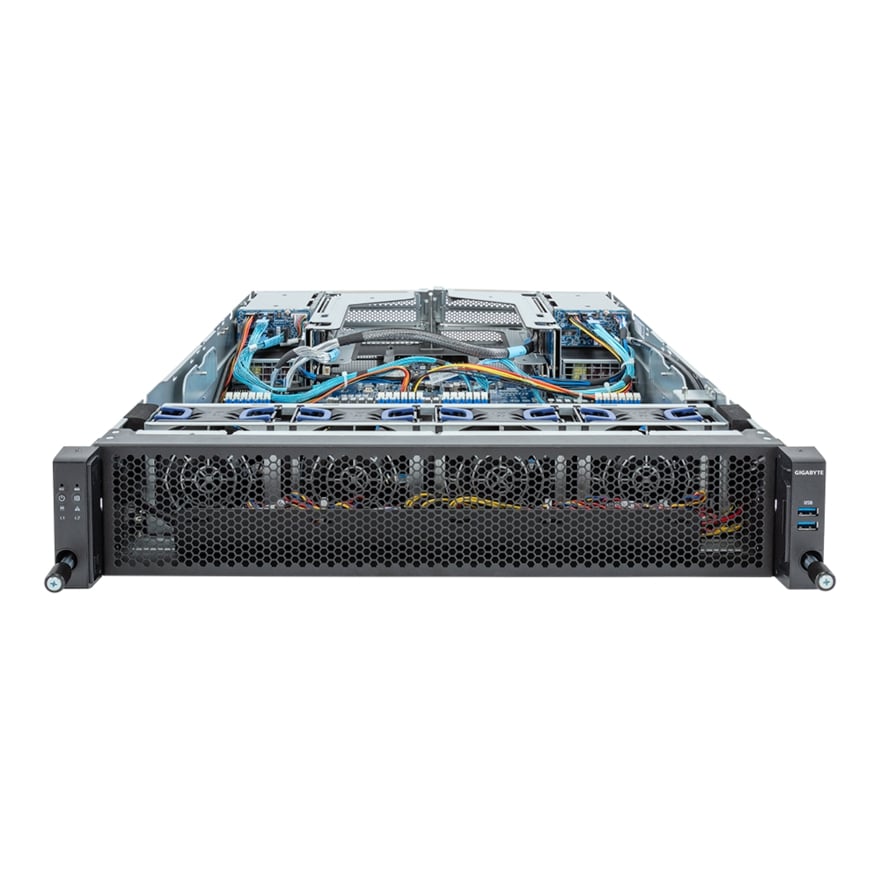

Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

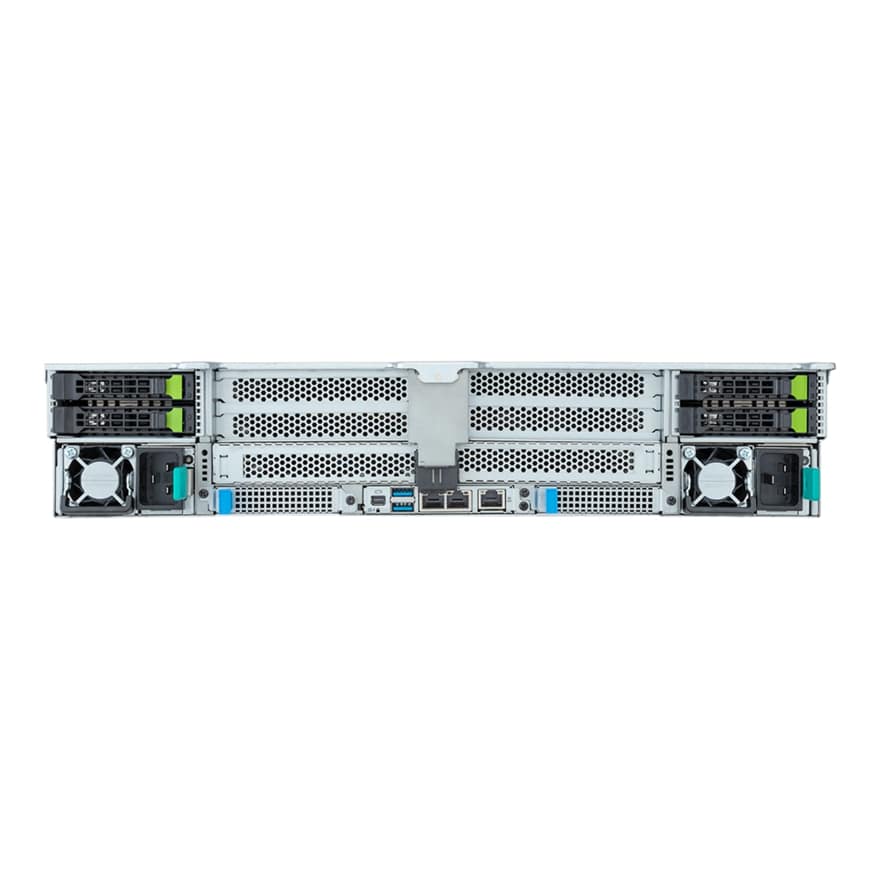

Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:
CTM010
Power Supply
Dual 1600W (240V) 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input:
- 240Vdc/ 8A
DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12.2V/ 132A
+ 12Vsb/ 3A
System Management
Aspeed
® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x E283-Z90
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
*Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NE283Z90DR000AAV1*
- Motherboard: 9MZ93FS0UR-000
- CPU heatsink: 25ST1-15320G-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-88382T-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00
- Riser card - CRS101Q: 9CRS101QNR-00
- Riser card - CRS101T: 9CRS101TNR-00
- Riser card - CRS202M: 9CRS202MNR-00
- Riser card - CRS202N: 9CRS202NNR-00
- G-SC Module - CDCR114: 9CDCR114NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600D-G1S
Optional parts:
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
