Dimensions (WxHxD, mm)
4U
448 x 176 x 880
Motherboard
MZ52-G41 Rev. 3.0
CPU
AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7003 series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 series processors
Socket
2 x LGA 4094
Socket SP3
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
* Please refer to memory matrix table in manual for more information about memory support frequency
LAN
Front side:
2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
2 x 2.5" NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA hot-swappable bays, from CPU_0
SAS devices not supported
Expansion Slots
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0, for GPUs
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1 x PCIe x16 (Gen4 x16) FHFL slot on rear side, from CPU_1*
*SAS cards with internal cables not supported due to cable routing limitation
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x Front panel header

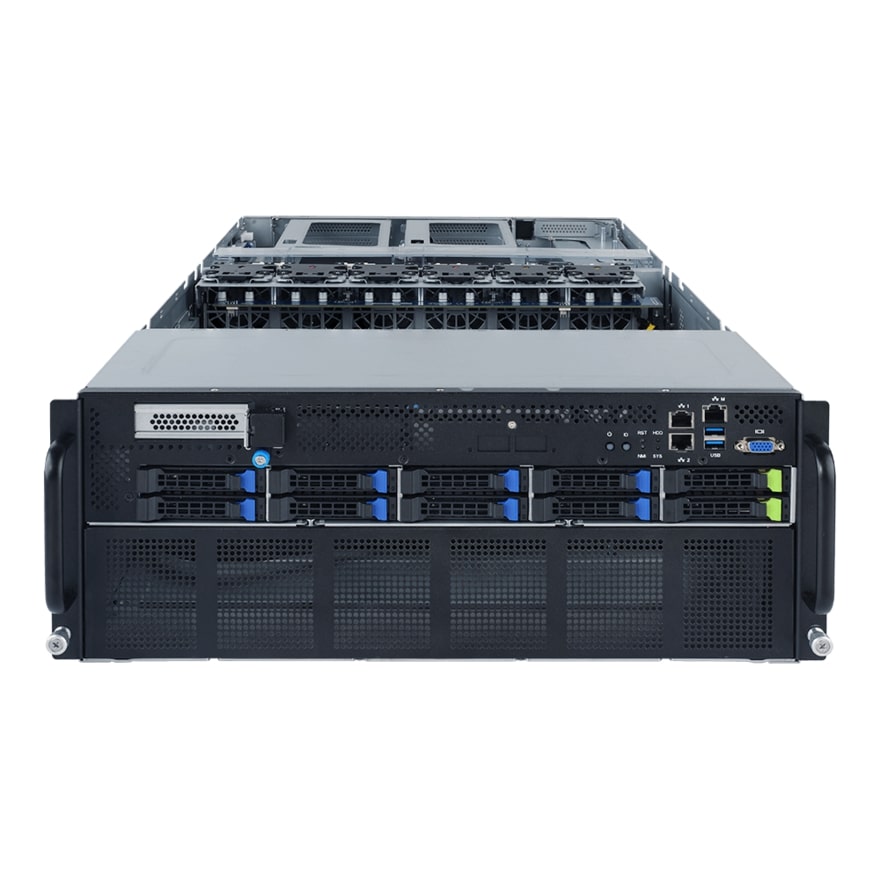

Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Backplane I/O
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:
CTM010
Power Supply
3 x 2200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input:
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A
NOTE: The system power supply requires C19 power cord
System Management
Aspeed
® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or laterVMware ESXi 7.0 Update1 or laterVMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
12 x 60x60x38mm (21,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1109 x 609 x 606 mm
Packaging Content
1 x G482-Z54
2 x CPU fansinks
1 x Rail kit
Part Numbers
- Barebone package: 6NG482Z54MR-00-A*
- Motherboard: 9MZ52G41NR-00
- Rail kit: 25HB2-A96100-K0R
- CPU fansink: 12SF2-01A067-00R
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- GPU cable for NVIDIA A10: 25CRI-100001-B0R (optional)
