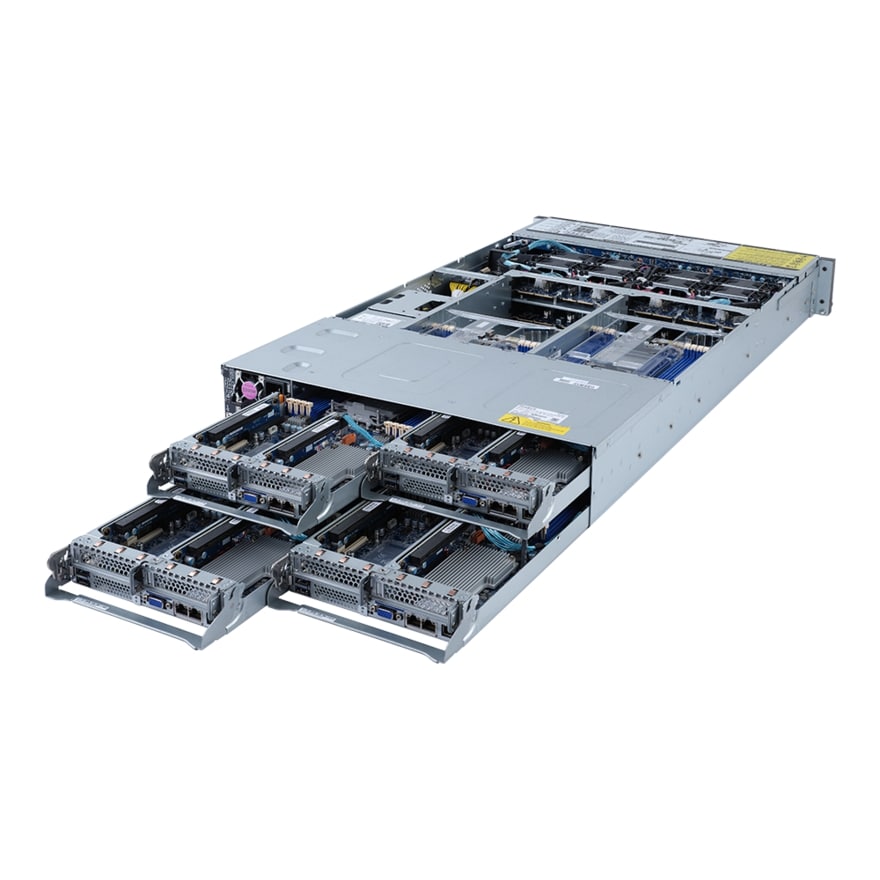

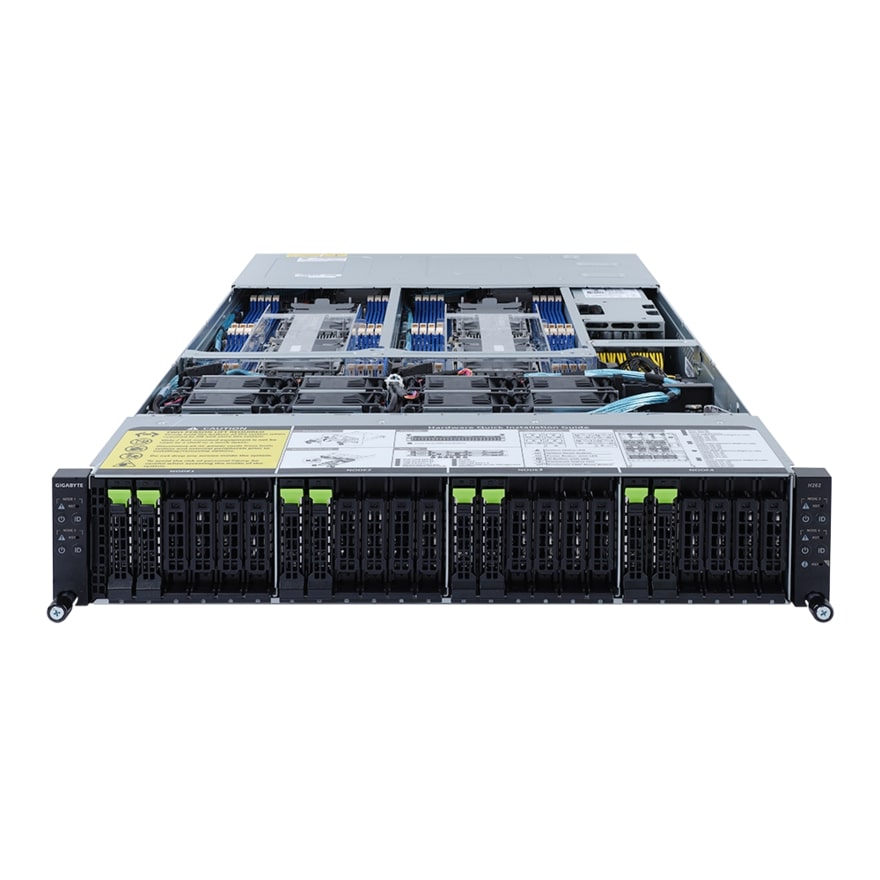

Gigabyte H262-PC0 2U Rackmount Quad Node Dual 3rd Gen Intel Xeon Scalable Server - 8x Hot-Swap Bays - Redundant PSU

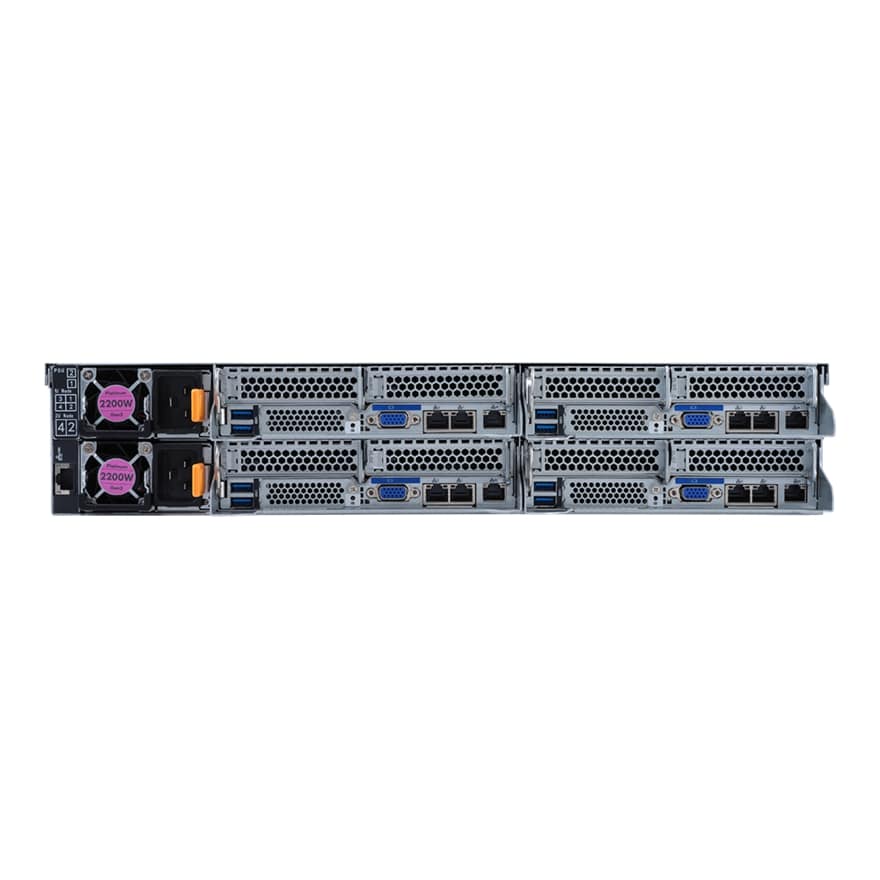

2U 4-Node - Rear access
440 x 87.5 x 840

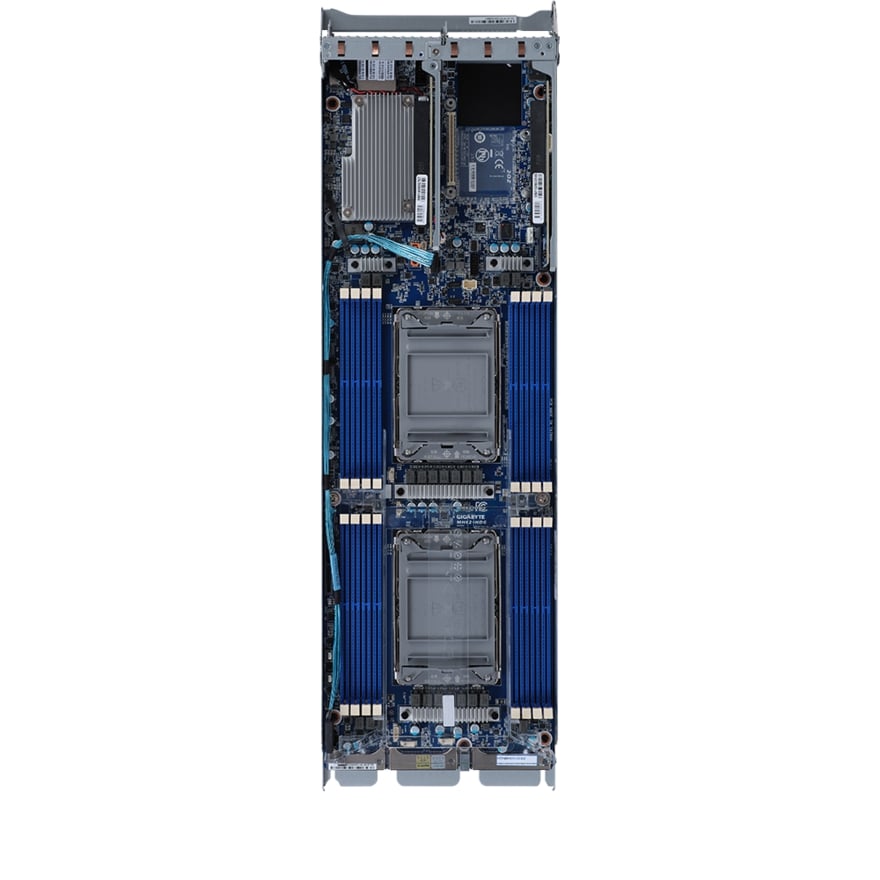

MH62-HD0

3rd Generation Intel^® Xeon^® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W

Please leave one PCIe slot empty if using processor with 270W TDP

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Per Node:
2 x LGA 4189

Total:
8 x LGA 4189

Socket P+

Intel^® C621A Chipset

Per node:
16 x DIMM slots

Total:
64 x DIMM slots

DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz

Per node:
2 x 10GbE BASE-T LAN ports (1 x Intel^® X710-AT2)
NCSI function supported

1 x Dedicated management port

Total:
8 x 10GbE BASE-T LAN ports (1 x Intel^® X710-AT2)
NCSI function supported

4 x Dedicated management ports
1 x CMC port

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed^® AST2520A2-GP

Per node:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, from CPU_1
1 x SATA DOM

Total:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, from CPU_1
4 x SATA DOMs

SAS card is required for SAS devices support

Depends on SAS Add-on cards

Intel^® SATA RAID 0/1

Per node:
Riser Card CRSH01D:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth*, from CPU_0

Total:
Riser Card CRSH01D x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

Riser Card CRSH01E x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

4 x OCP 2.0 mezzanine slots with PCIe Gen3 x8 bandwidth*, from CPU_0

*NOTE: OCP 2.0 bandwidth is shared with onboard LAN. Onboard LAN would be disabled if OCP 2.0 Gen3 x16 bandwidth is needed.

Per node:
1 x COM header
1 x SATA 7-pin connector
1 x TPM header
1 x VROC connector
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector

Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x Reset button

Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x Reset buttons
*1 x CMC Status LED
*1 x CMC Reset button

*Only one CMC Status LED and Reset button per system

Per node:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED

Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
4 x ID LEDs
*1 x CMC port

*Only one CMC port per system

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Dual 2200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

8 x 80x80x38mm (16,300rpm)

Operating temperature: 10°C to 35°C*
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1180 x 779 x 300 mm

1 x H262-PC0
8 x CPU heatsinks
1 x 3-Section Rail Kit

- Barebone package: 6NH262PC0MR-00-1*
- Motherboard: 9MH62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-453214-M1R/25ST1-453215-M1R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH080: 9CBPH080NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Riser card - CRSH01D: 9CRSH01DNR-00
- Riser card - CRSH01E: 9CRSH01ENR-00
- LAN board - CLBH020: 9CLBH020NR-00
- Power Supply: 25EP0-222003-D0S

Optional parts:

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 riser card - CMTP16Z: 9CMTP16ZNR-00
- Ring topology kit: 6NH262Z65SR-00-100
