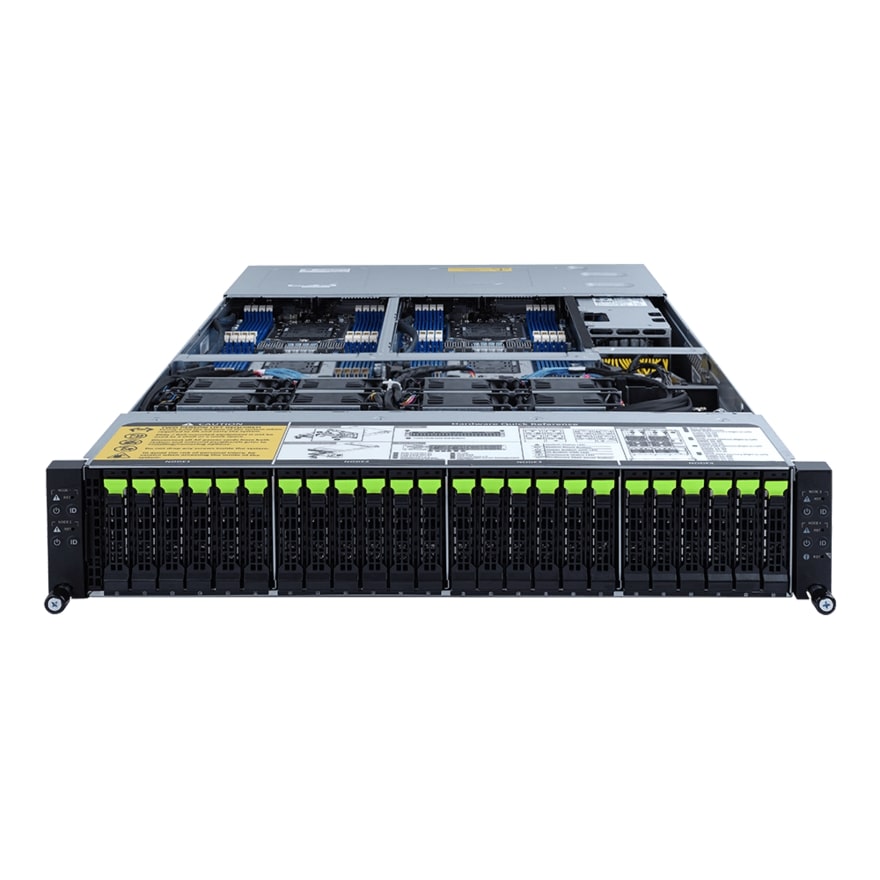

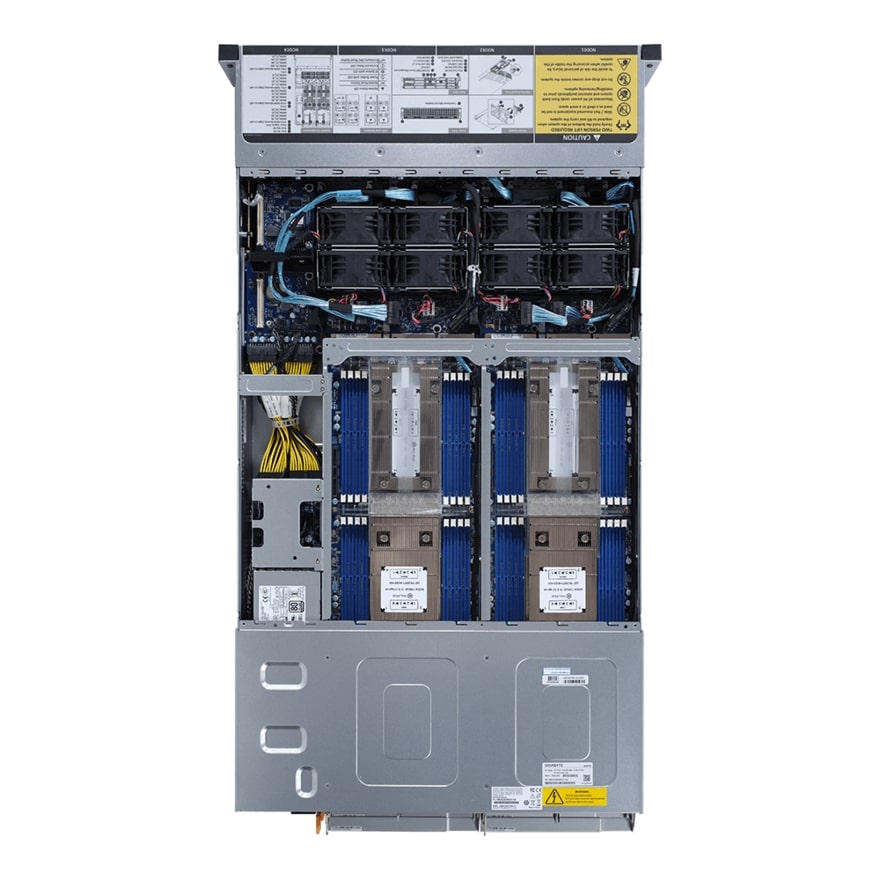

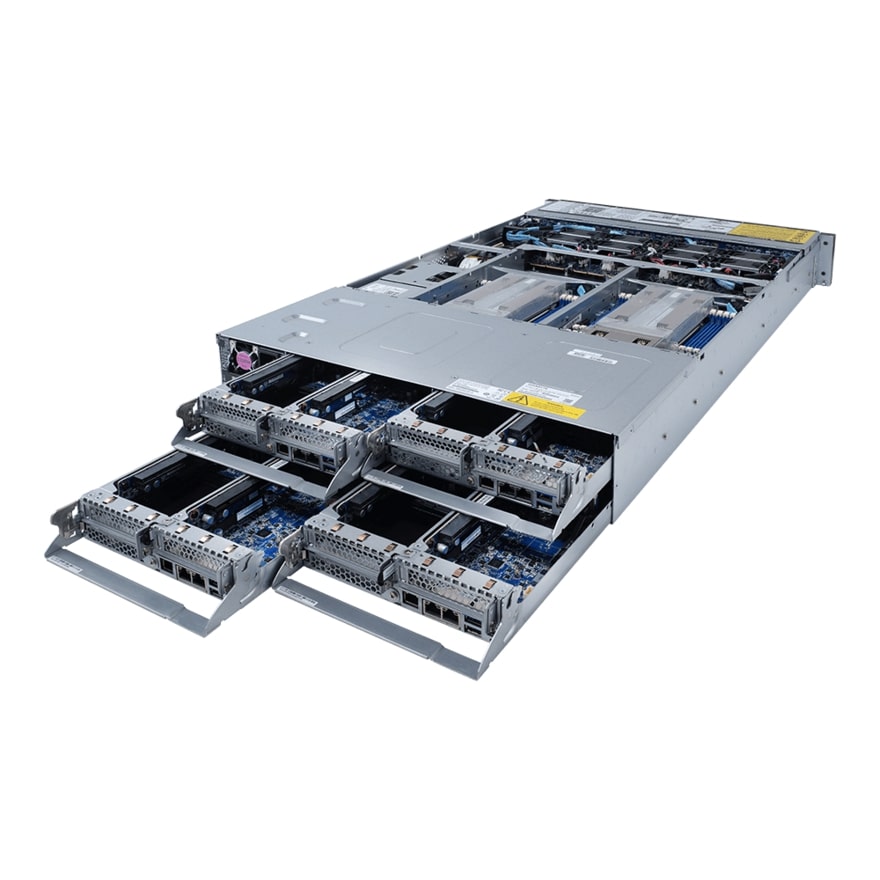

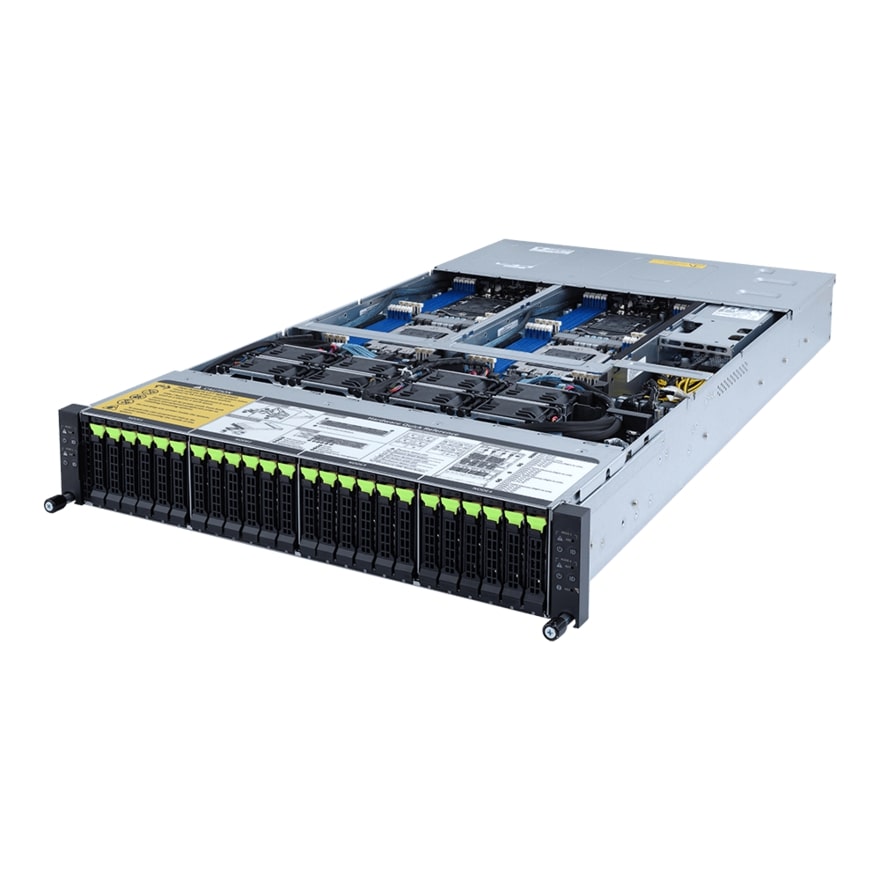

Gigabyte H262-Z6A 2U Rackmount Quad Node Dual 3rd Gen AMD ROME Server - 24x Hot-Swap Bays - Redundant PSU

H262-Z6A

Call our Solutions Specialists - 01283 576162

Great news, we have this product available for special order on a 5 day lead time.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Dimensions (WxHxD, mm)

2U 4-Node - Rear access
440 x 87.5 x 840

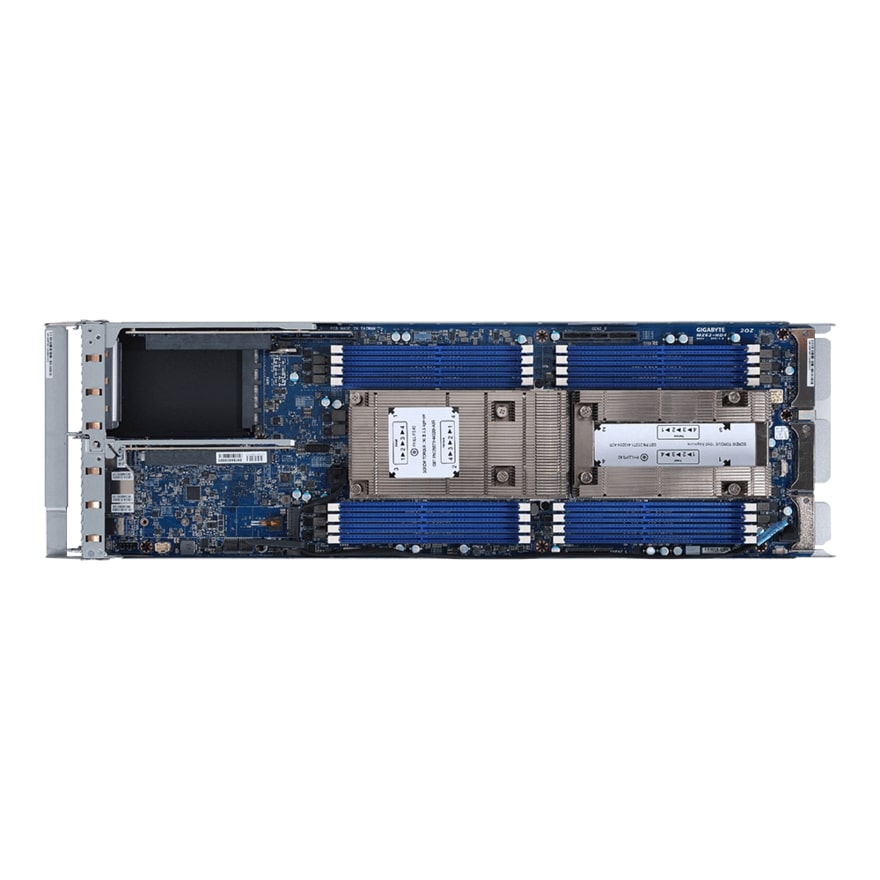

Motherboard

MZ62-HD4 Rev. 3.0

CPU

AMD EPYC™ 7003 series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 200W

NOTE:
1) If only 1 CPU is installed, some PCIe or memory functions might be unavailable
2) Contact GIGABYTE sales rep or technical support for more details about supporting cTDP 240W CPU

Compatible with AMD EPYC™ 7002 series processors

Socket

Per Node:
2 x LGA 4094

Total:
8 x LGA 4094

Socket SP3

Chipset

System on Chip

Memory

Per node:
16 x DIMM slots

Total:
64 x DIMM slots

DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MHz

LAN

Per node:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
1 x Dedicated management port

Total:
8 x 1GbE LAN ports (1 x Intel^® I350-AM2)
4 x Dedicated management ports
1 x 10/100/1000 *CMC port

*CMC: Chassis Management Controller, to monitor all status of computing nodes

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed^® AST2520A2-GP

Storage

Per node:
6 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)

Total:
24 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)

SAS

Depends on SAS Add-on card

RAID

N/A

Expansion Slots

Per node:
2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports NGFF-2280/22110 cards

Total:
8 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

4 x OCP 3.0 slots with PCIe Gen4 x16 bandwidth, from CPU_0

4 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports NGFF-2280/22110 cards

Internal I/O

Per node:
1 x M.2 slot
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector

Front I/O

Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button

Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x System reset buttons
*1 x CMC status LED
*1 x CMC reset button

*Only one CMC status LED and reset button per system

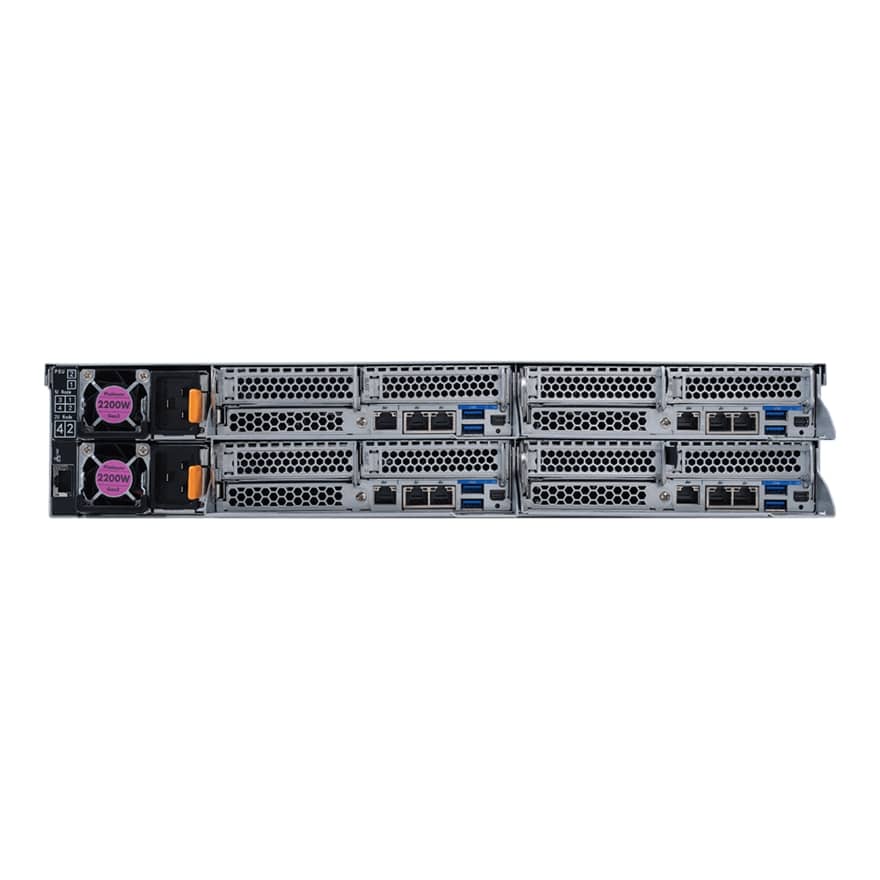

Rear I/O

Per node:
2 x USB 3.0
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN
1 x ID LED

Total:
8 x USB 3.0
4 x Mini-DP
8 x RJ45
4 x RJ45 MLAN
4 x ID LED
*1 x CMC port

*Only one CMC port per system

Backplane I/O

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

2 x 2200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: System power supply requires C19 power cord

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Weight

Net Weight: 47.63 kg
Gross Weight: 49.63 kg

System Fans

8 x 80x80x38mm (16,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1180 x 779 x 300 mm

Packaging Content

1 x H262-Z6A
8 x CPU heatsinks
1 x Rail Kit

Part Numbers

- Barebone package: 6NH262Z6AMR-00-A*
- Motherboard: 9MZ62HD4NR-00
- Rail kit: 25HB2-A66122-K0R
- CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R
- M.2 extension card: 9CMTP061NR-00 (optional)
- Backplane board - CBPH7O0: 9CBPH7O0NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power Supply: 25EP0-222003-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- Ring topology kit: 6NH262Z65SR-00-100 (optional)
- Mini-DP to D-Sub cable: 25CRN-200801-K1R (optional)
