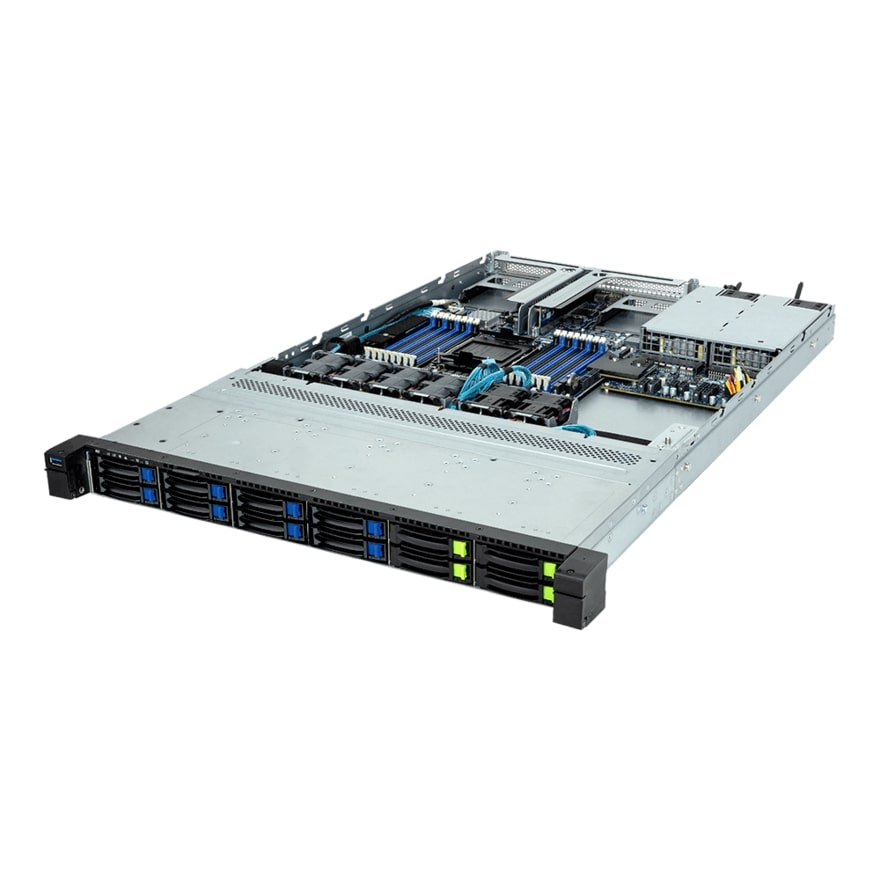

Dimensions (WxHxD, mm)
1U
438 x 43.5 x 710
CPU
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Single processor, CPU TDP up to 350W
Socket
1 x LGA 4677
Socket E
Chipset
Intel® C741 Chipset
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)
LAN
Rear side:
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supports NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
8 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS Add-on card
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRS101O:
- 1 x PCIe x16 (Gen5 x16) FHHL slot
Riser Card CRS101P:
- 1 x PCIe x16 (Gen5 x16) FHHL slot
2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards

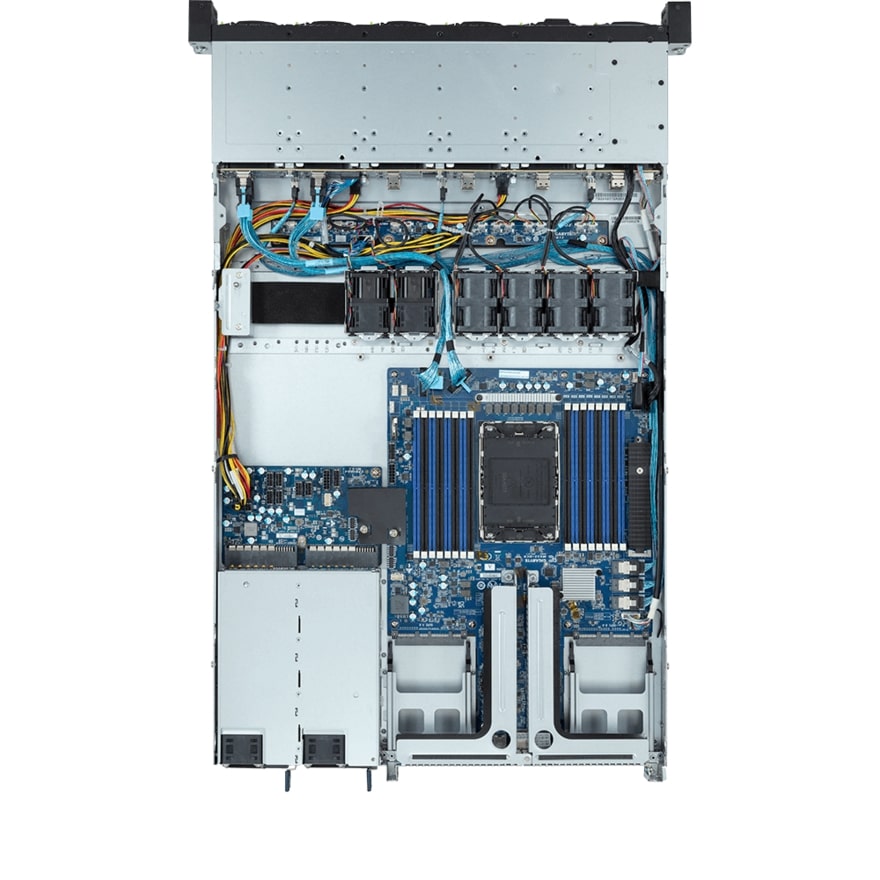

Internal I/O
1 x M.2 slot
1 x TPM header
1 x VROC connector
2 x OCP 3.0 slots

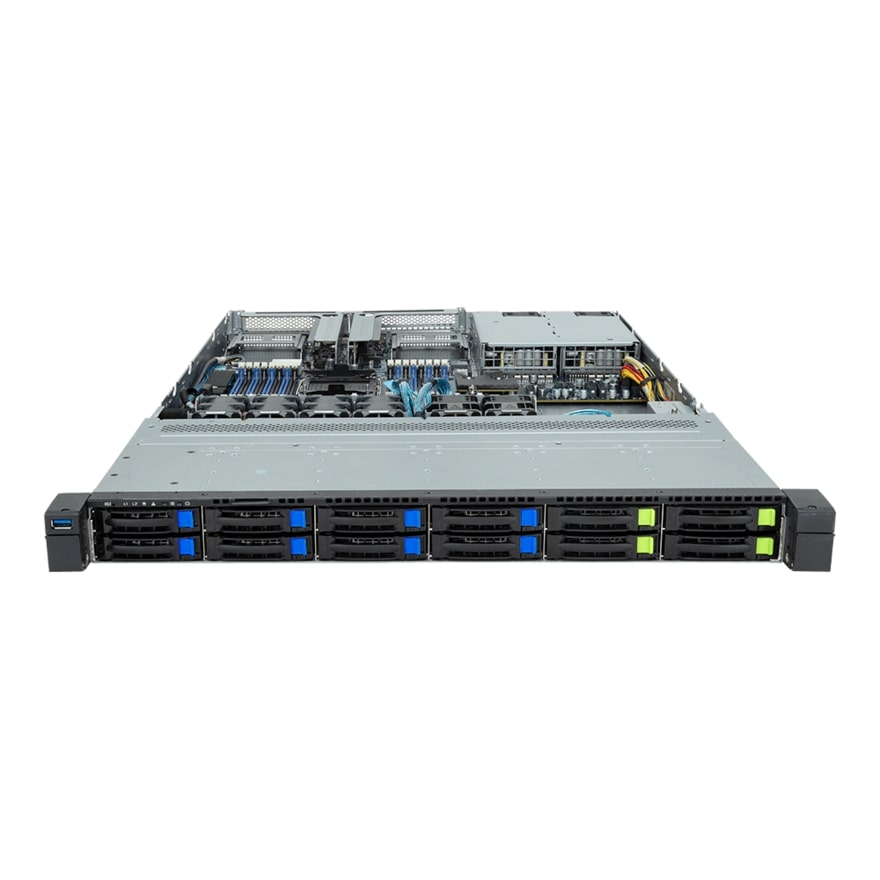

Front I/O
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x HDD activity LED
1 x System status LED

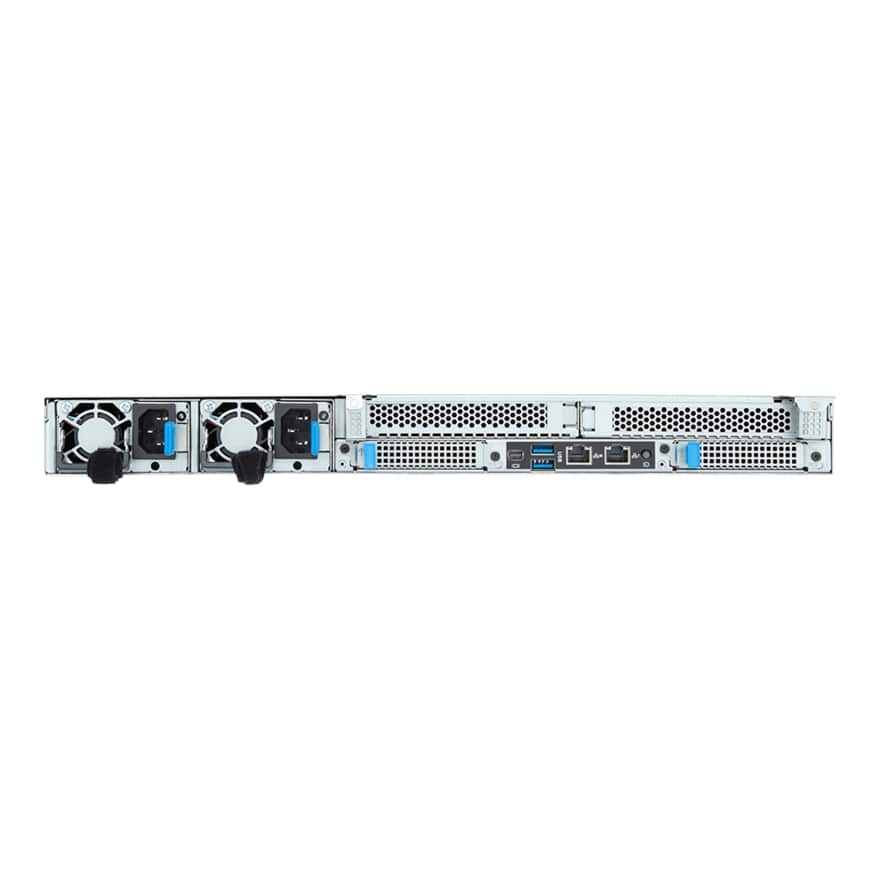

Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:
CTM010
Power Supply
1+1 1300W (240V) 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input:
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A
NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.
System Management
Aspeed
® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
System Fans
4 x 40x40x56mm (29,700rpm)
2 x 40x40x28mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
977 x 588 x 236 mm
Packaging Content
1 x R163-S32
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
3 x Carrier clips
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR163S32DR000AAC2*
- Motherboard: 9MS33DC0UR-000
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1030: 9CFP1030NR-00
- Backplane board - CBP10C0: 9CBP10C0NR-00
- Fan module: 25ST2-405623-A0R/25ST2-442828-D0R
- Riser card - CRS101O: 9CRS101ONR-00
- Riser card - CRS101P: 9CRS101PNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-213006-F3S
Optional parts:
- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
