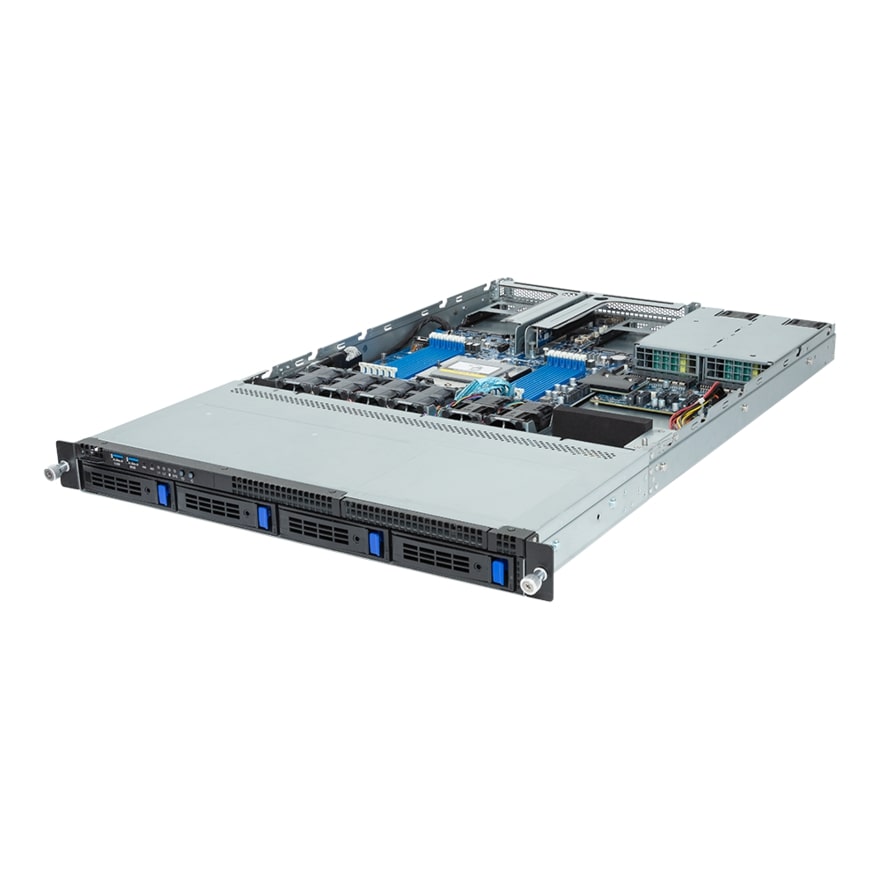

Gigabyte R163-Z30 1U Rackmount Single Socket 4th Gen AMD GENOA Server - 4x Hot-Swap Bays - Redundant PSU

R163-Z30

Call our Solutions Specialists - 01283 576162

Great news, we have this product available for special order on a 5 day lead time.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 710

Motherboard

MZ33-DC0

CPU

AMD EPYC™ 9004 series processors
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
*Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 35°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Socket

1 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

12 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz

LAN

Rear side:
1 x 1Gb/s LAN port (1 x Intel^® I210-AT)
Supports NCSI function

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

SAS

Depends on SAS Add-on card

RAID

N/A

Expansion Slots

Riser Card CRS101V:
- 1 x PCIe x16 (Gen5 x16) FHHL slot

Riser Card CRS101W:
- 1 x PCIe x16 (Gen5 x16) FHHL slot

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards

Internal I/O

1 x M.2 slot
1 x TPM header
2 x OCP 3.0 slots

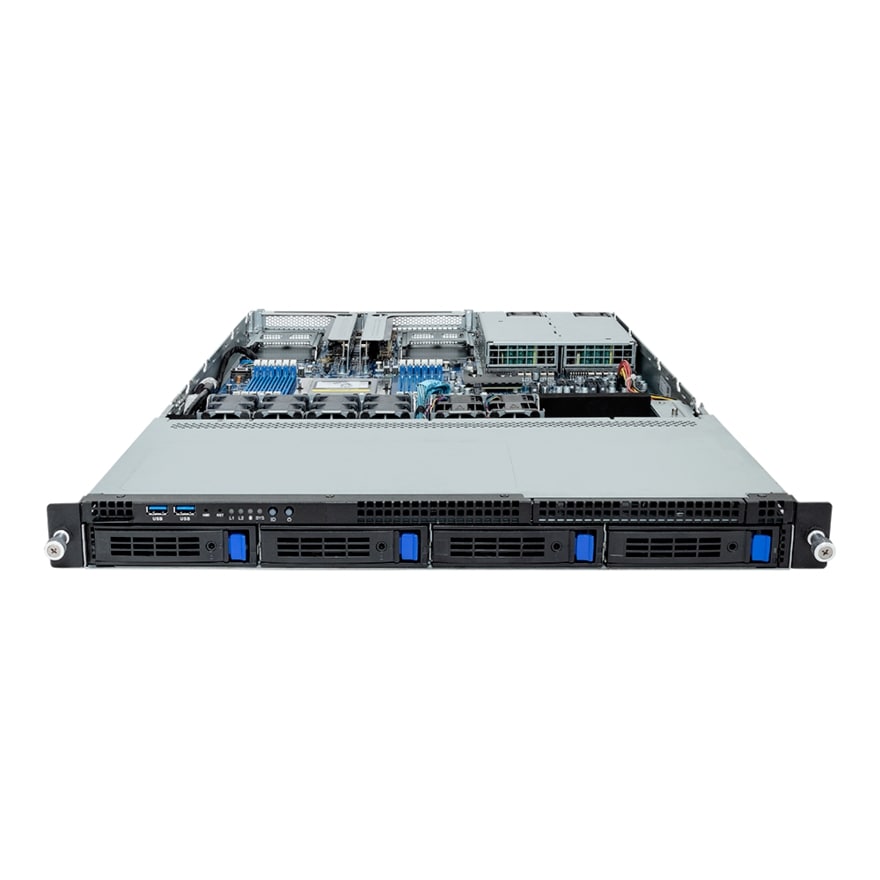

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x HDD activity LED
1 x System status LED

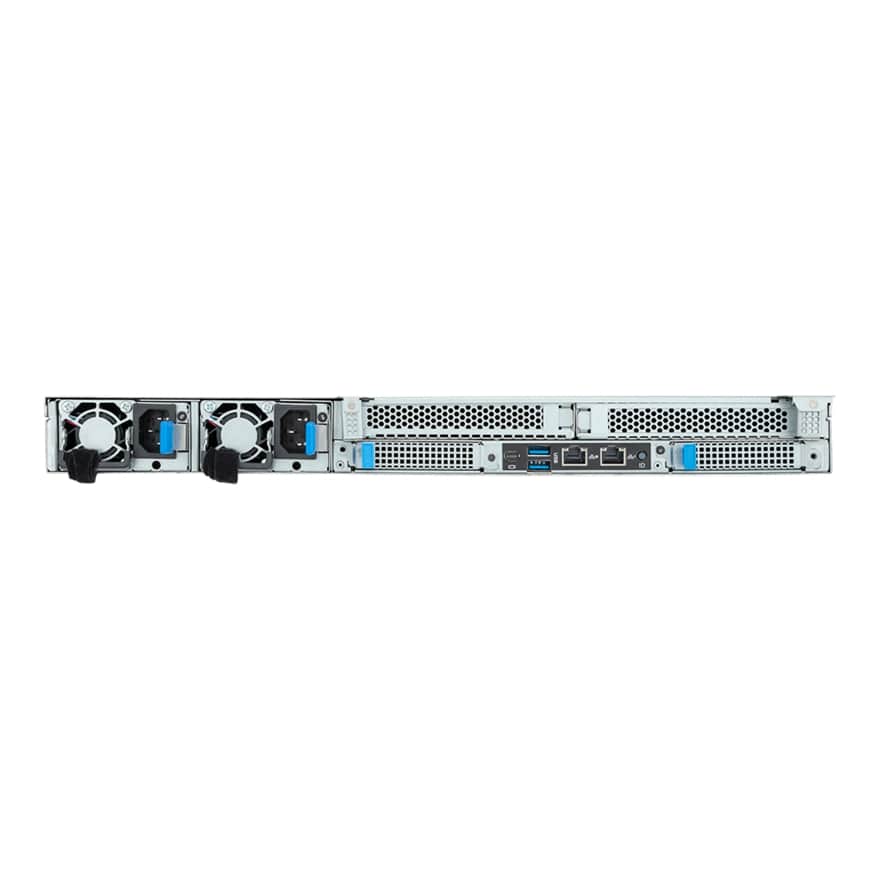

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

1+1 800W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz

DC Input:
- 240Vdc/ 5A

DC Output:
- Max 800W
+ 12.2V/ 65A
+ 12Vsb/ 3A

NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 40x40x56mm (29,700rpm)
2 x 40x40x28mm (25,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

977 x 588 x 236 mm

Packaging Content

1 x R163-Z30
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR163Z30DR000AAG2*
- Motherboard: 9MZ33DC0UR-000
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405623-A0R/25ST2-442828-D0R
- Riser card - CRS101V: 9CRS101VNR-00
- Riser card - CRS101W: 9CRS101WNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-20800C-G1S

Optional parts:

- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HB1-R18100-K0R
