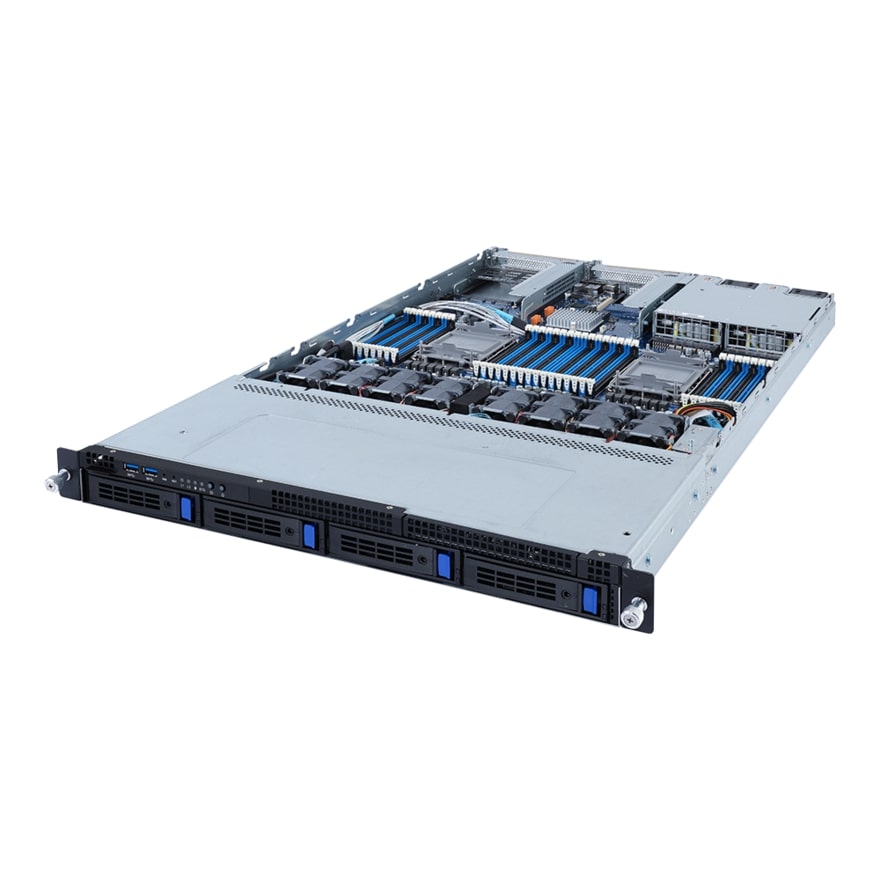

Gigabyte R182-340 1U Rackmount Dual 3rd Gen Intel Xeon Scalable Server - 4x Hot-Swap Bays - Redundant PSU
R182-340
Gigabyte R182-340 1U Rackmount Dual 3rd Gen Intel Xeon Scalable Server - 4x Hot-Swap Bays - Redundant PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 780
438 x 43.5 x 780

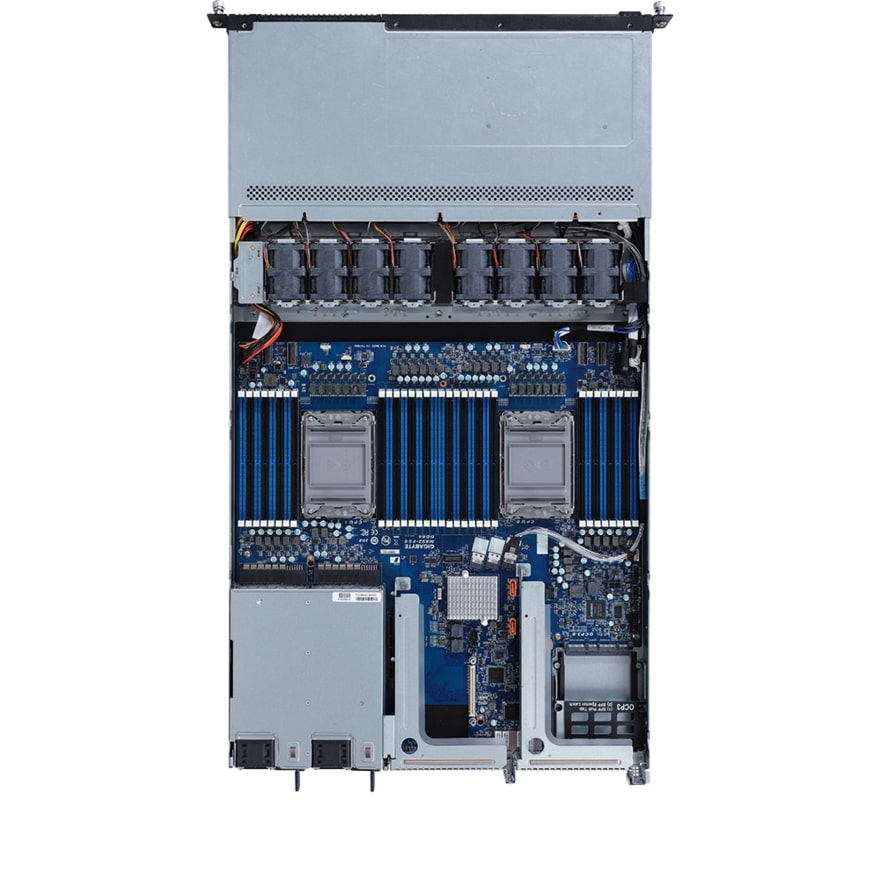

Motherboard
MR92-FS1
CPU
3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4189
Socket P+
Socket P+
Chipset
Intel® C621A Chipset
Memory
32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 3200/2933/2666 MHz
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 3200/2933/2666 MHz
LAN
Rear side:
2 x 1Gb/s LAN ports (Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
2 x 1Gb/s LAN ports (Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-on card
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRS101E:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
Riser Card CRS101G:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
Riser Card CRS101G:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function
Internal I/O
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery switch
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery switch

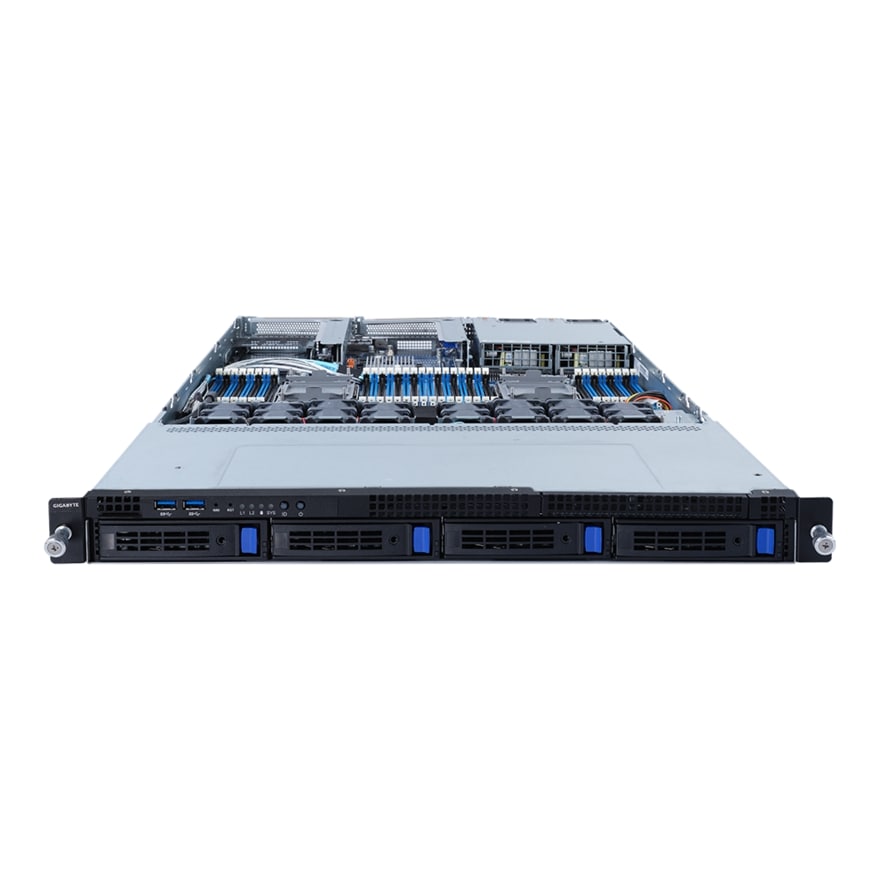

Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

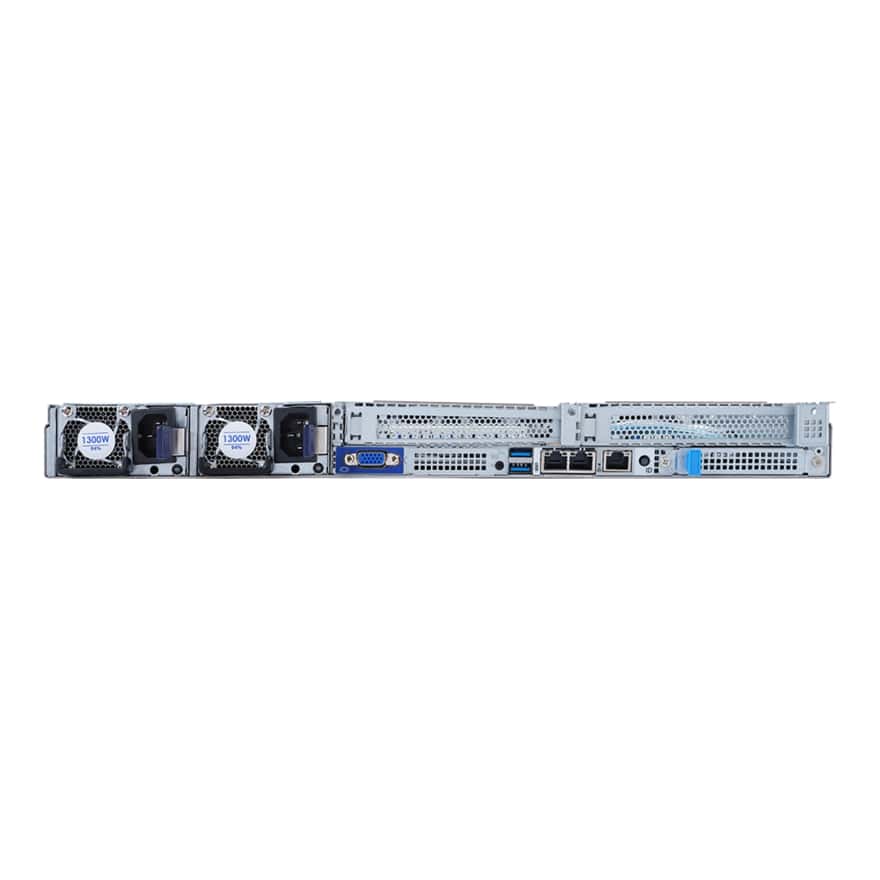

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1300W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input:
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input:
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
8 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R182-340
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR182340MR-00-1*
- Motherboard: 9MR92FS1NR-00
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-453204-M1R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1044: 9CBP1044NR-00
- Riser card - CRS101E: 9CRS101ENR-00
- Riser card - CRS101G: 9CRS101GNR-00
- Fan module: 25ST2-405622-A0R
- Power supply: 25EP0-213002-F3S
Optional parts:
- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HB1-R18100-K0R
- Motherboard: 9MR92FS1NR-00
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-453204-M1R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1044: 9CBP1044NR-00
- Riser card - CRS101E: 9CRS101ENR-00
- Riser card - CRS101G: 9CRS101GNR-00
- Fan module: 25ST2-405622-A0R
- Power supply: 25EP0-213002-F3S
Optional parts:
- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HB1-R18100-K0R
