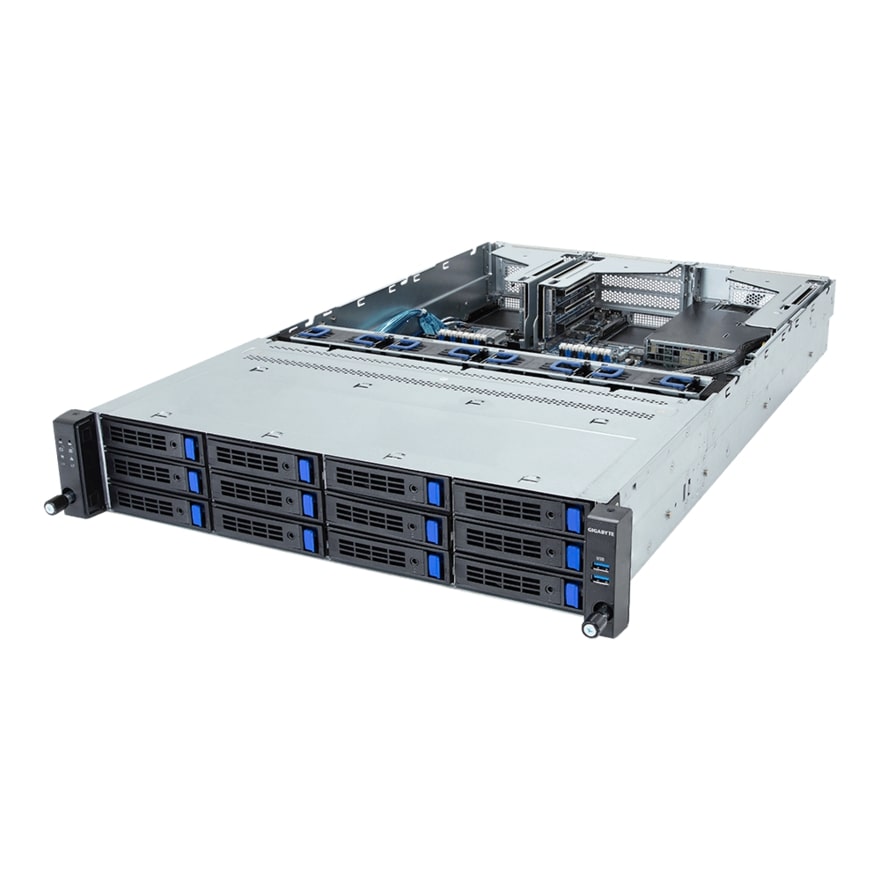

Gigabyte R263-S30 2U Rackmount Single Socket 4th Gen Intel Xeon Scalable Server - 12x Hot-Swap Bays - Redundant PSU

R263-S30
Gigabyte R263-S30 2U Rackmount Single Socket 4th Gen Intel Xeon Scalable Server - 12x Hot-Swap Bays - Redundant PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 710

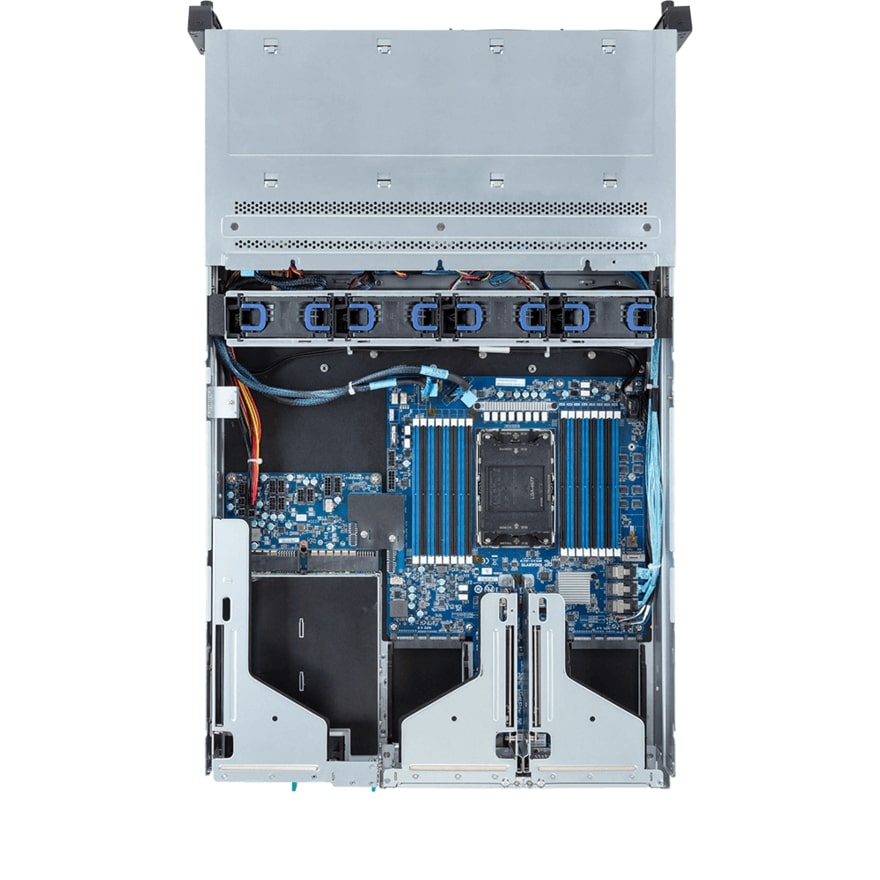

Motherboard
MS33-DC0
CPU
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Single processor, CPU TDP up to 350W
Socket
1 x LGA 4677
Socket E
Chipset
Intel® C741 Chipset
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)
LAN
Rear side:
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supports NCSI function

1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage

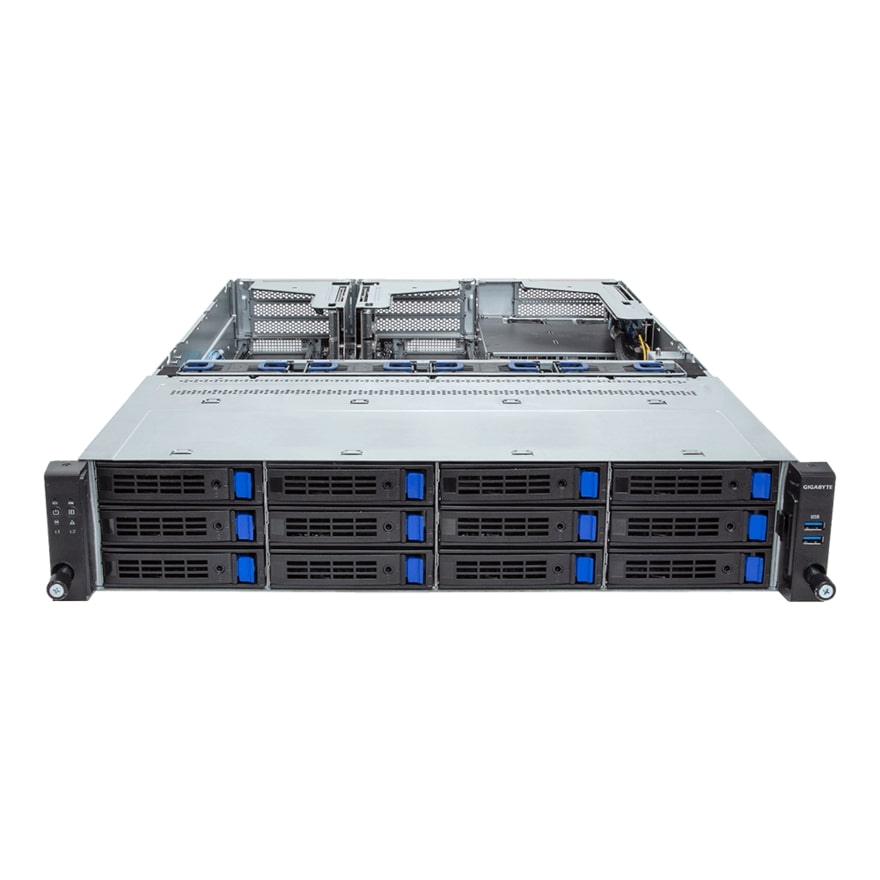

Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
SAS
Depends on SAS Add-on card
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRS201C:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU
- 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU

Riser Card CRS201D:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU
- 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards
Internal I/O
1 x M.2 slot
1 x TPM header
1 x VROC connector
2 x OCP 3.0 slots
Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x HDD activity LED
1 x System status LED

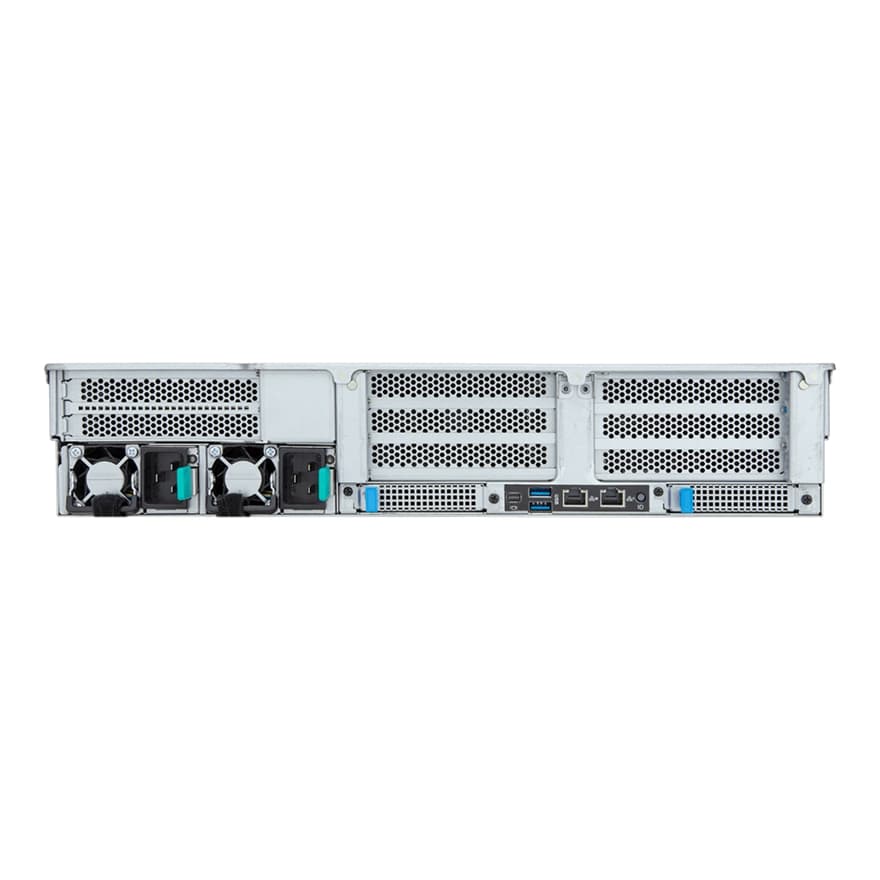

Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1300W (240V) 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 240Vdc/ 7A

DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12.2V/ 106A
+ 12Vsb/ 3A

NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
989 x 594 x 279 mm
Packaging Content
1 x R263-S30
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
3 x Carrier clips
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR263S30DR000AAH2*
- Motherboard: 9MS33DC0UR-000
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-323208-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C5: 9CBP20C5NR-00
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS201C: 9CRS201CNR-00
- Riser card - CRS201D: 9CRS201DNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21300C-G1S

Optional parts:

- 3-Section Rail kit: 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
