MSI G4101-01 4U Rackmount Single AMD EPYC GPU Server - 4x Triple-Width GPU Support - 12x Hot-Swap Bays - 1x Gigabit LAN - Redundant PSU
G4101-01
MSI G4101-01 4U Rackmount Single AMD EPYC GPU Server - 4x Triple-Width GPU Support - 12x Hot-Swap Bays - 1x Gigabit LAN - Redundant PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
| Form Factor |
4U
|
| Dimensions |
438mm(17.2")W x 176mm(6.9")H x 831mm(32.7")D
|
| Processor |
Single AMD EPYC™ 9004 Series processor and EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology, up to TDP 400W
|
| Chipset |
N/A
|
| Memory |
(12) DDR5 DIMM Slots, 1DPC, RDIMM/RIMM-3DS
- Max. Frequency 4800MT/s(1DPC) - Max. Capacity per DIMM: RDIMM: 96GB RDIMM-3DS: 256GB |
| Storage |
(1) M.2 2280/22110 PCIe 3.0 x4 port
(1) M.2 2280/22110 PCIe 3.0 x2 port |
| Drive Bays |
(12) Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays
|
| Expansion Slot |
(4) PCIe 5.0 x16 slots from CPU, support FHFL triple-wide GPU cards
(2) PCIe 4.0 x16 slots (x8 signal) from CPU |
| RAID |
N/A
|
| Networking |
N/A
|

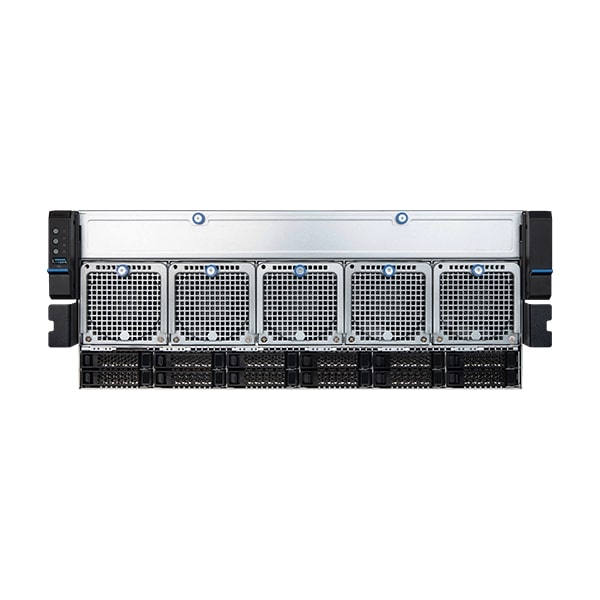

| Front I/O |
(12) Hot-swap 2.5” drive bays
(1) USB 3.2 Gen 1 Type-A Port (1) System Power LED Button (1) UID LED Button (1) Reset Button (5) 8038 Easy-Swap chassis Fans (4) Status LEDs : M.2/Fault/LAN |

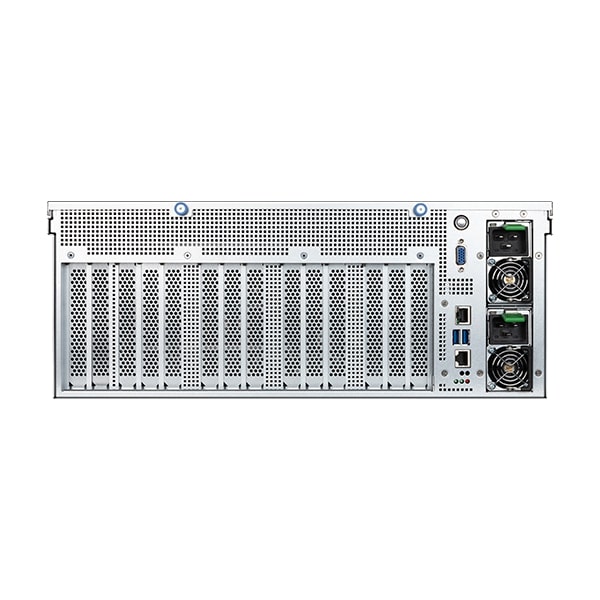

| Rear I/O |
(1) 1000Base-T Dedicated Server Management Port
(2) USB 3.2 Gen 1 Type-A Port (1) VGA D-Sub Port (1) COM RJ45 Port (1) UID LED Button (3) Status LEDs : Power/M.2/Fault |
| Server Management |
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BMC (1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) |
| Cooling |
(1) Liquid cooling module for max. 500W CPU
(5) 8038 Easy-Swap chassis fans |
| Power Supply |
(1+1) 3000W Redundant PSU 80+ Platinum
|
| Environment |
System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Certification |
CE, FCC (Class A)
|
| Socket |
(1) AMD Socket SP5
|
| TPM |
(1) TPM header with SPI interface
|
| Security |
TPM 2.0
|
| Package Contents |
(1) 4U Barebone G4101-01
(1) Quick guide (1) Slide rail kits (1) Liquid cooling module (4) GPU card fixed bracket (4) Chassis handles (4) Power cables |
| Parts List |
(1)Quick guide: G52-S3372X1-Q13
(1)Slide rail Kit: E22-S370220-K32 (2)Power supply: S93-0914011-A69(Platinum) (1)Liquid cooling module: E34-F000100-AQ0 (4) GPU card fixed brackets: E22-S337040-C27 (4) Chassis Handles: E22-S337230-C27 Power cable: (2)K33-3001279-I45 for NA, (2) K33-3001283-I45 for EU |
| Optional parts |
TPM2.0 module: TPM20-IR
|
