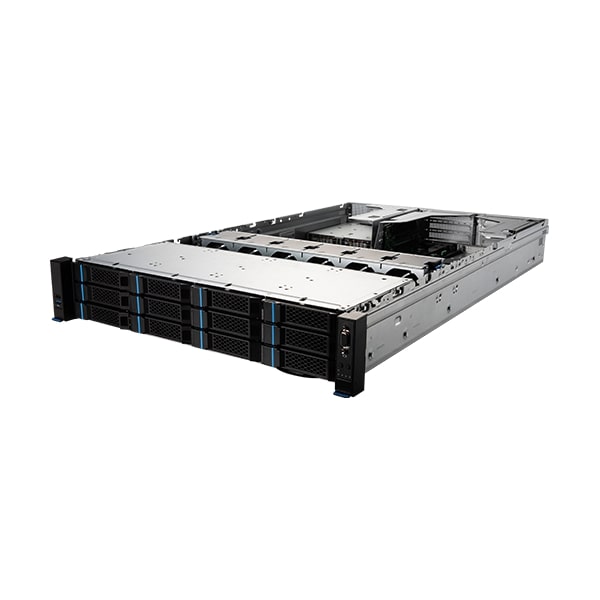

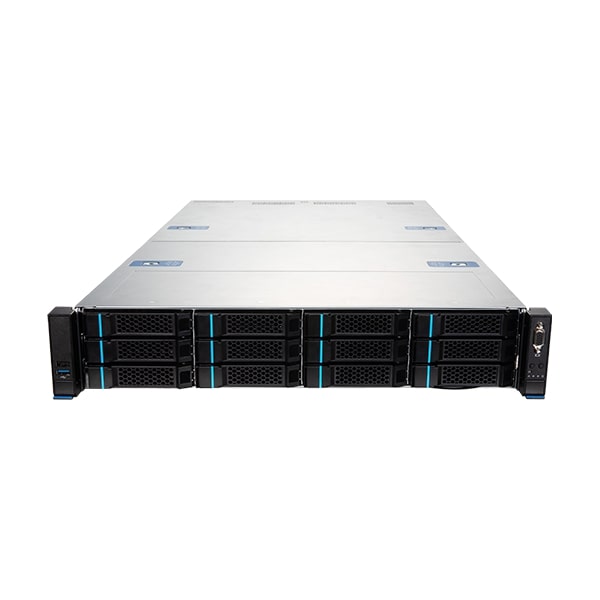

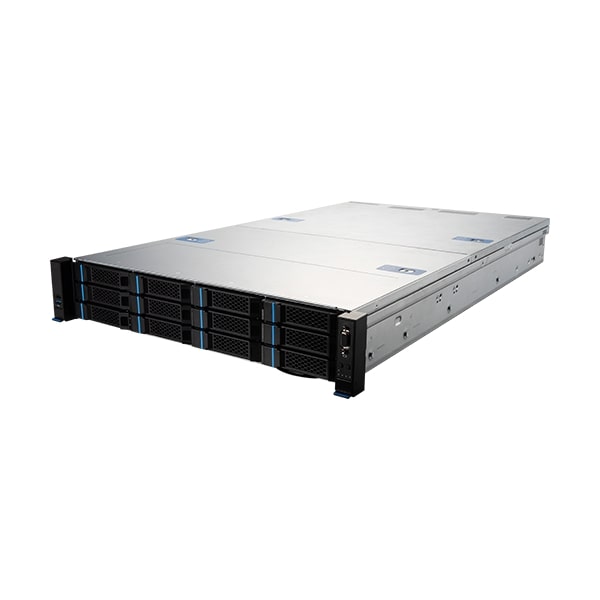

MSI S2205-01 2U Rackmount Dual Intel Xeon Scalable Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU
S2205-01
MSI S2205-01 2U Rackmount Dual Intel Xeon Scalable Server - 12x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.
To learn more about this product complete the form below and one of our team will get right back to you.
Product Description
| Form Factor |
2U
|
| Processor |
Dual 4th/5th Generation Intel® Xeon® Scalable Processors, TDP up to 350W
|
| Chipset |
Intel® C741
|
| Memory |
(32) DDR5 DIMM Slots, 8 channels per CPU(2DPC), RDIMM/3DS
- Max. Frequency 5th Gen Intel® Xeon®: 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: 4800 MT/s (1DPC), 4400 MT/s (2DPC) - Max Capacity per DIMM: RDIMM: 96GB RDIMM-3DS: 256GB |
| Networking |
No onboard LAN
(2) 1000GBase-T Ethernet Ports w/ optional M.2 LAN module NAD-101 |
| Storage |
(2) M.2 2280/22110 PCIe3.0 x2 ports from PCH
|
| Drive Bays |
(12) Hot-swap 3.5"/2.5" drive bays support SATA 3.0/SAS/U.2 PCIe 4.0 NVMe
*SAS card is required for SAS devices support |

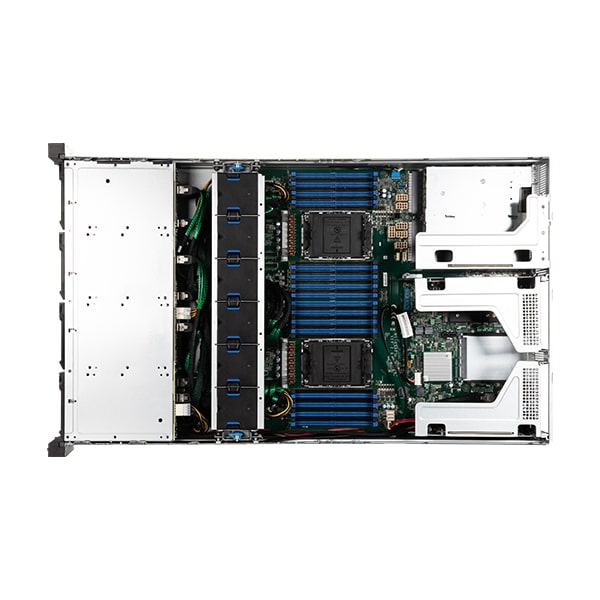

| Expansion Slot |
Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports FHFL GPU card (2) PCIe 4.0 x16(x8 signal) slots from CPU0 support FHHL PCIe card Riser 2: (1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU card (2) PCIe 4.0 x16(x8 signal) slots from CPU1 support FHHL PCIe card Riser 3: (1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU Card OCP3.0: (1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function |

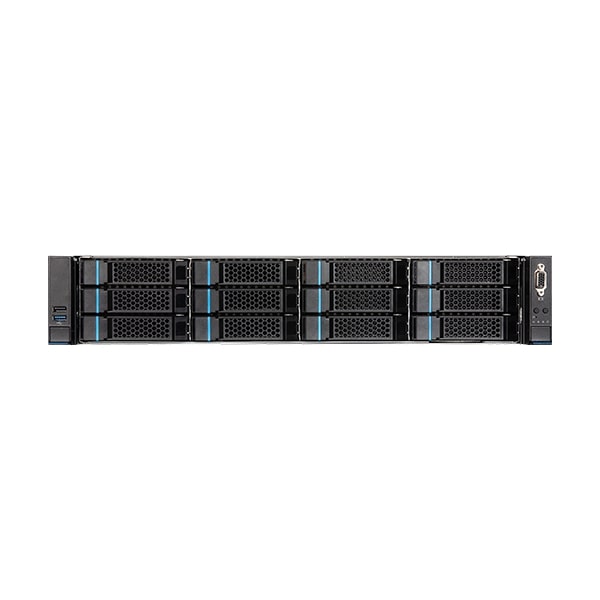

| Front I/O |
(12) Hot-swap 3.5"/2.5" drive bays
(2) USB 2.0 Type-A Port (1) VGA D-Sub Port (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs: Fault/LAN/M.2 |

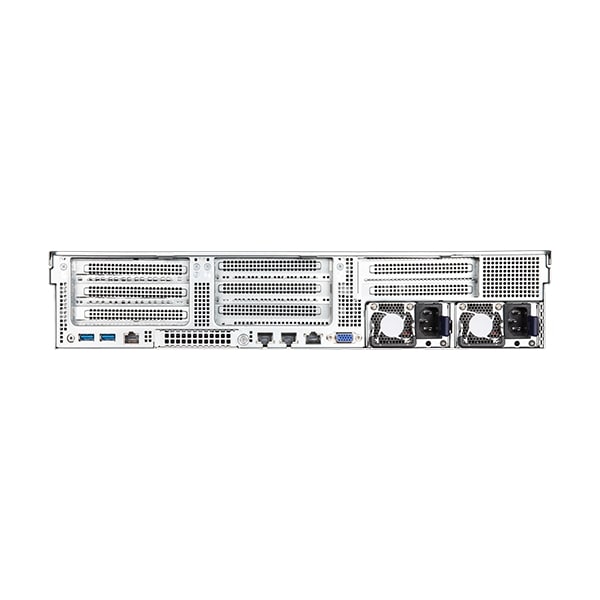

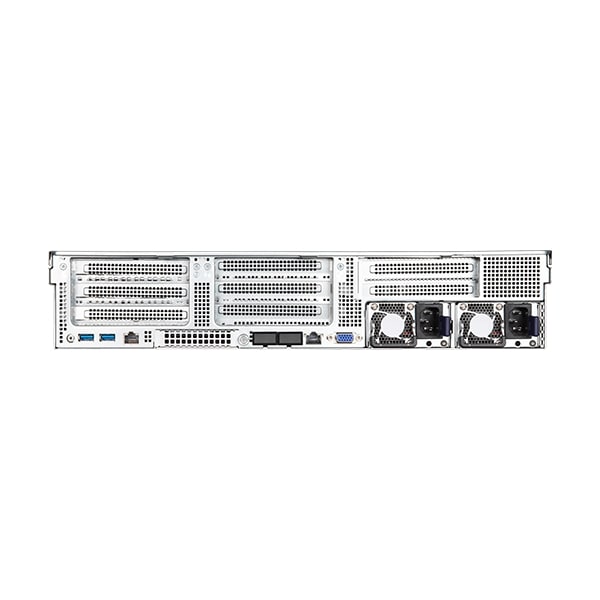

| Rear I/O |
(1) 1000Base-T Dedicated Server Management Port
(2) USB 2.0 Type-A Port (1) VGA D-Sub Port (1) COM RJ45 Port (1) UID LED Button |
| RAID |
Intel® SATA RAID 0/1/10/5
(1) VROC header for Intel® VROC key |
| Server Management |
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and BMC (1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) (1) MicroSD card slot for BMC log |
| Cooling |
(2) EVAC air cooling modules for max. 350W CPU
(6) 6038 Hot-swap System Fans (1) Air duct supports FL GPU cards |
| Environment |
System Operating Temperature: 0°C ~ 35°C
Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Certification |
CE, FCC (Class A)
|
| Dimensions |
438mm(17.2") Wx 87mm(3.4") Hx 770mm(30.3")D
|
| Power Supply |
(1+1) Redundant 2000W CRPS 80+ Platinum
|
| Security |
TPM 2.0
|
| Package Contents |
(1) Barebone G2205-01
(1) Quick guide (1) Slide rail Kit (2) CPU Coolers (2) CRPS PSUs (2) Power cables (2) Power cable adapters for GPU |
| TPM |
(1) TPM header with SPI interface
|
| Parts List |
(1) Quick guide: G52-S3222X2-Q13
(1) Slide rail Kit: E21-S258030-C27 (2) CPU Coolers: E31-0807360-824 (2) CRPS PSUs: S93-0913131-S14 (2) Power cables: K33-3001002-I45 for NA (2 )Power cable adapters for GPU: (1)K1G-3008085-V03 & (1)K1G-3008086-V03 (1) Air duct: OE2-S322001-C27 (1) Air duct (Mylar): E26-S322020-LB4 |
| Optional parts |
TPM2.0 module: TPM20-IR
M.2 LAN module: MEZ-E11 |
