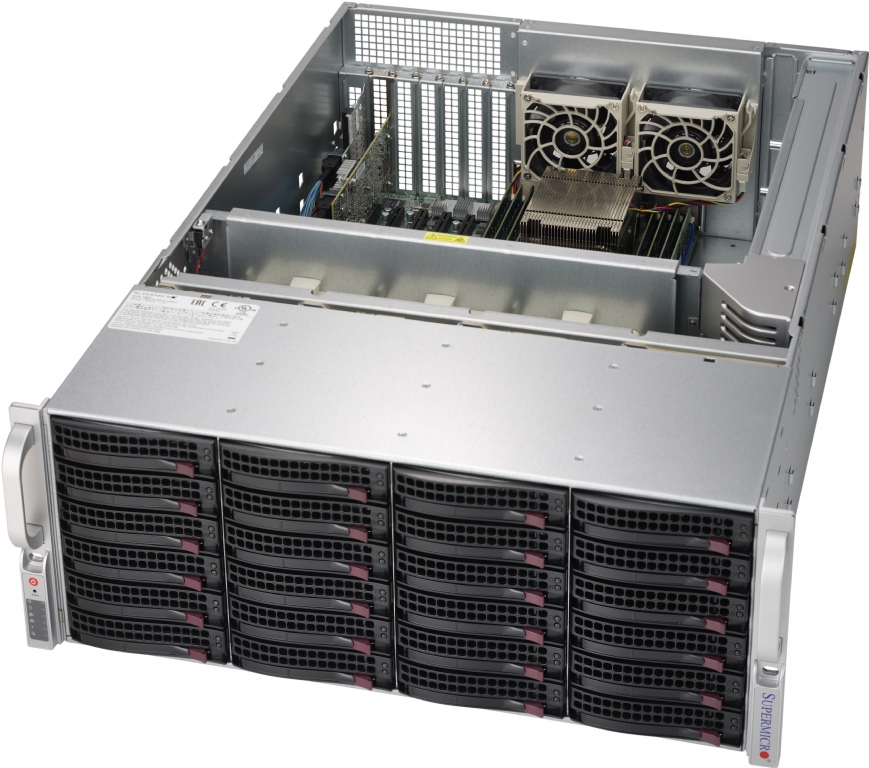

Supermicro SuperStorage Server 6048R-E1CR24L

SSG-6048R-E1CR24L
Supermicro SuperStorage Server 6048R-E1CR24L
£1,895.54
ex. VAT

Hurry, only 1 left in stock

Great news, we have 1 of this product in stock. Available for next working day delivery.

Want it delivered by 15th Dec 2018? Order within 21 Hours and 41 minutes and get it delivered the next working day as standard.
Quantity



Next working day delivery countdown

Hour

Min

Sec


Order this product before 4.30pm today and get it delivered for only £6.95 on 15th Dec 2018

Product SKUs
SSG-6048R-E1CR24L
  • SuperServer 6048R-E1CR24L (Black)

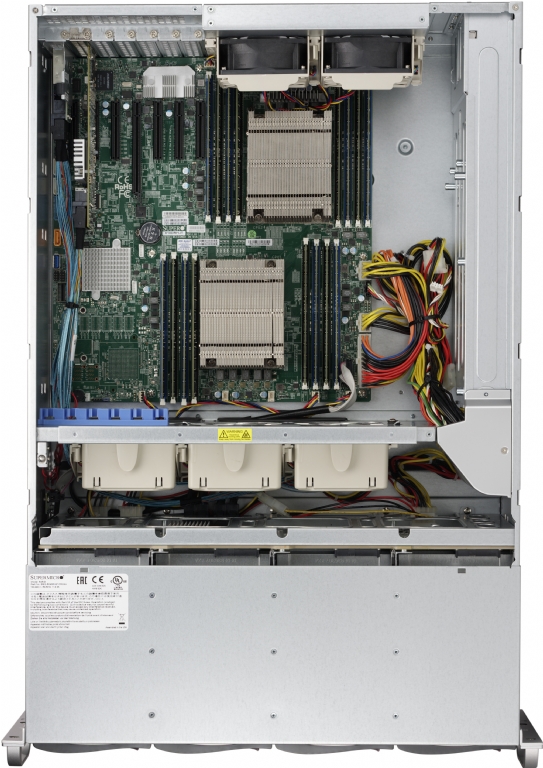

Motherboard

Super X10DRH-iT

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note  BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008
  • IT mode firmware
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GbE
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

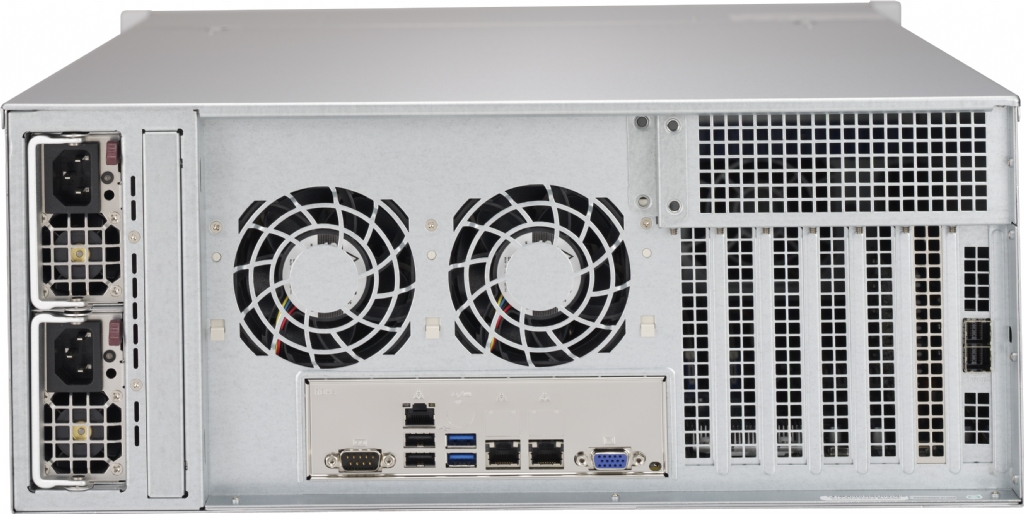

Input / Output
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
  • 1 Type A
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-846BE1C-R920B

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 26.5" (673mm)
Weight
  • Gross Weight: 92 lbs (41.7 kg)
  • Net Weight: 55 lbs (24.9 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot
  • 6 PCI-E 3.0 x8 slots
  • Slot 1 & 2 occupied by controller and JBOD Expansion Port

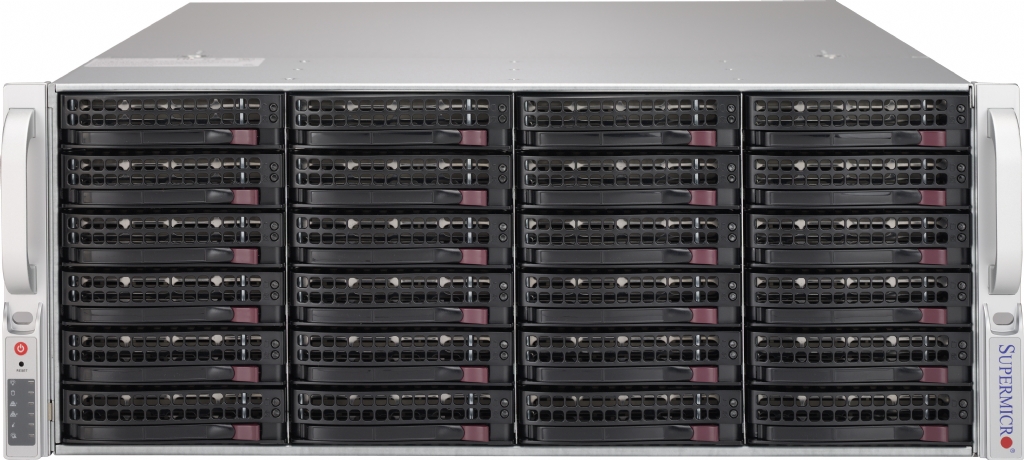

Drive Bays
Hot-swap
  • 24x 3.5" Hot-swap SAS3/SATA3 drive bays
Optional
  • 2x 2.5" Hot-swap SATA drive bays (rear)

Backplane
SAS3/SATA3 single expander per backplane

System Cooling
Fans
  • 2x 80mm hot-swap rear exhaust cooling fans
  • Redundant cooling

Power Supply
920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC
AC Input
  • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
  • +5V standby: 4A
  • +12V: 75A
With Power Distributor
  • +5V: 45A
  • +3.3V: 24A
  • -12V: 0.6A
Certification Platinum Level Certified    Platinum Certified
  Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRH-iT

CSE-846BE1C-R920B
1

1
Super X10DRH-iT Motherboard

4U Chassis
Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-SAST-0531-01 4 MINI SAS HD,12G,INT,80CM,30AWG
Cable 2 CBL-0296L 3 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 3 CBL-PWEX-0645 2 big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode
Add On Card AOC-S3008L-L8E-O-P 1 12Gbps SAS3/HBA/ 2 internal HD connectors/STD Gen3 PCI/122 HD support
Add On Module AOM-SAS3-8I8E 1 8-port Mini SAS HD Int-to-Ext cable adapter w/FH bracket,HF,RoHS/REACH


Optional Parts List
  Part Number Qty Description
HDD bracket CBL-0289L
CBL-0473L
1
2
HDD Power Cable
HDD SATA Cable
Peripheral Drives MCP-220-84606-0N - Rear 2 X 2.5" HDD kit (cables & backplane included)
Cable CBL-0099 1 HDD Y-Split Cable
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
