Supermicro BigTwin SuperServer SYS-220BT-HNTR

SYS-220BT-HNTR

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-220BT-HNTR (Black)

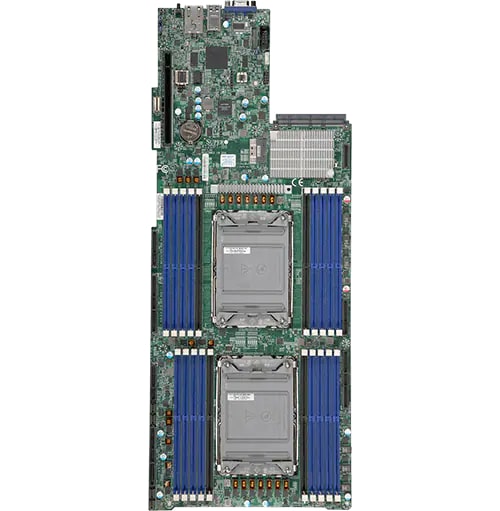

Motherboard
Super X12DPT-B6

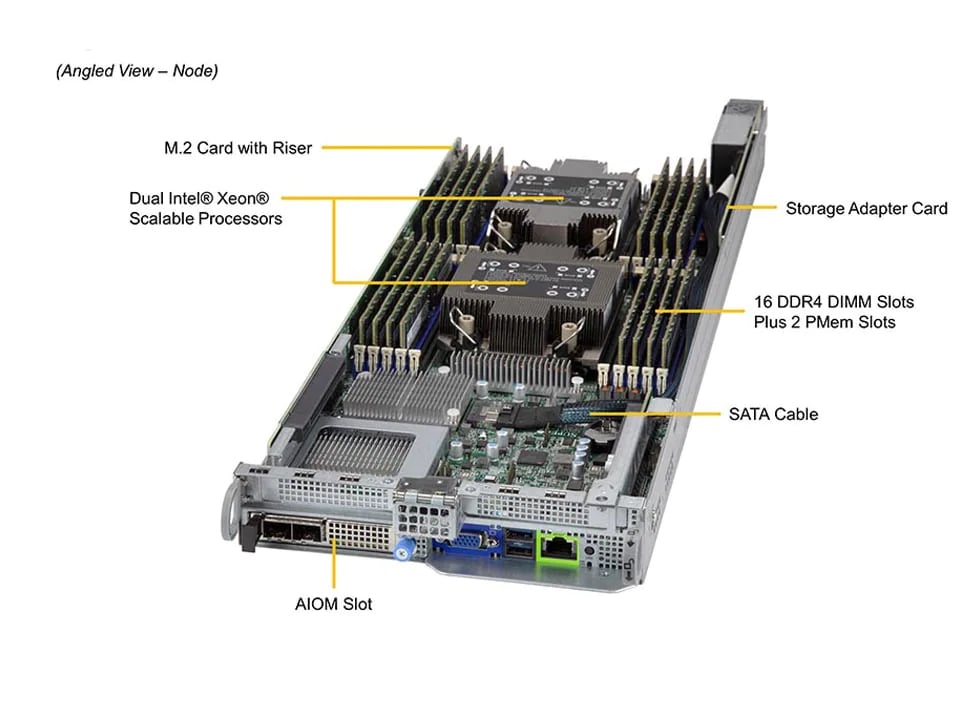

Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 205W TDP CPUs (Air Cooled)

GPU (per Node)
Max GPU Count	Up to 2 double-width or 8 single-width GPU(s)
Supported GPU	Intel: Intel Data Center GPU Flex 170 View Complete List

System Memory (per Node)
Memory	Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem Memory Type: 3200MHz ECC DDR4 RDIMM Intel® Optane™ persistent memory 200 series

On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	Via AIOM
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

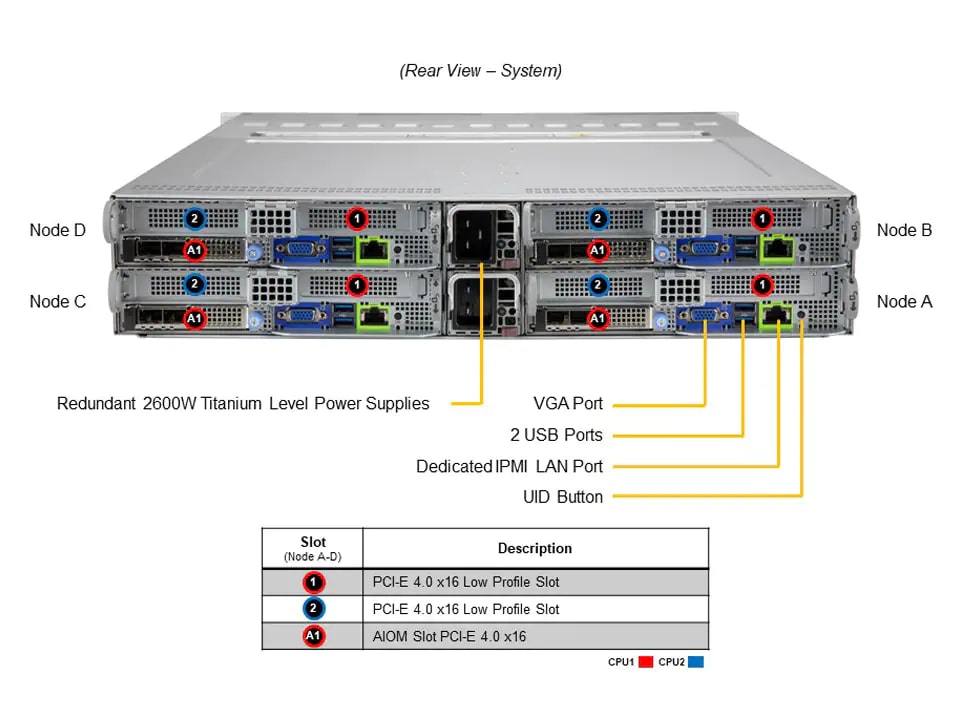

Input / Output (per Node)
LAN	1 RJ45 Dedicated BMC LAN port
USB	3 USB 3.0 port(s) (1 front; 2 rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB Flash ROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI / APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment

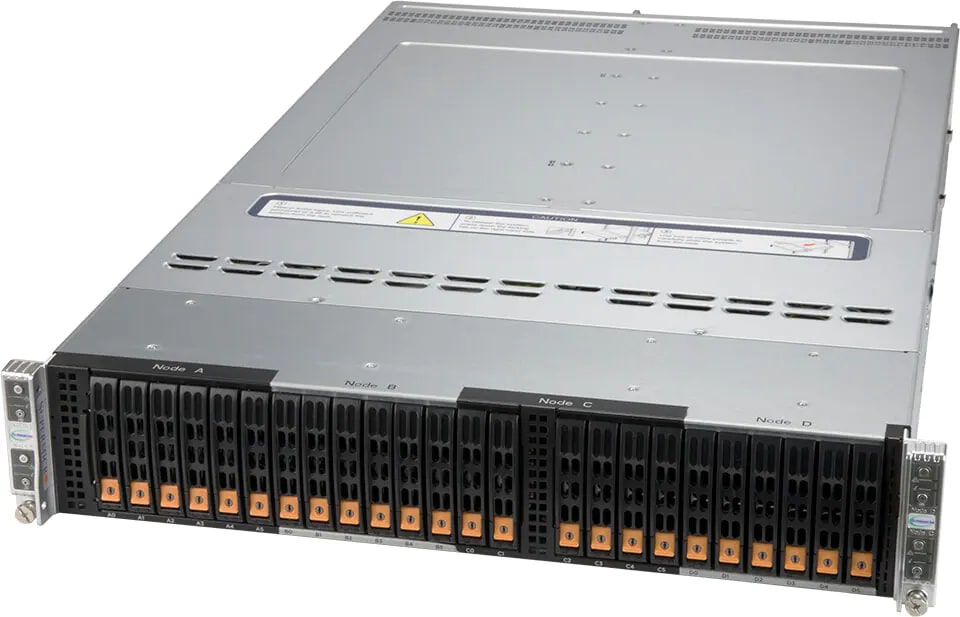

Chassis
Form Factor	2U Rackmount
Model	CSE-217BQ-000NP

Dimensions and Weight
Height	3.47" (88mm)
Width	17.68" (449mm)
Depth	28.75" (730mm)
Package	9.76" (H) x 24.65" (W) x 45.28" (D)
Weight	Net Weight: 66.1 lbs (30 kg) Gross Weight: 96.6 lbs (43.8 kg)
Available Color	Black

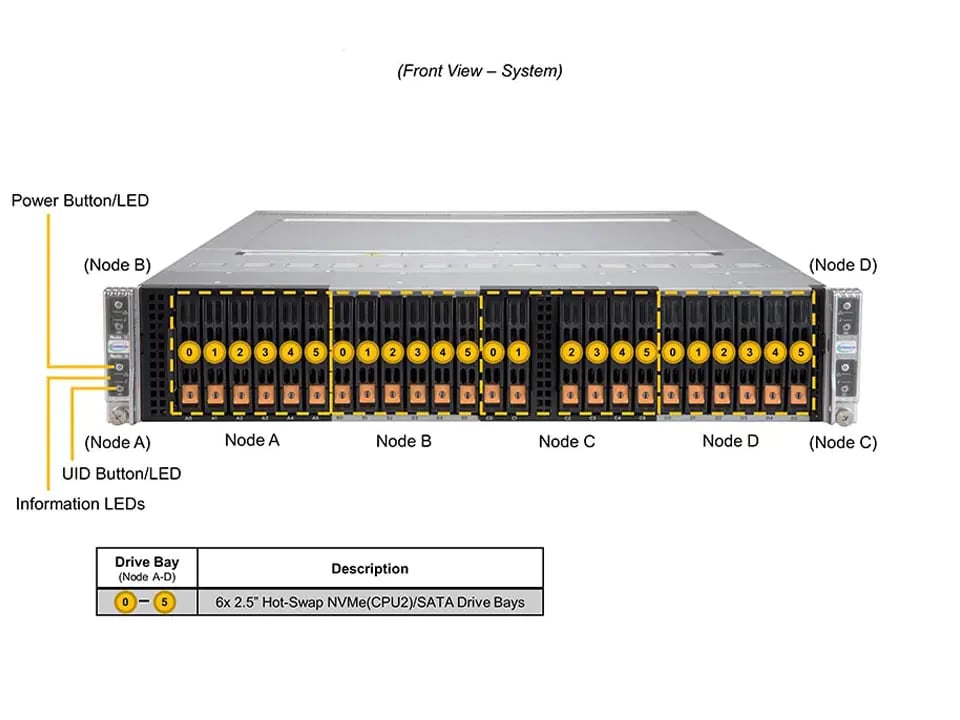

Front Panel
Buttons	Power On/Off button UID button
LEDs	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express (PCIe)	2 PCIe 4.0 x16 LP slot(s)

Drive Bays / Storage (per Node)
Hot-swap	6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid)

System Cooling
Fans	4x 16.5K RPM Heavy Duty 8cm Fan(s)

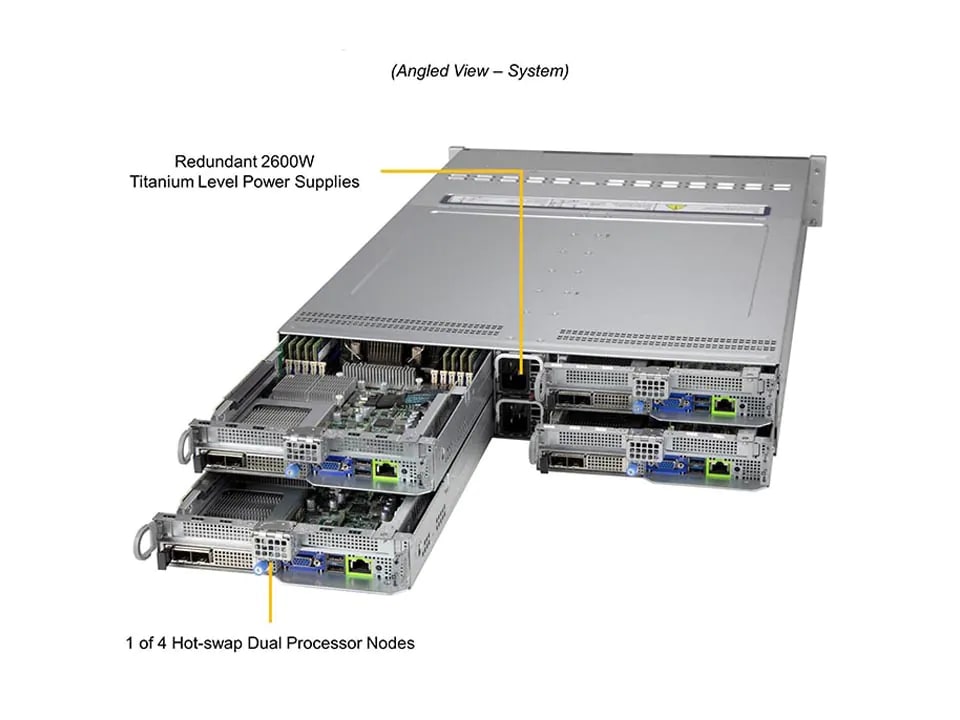

Power Supply
2600W Redundant Titanium Level power supplies
Dimension (W x H x L)	45 x 40 x 480 mm
AC Input	2600W: 208-240Vac / 50-60Hz 2600W: 220-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216.6A / Min: 0A (208Vac-240Vac) Max: 216.6A
12V SB	Max: 4.5A / Min: 0A
Output Type	Backplanes (connector)
Certification	Titanium Level [ Test Report ]

Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
