Supermicro CloudDC SuperServer 120C-TN10R

SYS-120C-TN10R
Supermicro CloudDC SuperServer 120C-TN10R
Call our Solutions Specialists - 01283 576162
Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
Product SKUs
SuperServer SYS-120C-TN10R (Black)

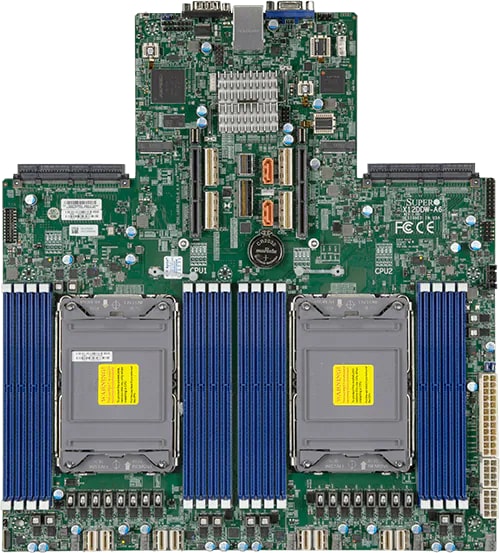

Motherboard
Super X12DDW-A6

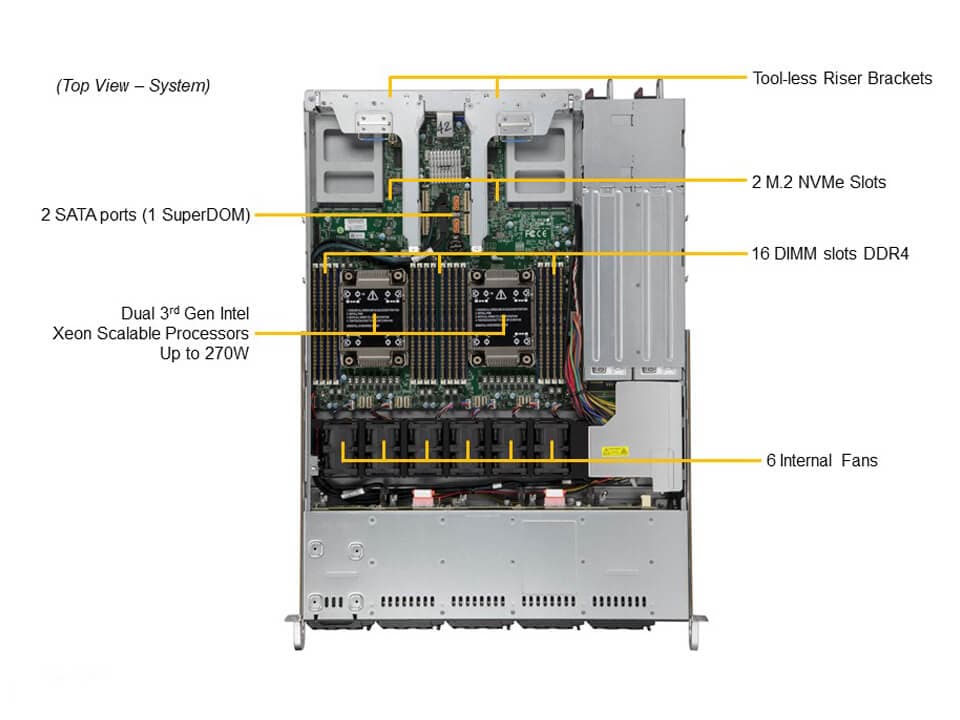

Processor
CPU
  • Dual Socket P4 (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 185W only supported under specific conditions. Contact a Supermicro representative for details.​
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPU(s)
Supported GPU
Certification
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support ((*VROC is required))
Chipset
  • Intel® C621A
Network Connectivity
  • Via Slim-AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

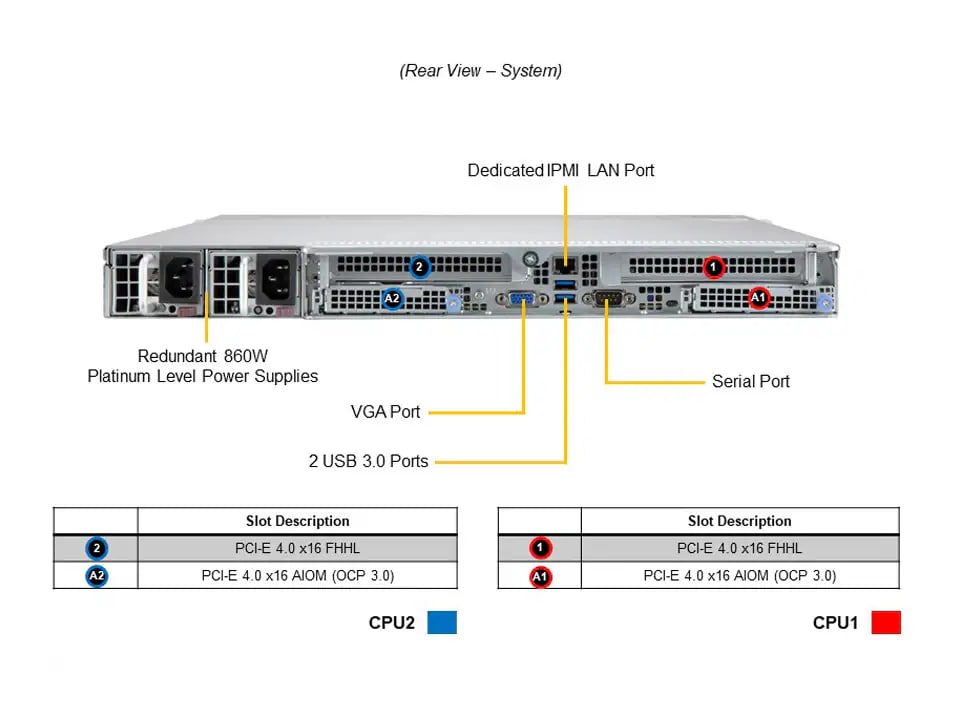

Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitorin
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 7.7" (H) x 23.7" (W) x 31.8" (D)
Weight
  • Gross Weight: 40 lbs (18.14 kg)
Available Color
  • Black

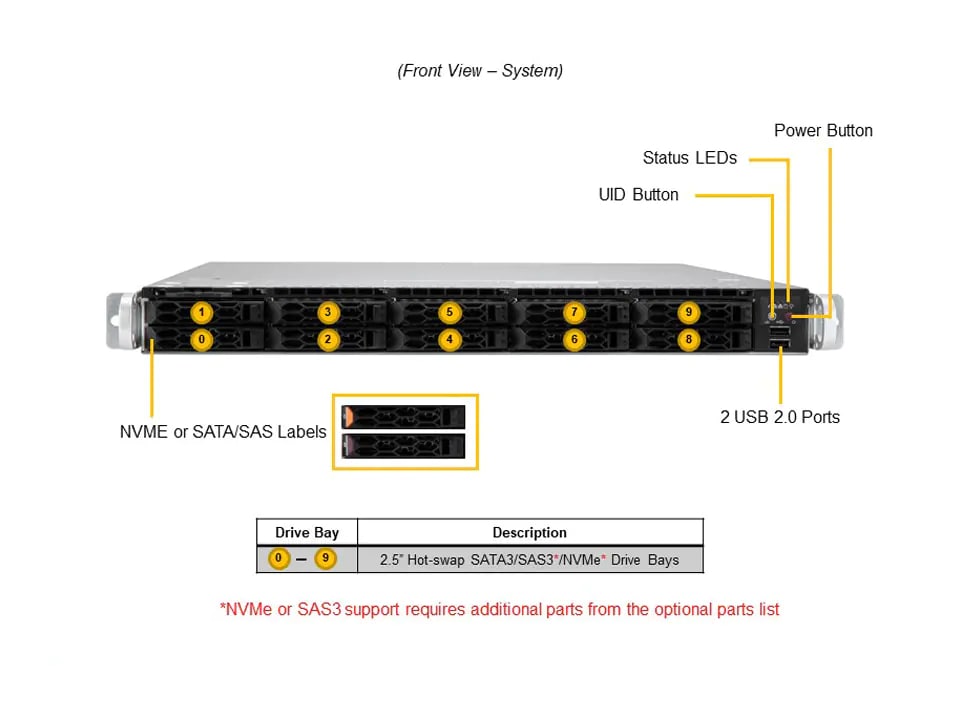

Front Panel
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
LEDs
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
  • Unit Identification (UID) LED
Port
  • USB 2.0 Port(s)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 4.0 x16 FHHL slot(s)
Drive Bays / Storage
Hot-swap

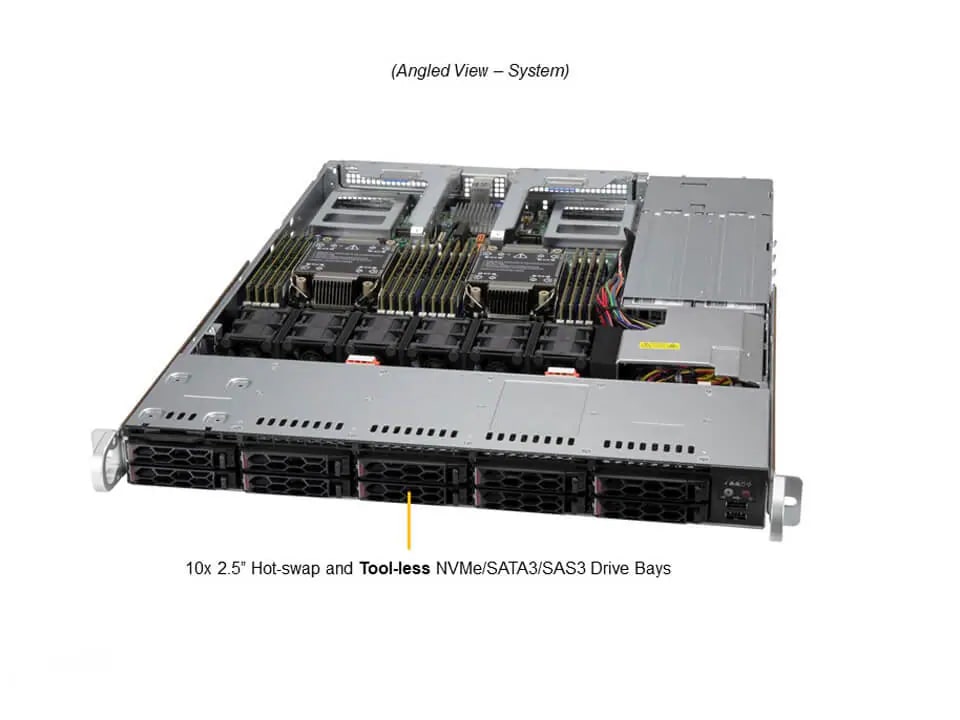

  • 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (NVMe drives require additional cables from the optional parts list.)
M.2
  • 2 M.2 NVMe
  • M-Key, 2280
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
860W Redundant Platinum Level power supplies
Dimension

(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac
  • 800W: 100-127Vac / 50-60Hz
  • 860W: 200-240Vac
  • 860W: 200-240Vdc / 50-60Hz
  • 860W: 200-240Vac / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vdc-240Vdc)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Platinum Level Certified94%+  Platinum Level




  Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
