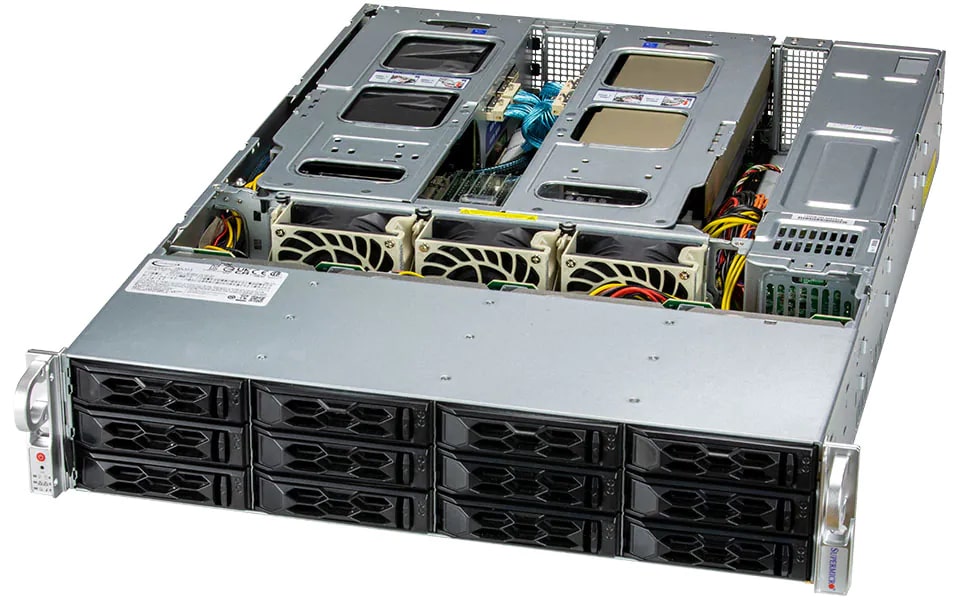

Supermicro CloudDC SuperServer 620C-TN12R

SYS-620C-TN12R

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-620C-TN12R (Black)

Motherboard

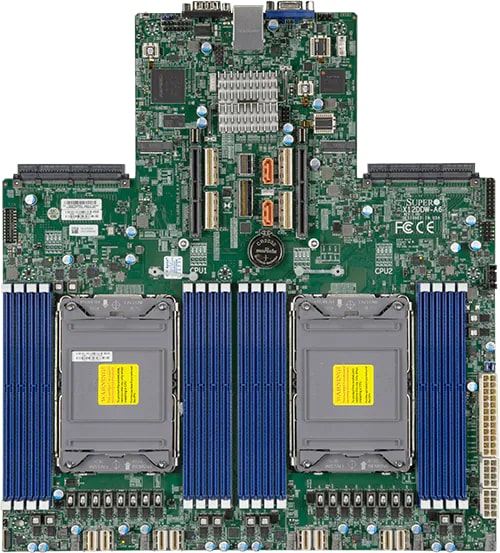

Super X12DDW-A6

Processor

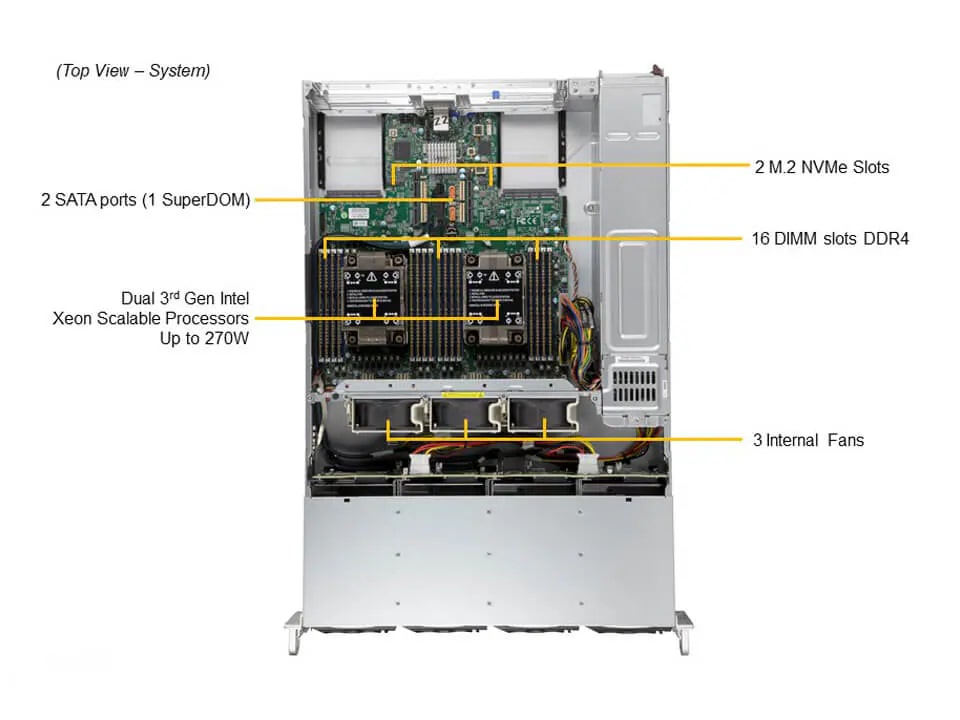

CPU	Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU

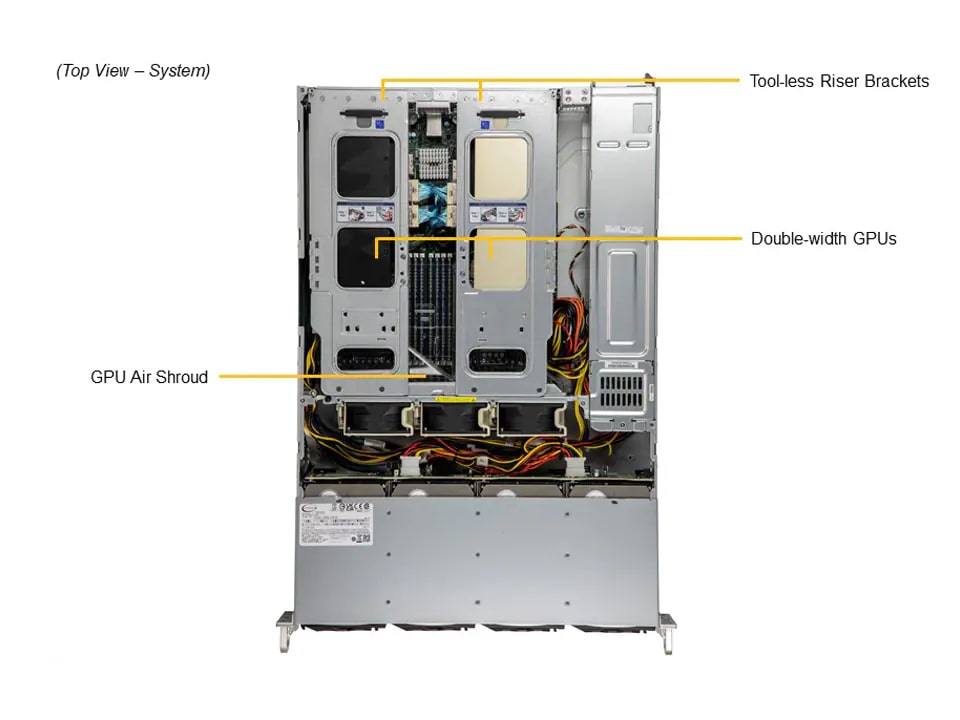

Max GPU Count	Up to 2 double-width or 6 single-width GPU(s)
Supported GPU	Intel: Intel Data Center GPU Flex 170 NVIDIA PCIe: A2, A30, RTX A5000, A100, A16, RTX A4500, RTX A6000 View Complete List

System Memory
Memory	Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;PMEM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support (*VROC is required)
Chipset	Intel® C621A
Network Connectivity	with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

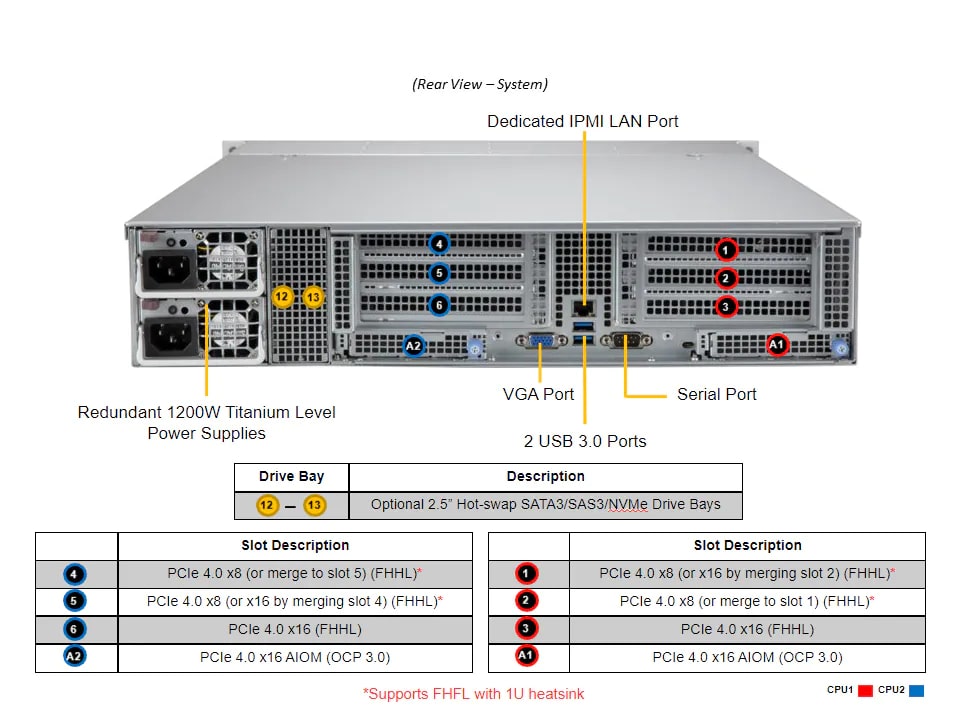

Input / Output
LAN	1 Dedicated IPMI LAN port
USB	2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	1 SuperDOM (Disk on Module) port

System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U
Model	CSE-LA26AC12-R1K23AW

Dimensions and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	25.5" (647mm)
Package	11.4" (H) x 26.4" (W) x 34.3" (D)
Weight	Net Weight: 35.3 lbs (16 kg) Gross Weight: 69 lbs (31.3 kg)
Available Color	Black

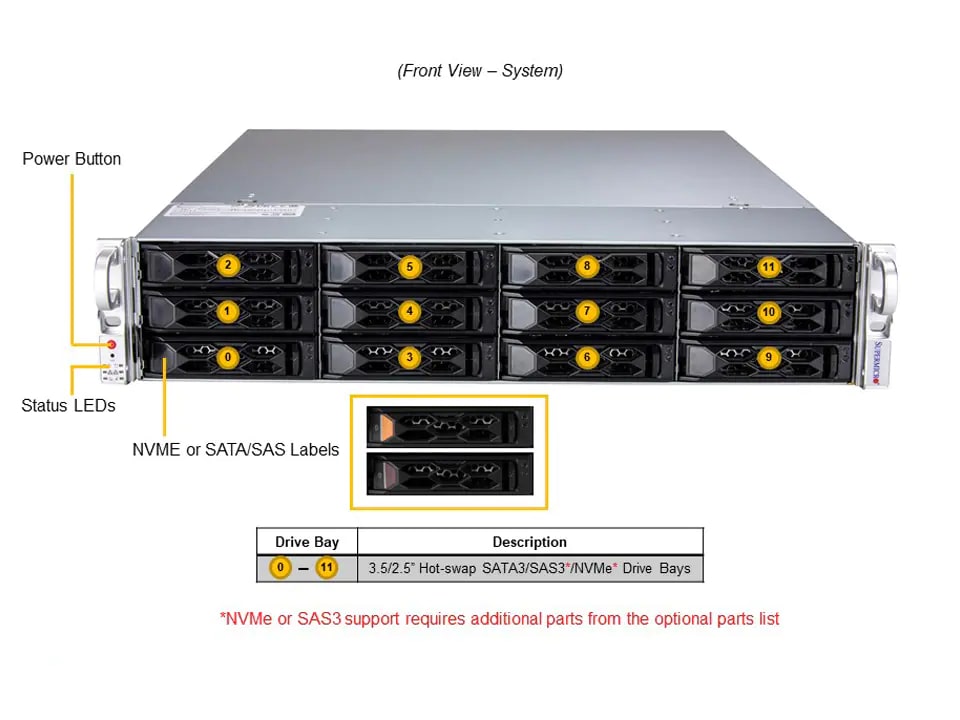

Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED Unit Identification (UID) LED

Expansion Slots
PCI-Express (PCIe)	4 PCIe 4.0 x8 FHHL slot(s) 2 PCIe 4.0 x16 FHHL slot(s) (Slots 1 and 4 can convert to x16 by merging 2 and 3. Slots 1, 2, 4 and 5 can support FHFL cards with 1U heatsinks. Some slots share PCIe lanes with NVME. FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length, DW = Double Width, SW = Single Width)

Drive Bays / Storage

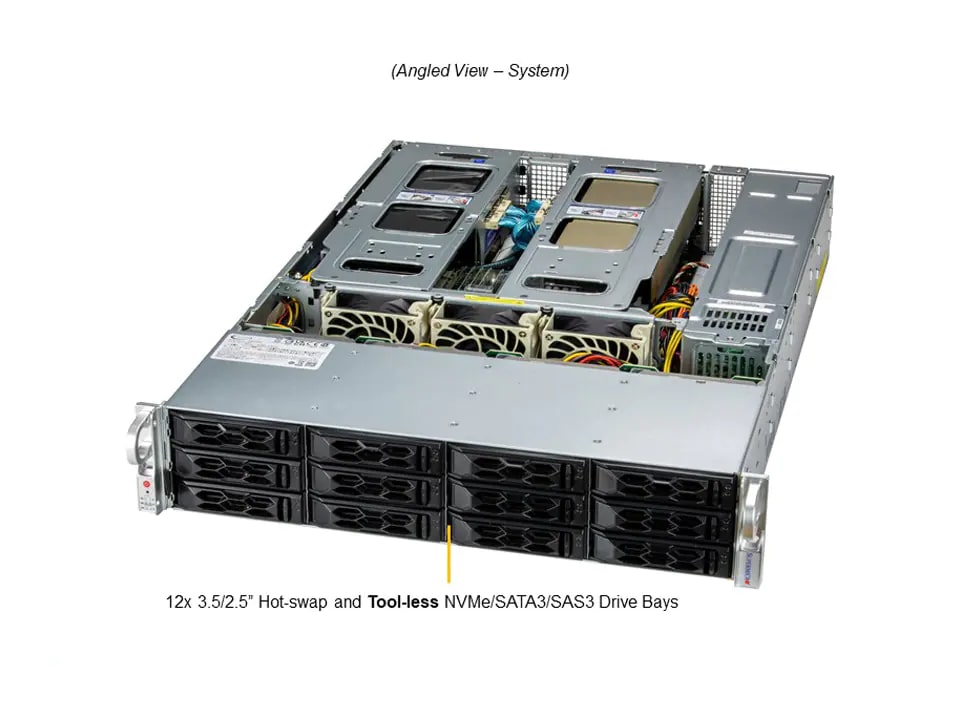

Hot-swap	12x 3.5" hot-swap NVMe/SATA/SAS drive bays (12x 3.5" NVMe hybrid) (NVMe drives require additional cables from the optional parts list.)
M.2	2x PCIe 3.0 x2 M-Key, 2280

System Cooling
Fans	3x 8cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud(s)

Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
